Cowl Panel Grille: Removal

  1. Remove the wiper pivot arms. Refer to: Windshield Wiper Pivot Arm .

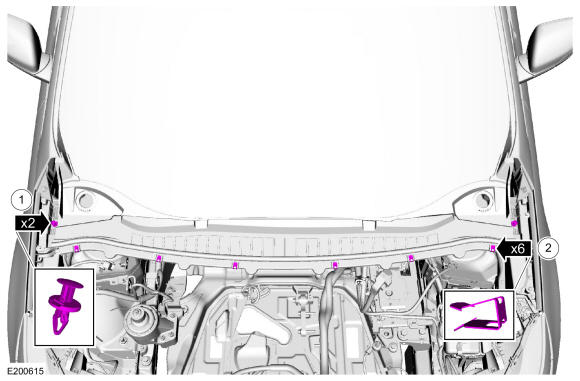

    1. Remove the retainers.
    2. Remove the clips.
    GFD385450Courtesy of FORD MOTOR COMPANY

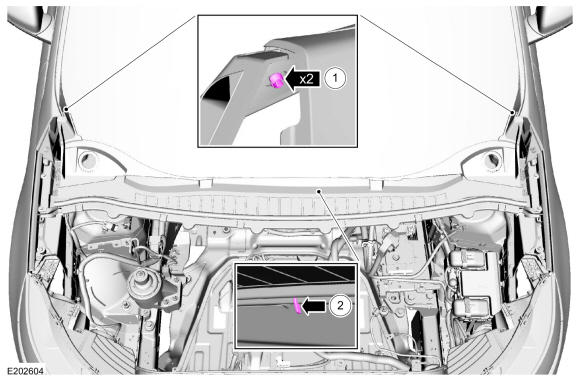

    1. Depress and remove the clips.
    2. Release the retaining tab.
    GFD385451Courtesy of FORD MOTOR COMPANY

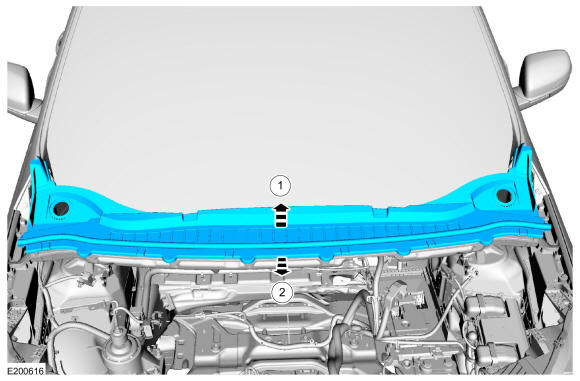

    1. Lift the cowl panel grille up.
    2. Pull the cowl panel grille out and remove.
GFD385452Courtesy of FORD MOTOR COMPANY
