OEM Electrical Wiring Diagram Introduction: Introduction

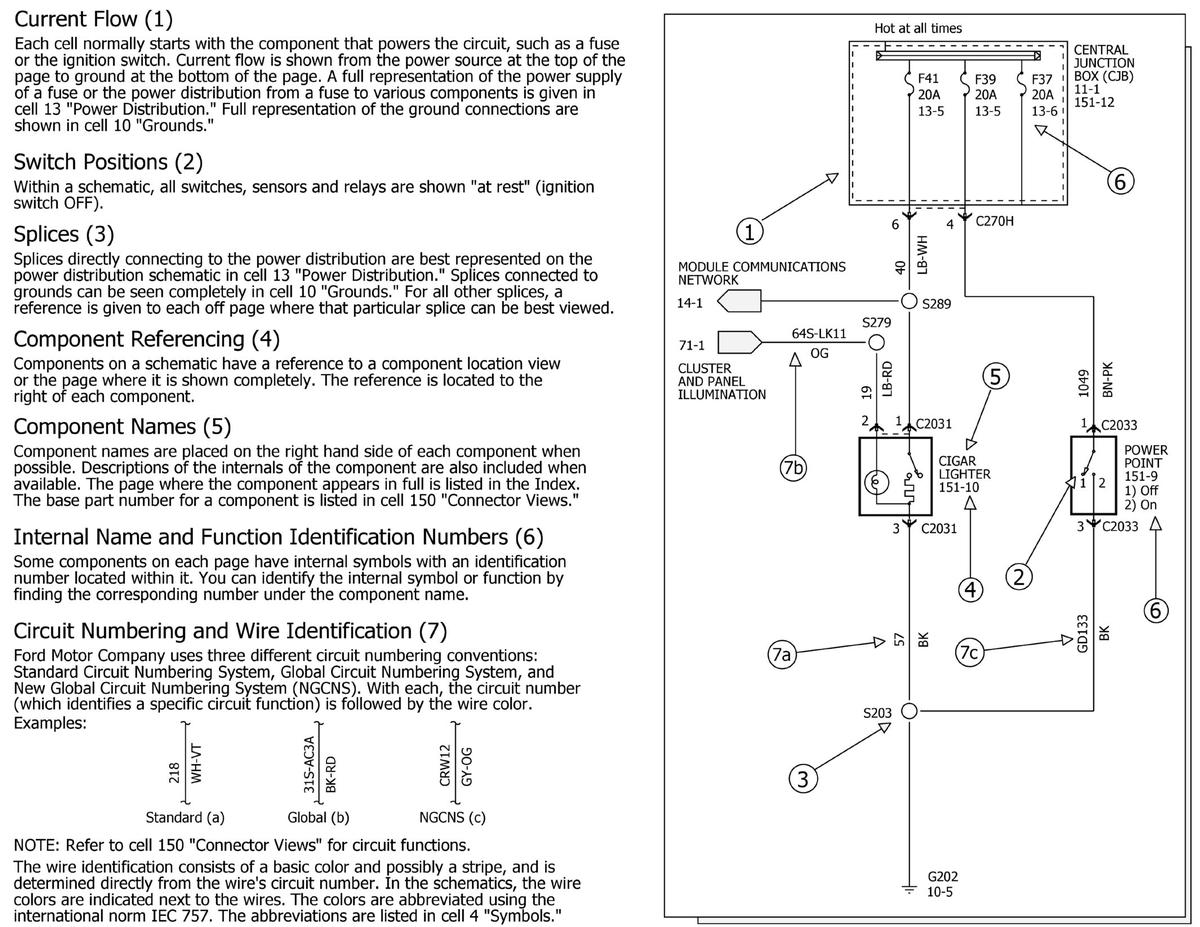

Fig 1: Locating Electrical Components (Current Flow, Switch Positions, etc.)

Courtesy of FORD MOTOR COMPANY

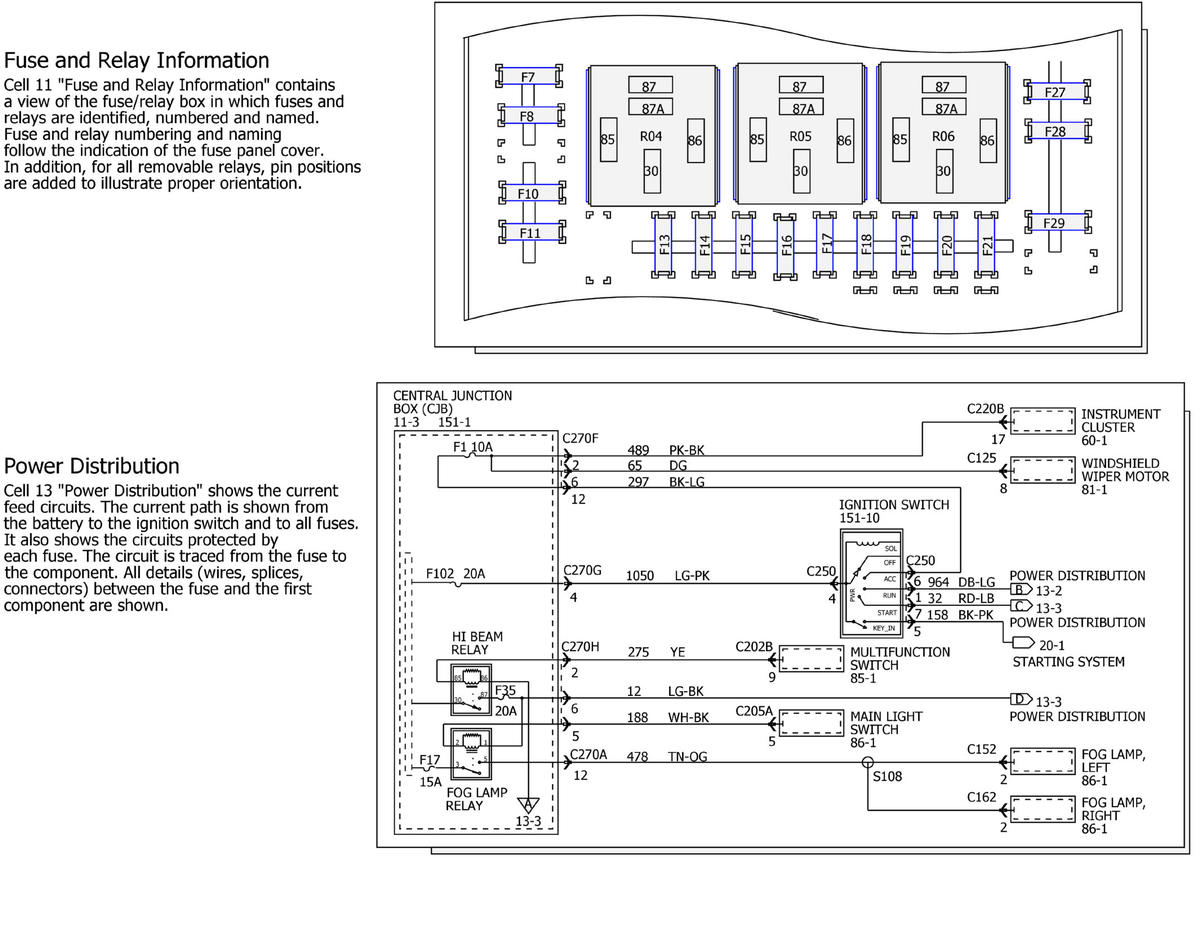

Fig 2: Fuse & Relay Information and Power Distribution

Courtesy of FORD MOTOR COMPANY

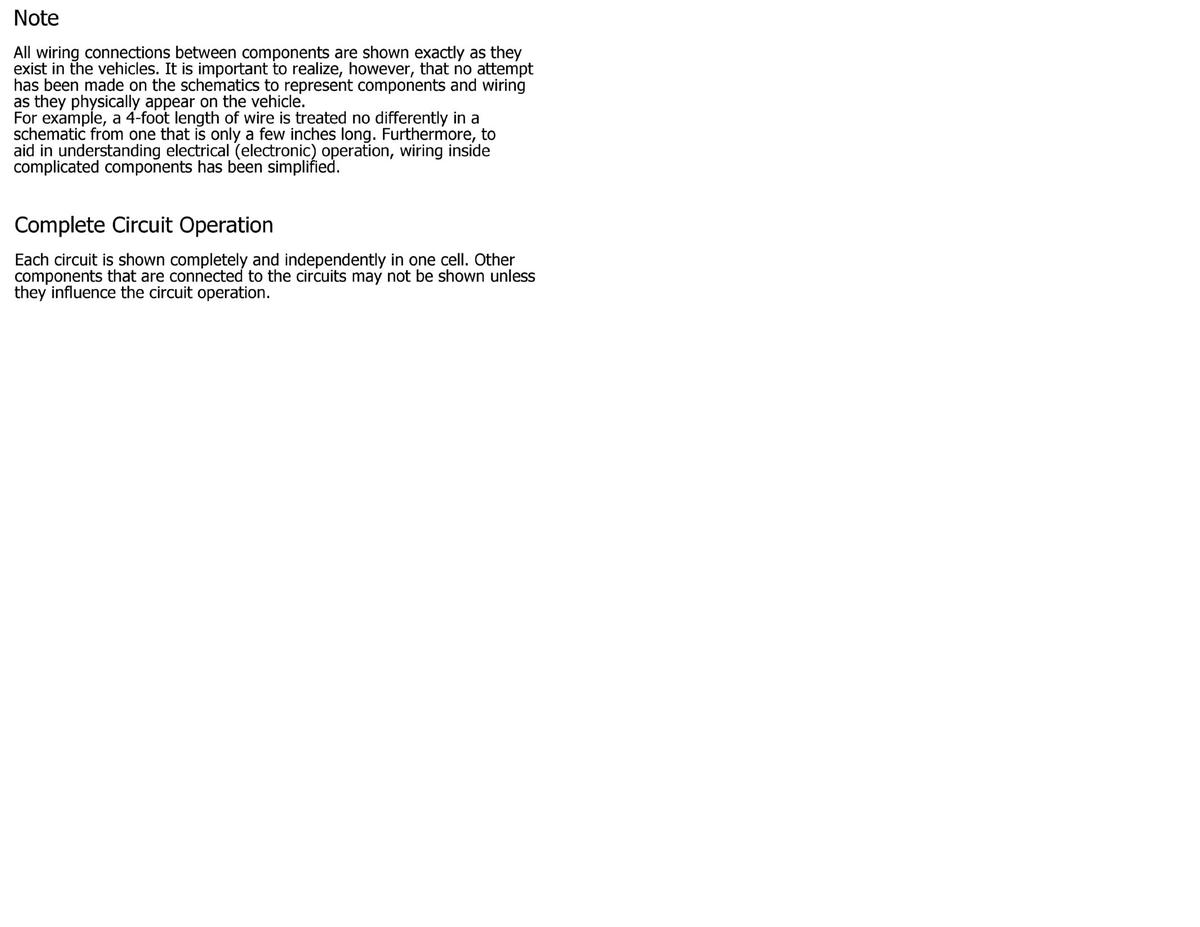

Fig 3: Note and Complete Circuit Operation

Courtesy of FORD MOTOR COMPANY

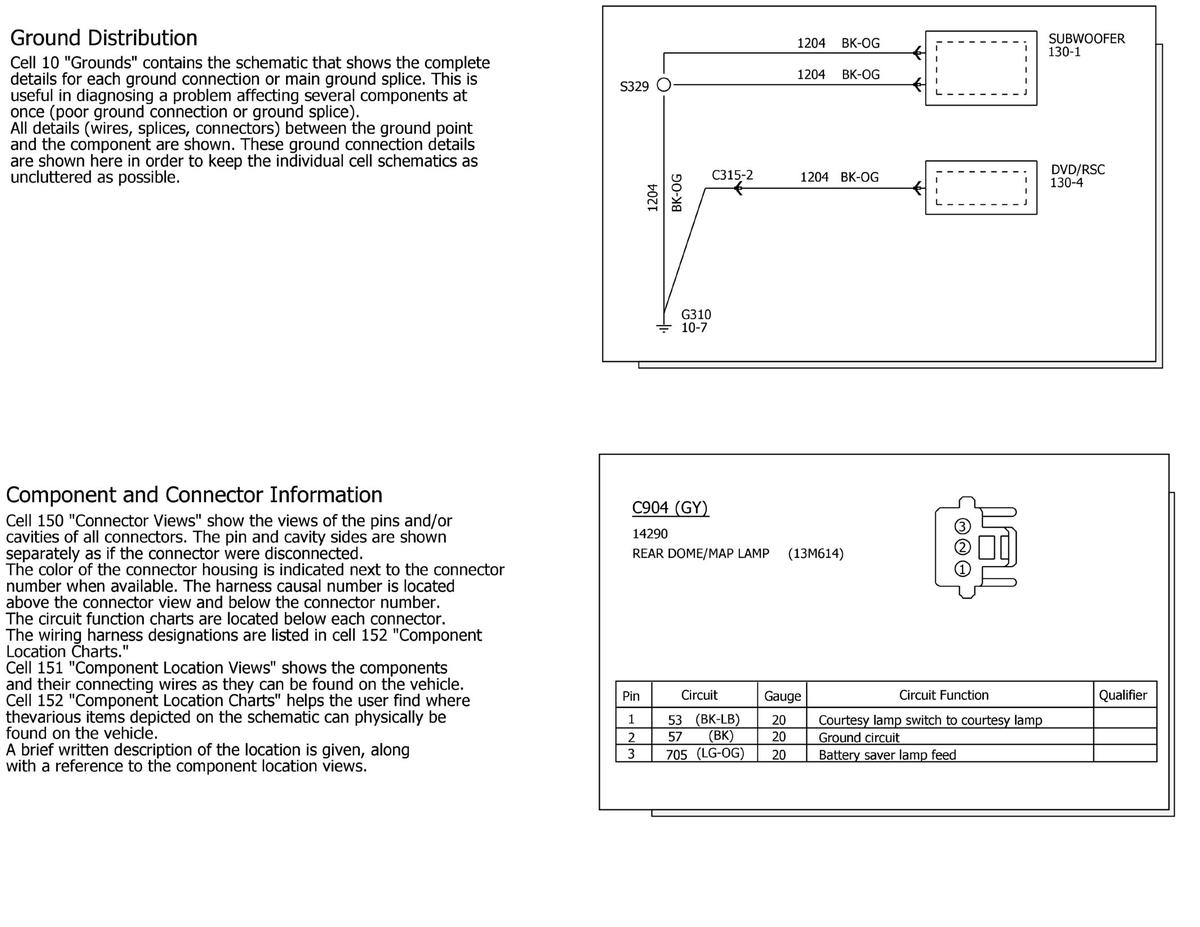

Fig 4: Ground Distribution and Component & Connector Information

Courtesy of FORD MOTOR COMPANY

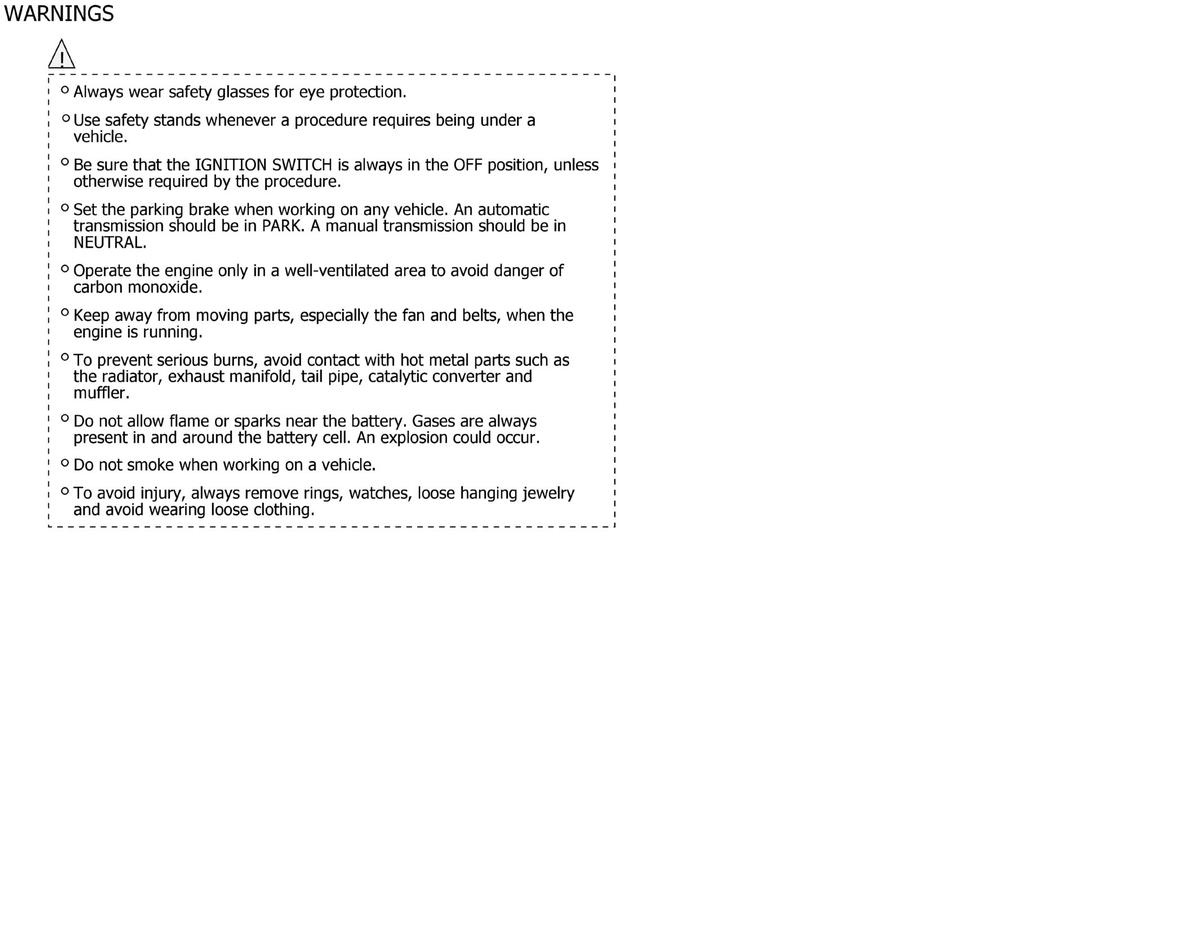

Fig 5: Warning

Courtesy of FORD MOTOR COMPANY
