Fuel Pump Driver Module (FPDM): Installation

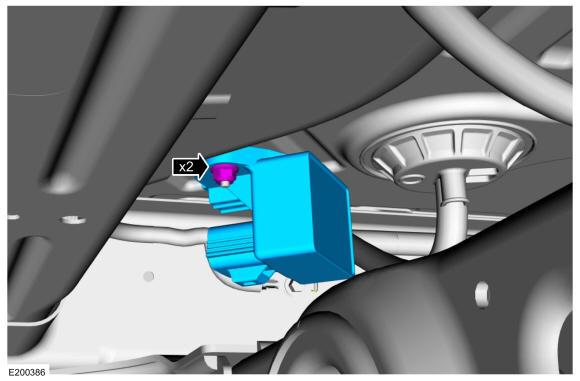

1. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

   Torque:

   36 lb.in (4.1 Nm)

   Courtesy of FORD MOTOR COMPANY

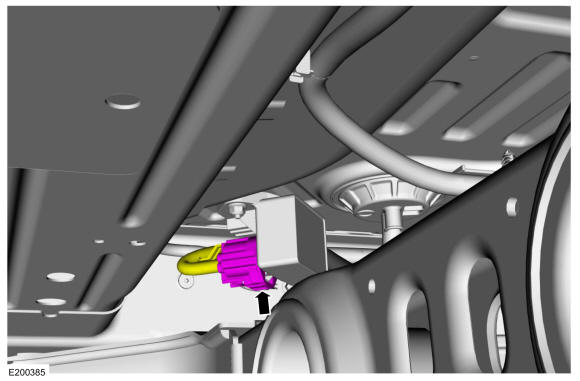

2. Connect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY
