Fuel Pump Driver Module (FPDM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

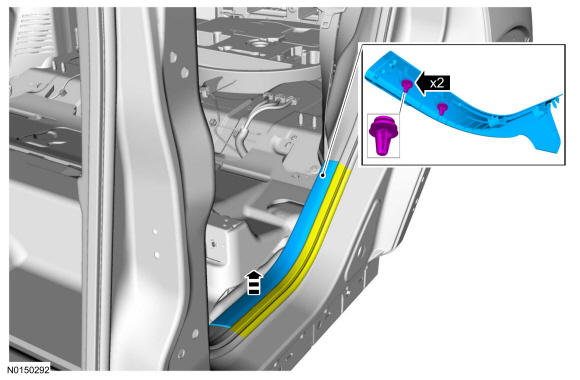

Position the right rear door weatherstrip aside and then remove the right rear door scuff plate.

Courtesy of FORD MOTOR COMPANY

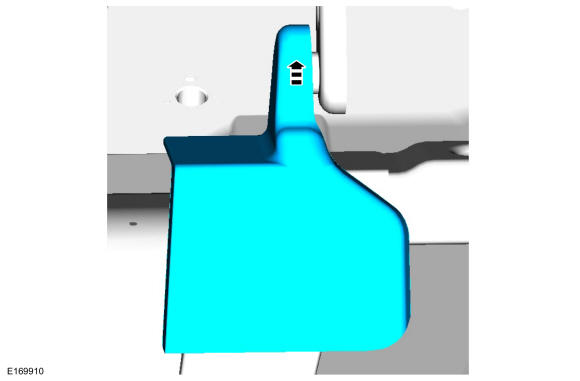

Remove the right rear hinge cover.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

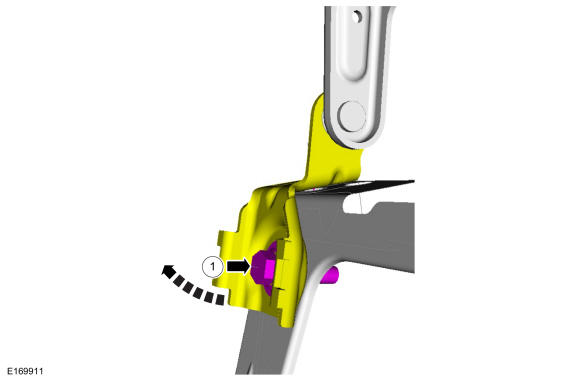

1. Remove the right rear seat hinge retaining bolt and then position the hinge up and out of the way.
  Torque

  : 30 lb.ft (40 Nm)
NOTE: Position the carpet aside for access.

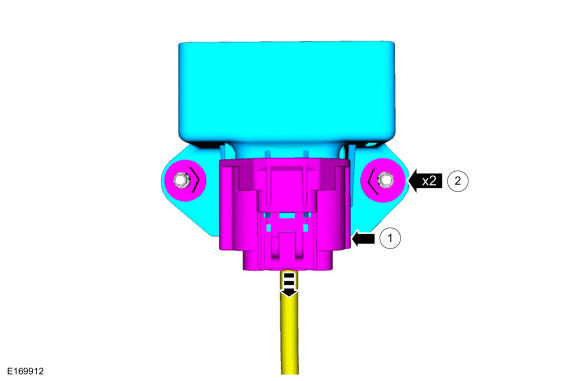

1. Disconnect the FPDM electrical connector.
2. Remove the FPDM retaining nuts and then remove the FPDM.
  Torque

  : 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
