Wheel Studs: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

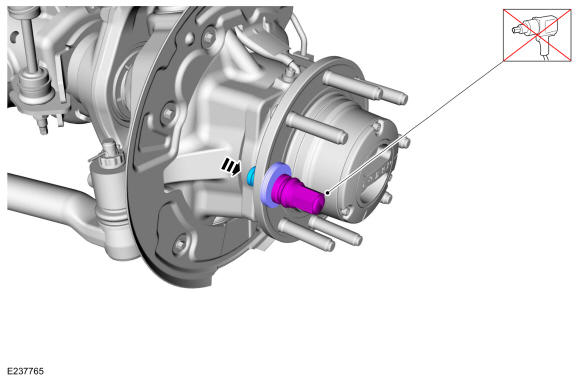

  1. NOTE: Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 3 to 4) to allow the wheel stud to fully seat against the hub flange.

    Install the new wheel stud.

    • Tighten the wheel nut until the wheel stud is seated against the hub flange.

    • Discard the wheel nut.

    GFD200401Courtesy of FORD MOTOR COMPANY
  2. Install the brake disc. Refer to: Brake Disc .
