Image Processing Module A (IPMA): Removal
WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
- If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

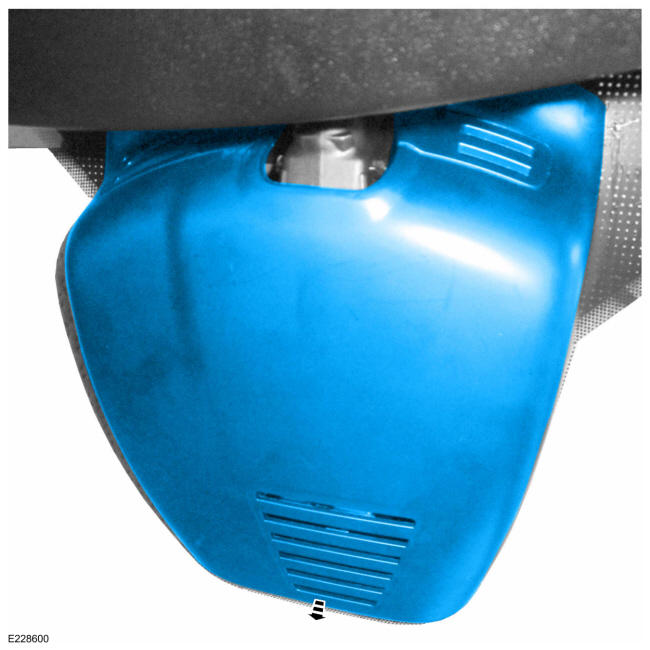

- Remove the IPMA cover.
 Courtesy of FORD MOTOR COMPANY
|

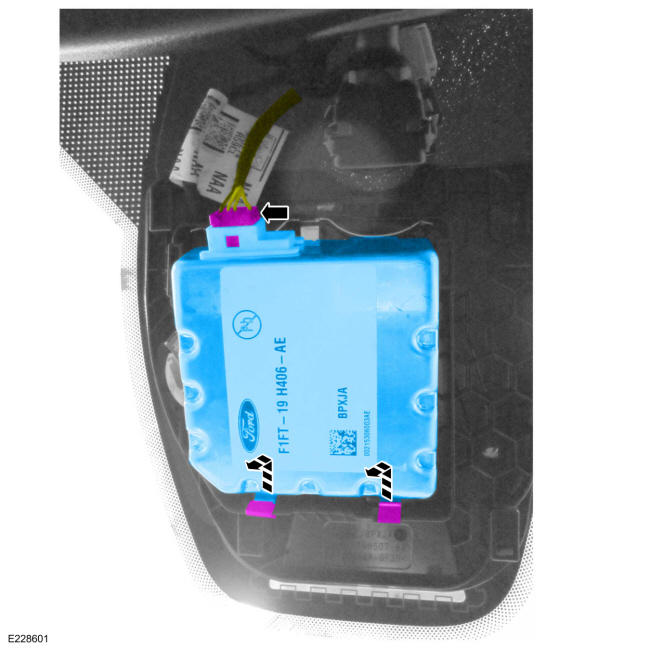

- Release the tabs, disconnect the electrical connector and remove the IPMA.
 Courtesy of FORD MOTOR COMPANY
|
