OEM Electrical Wiring Diagram Introduction: Introduction

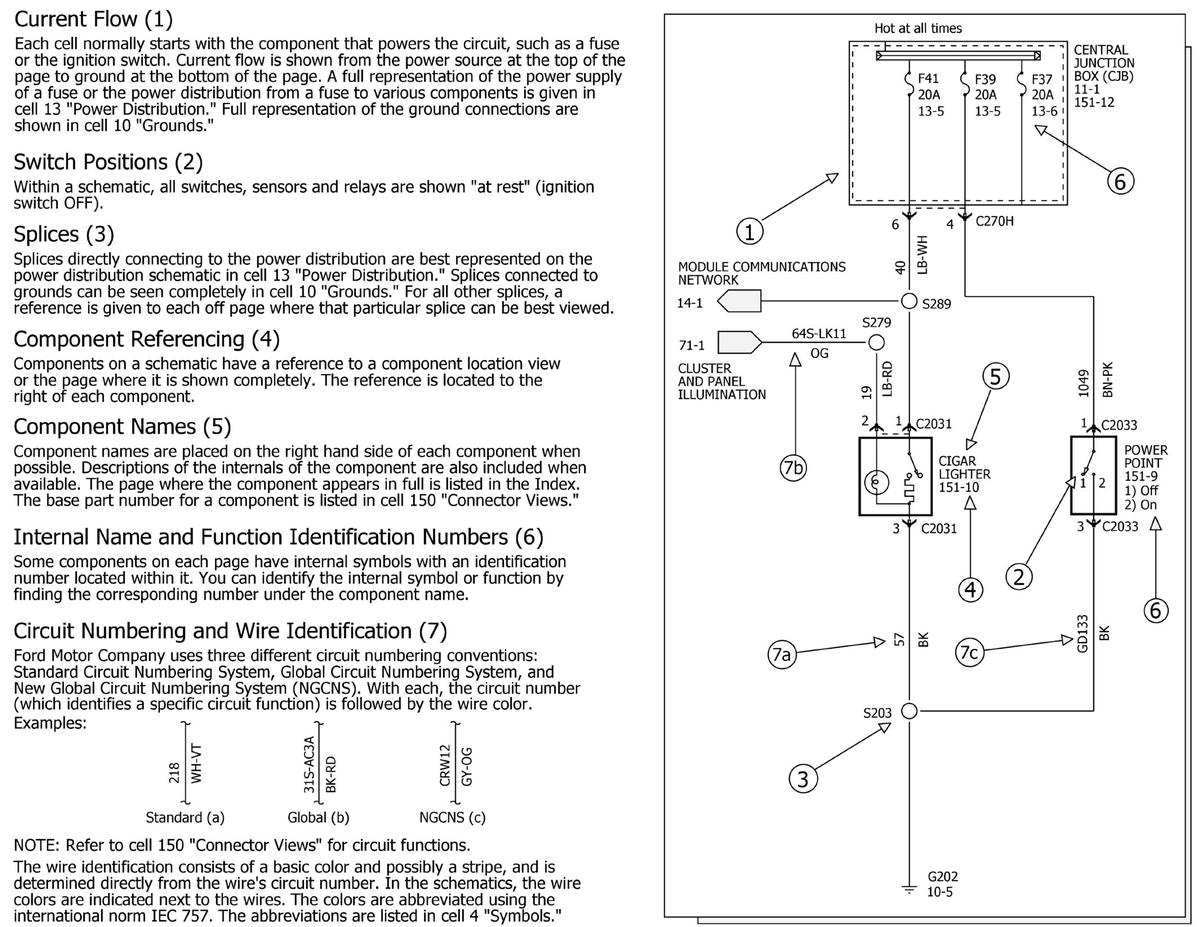

GFDWR47090Courtesy of FORD MOTOR COMPANY

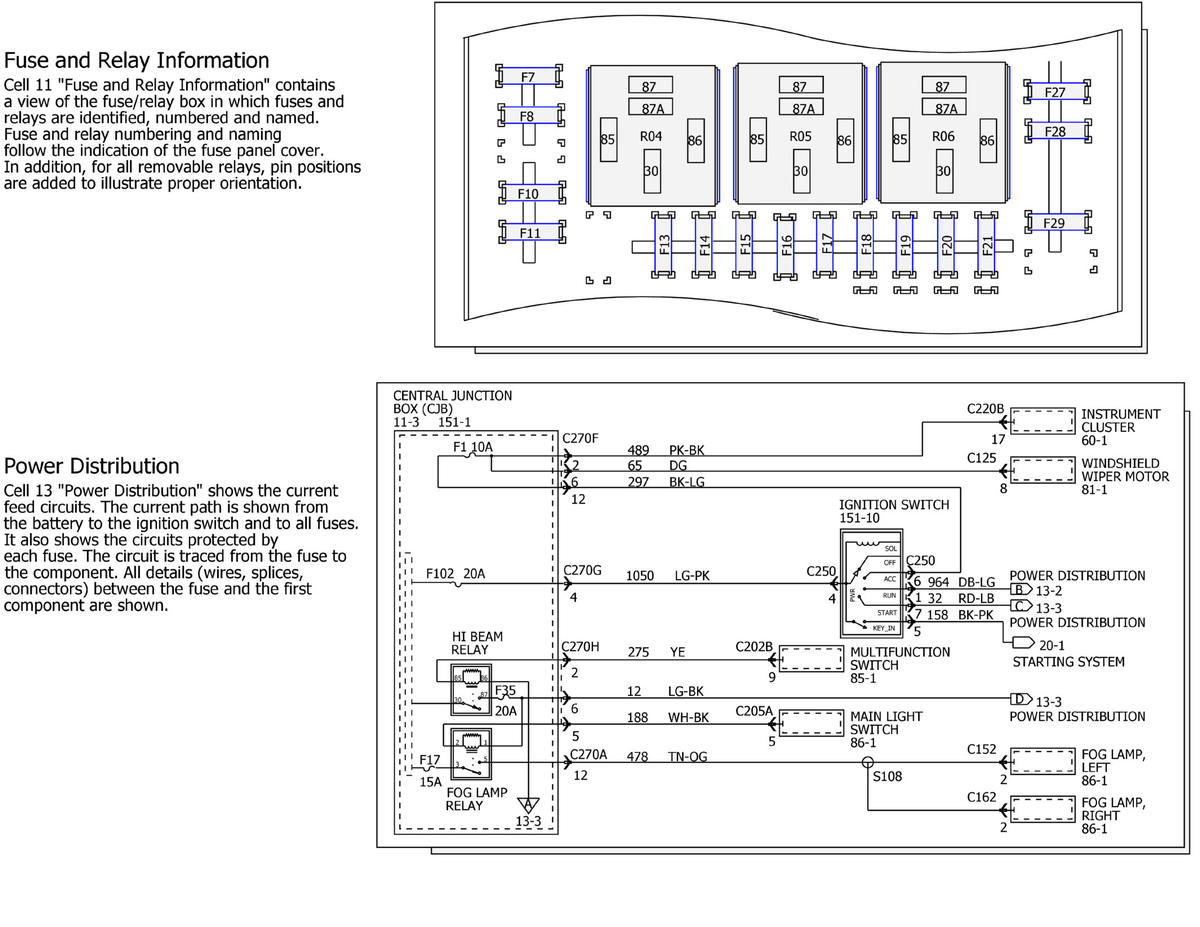

GFDWR47091Courtesy of FORD MOTOR COMPANY

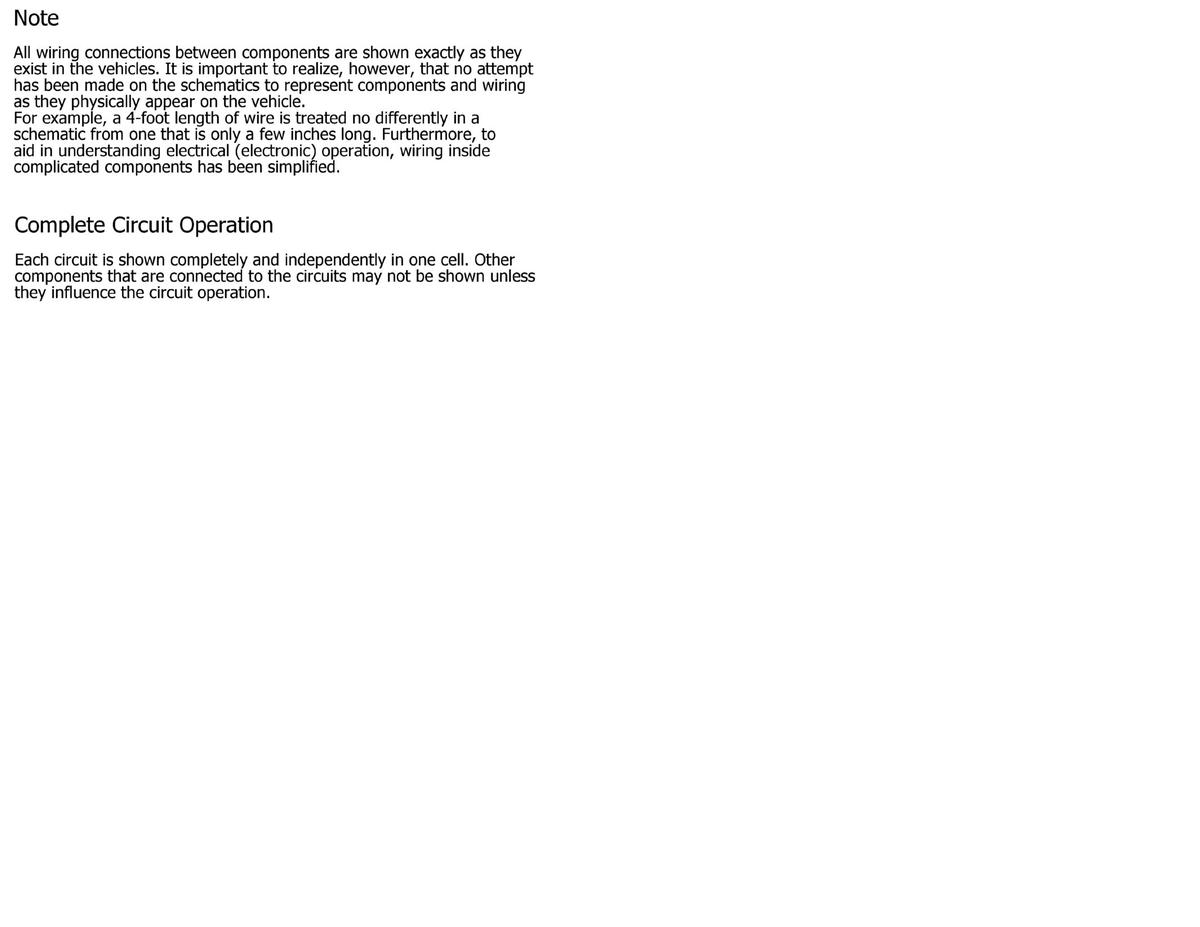

GFDWR47092Courtesy of FORD MOTOR COMPANY

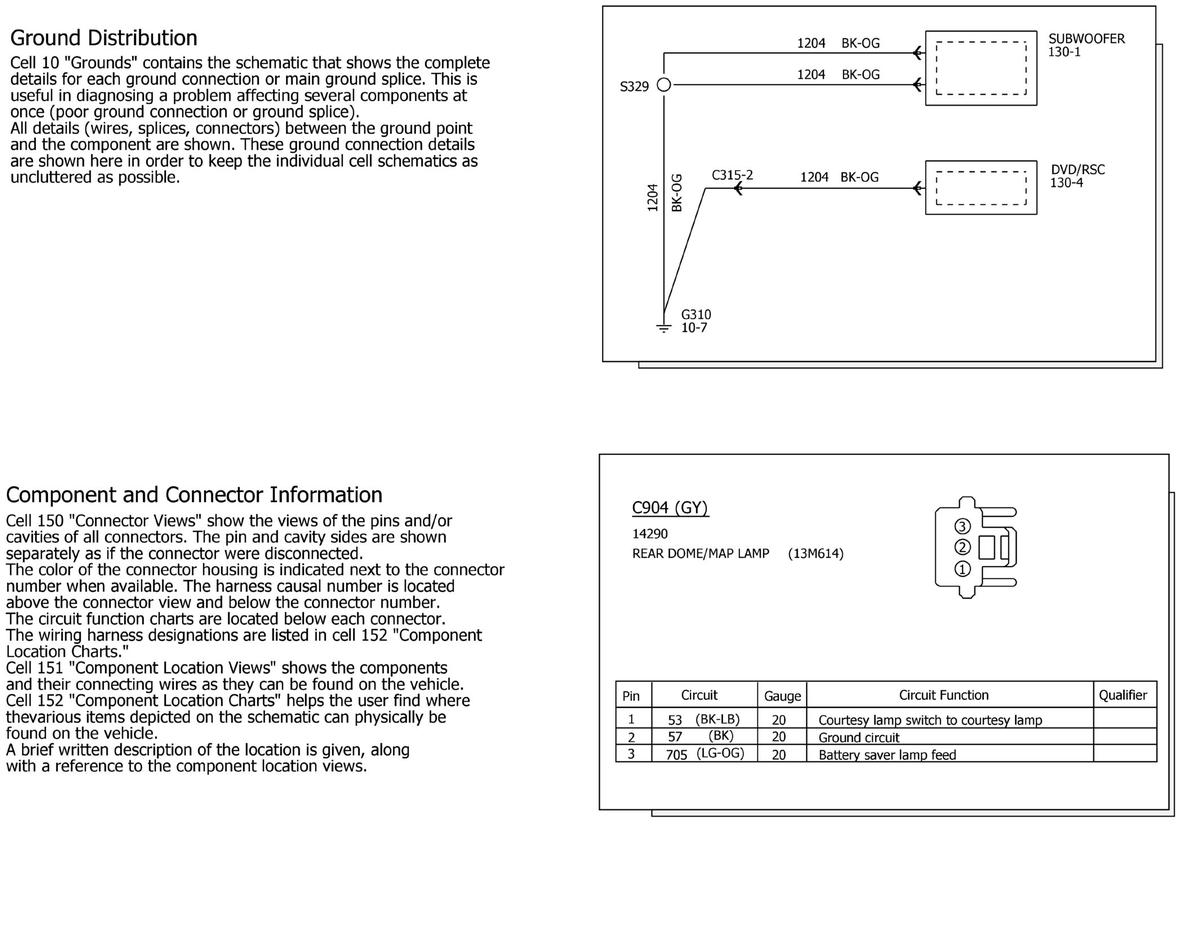

GFDWR47093Courtesy of FORD MOTOR COMPANY

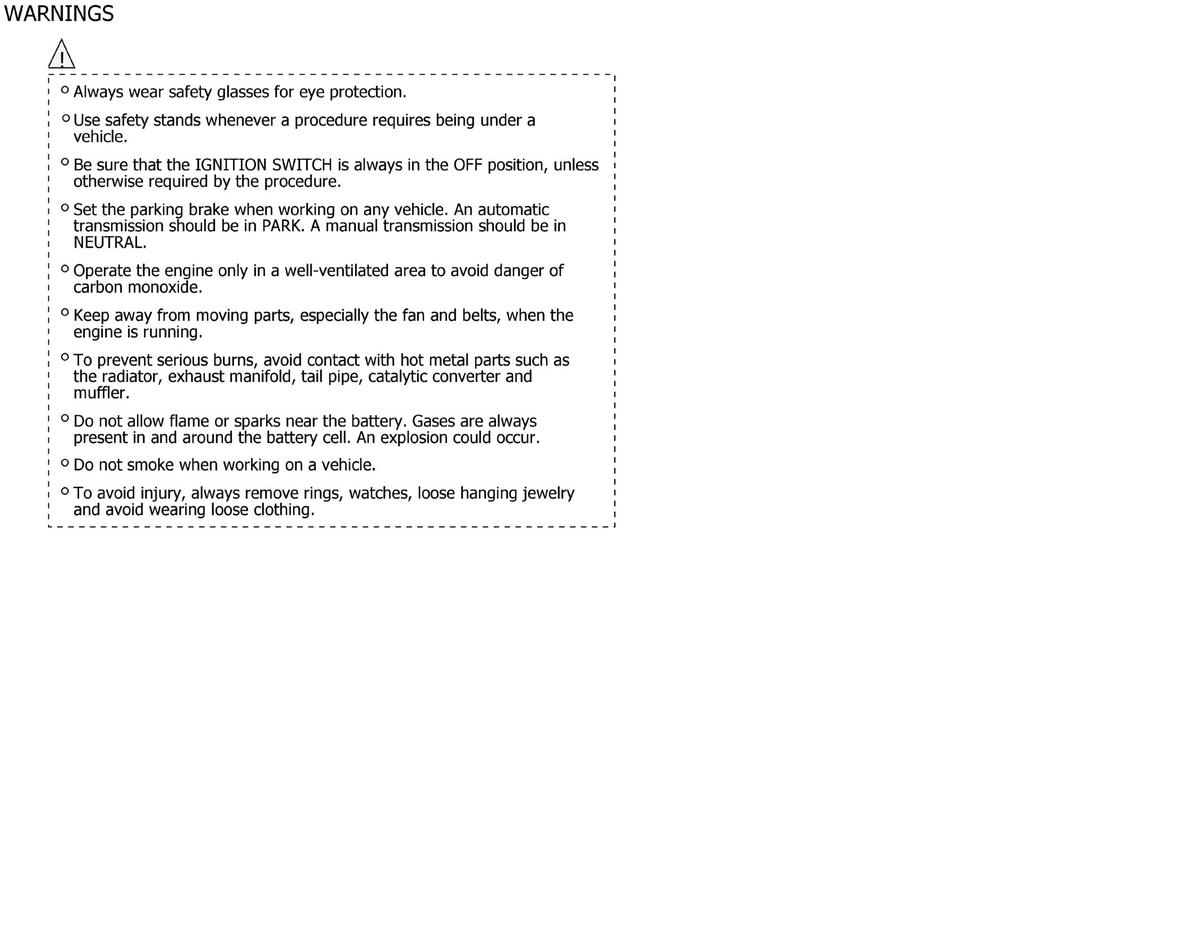

GFDWR47094Courtesy of FORD MOTOR COMPANY
