Ride Height Measurement: Check

Front Ride Height Measurement

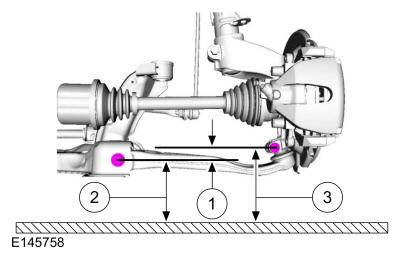

1. 1. Ride height = 3-2
   2. Measurement 2
   3. Measurement 3

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Lock the surface gauge in this position.

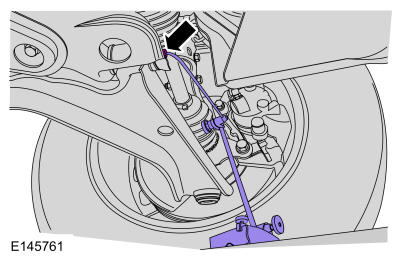

   Position the surface gauge on the same flat, level surface, adjust the gauge arm until the scriber point is located in the center of the lower arm forward bolt. Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

3. With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2). Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Lock the surface gauge in this position.

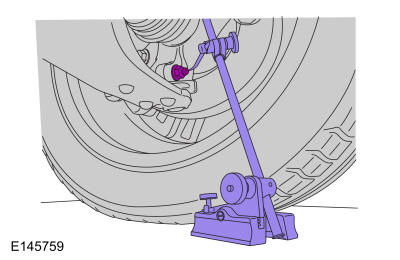

   Position the surface gauge on the same flat, level surface, adjust the gauge arm until the scriber point is located in the center of the ball joint bolt.

   Courtesy of FORD MOTOR COMPANY

5. With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 3).

   Courtesy of FORD MOTOR COMPANY

6. Subtract measurement 2 from measurement 3 to obtain the front ride height.

   Rear Ride Height Measurement

   NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

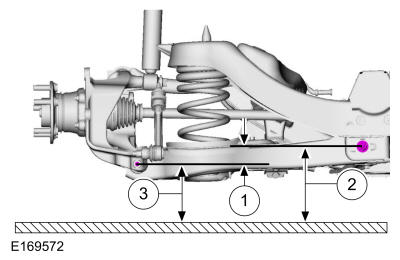

7. 1. Ride height = 2-3
   2. Measurement 2
   3. Measurement 3

   Courtesy of FORD MOTOR COMPANY

8. Measure the distance between the flat level surface and the center of the rear lower arm inboard bolt (Cam Adjuster) (measurement 2).
9. Measure the distance between the flat level surface and the center of the rear lower arm outboard bolt (measurement 3).
10. Subtract measurement 3 from measurement 2 to obtain the rear ride height. Refer to: Specifications .
