Master Window Control Switch - Without Door Modules

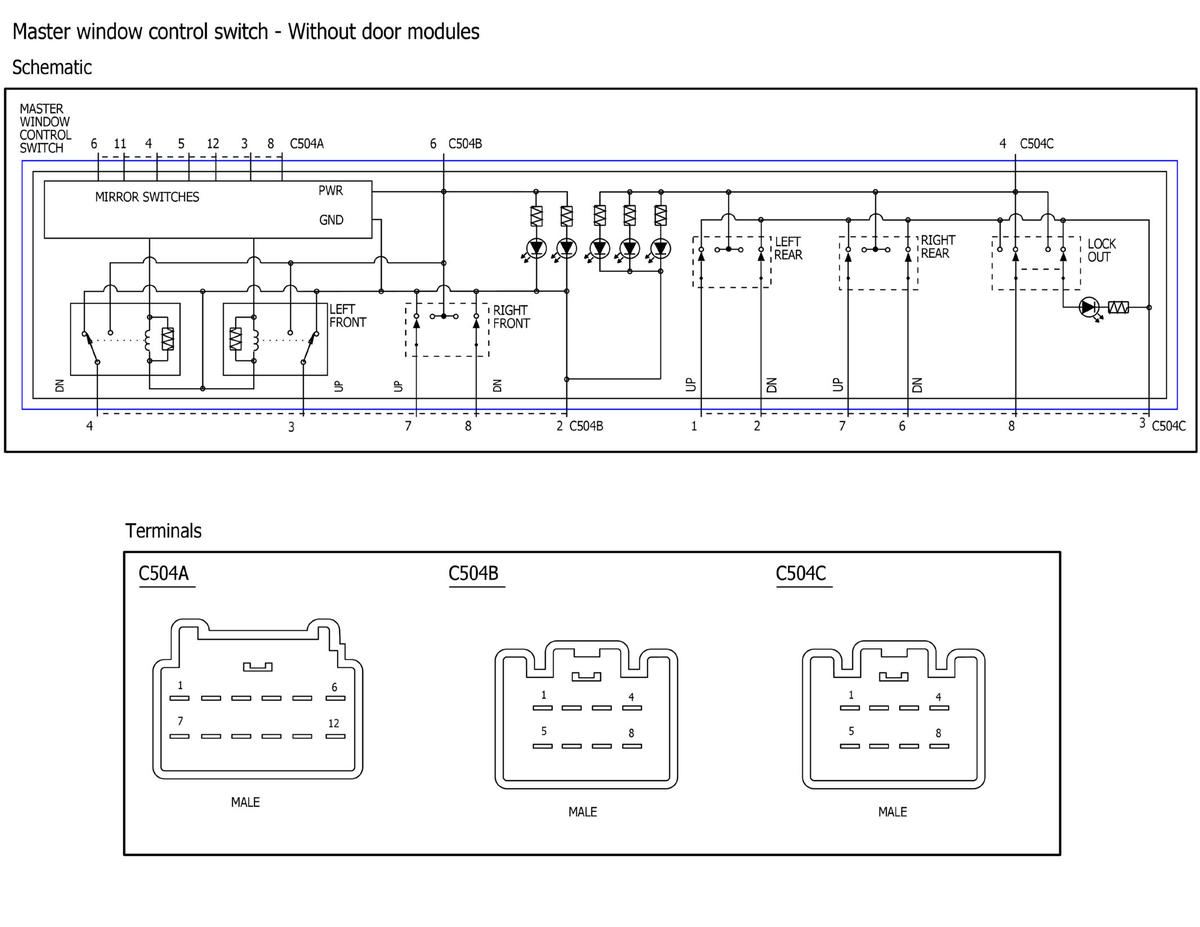

Fig 1: Master Window Control Switch - Without Door Modules (1 Of 2)
GFDWR47412Courtesy of FORD MOTOR COMPANY

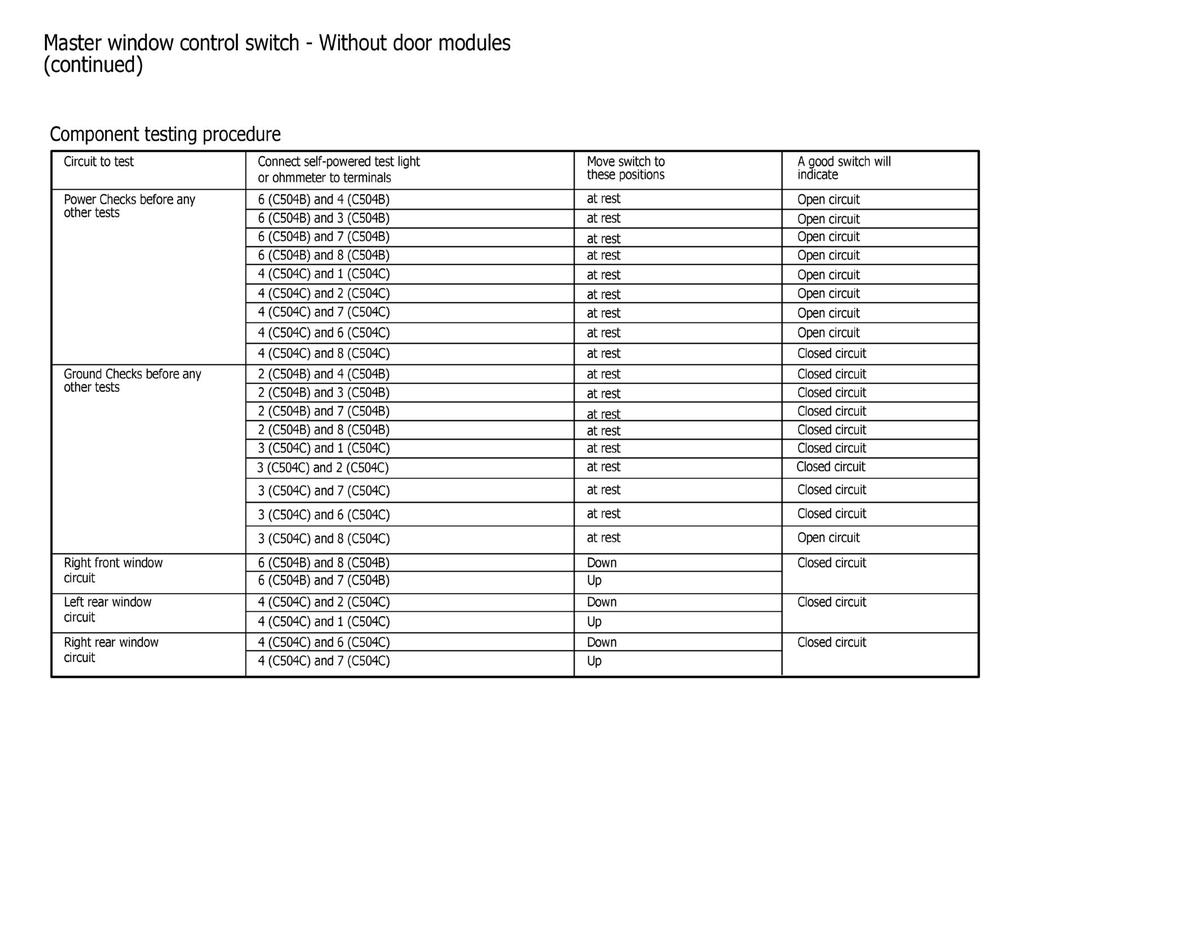

Fig 2: Master Window Control Switch - Without Door Modules (2 Of 2)
GFDWR47414Courtesy of FORD MOTOR COMPANY
