Seat Control Switch, 10-Way Driver Power Seat With Memory

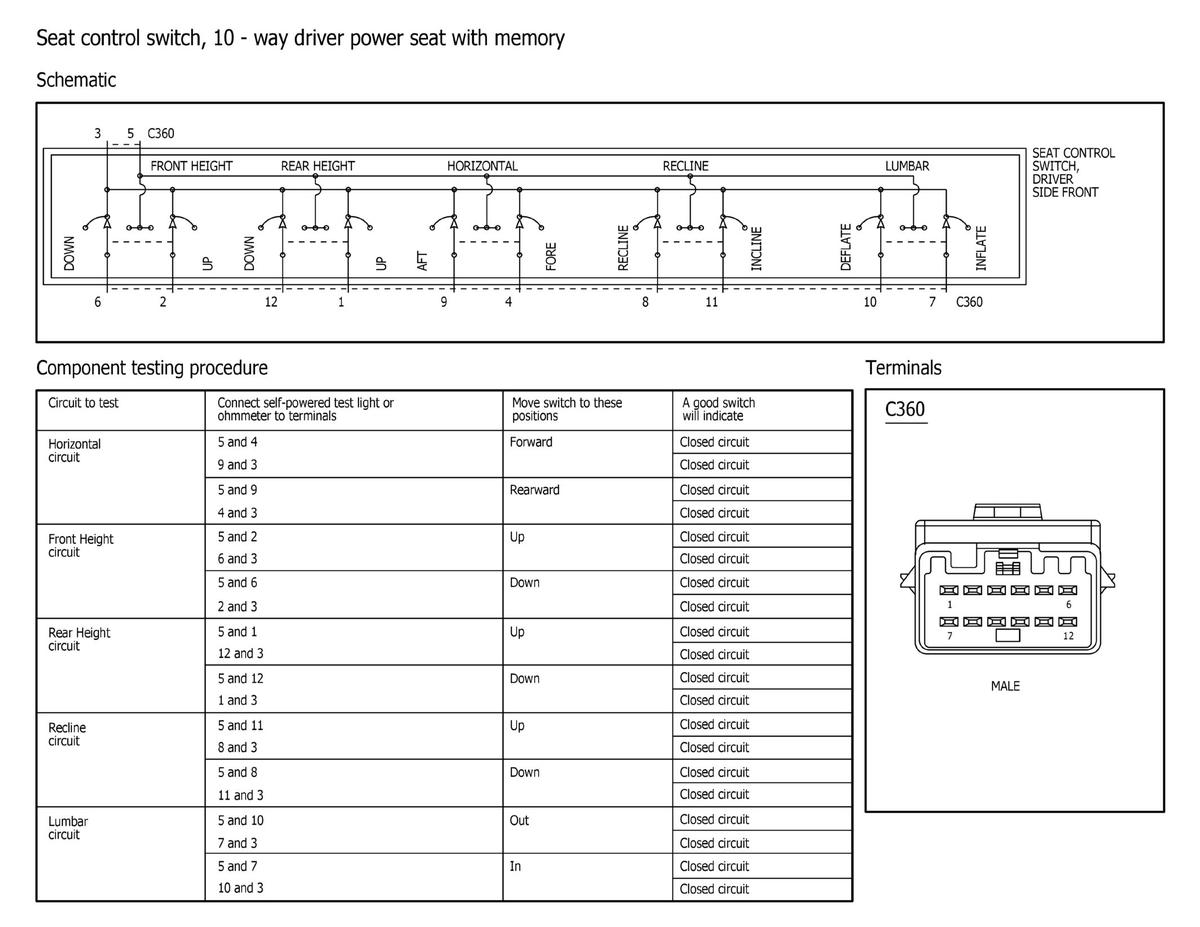

Fig 1: Seat Control Switch, 10-Way Driver Power Seat With Memory
GFDWR47405Courtesy of FORD MOTOR COMPANY
