Window Control Switch - Without Door Modules

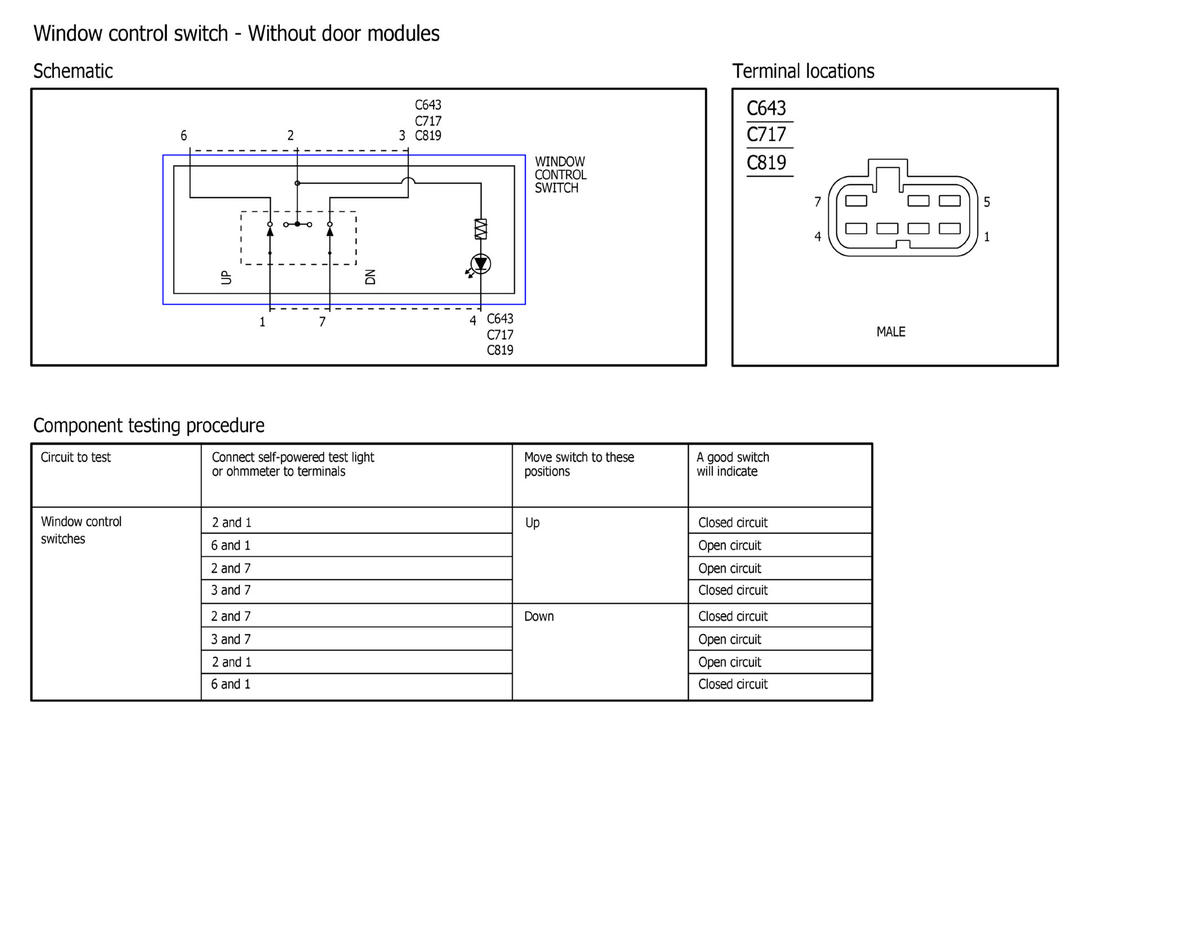

Fig 1: Window Control Switch - Without Door Modules
GFDWR47410Courtesy of FORD MOTOR COMPANY
