Fuel Pump Driver Module

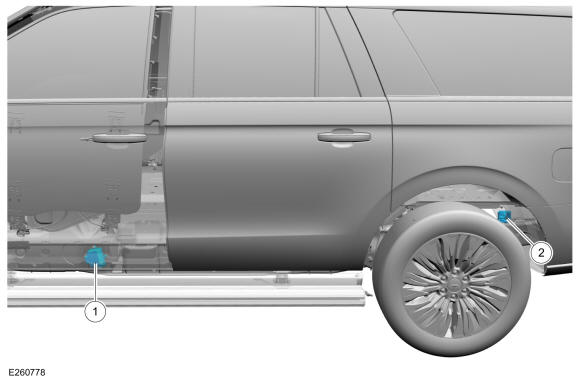

| Item | Description |
|---|---|
| 1 | Side frame mounted fuel pump driver module. Refer to: Fuel Pump Driver Module (FPDM) . Comments: The side frame mountedfuel pump driver module is located midway on the outside of the left frame rail. |
| 2 | Top frame mounted fuel pump driver module. Refer to: Fuel Pump Driver Module (FPDM) . Comments: The top frame mounted fuel pump driver module is located on top of the left frame rail behind, the left rear wheelwell. |
