Transmission Control Switch (TCS): Removal

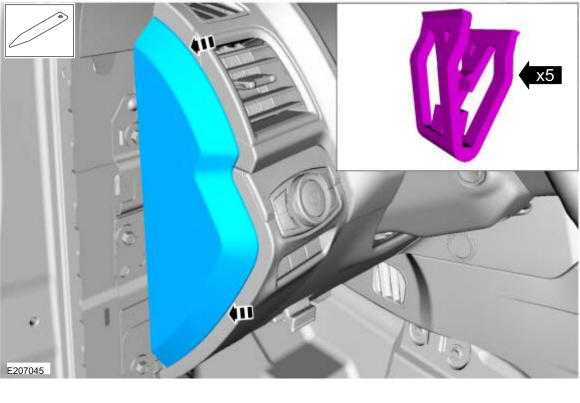

1. Remove the LH cowl side trim panel.. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

2. Remove the LH instrument panel trim panel.. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

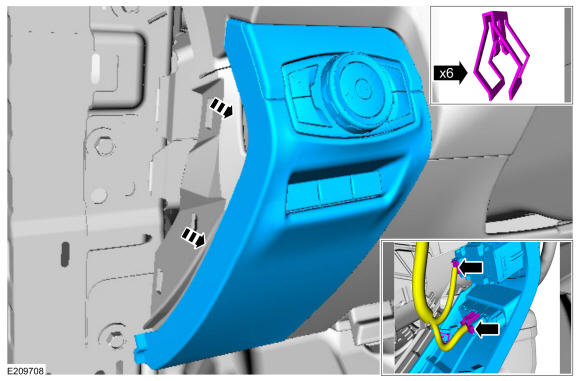

3. Remove the LH instrument panel trim panel and disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

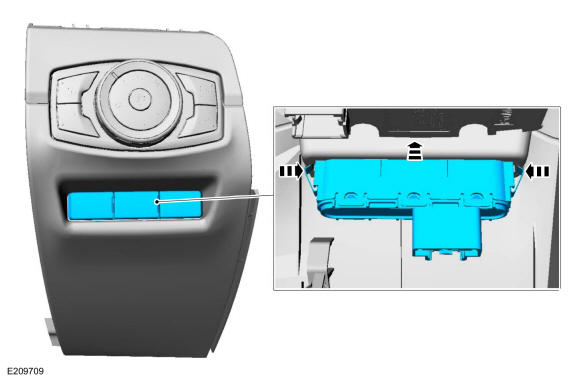

4. Press the spring clips in and remove the TCS.

Courtesy of FORD MOTOR COMPANY
