Transmission Control Module (TCM) Wiring Harness: Installation

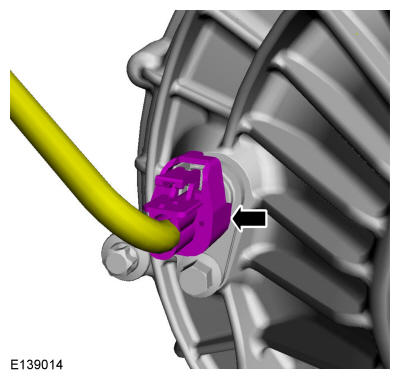

Connect the OSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the surface is clean and free of foreign material before taping around the component.

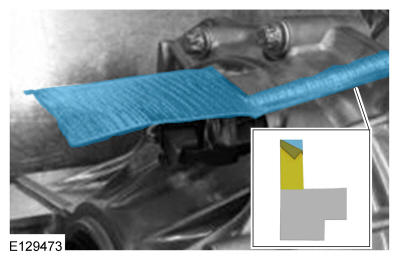

Remove the foil tape backing and wrap the foil tape around the OSS sensor wiring harness.

Courtesy of FORD MOTOR COMPANY

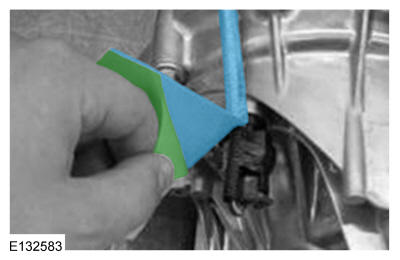

Remove the foil tape backing from the rest of the foil tape.

Courtesy of FORD MOTOR COMPANY

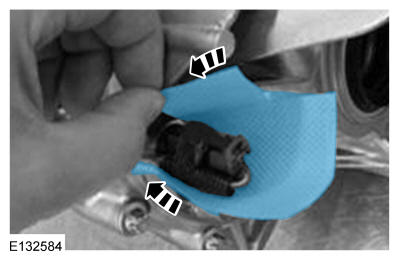

Wrap the foil tape around the OSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

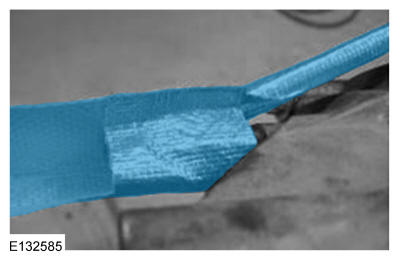

Stick the foil tape ends together.

Courtesy of FORD MOTOR COMPANY
Using the locking plier, crimp around the edge starting from the sensor portion. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY

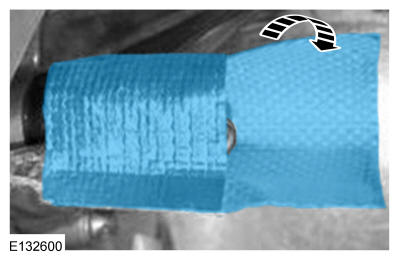

Fold the remaining portion of the foil tape.

Courtesy of FORD MOTOR COMPANY

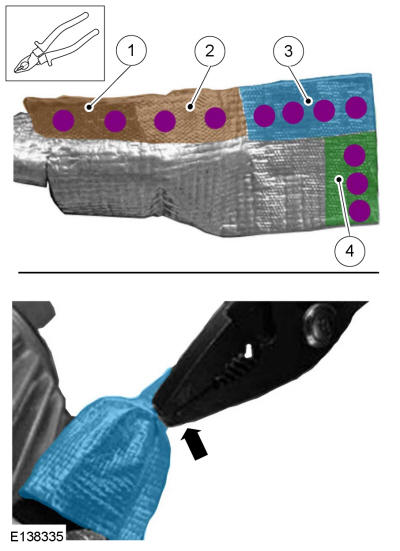

Using the locking plier, crimp around the edge starting from the sensor portion moving around. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
