OEM Ground Distribution: Grounds

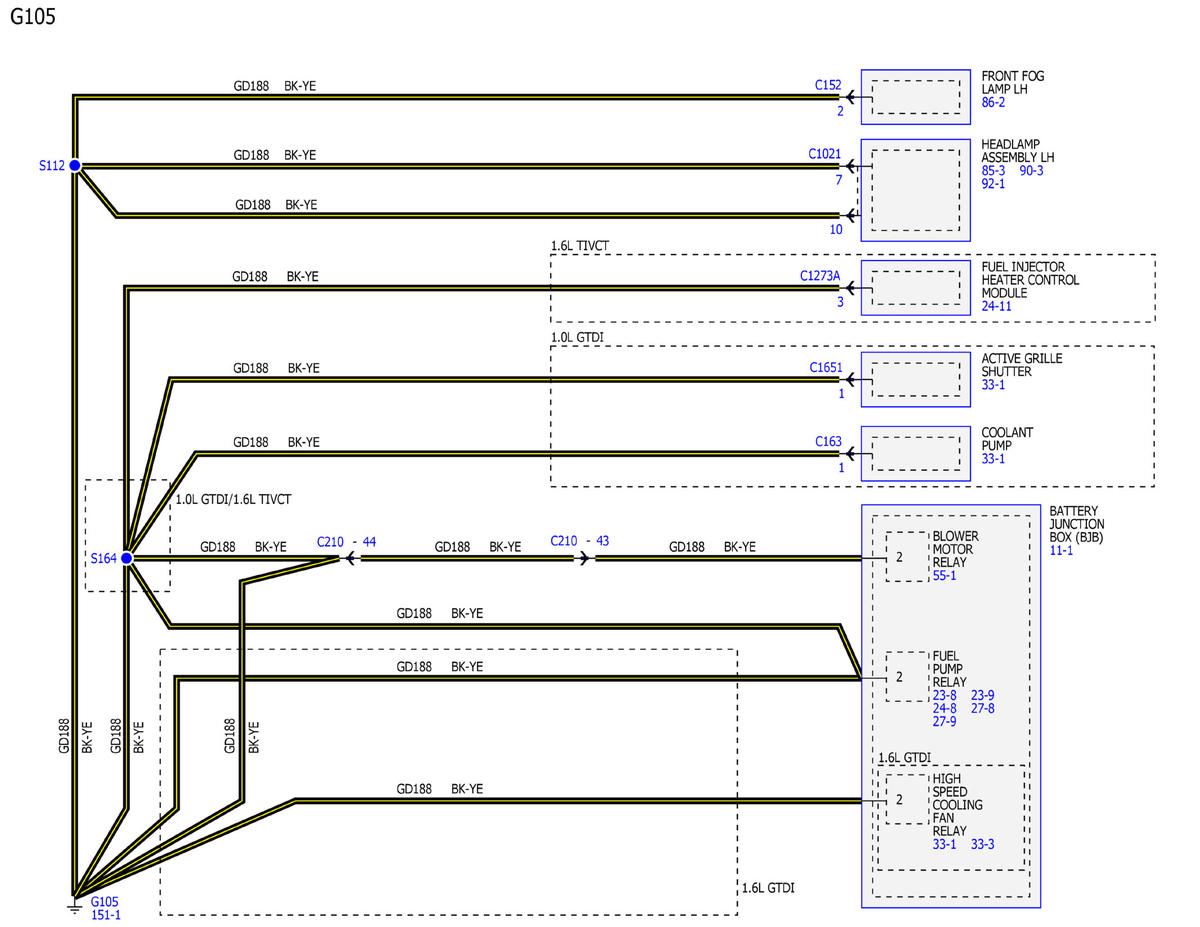

GFDWR17706Courtesy of FORD MOTOR COMPANY

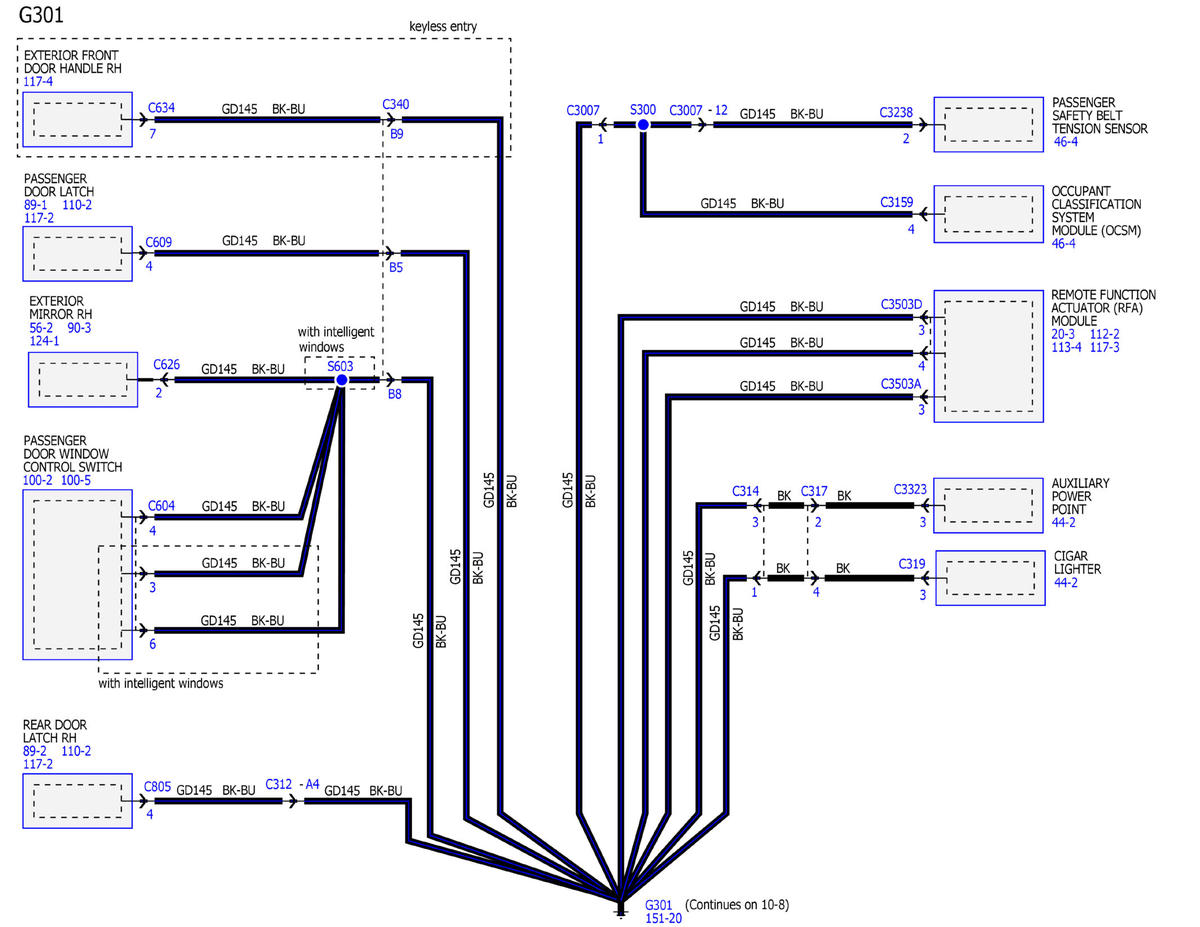

GFDWR17707Courtesy of FORD MOTOR COMPANY

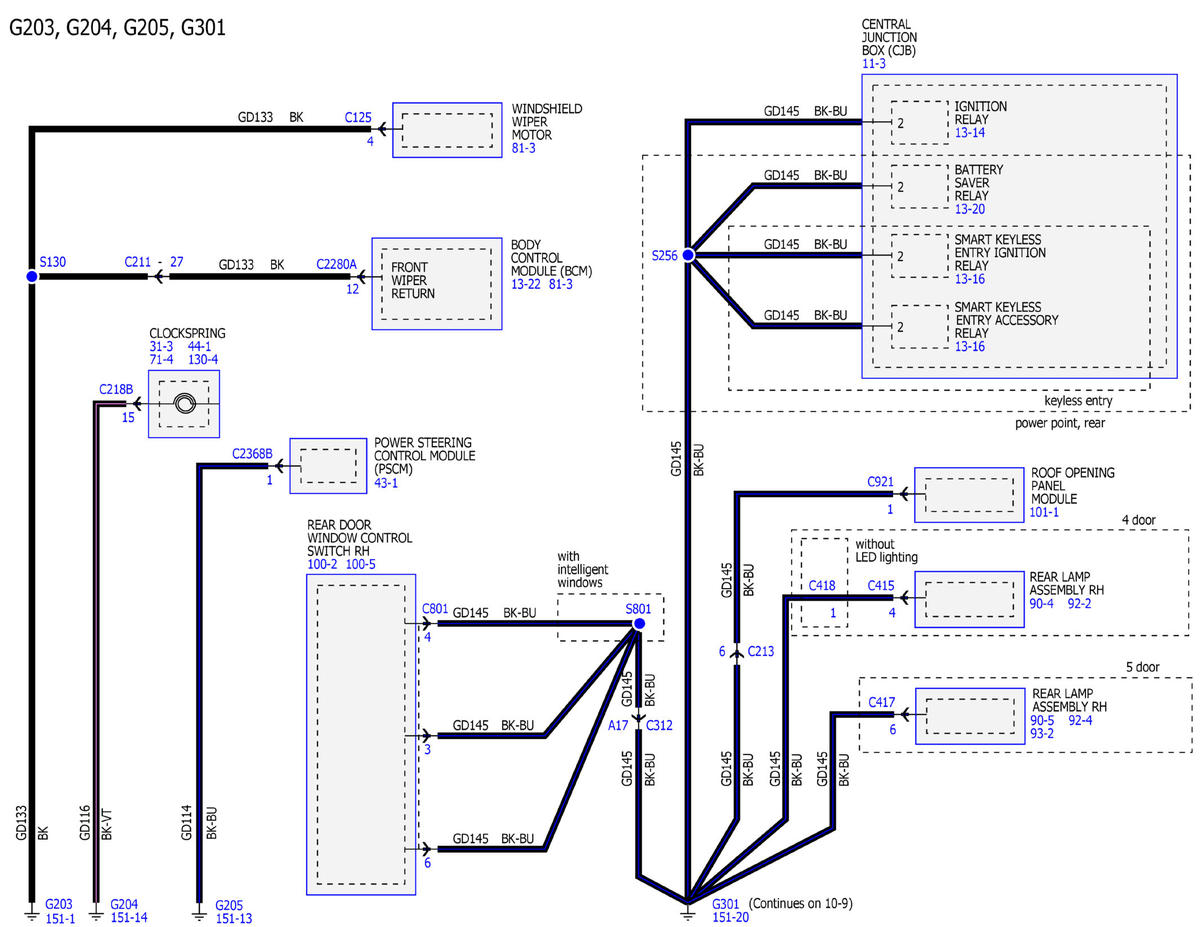

GFDWR17708Courtesy of FORD MOTOR COMPANY

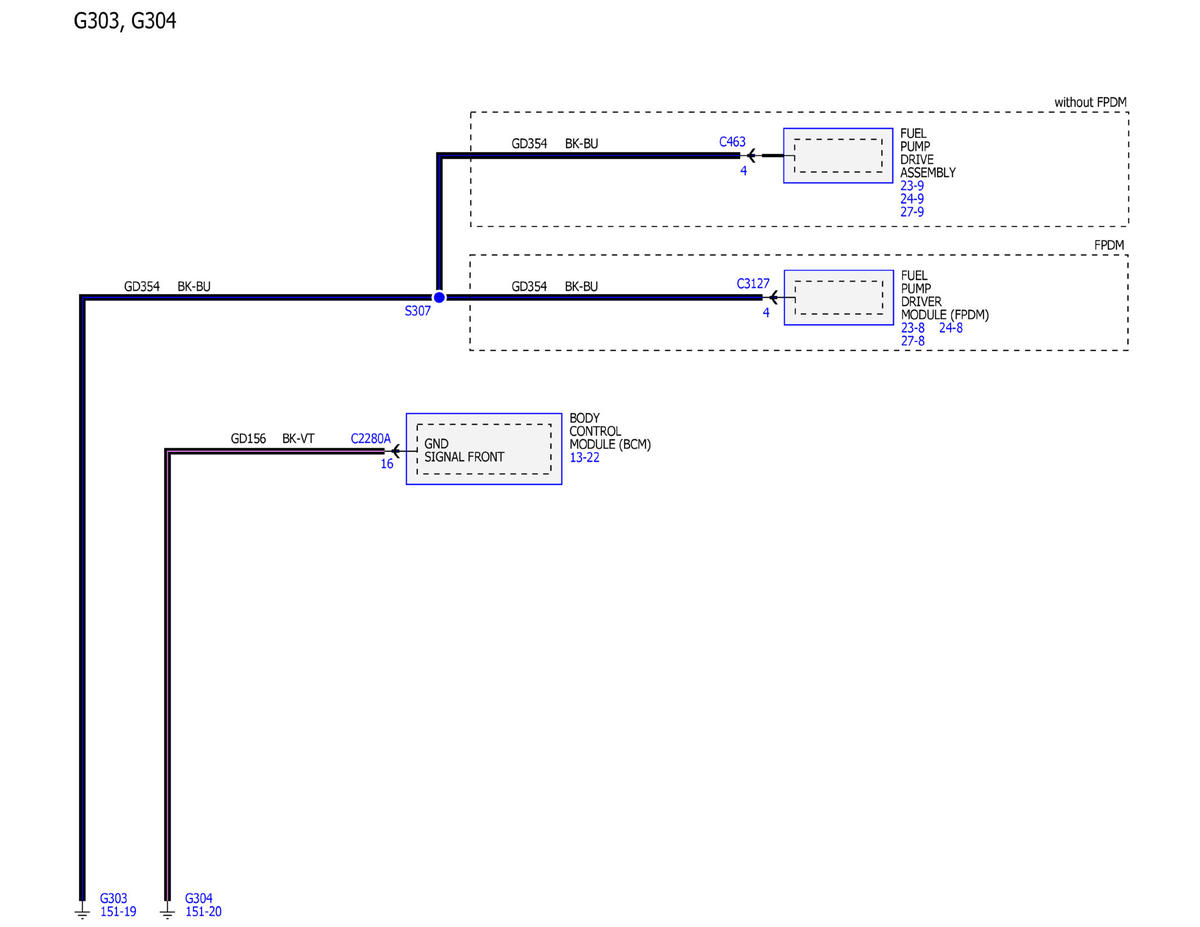

GFDWR17709Courtesy of FORD MOTOR COMPANY

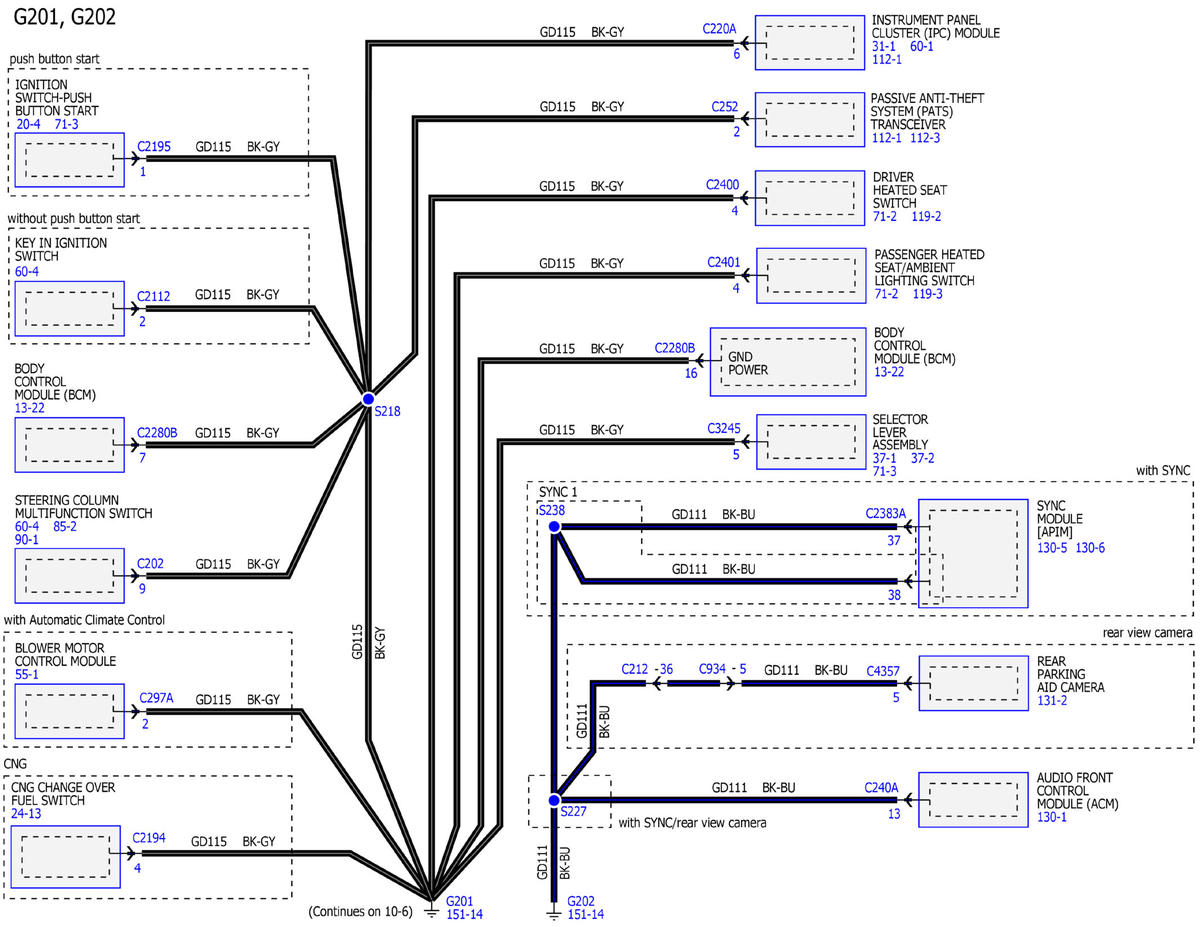

GFDWR17710Courtesy of FORD MOTOR COMPANY

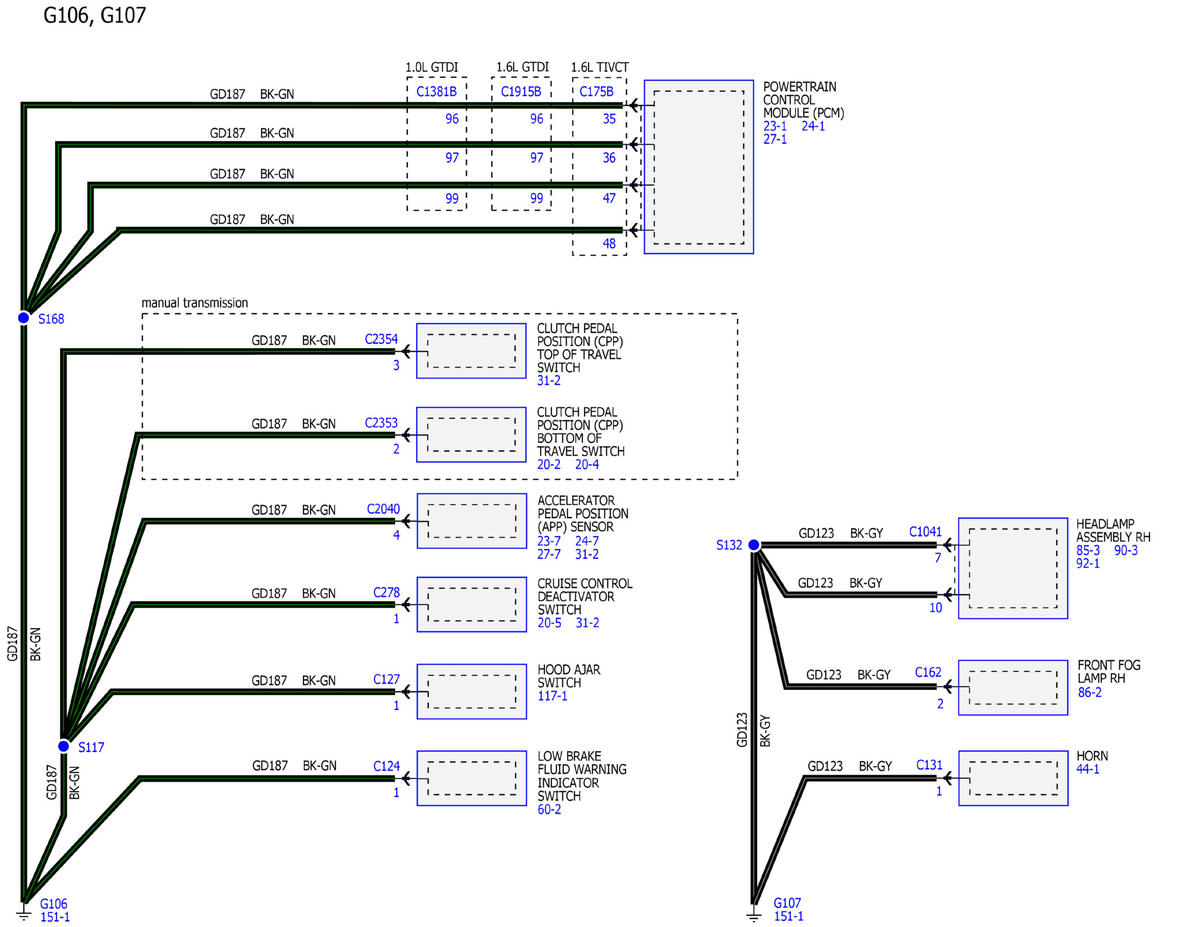

GFDWR17711Courtesy of FORD MOTOR COMPANY

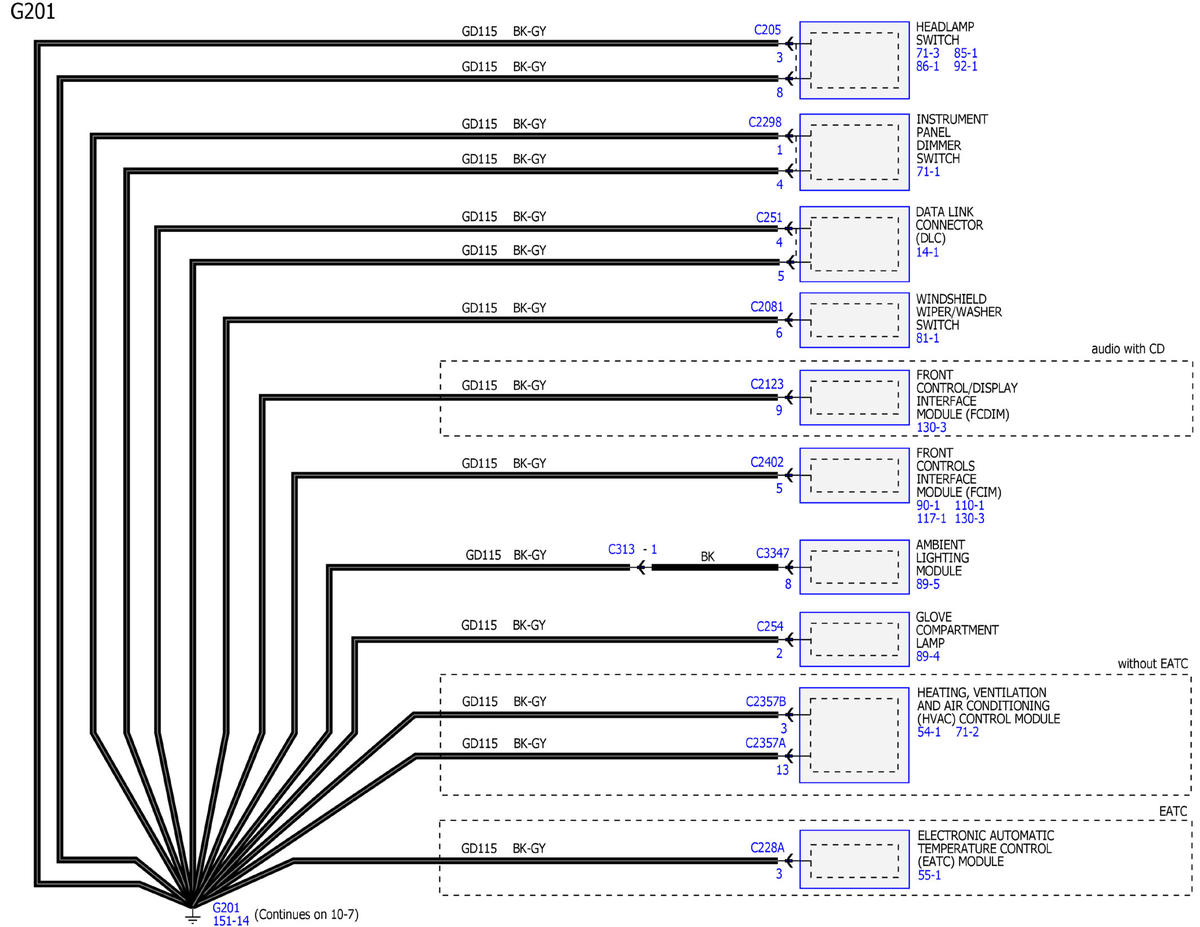

GFDWR17712Courtesy of FORD MOTOR COMPANY

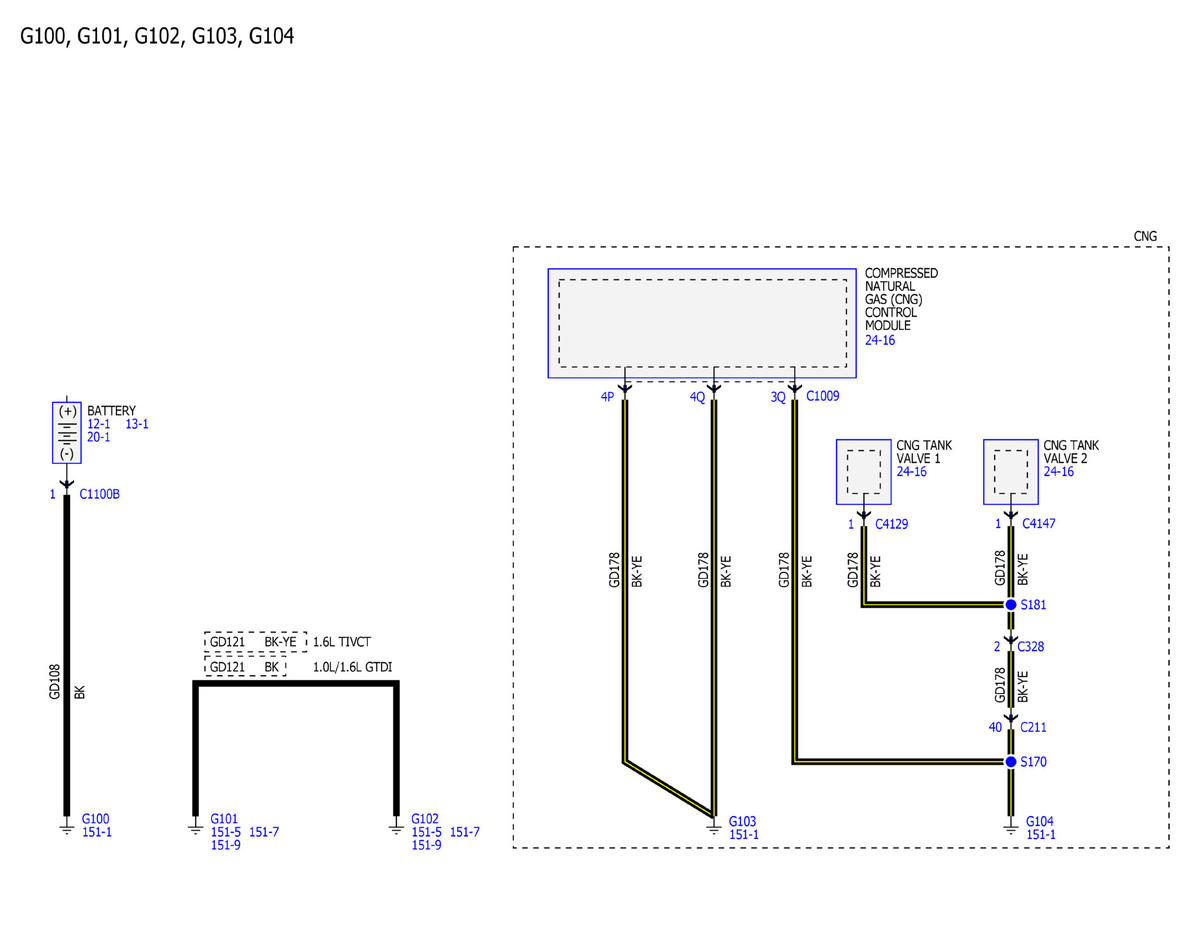

GFDWR17713Courtesy of FORD MOTOR COMPANY

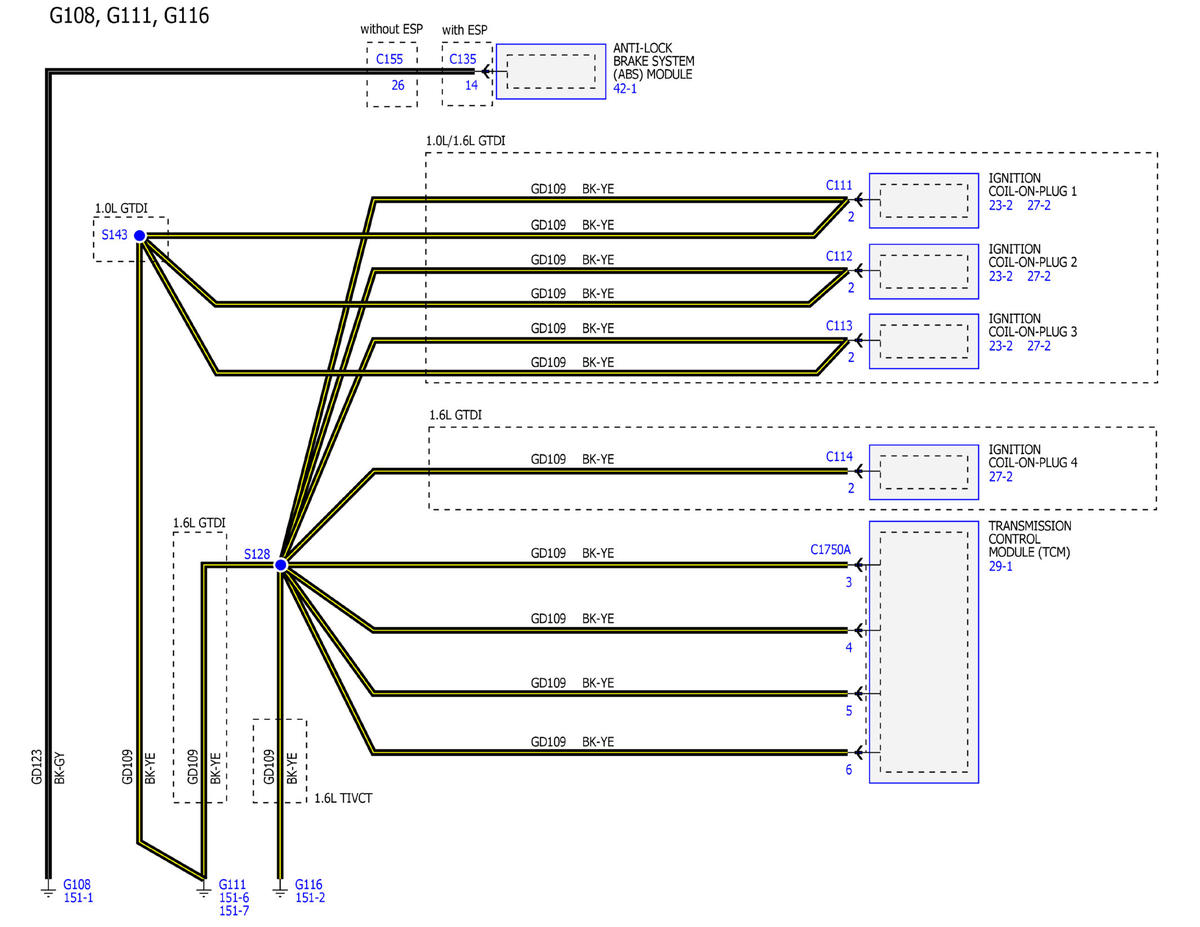

GFDWR17714Courtesy of FORD MOTOR COMPANY

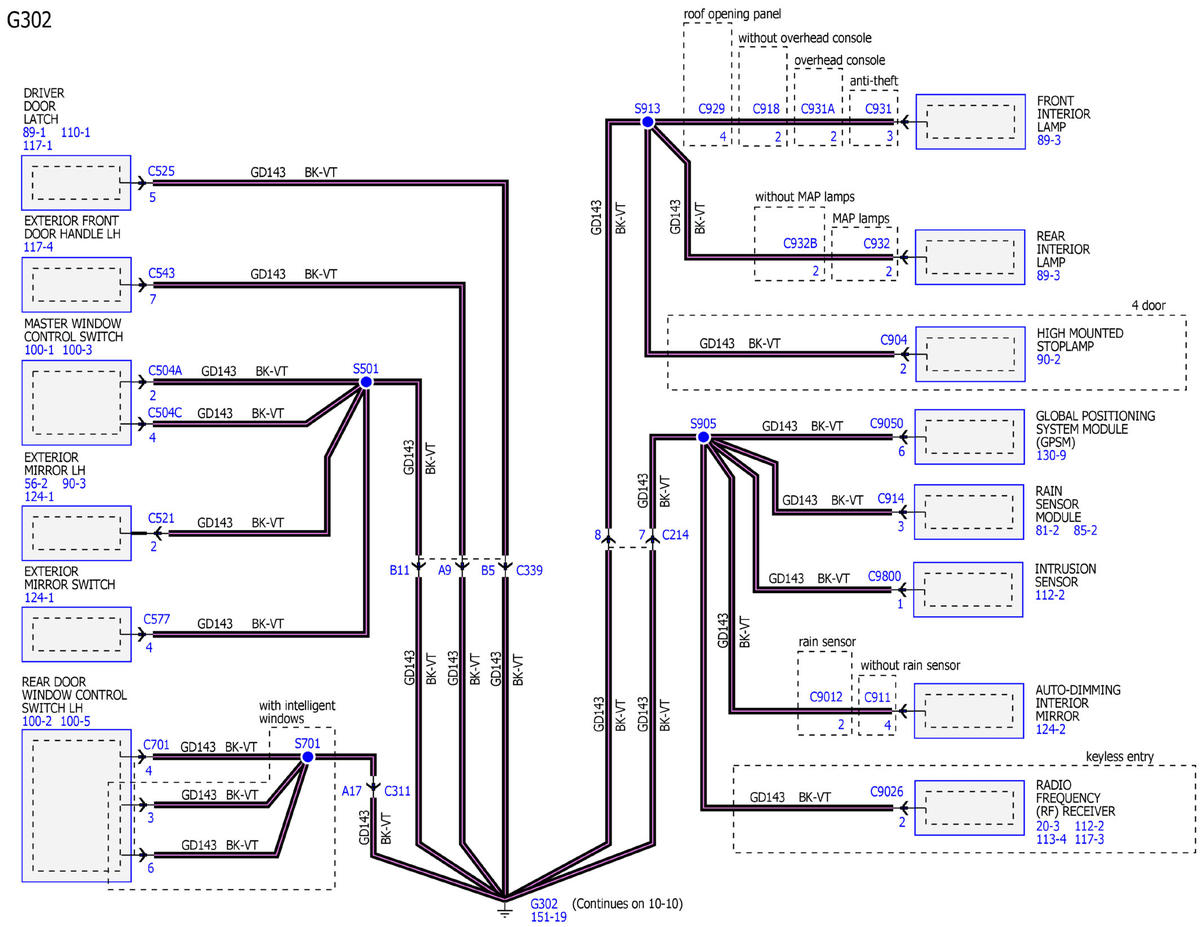

GFDWR17715Courtesy of FORD MOTOR COMPANY

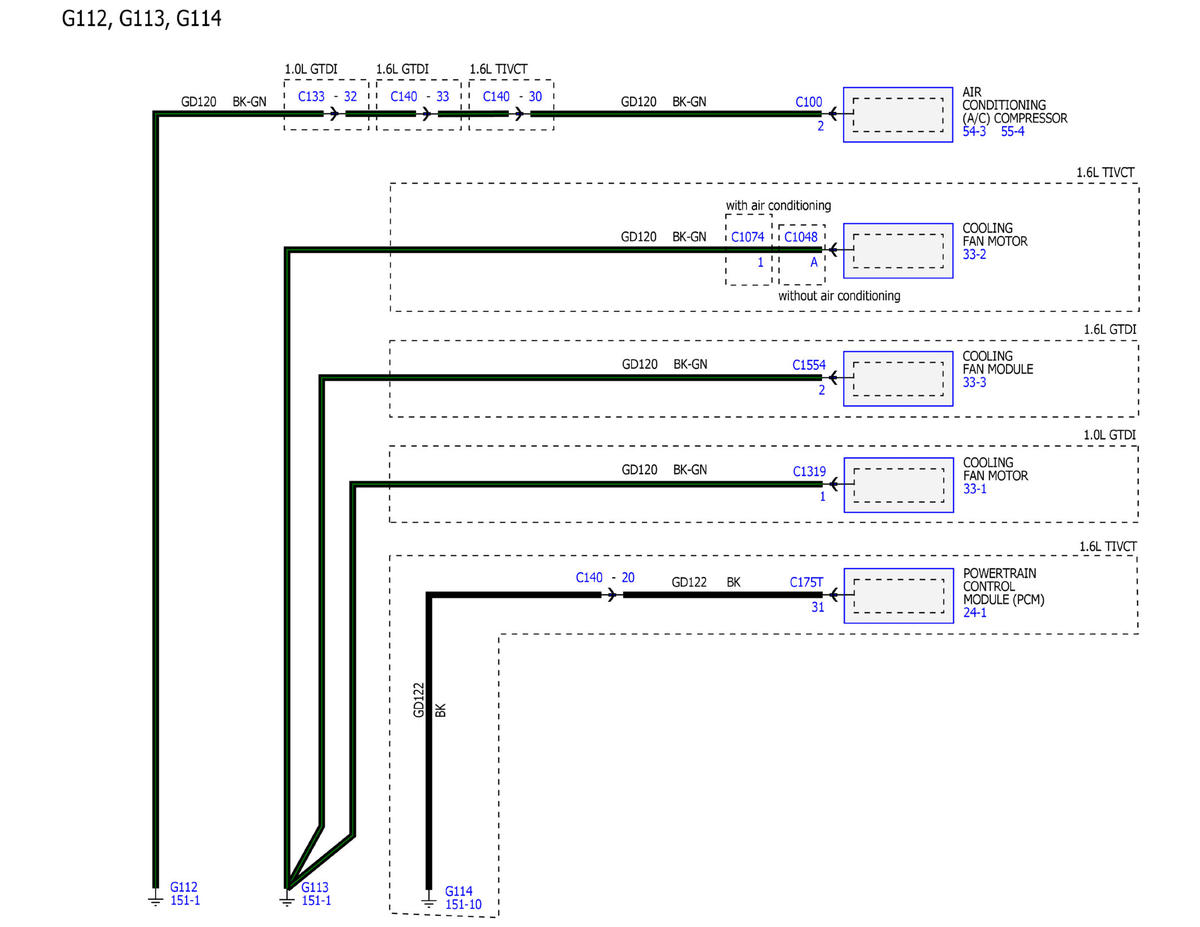

GFDWR17716Courtesy of FORD MOTOR COMPANY

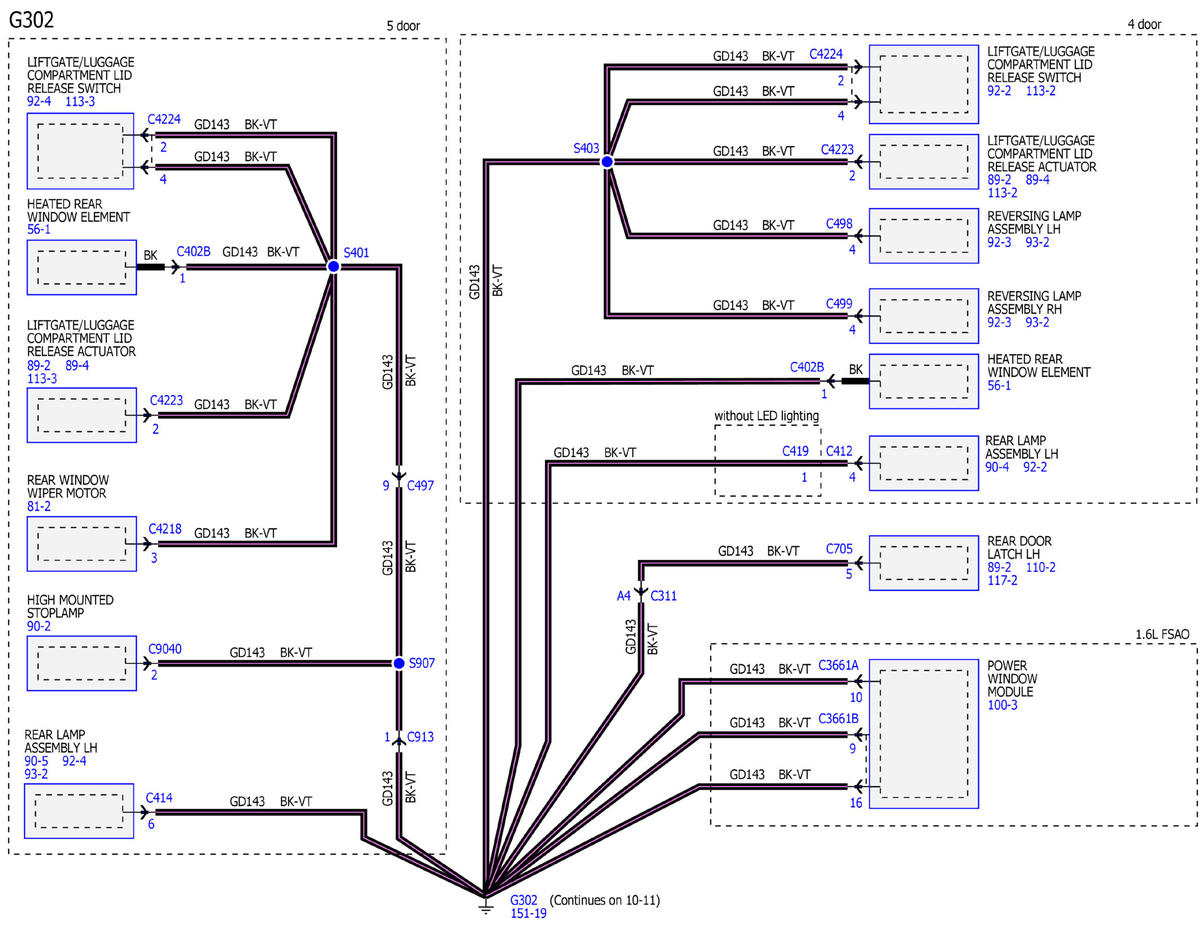

GFDWR17717Courtesy of FORD MOTOR COMPANY
