Component Testing

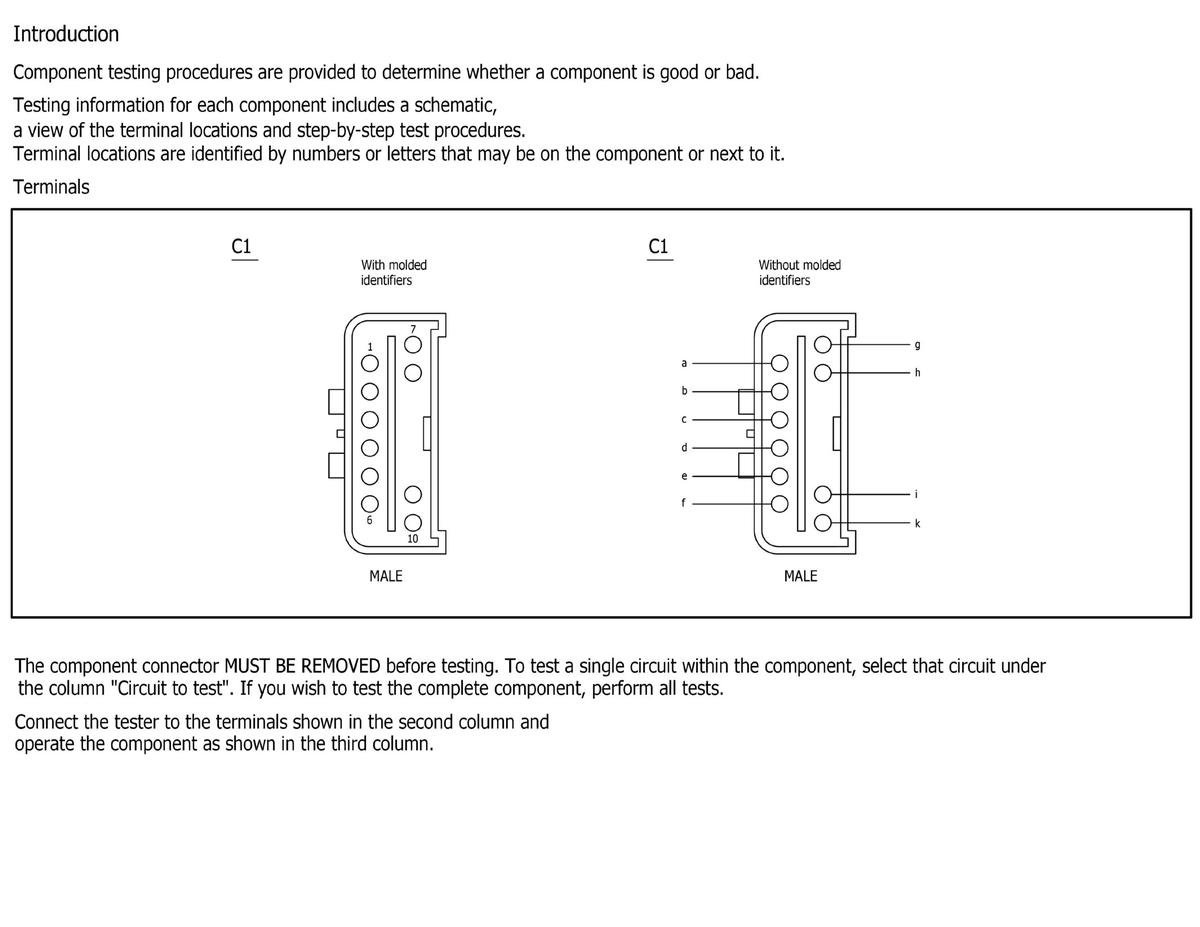

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

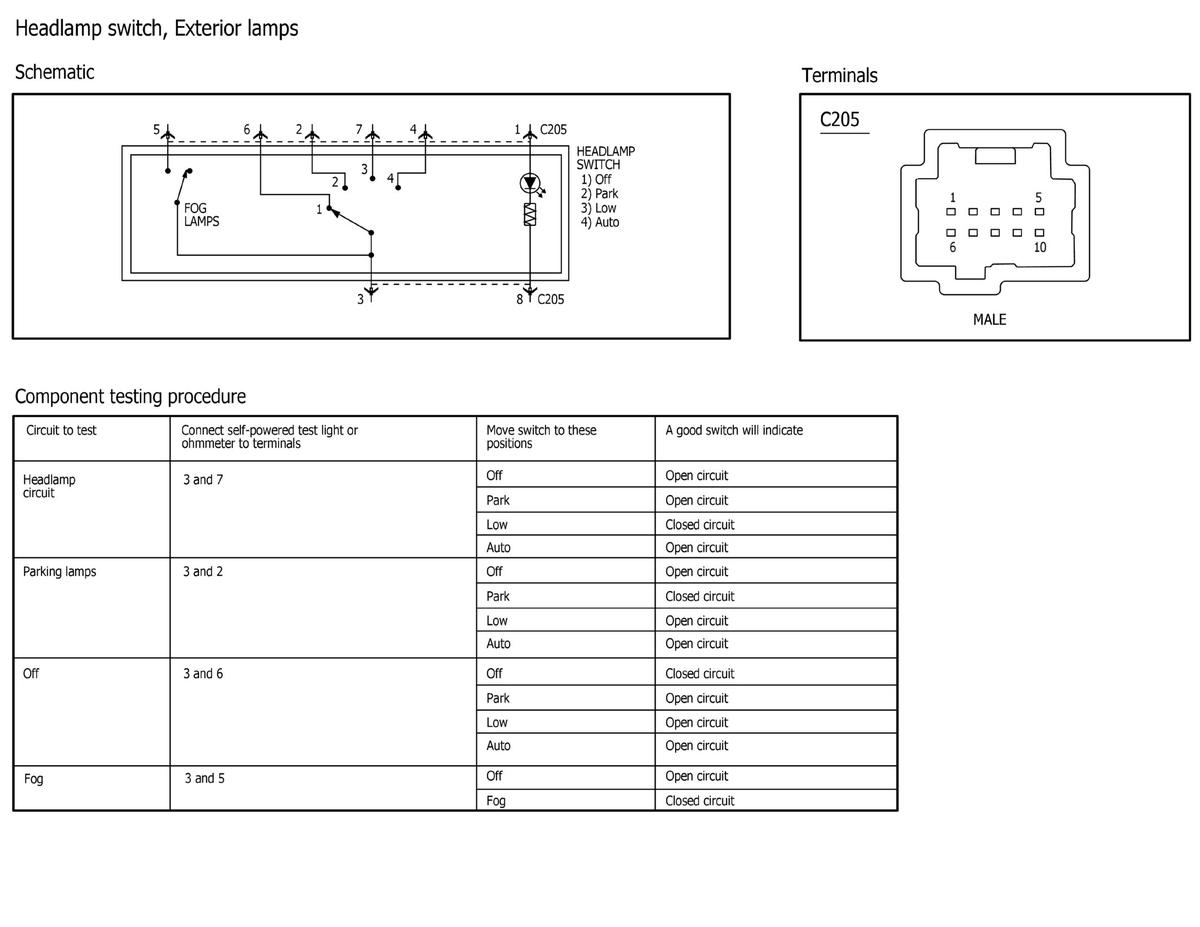

Fig 2: Headlamp Switch, Exterior Lamps Component Testing

Courtesy of FORD MOTOR COMPANY

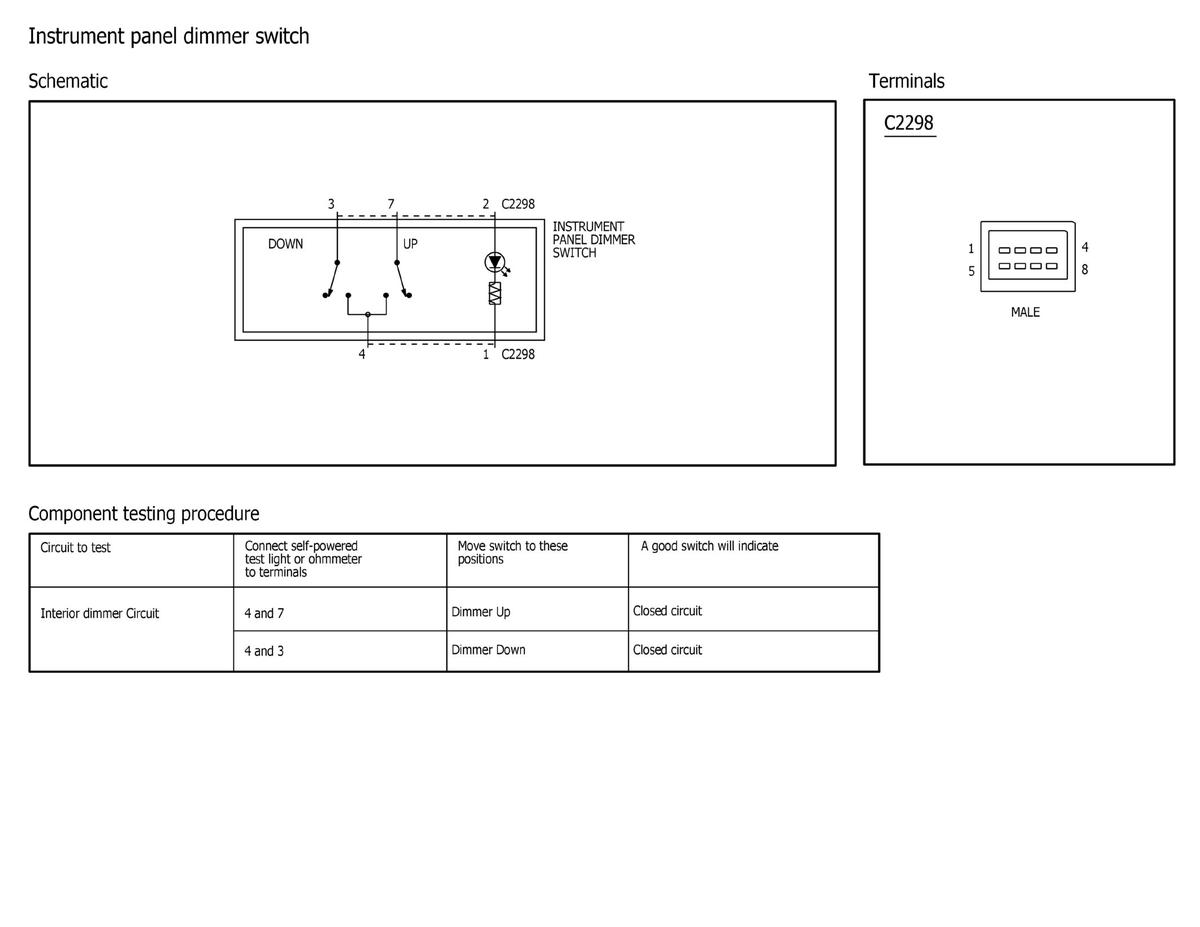

Fig 3: Instrument Panel Dimmer Switch Component Testing

Courtesy of FORD MOTOR COMPANY

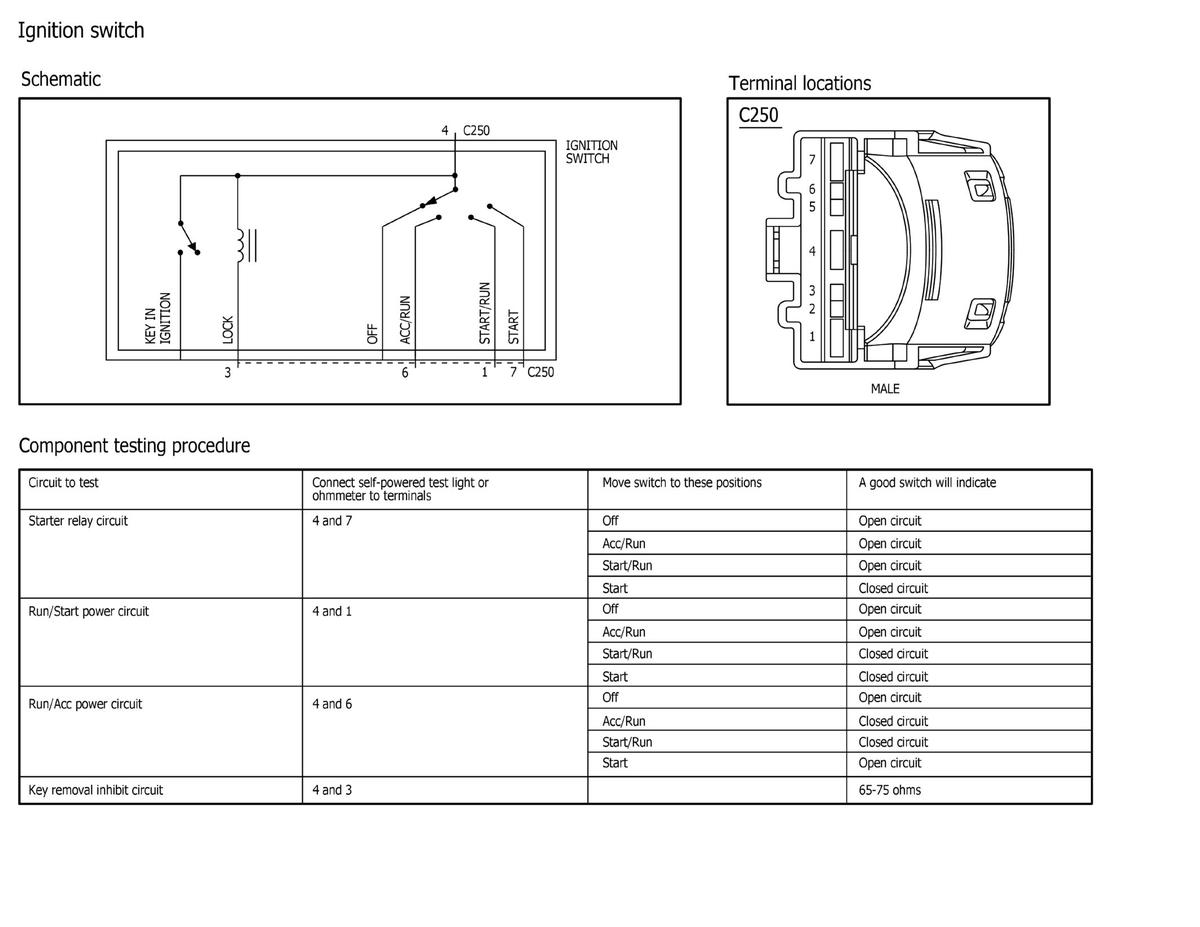

Fig 4: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

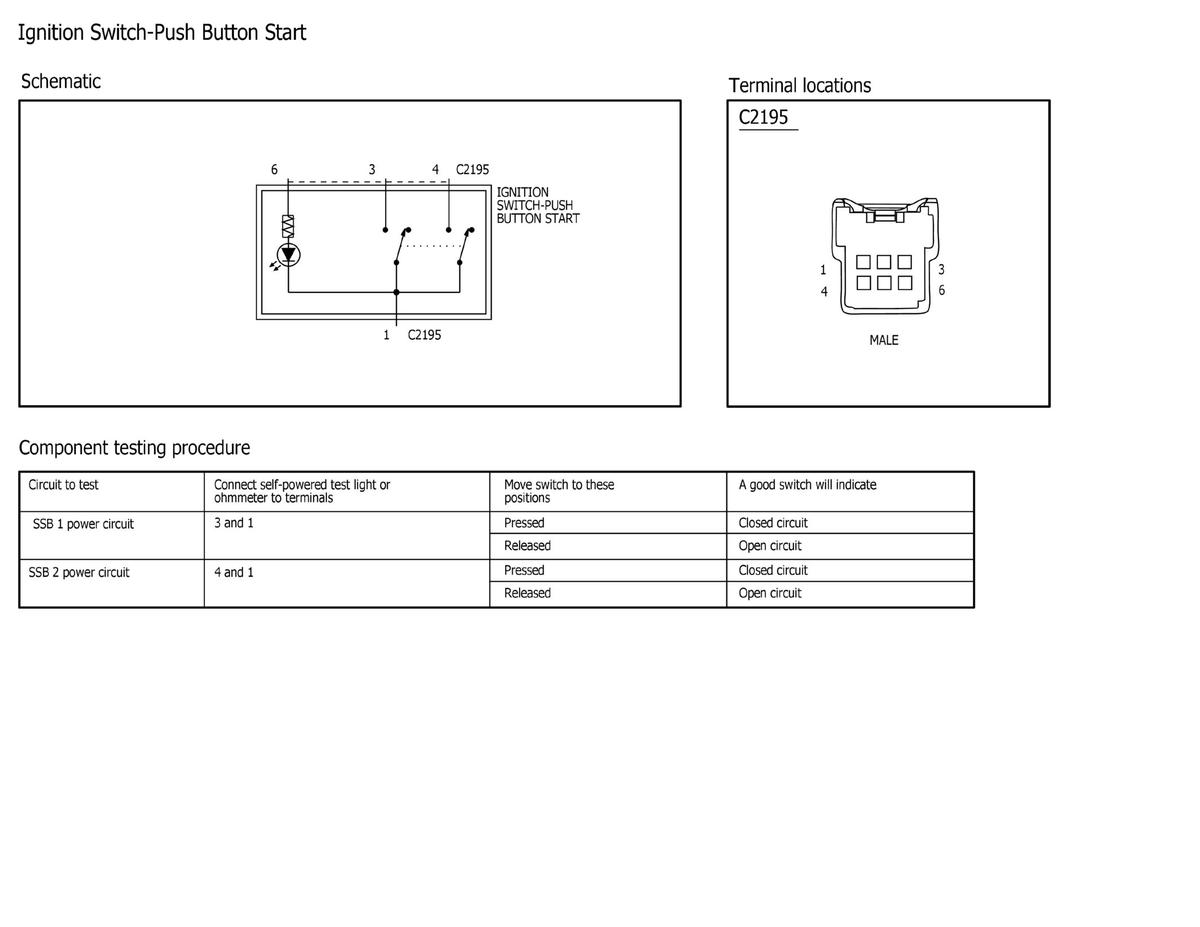

Fig 5: Ignition Switch - Push Button Start Component Testing

Courtesy of FORD MOTOR COMPANY

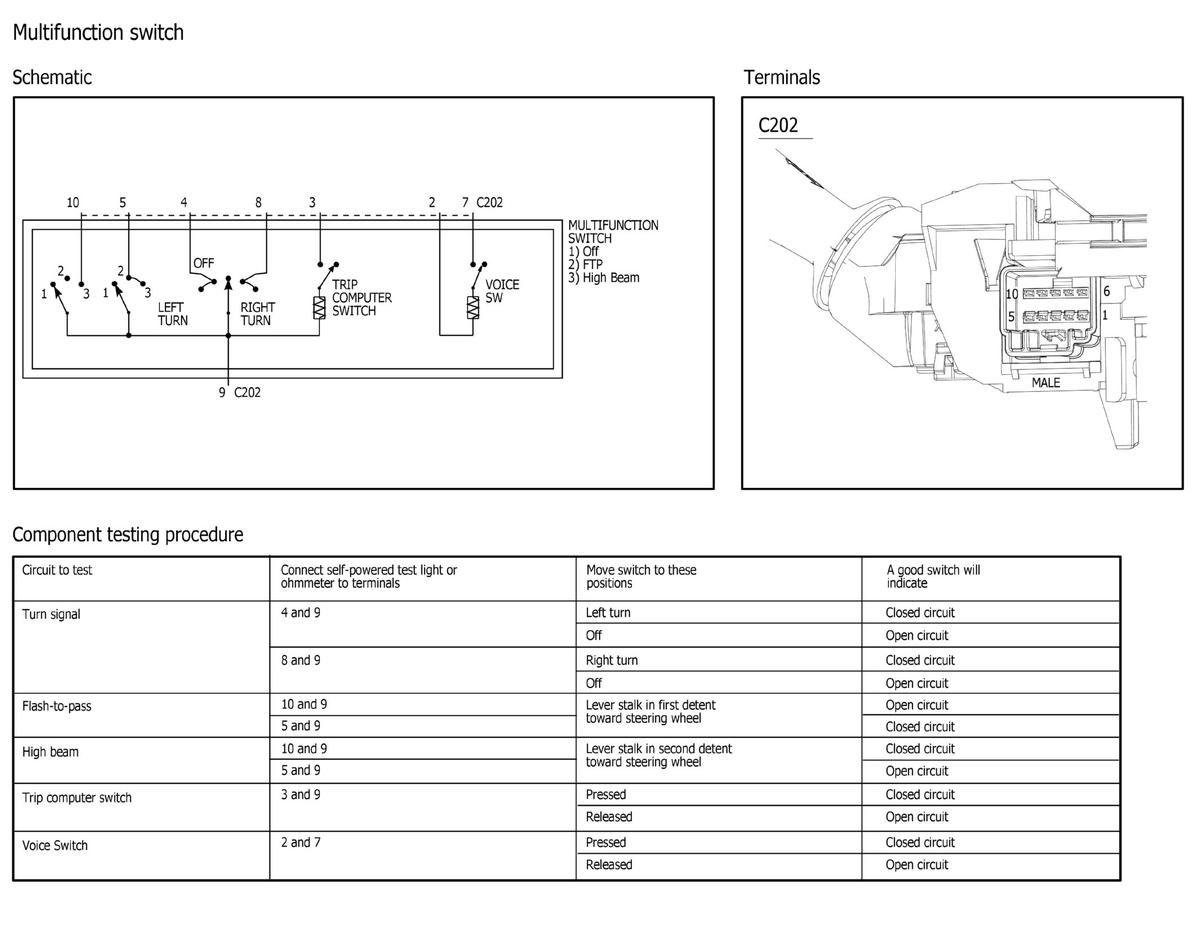

Fig 6: Multifunction Switch Component Testing

Courtesy of FORD MOTOR COMPANY

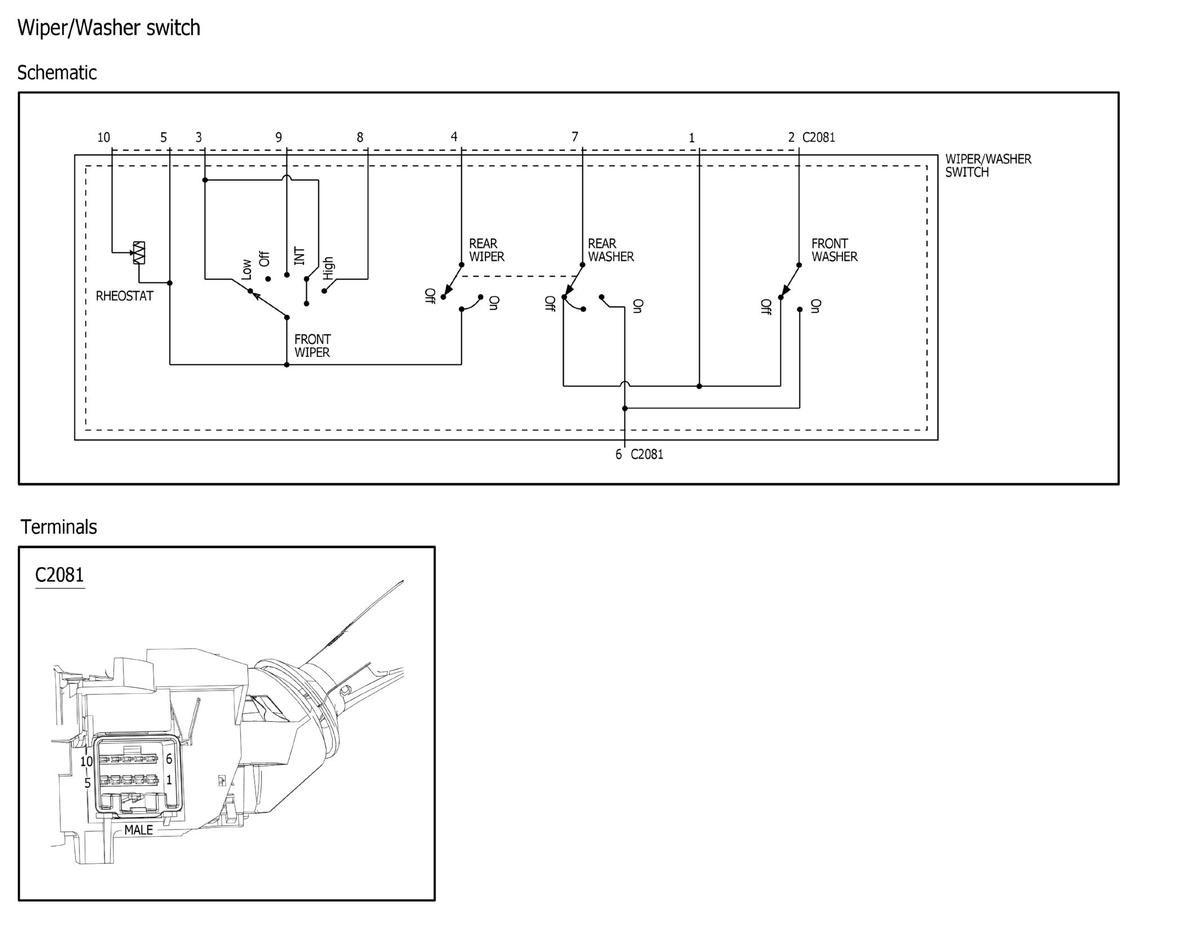

Fig 7: Wiper/Washer Switch Component Testing (1 of 2)

Courtesy of FORD MOTOR COMPANY

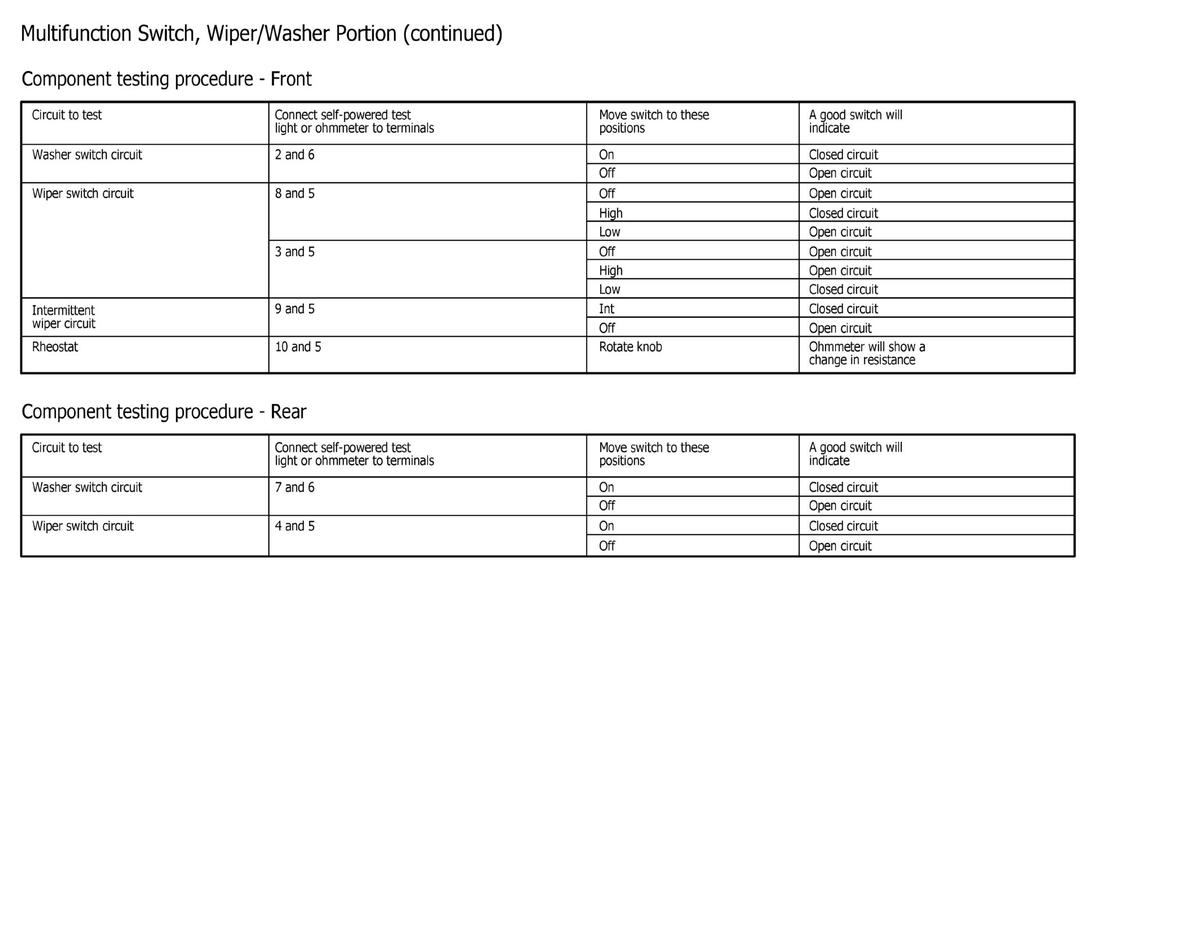

Fig 8: Multifunction Switch, Wiper/Washer Portion Component Testing (2 of 2)

Courtesy of FORD MOTOR COMPANY

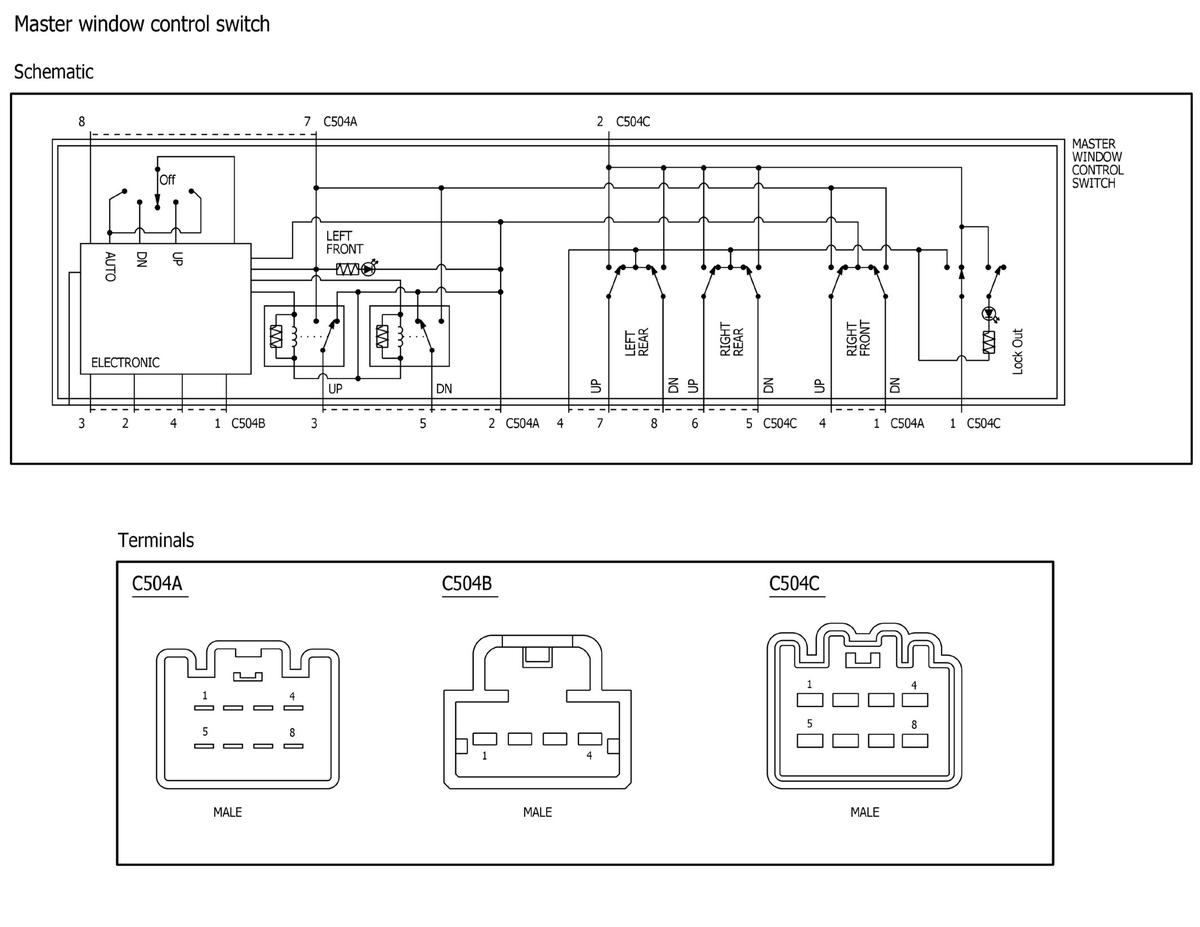

Fig 9: Master Window Control Switch Component Testing (1 of 2)

Courtesy of FORD MOTOR COMPANY

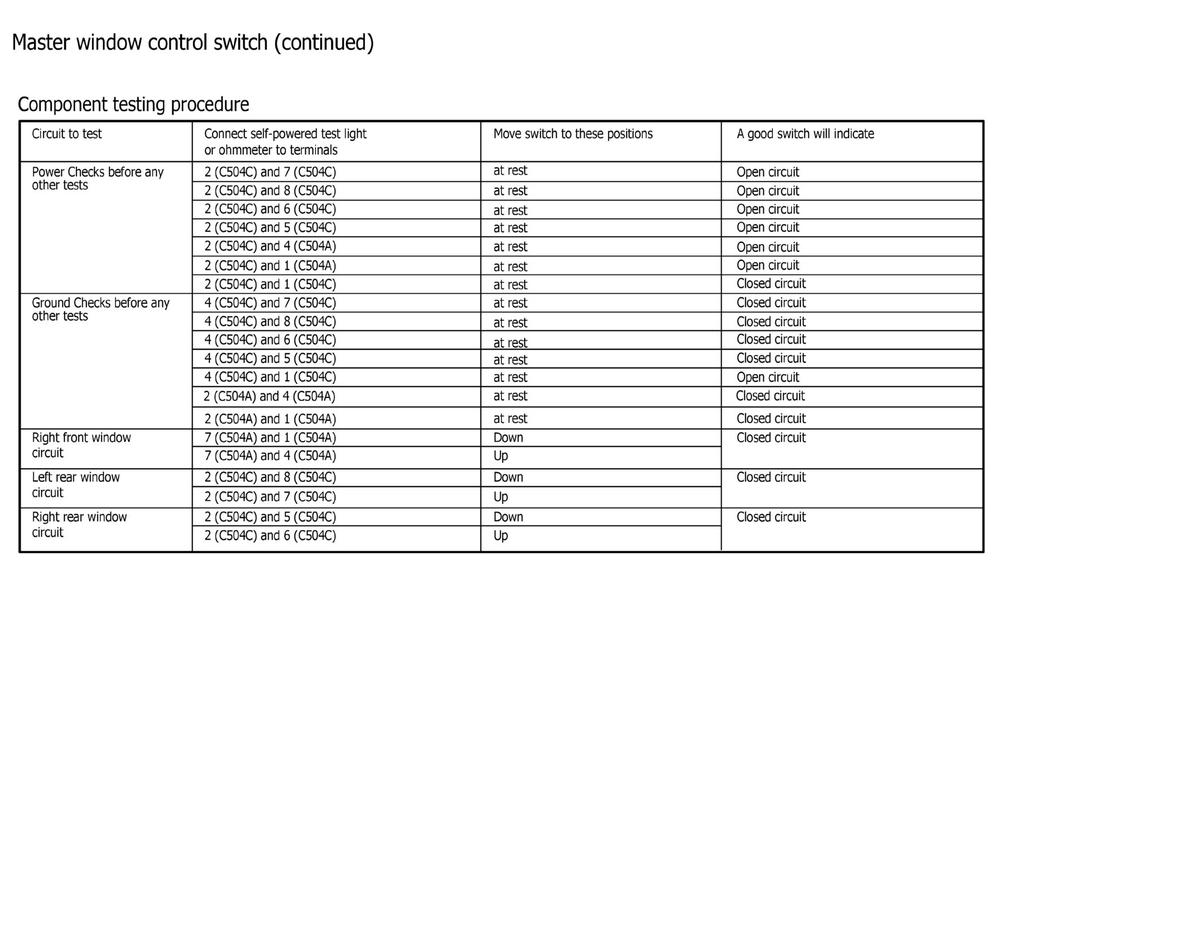

Fig 10: Master Window Control Switch Component Testing (2 of 2)

Courtesy of FORD MOTOR COMPANY

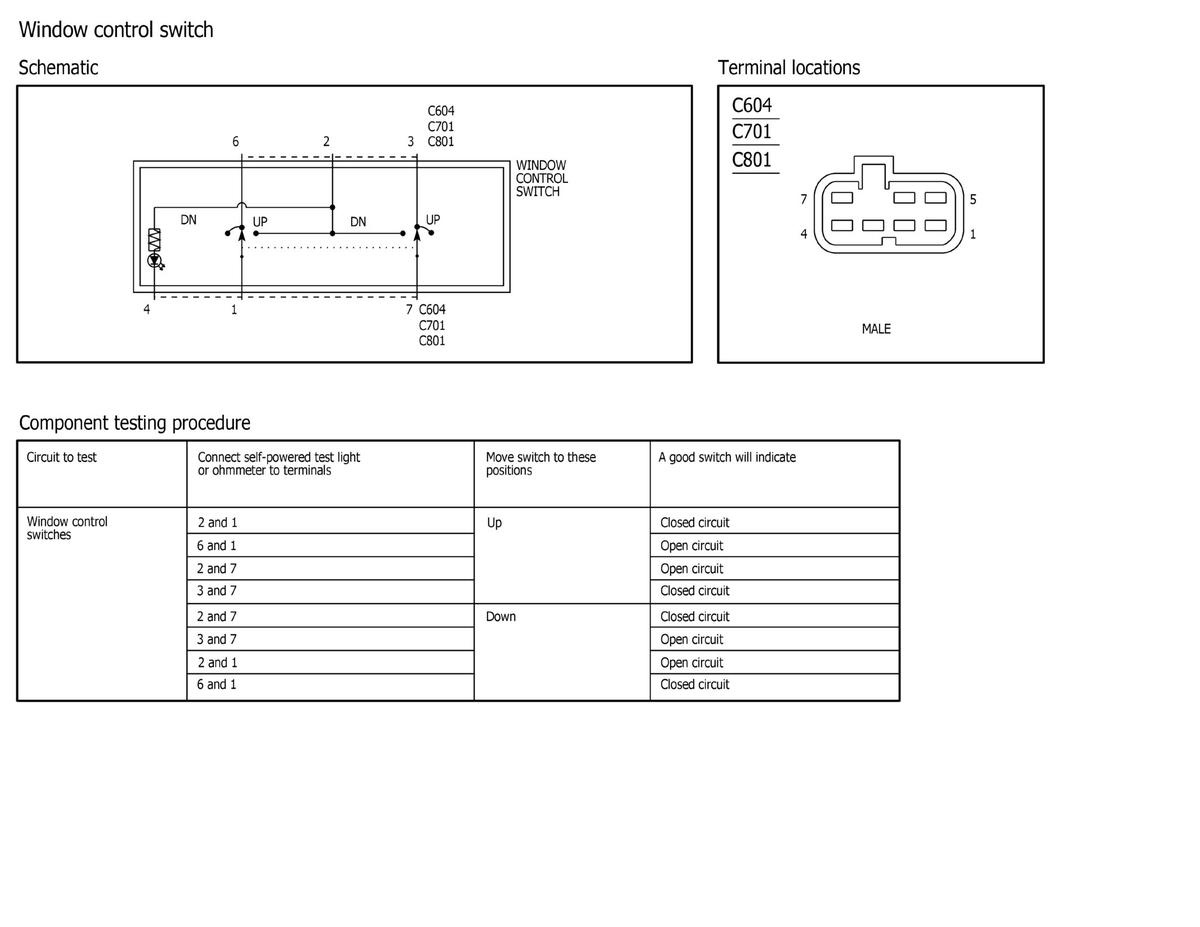

Fig 11: Window Control Switch Component Testing

Courtesy of FORD MOTOR COMPANY

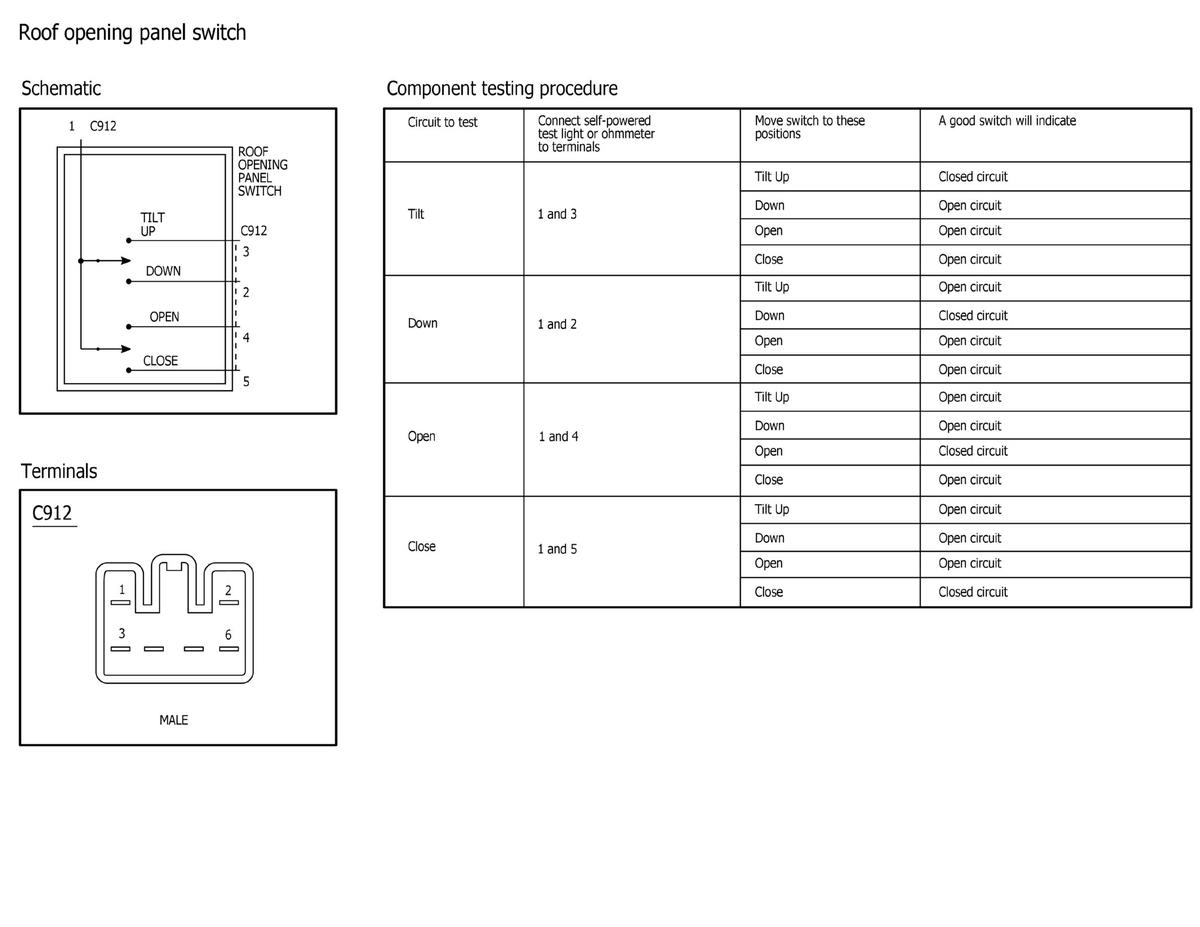

Fig 12: Roof Opening Panel Switch Component Testing

Courtesy of FORD MOTOR COMPANY

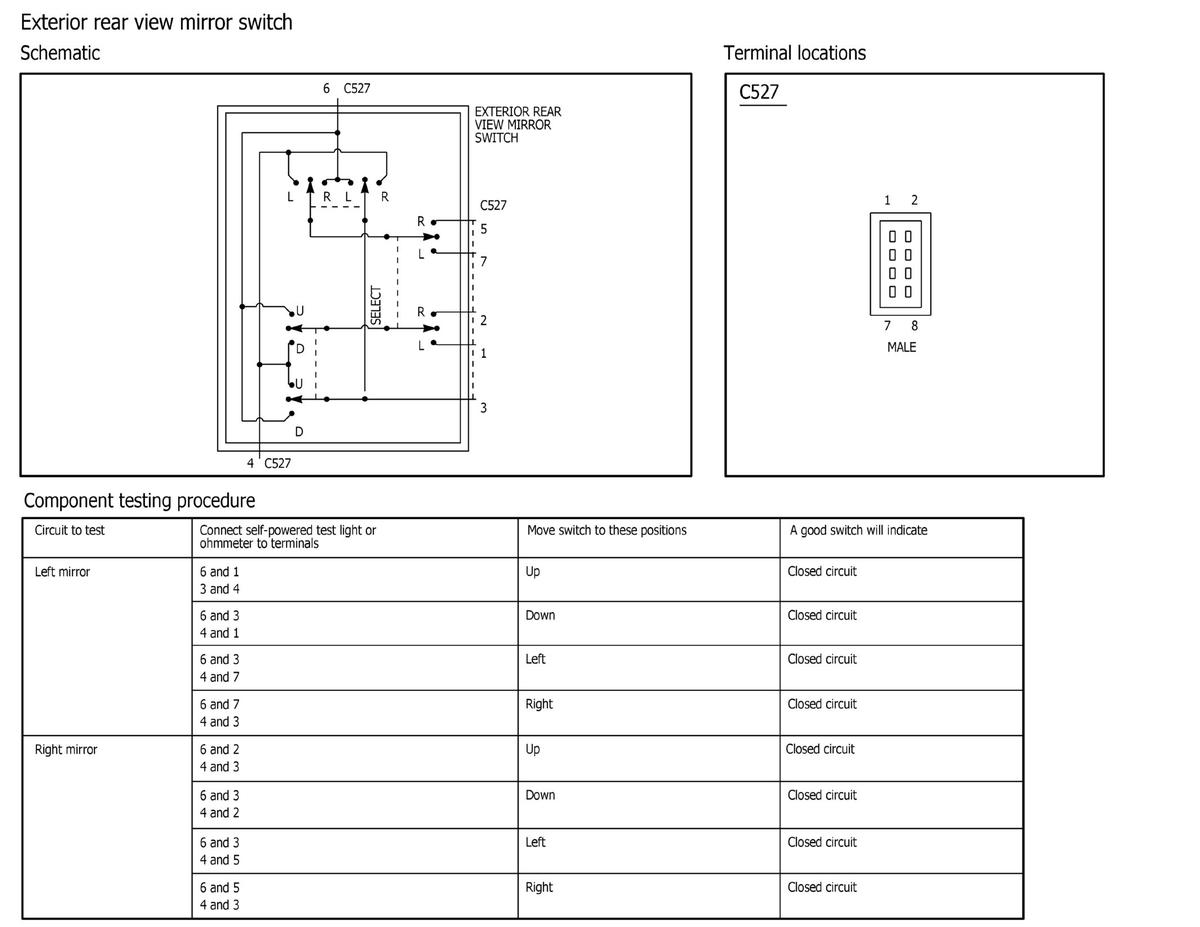

Fig 13: Exterior Rear View Mirror Switch Component Testing

Courtesy of FORD MOTOR COMPANY

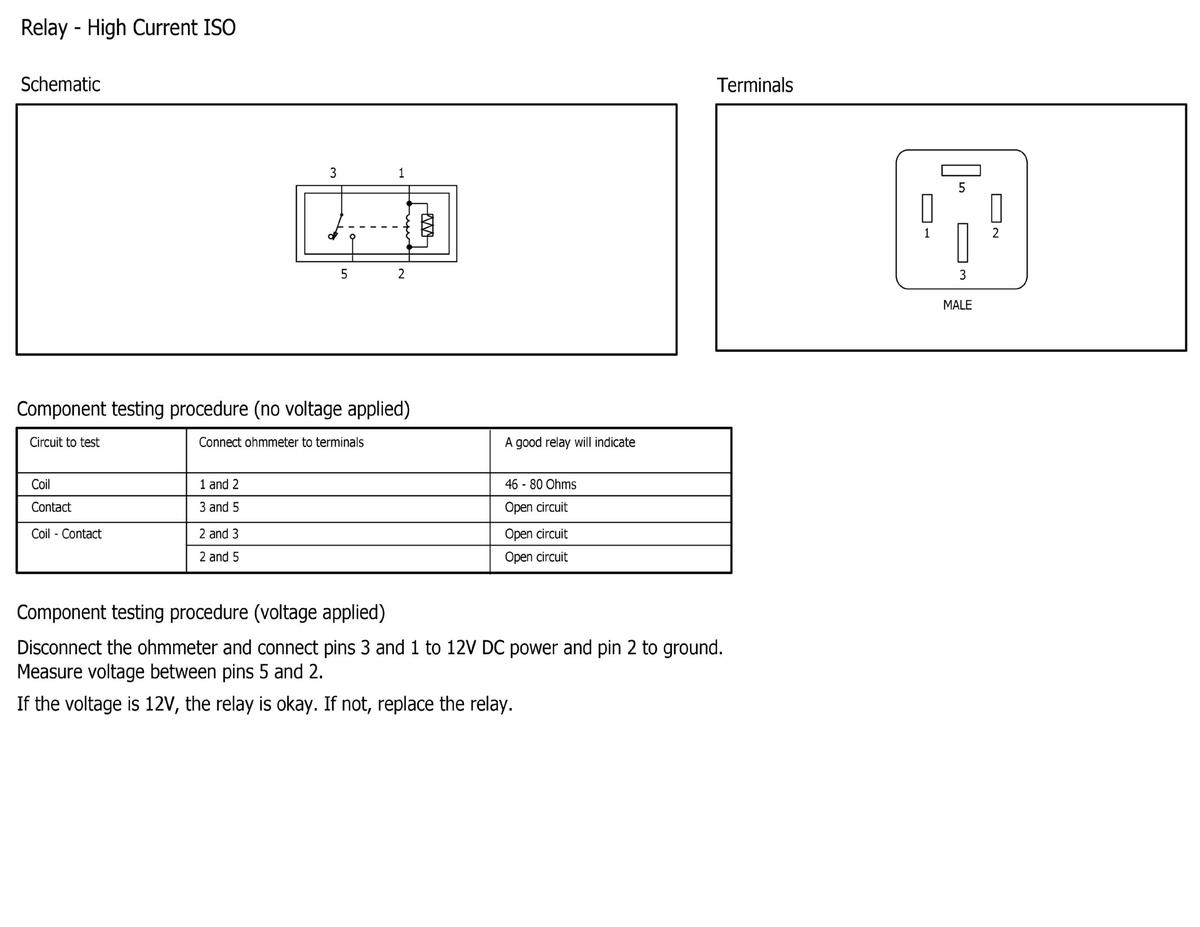

Fig 14: Relay - High Current ISO Component Testing

Courtesy of FORD MOTOR COMPANY

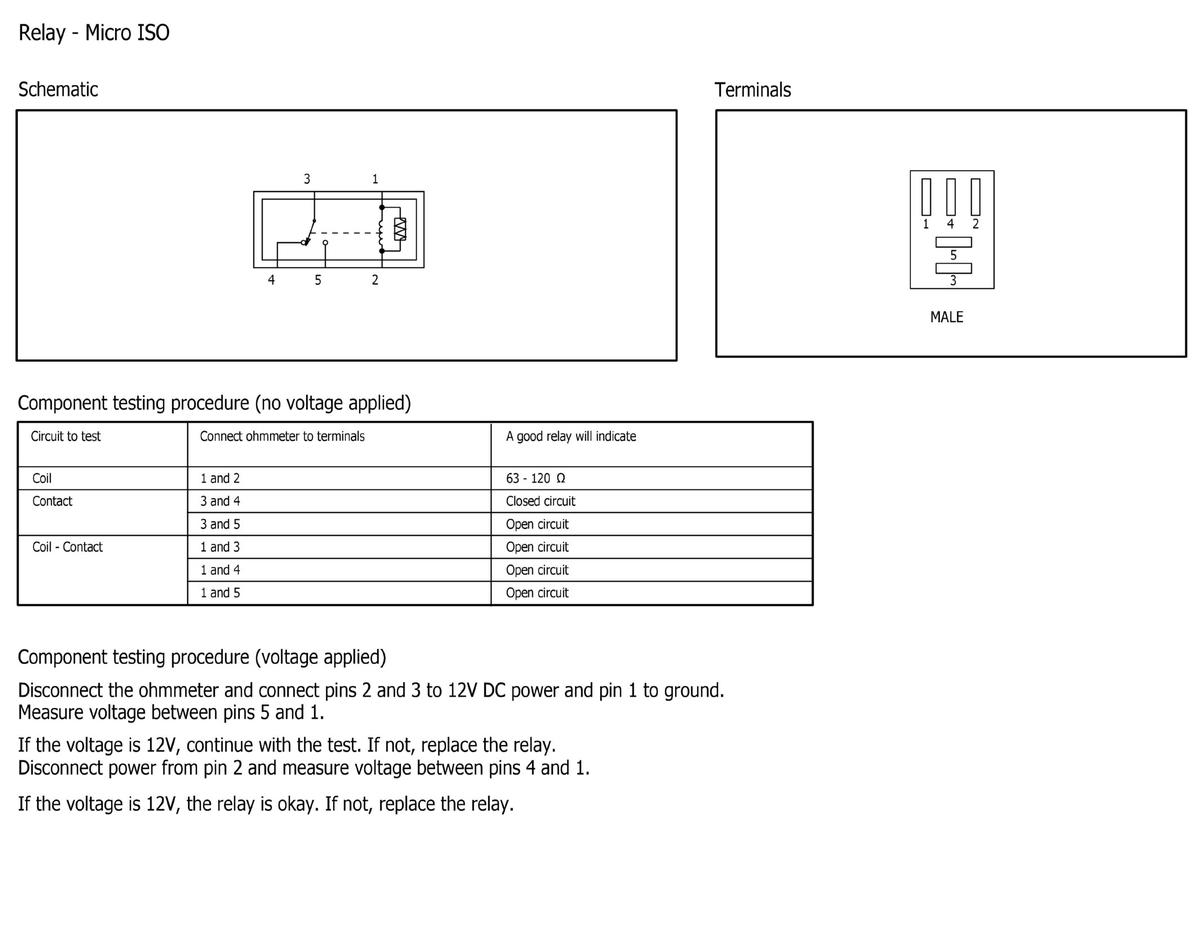

Fig 15: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY
