Variable Camshaft Timing (VCT) Oil Control Solenoid - 3. 5L GTDI: Notes

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

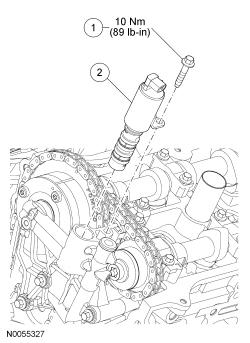

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid Bolt Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W500215	Variable Camshaft Timing(VCT) oil control solenoid bolt
2	6B297	VCT oil control solenoid
