Removal And Installation: Liftgate: Notes
WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
| Motorcraft® Threadlock 262TA-26 | WSK-M2G351-A6 |

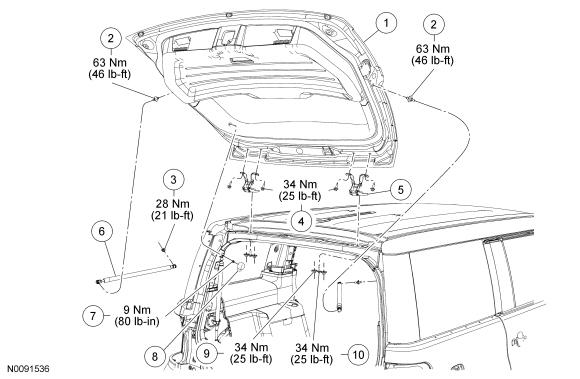

| Item | Part Number | Description |
|---|---|---|
| 1 | 7440010 | Liftgate assembly |
| 2 | W713408 | Liftgate strut-to-liftgate studs (2 required) |
| 3 | W713408 | Liftgate strut-to-body stud (2 required) |
| 4 | N806738 | Liftgate hinge-to-liftgate bolts (4 required) |
| 5 | 7442900 | Liftgate hinge (2 required) |
| 6 | 74406A10 LH/ 74406A11 RH LH/ 74406A11 RH | Liftgate strut (2 required) |
| 7 | W520201 | Power liftgate rod-to-liftgate nut |
| 8 | 7821978 | Power liftgate rod-to-liftgate nut cover |
| 9 | W711324 | Liftgate hinge-to-body nut (4 required) |
| 10 | W713162 | Liftgate hinge-to-body bolt (2 required) |
