Auxiliary Climate Control Assembly: Notes
WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

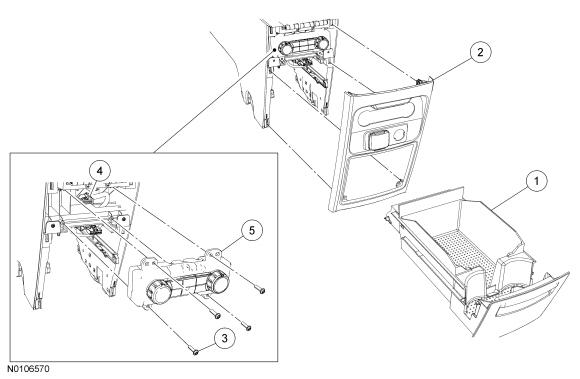

| Item | Part Number | Description |
|---|---|---|
| 1 | 7413530 | Floor console utility tray |
| 2 | 74045E24 | Floor console rear trim panel |
| 3 | -- | Auxiliary climate control assembly screw (4 required) |
| 4 | -- | Auxiliary climate control assembly electrical connector (part of 14B079) |
| 5 | 19980 | Auxiliary climate control assembly |
