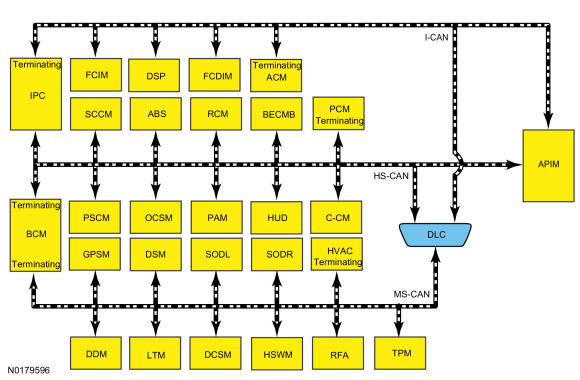

System Diagram

WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The TPM module is also known as Radio Transceiver Module (RTM).

Courtesy of FORD MOTOR COMPANY
