Remote Function Actuator (RFA) Module: Removal

WARNING: This page is about a different car, the 2018 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary if the Remote Function Actuator (RFA) module is being replaced.

NOTE: Prior to the replacement of the module, it is necessary to upload the module configuration information to the scan tool. This information must be downloaded into the new module after installation. For additional information, refer to Programmable Module Installation (PMI) .

Upload the module configuration information from the RFA module by following the scan tool on screen instructions.
Remove the RH side instrument panel hush panel.

Courtesy of FORD MOTOR COMPANY

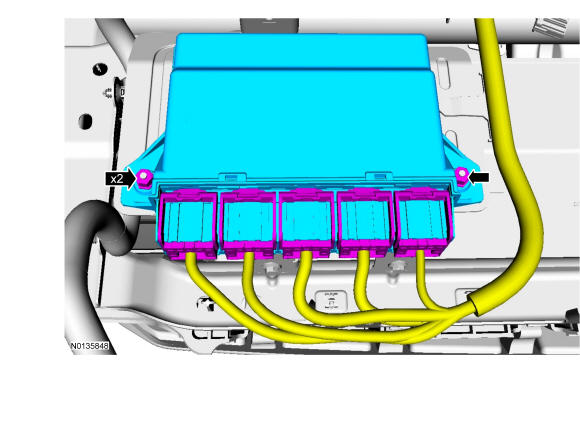

Remove the 2 nuts and remove the RFA module.
- Disconnect the RFA module electrical connectors.

Courtesy of FORD MOTOR COMPANY
