Master Window Control Switch

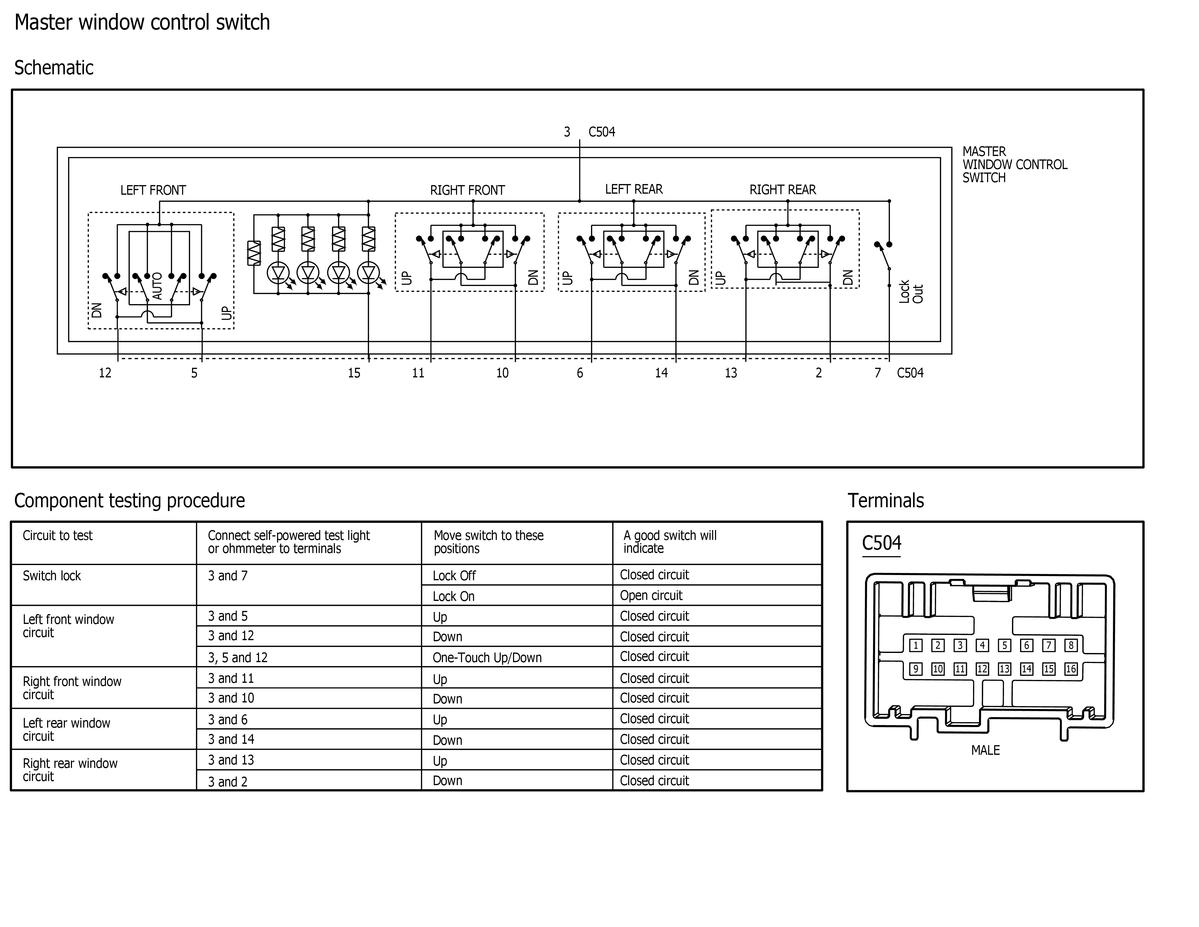

Fig 1: Master Window Control Switch
GFDWR25877Courtesy of FORD MOTOR COMPANY
