Hood Alignment
WARNING: This page is about a different car, the 2020 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding

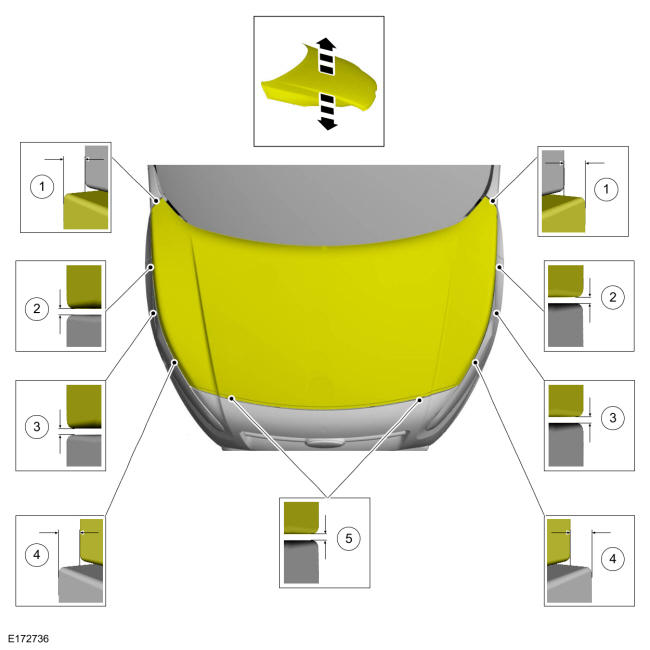

Check
- Check the hood-to-body dimensions.
- Dimension
: 0.1378 +/-0.0591 in (3.5 +/-1.5 mm)
- Dimension
: 0.0236 -0.0787/+0.0394 in (.6 -2/+1 mm)
- Dimension
: 0.1969 +/-0.0591 in (5 +/-1.5 mm)
- Dimension
: 0.0945 +/-0.0591 in (2.4 +/-1.5 mm)
- Dimension
: 0.1496 +/-0.0591 in (3.8 +/-1.5 mm)
- Dimension
: 0.1378 +/-0.0591 in (3.5 +/-1.5 mm)
- Dimension
: 0.0394 +/-0.0787 in (1 +/-2 mm)
- Dimension

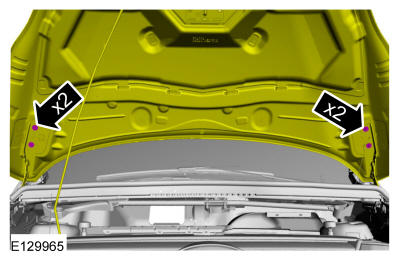

Adjustment
- Loosen the nuts enough to permit movement of the hood. Loosen: 2 turn(s)
- Adjust the hood to specification.
- Tighten the nuts.
Torque: 89 lb.in (10 Nm)

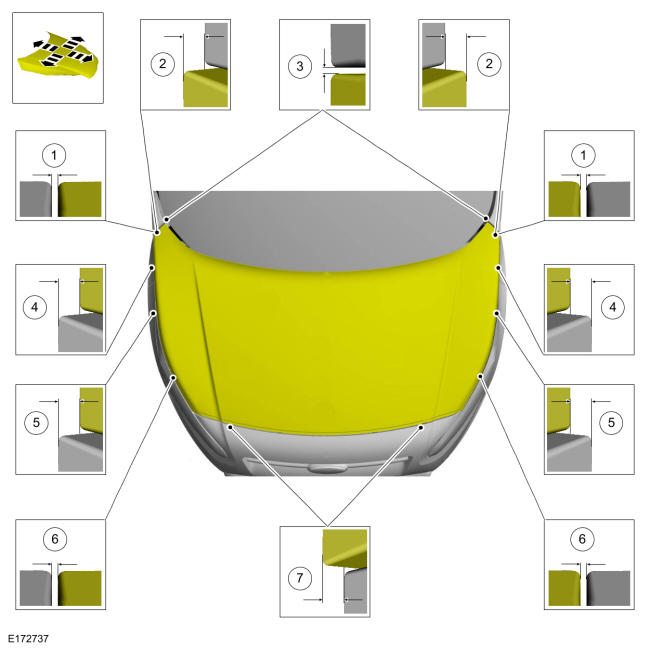

Check
- Check the body-to-hood dimensions.
- Dimension
: 0.0394 -0.0787/+0.0394 in (1 -2/+1 mm)
- Dimension
: 0.1260 +/-0.0591 in (3.2 +/-1.5 mm)
- Dimension
: 0.1260 +/-0.0591 in (3.2 +/-1.5 mm)
- Dimension
: 0.0512 +/-0.0591 in (1.3 +/-1.5 mm)
- Dimension
: 0.2362 +/-0.0866 in (6 +/-2.2 mm)
- Dimension
Adjustment

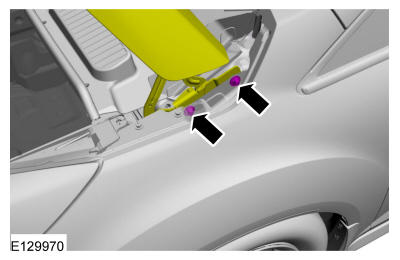

- On both sides. Loosen the bolts enough to permit movement of the hood. Loosen: 2 turn(s)
- Adjust the hood to specification.

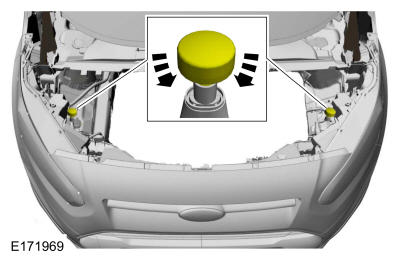

- Adjust the bump stop rubbers.
- On both sides. Tighten the bolts.
Torque: 18 lb.ft (25 Nm)
