Rain Sensor: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding

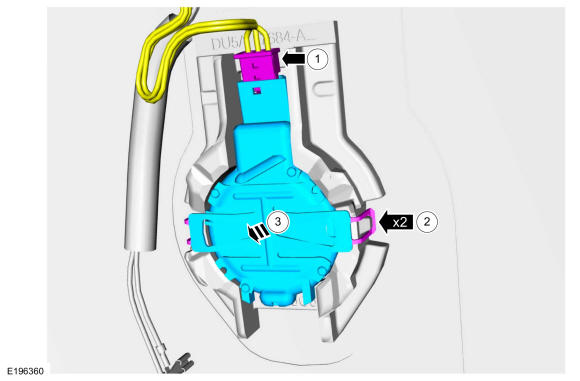

- Remove the interior rear view mirror. Refer to: Interior Rear View Mirror .
-
- Disconnect the electrical connector and position aside.
- Release the retainers.
- Remove the rain sensor.
