Wiper Linkage Assembly: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The hood is removed in this procedure for clarity.

Remove the cowl panel. Refer to: Cowl Panel .

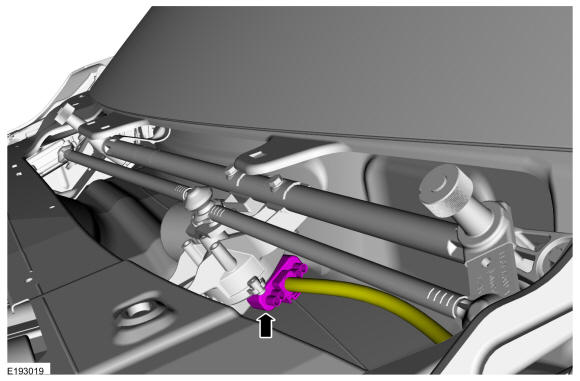

Disconnect the windshield wiper motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the wiper linkage assembly bolts.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

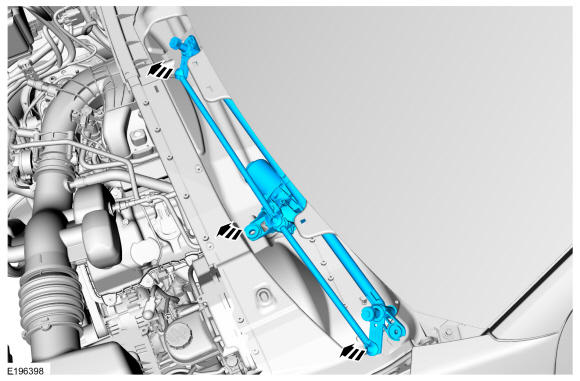

Remove the wiper linkage assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.

Detach the RH windshield wiper link from the windshield wiper motor crank.
1. Detach the link.
2. Position the link aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.

Detach the LH windshield wiper link from the windshield wiper motor crank.
1. Detach the link.
2. Position the link aside.
Courtesy of FORD MOTOR COMPANY

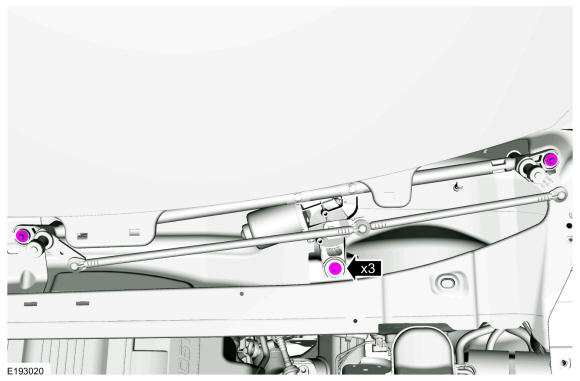

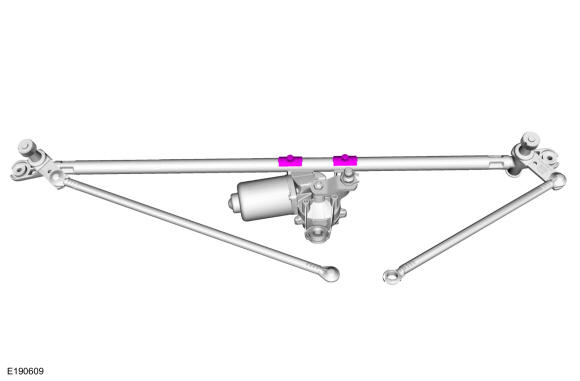

Remove the windshield wiper motor bolts and motor clamp plates.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

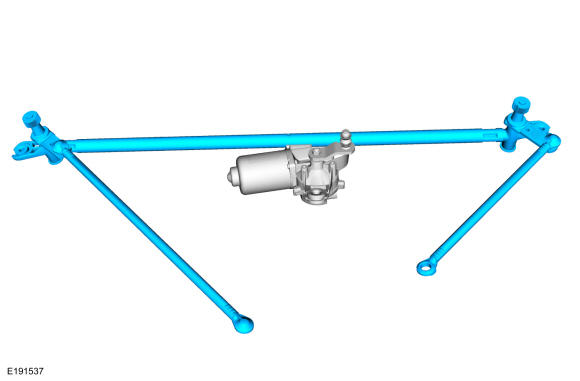

Remove the wiper linkage assembly from the windshield wiper motor.

Courtesy of FORD MOTOR COMPANY
