Side Obstacle Detection Control Module: Removal

Side obstacle detection control module

NOTE: This step is only necessary if the SODL or SODR is being replaced.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
Remove the rear bumper cover. Refer to: Rear Bumper Cover .

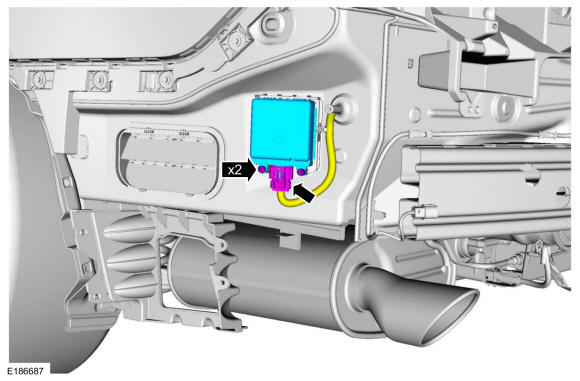

Disconnect the electrical connector, remove the screws and the SODL or SODR.

Courtesy of FORD MOTOR COMPANY

Side obstacle detection control module bracket
Remove the SODL or SODR.

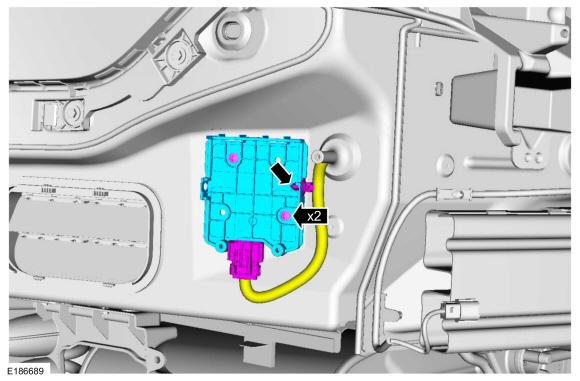

Disconnect the wiring harness guide, remove the screws and the side obstacle control module bracket.

Courtesy of FORD MOTOR COMPANY
