Removal And Installation

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking And Lifting .
Remove the intermediate Charge Air Cooler (CAC) outlet tube and the upper Charge Air Cooler (CAC) outlet tube. For additional information, refer to Intake Air Distribution and Filtering .
Tighten to 10 Nm (89 lb-in) in the sequence shown.

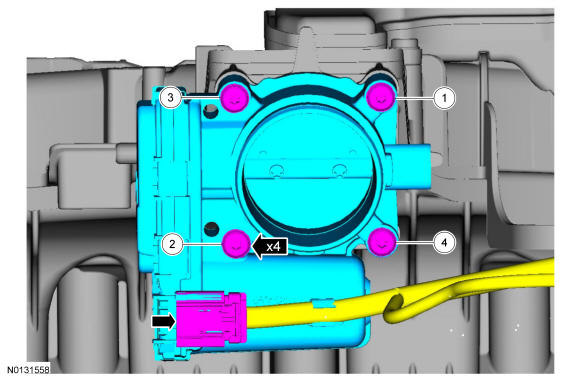

Fig 1: Throttle Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Discard the specified component. Follow local disposal regulations.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new TB gasket is installed.

To install, reverse the removal procedure.
