Cylinder Head: Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s)
| Compressor, Valve Spring 303-300 (T87C-6565-A) |
|
| Compressor, Valve Spring 303-350 (T89P-6565-A), 303-1418 |
|
| Compressor, Valve Spring 303-1249 |
|
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) |
Material
| Item | Specification |
| Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) |
WSS-M2C946-A |

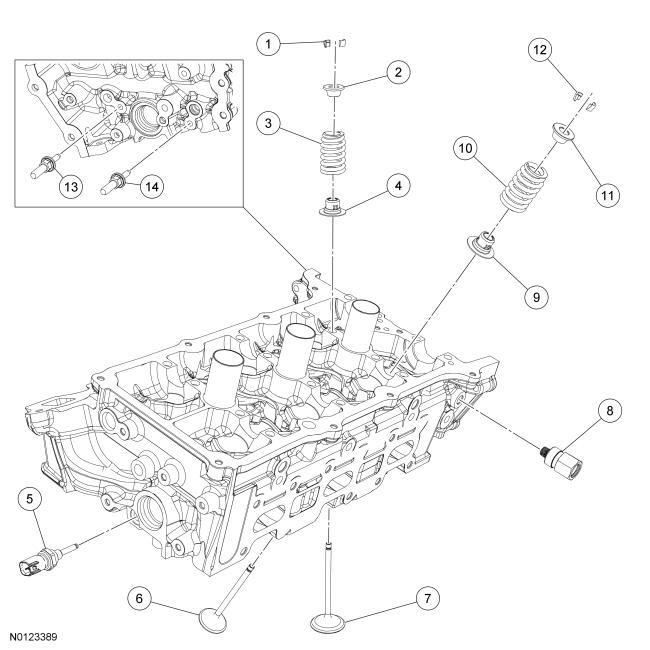

Cylinder Head
NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6518 | Intake valve spring retainer key (12 required) |
| 2 | 6514 | Intake valve spring retainer (6 required) |
| 3 | 6513 | Intake valve spring (6 required) |
| 4 | 6A517 | Intake valve stem seal (6 required) |
| 5 | 6G004 | Cylinder Head Temperature(CHT) sensor (RH cylinder head only) |
| 6 | 6507 | Exhaust valve (6 required) |
| 7 | 6505 | Intake valve (6 required) |
| 8 | 6N641 | Turbocharger oil supply quick connect fitting |
| 9 | 6A517 | Exhaust valve stem seal (6 required) |
| 10 | 6513 | Exhaust valve spring (6 required) |
| 11 | 6514 | Exhaust valve spring retainer (6 required) |
| 12 | 6518 | Exhaust valve spring retainer key (12 required) |
| 13 | W714090 | Timing chain tensioner arm pin (RH cylinder head only) |
| 14 | W714090 | Timing chain guide pin |
