Engine - 3.5L GTDI: Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	Handle 205-153 (T80T-4000-W)
Courtesy of FORD MOTOR COMPANY	Remover, Fuel Injector 310-206
Courtesy of FORD MOTOR COMPANY	Remover, Oil Seal 303-409 (T92C-6700CH)
Courtesy of FORD MOTOR COMPANY	Spring Lock Coupling Disconnect Tool 310-S039 (T90T-9550-S) or equivalent
Courtesy of FORD MOTOR COMPANY	Strap Wrench 303-D055 (D85L-6000-A) or equivalent
Courtesy of FORD MOTOR COMPANY	Tool, Camshaft Holding 303-1248

General Equipment

Three Leg Puller

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

WARNING: Clean all fuel residue from the engine compartment. If not removed, fuel residue may ignite when the engine is returned to operation. Failure to follow this instruction may result in serious personal injury.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

NOTE: A clean working environment is essential to prevent dirt or foreign material contamination into the fuel rails.

NOTE: For additional information, refer to the exploded view under the Assembly procedure.

Remove the 8 bolts and the flexplate.

Courtesy of FORD MOTOR COMPANY
Remove the crankshaft sensor ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the oil pan.

Mount the engine on a suitable engine stand.
If equipped, remove the heat shield and disconnect the block heater electrical connector.
- Detach all of the engine block heater harness retainers and remove the harness.
Courtesy of FORD MOTOR COMPANY
Remove the nut and the A/C tube from the compressor.
- Discard the O-ring seal and gasket seal.
Courtesy of FORD MOTOR COMPANY
Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

Courtesy of FORD MOTOR COMPANY

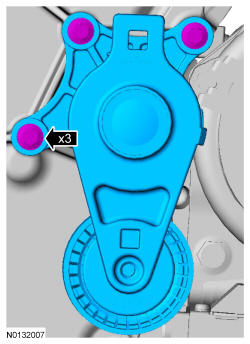

Remove the 3 bolts and the accessory drive belt tensioner.

Courtesy of FORD MOTOR COMPANY
Disconnect the LH turbocharger bypass valve electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Index-mark the hoses for installation.

Remove the turbocharger wastegate regulating valve hoses from the RH CAC tube and turbocharger wastegate regulating valve.

Courtesy of FORD MOTOR COMPANY
Loosen the clamp and remove the LH turbocharger intake tube from the LH turbocharger.

Courtesy of FORD MOTOR COMPANY
Disconnect the RH turbocharger bypass valve electrical connector.

Courtesy of FORD MOTOR COMPANY
Loosen the clamp and remove the RH CAC tube from the RH turbocharger.

Courtesy of FORD MOTOR COMPANY
Loosen the clamp and remove the RH turbocharger intake pipe from the RH turbocharger.

Courtesy of FORD MOTOR COMPANY
NOTE: The compression limiter bushing may fall out of the mounting bracket grommet on the turbocharger intake tube during service. Make sure the bushing is in place when reinstalling the tube or damage to the tube may occur.

Remove the nut from the RH valve cover stud bolt for the RH turbocharger intake tube.

Courtesy of FORD MOTOR COMPANY
NOTE: The compression limiter bushing may fall out of the mounting bracket grommet on the Charge Air Cooler(CAC) tube during service. Make sure the bushing is in place when reinstalling the tube or damage to the tube may occur.

Remove the RH CAC tube nut from the intake manifold and remove the RH CAC tube and turbocharger intake tube as an assembly.

Courtesy of FORD MOTOR COMPANY
Remove the lower radiator hose from the thermostat housing.

Courtesy of FORD MOTOR COMPANY
Disconnect the 2 quick connect couplings and remove the PCV tube. For additional information, refer to Fuel System - General Information .

Courtesy of FORD MOTOR COMPANY
Remove the noise insulator shield for the fuel injection fuel pump and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the Throttle Position(TP) sensor and electronic TB electrical connectors.

Courtesy of FORD MOTOR COMPANY
Disconnect the LH Variable Camshaft Timing(VCT) solenoid electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the A/C compressor nut and the Catalyst Monitor Sensor(CMS) electrical connector bracket.

Courtesy of FORD MOTOR COMPANY
Remove the nut, bolt and the generator.
- Remove the generator stud.
Courtesy of FORD MOTOR COMPANY
Remove the stud bolt and the A/C compressor.

Courtesy of FORD MOTOR COMPANY
Remove the A/C compressor mounting stud from the oil pan.

Courtesy of FORD MOTOR COMPANY
Disconnect the Engine Oil Pressure(EOP) switch electrical connector.
- Detach the EOP wiring harness retainer from the engine block.
Courtesy of FORD MOTOR COMPANY

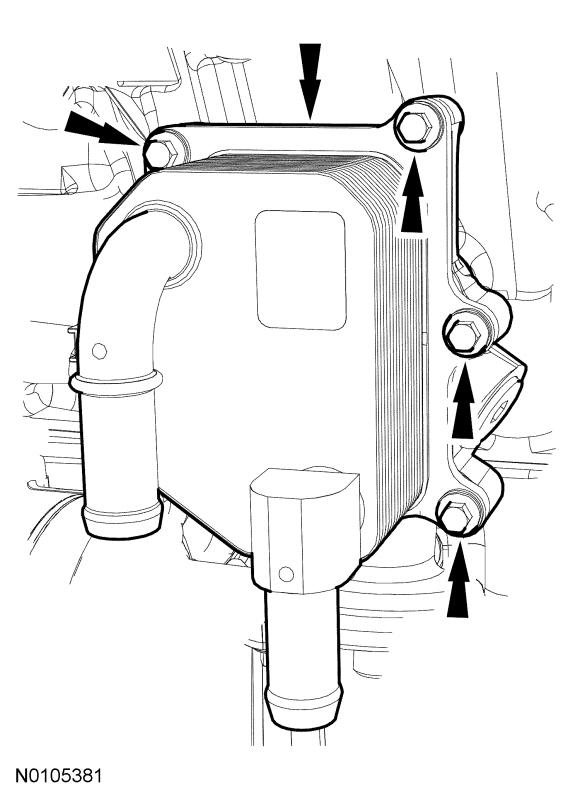

NOTE: A new oil cooler must be installed or severe damage to the engine may occur.

If equipped, remove the 6 bolts and the oil cooler.
- Discard the oil cooler and gaskets.
Courtesy of FORD MOTOR COMPANY
NOTE: Engine without oil cooler shown, engine with oil cooler similar.

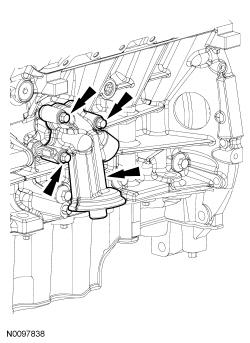

Remove the 3 bolts and the oil filter adapter.
- Discard the gasket.
Courtesy of FORD MOTOR COMPANY
Remove the EOP switch.

Courtesy of FORD MOTOR COMPANY
Disconnect the 3 LH ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY
Detach all the wiring harness retainers from the LH valve cover and stud bolts.
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Disconnect the Knock Sensor(KS) sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Detach and disconnect the 2 fuel injector wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY
Disconnect the Manifold Absolute Pressure(MAP) /Intake Air Temperature 2(IAT2) sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the turbocharger wastegate regulating valve electrical connector.

Courtesy of FORD MOTOR COMPANY
Detach the 2 wire harness-to-intake manifold retainers.

Courtesy of FORD MOTOR COMPANY
Remove the fuel tube-to-engine front cover bracket bolt and position the fuel tube aside.

Courtesy of FORD MOTOR COMPANY
Disconnect the 2 turbocharger coolant hoses from the intake manifold.

Courtesy of FORD MOTOR COMPANY
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

NOTE: Note the routing of the 2 fuel rail wiring harnesses for installation.

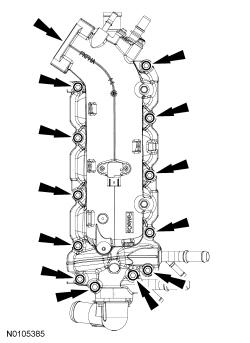

Remove the 12 bolts and the intake manifold.
- Remove and discard the intake manifold, coolant crossover and thermostat housing gaskets.
- Clean and inspect all sealing surfaces.
Courtesy of FORD MOTOR COMPANY

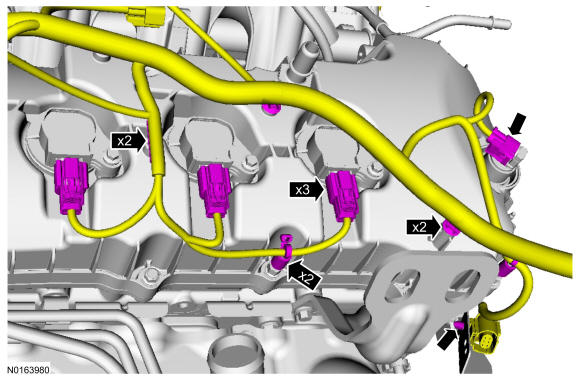

Disconnect the RH VCT solenoid and the 3 RH ignition coil-on-plug electrical connectors.
- Detach all the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Disconnect the RH Camshaft Position(CMP) sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the RH CMP sensor.

Courtesy of FORD MOTOR COMPANY
Disconnect the Cylinder Head Temperature(CHT) sensor electrical connector from the rear of the RH cylinder head.

Courtesy of FORD MOTOR COMPANY
Disconnect the LH CMP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the LH CMP sensor.

Courtesy of FORD MOTOR COMPANY
Disconnect the turbocharger wastegate regulating valve hose from the LH turbocharger assembly.

Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts and the LH turbocharger oil return tube from the turbocharger.
- Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY
Remove the LH turbocharger oil return tube from the oil pan.
- Discard the 2 O-ring seals.
Courtesy of FORD MOTOR COMPANY
Remove the LH oil supply tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Using the Spring Lock Coupling Disconnect Tool, remove the LH oil supply tube from the quick connect fitting.
- Inspect and if necessary, replace the quick connect filtering.
Courtesy of FORD MOTOR COMPANY
Remove the 2 coolant tube banjo bolts and the LH turbocharger coolant tubes and sealing washers.
- Discard the sealing washers.
Courtesy of FORD MOTOR COMPANY
Remove the LH turbocharger oil supply tube banjo bolt.
- Discard the sealing washer.
- Discard the oil supply tube filter.
Courtesy of FORD MOTOR COMPANY
Remove the 3 LH turbocharger-to-exhaust manifold bolts and turbocharger.
- Discard the gasket and bolts.
Courtesy of FORD MOTOR COMPANY
Remove the 8 LH exhaust manifold nuts (6 shown) and the exhaust manifold.
- Discard the exhaust manifold gasket and nuts.
Courtesy of FORD MOTOR COMPANY
Clean and inspect the LH exhaust manifold. For additional information, refer to Engine System - General Information .
Remove and discard the 8 LH exhaust manifold studs.

Courtesy of FORD MOTOR COMPANY
Clean the exhaust manifold mating surface.
Remove the LH coolant tube bracket-to-cylinder head nut.

Courtesy of FORD MOTOR COMPANY
Remove the nut and the heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the wiring harness retainer stud bolt.

Courtesy of FORD MOTOR COMPANY
Remove the wiring harness grommet.

Courtesy of FORD MOTOR COMPANY
Disconnect the Crankshaft Position(CKP) sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the CKP sensor.

Courtesy of FORD MOTOR COMPANY
Remove the 5 bolts and the 2 upper RH exhaust manifold heat shields.

Courtesy of FORD MOTOR COMPANY
Disconnect the turbocharger wastegate regulating valve hose from the RH turbocharger assembly.

Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts and the RH turbocharger oil return tube from the RH turbocharger.
- Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY
Remove the RH turbocharger oil return tube from the cylinder block.
- Discard the 2 O-ring seals.
Courtesy of FORD MOTOR COMPANY
Remove the RH oil supply tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Using the Spring Lock Coupling Disconnect Tool, remove the RH oil supply tube from the quick connect fitting.
- Inspect and if necessary, replace the quick connect fitting.
Courtesy of FORD MOTOR COMPANY
Remove the 2 coolant tube banjo bolts and the RH turbocharger coolant tubes.
- Discard the sealing washers.
Courtesy of FORD MOTOR COMPANY
Remove the 3 exhaust manifold-to-turbocharger bolts and the turbocharger assembly.
- Discard the gasket and bolts.
Courtesy of FORD MOTOR COMPANY
Remove the RH turbocharger oil supply tube banjo bolt.
- Discard the sealing washer.
- Discard the oil supply tube filter.
Courtesy of FORD MOTOR COMPANY
Remove the 8 nuts and the RH exhaust manifold.
- Discard the nuts and exhaust manifold gaskets.
Courtesy of FORD MOTOR COMPANY
Clean and inspect the RH exhaust manifold. For additional information, refer to Engine System - General Information .
Remove and discard the 8 RH exhaust manifold studs.

Courtesy of FORD MOTOR COMPANY
Clean the exhaust manifold mating surface.

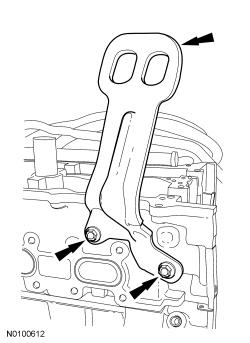

Remove the 2 bolts and the RH engine lifting eye.

Courtesy of FORD MOTOR COMPANY
Remove the RH coolant tube bracket-to-cylinder head bolt and the coolant tube assembly.

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainer and the cover.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainer from the rear of the LH cylinder head.

Courtesy of FORD MOTOR COMPANY

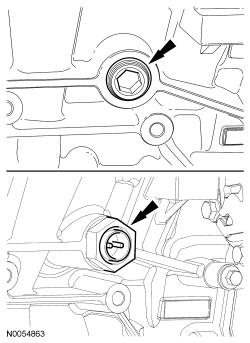

Remove the LH cylinder block drain plug.
- Allow coolant to drain from the cylinder block.
Courtesy of FORD MOTOR COMPANY
Remove the RH cylinder block drain plug or, if equipped, the block heater.
- Allow coolant to drain from the cylinder block.
Courtesy of FORD MOTOR COMPANY
Remove the nut for the high pressure fuel tube from the LH valve cover stud bolt and disconnect the Fuel Rail Pressure(FRP) sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: To release the fuel pressure in the high pressure fuel tube, wrap the flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the flare nuts.

Remove the high pressure fuel tube flare nut from the fuel injection pump. Remove the 2 high pressure fuel tube flare nuts from the fuel rails and remove the high pressure fuel tube assembly.

Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts and the fuel injection pump.

Courtesy of FORD MOTOR COMPANY
Remove the fuel injection pump mounting plate.

Courtesy of FORD MOTOR COMPANY
NOTE: Valve cover is removed for clarity.

Remove the fuel injection pump roller tappet.
- Inspect the fuel injection pump roller tappet. For additional information, refer to Fuel Charging and Controls - 3.5L GTDI .
Courtesy of FORD MOTOR COMPANY
NOTE: It is very important to note the routing of the wiring harness on the fuel rails and index-mark the locations of the tie straps prior to removal or damage may occur to the wire harnesses during installation. The illustration details the correct wire harness routing and tie strap positioning for installation.

NOTE: Use compressed air to remove any dirt or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

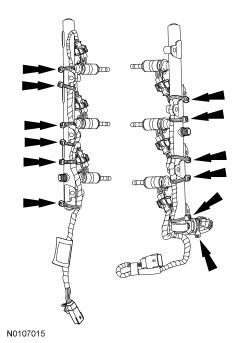

Carefully cut and remove the fuel rail wire harness tie straps.

Courtesy of FORD MOTOR COMPANY
NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: When removing the fuel rails, the fuel injectors may remain in the fuel rails but normally remain lodged in the cylinder heads and require the use of a Fuel Injector Remover to extract.

Remove the 6 bolts and the LH fuel rail.

Courtesy of FORD MOTOR COMPANY
Remove the 6 bolts and the RH fuel rail.

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

Disconnect the 6 fuel injector electrical connectors and remove the 2 fuel injector wire harnesses.

Courtesy of FORD MOTOR COMPANY
Remove and discard the 6 upper fuel injector O-ring seals.

Courtesy of FORD MOTOR COMPANY
Remove and discard the 6 fuel injector clips.

Courtesy of FORD MOTOR COMPANY

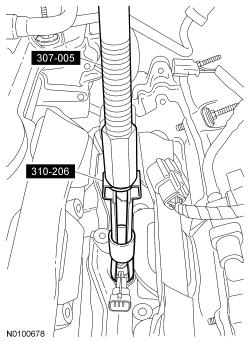

Using the Slide Hammer and the Fuel Injector Remover, remove the 6 fuel injectors.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

Remove the 3 bolts and the 3 RH ignition coils-on-plugs.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

Remove the 3 bolts and the 3 LH ignition coils-on-plugs.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing the valve cover do not apply excessive force to the VCT oil control solenoid. If the VCT solenoid seal sticks to the VCT oil control solenoid carefully wiggle the valve cover until the seal breaks free. After the valve cover is removed, inspect and replace the VCT solenoid if damaged.

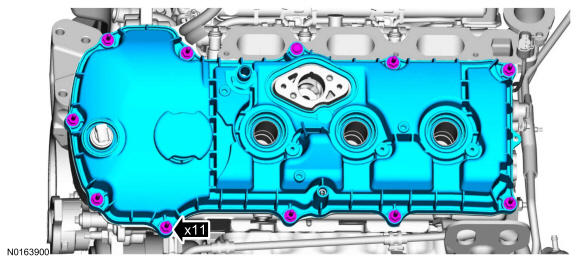

Loosen the bolt and the 10 stud bolts. Remove the LH valve cover.

Courtesy of FORD MOTOR COMPANY
Remove and discard the LH valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: There are retaining tabs for the spark plug tube seals, do not push the seals out or damage to the valve cover may occur.

Inspect the spark plug tube seals for damage. If damaged, using a universal seal puller, remove the seals.

Courtesy of FORD MOTOR COMPANY
NOTE: There are retaining tabs for the VCT solenoid seal, do not push the seal out or damage to the valve cover may occur.

Inspect the VCT solenoid seal. If damaged, using a universal seal puller, remove the seal.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing the valve cover do not apply excessive force to the VCT oil control solenoid. If the VCT solenoid seal sticks to the VCT oil control solenoid carefully wiggle the valve cover until the seal breaks free. After the valve cover is removed, inspect and replace the VCT solenoid if damaged.

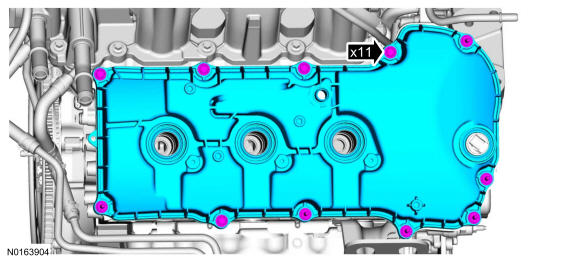

Loosen the 5 bolts and the 6 stud bolts. Remove the RH valve cover.

Courtesy of FORD MOTOR COMPANY
Remove and discard the RH valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: There are retaining tabs for the spark plug tube seals, do not push the seals out or damage to the valve cover may occur.

Inspect the spark plug tube seals for damage. If damaged, using a universal seal puller, remove the seals.

Courtesy of FORD MOTOR COMPANY
NOTE: There are retaining tabs for the VCT solenoid seal, do not push the seal out or damage to the valve cover may occur.

Inspect the VCT solenoid seal. If damaged, using a universal seal puller, remove the seal.

Courtesy of FORD MOTOR COMPANY
Using the Strap Wrench, remove the crankshaft pulley bolt and washer.
- Discard the bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: Use a three leg puller (such as Matco Tools® MST9740D or equivalent).

Using a three leg puller, remove the crankshaft pulley.

Courtesy of FORD MOTOR COMPANY
Using the Oil Seal Remover, remove and discard the crankshaft front seal.

Courtesy of FORD MOTOR COMPANY
Remove the stud bolt and Heated Oxygen Sensor(HO2S) connector bracket from the engine front cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools to remove the studs.

Remove the 2 engine mount studs.

Courtesy of FORD MOTOR COMPANY
Remove the 3 bolts and the engine mount bracket.

Courtesy of FORD MOTOR COMPANY

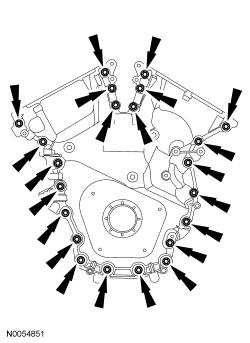

Remove the 22 engine front cover bolts.

Courtesy of FORD MOTOR COMPANY

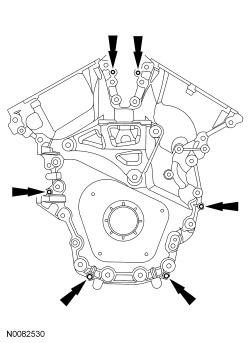

Install 6 of the engine front cover bolts (finger-tight) into the 6 threaded holes in the engine front cover.
- Tighten the bolts one turn at a time in a crisscross pattern until the engine front cover-to-cylinder block seal is released.
  - Remove the engine front cover.
Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. For additional information, refer to Engine System - General Information .

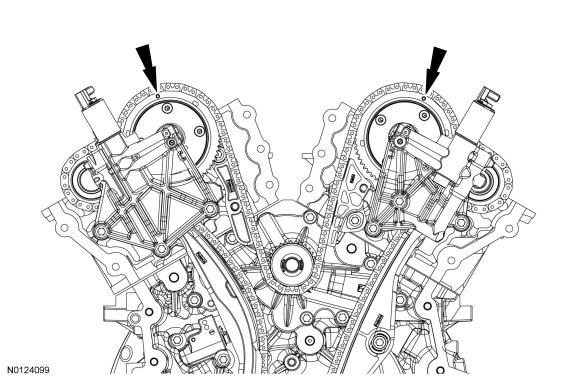

Rotate the crankshaft clockwise and align the timing marks on the Variable Camshaft Timing(VCT) assemblies as shown.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center(TDC) position.

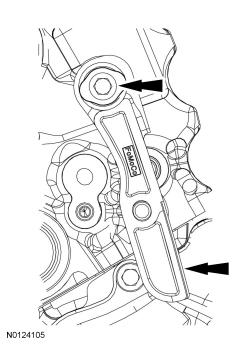

Install the Camshaft Holding Tool onto the flats of the LH camshafts.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install the Camshaft Holding Tool onto the flats of the RH camshafts.

Courtesy of FORD MOTOR COMPANY

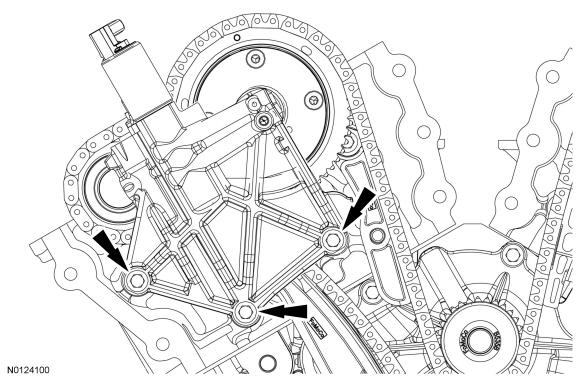

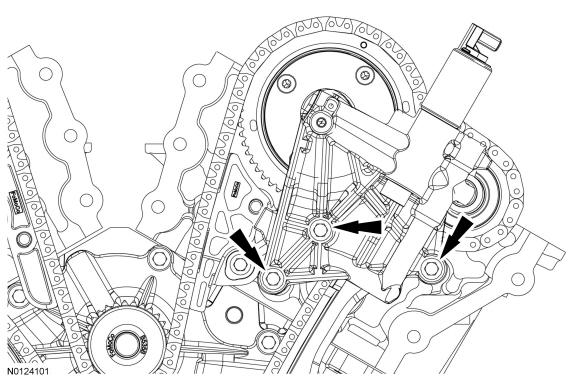

Remove the 3 bolts and the RH VCT housing.

Courtesy of FORD MOTOR COMPANY
Remove the 3 bolts and the LH VCT housing.

Courtesy of FORD MOTOR COMPANY

NOTE: The following 3 steps are for primary timing chains when the colored links are not visible.
Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown.

Courtesy of FORD MOTOR COMPANY
Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown.

Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts and the primary timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

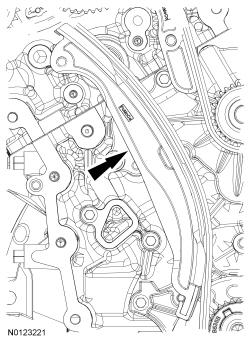

Remove the primary timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY

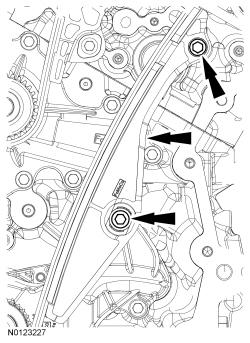

Remove the 2 bolts and the lower LH primary timing chain guide.

Courtesy of FORD MOTOR COMPANY

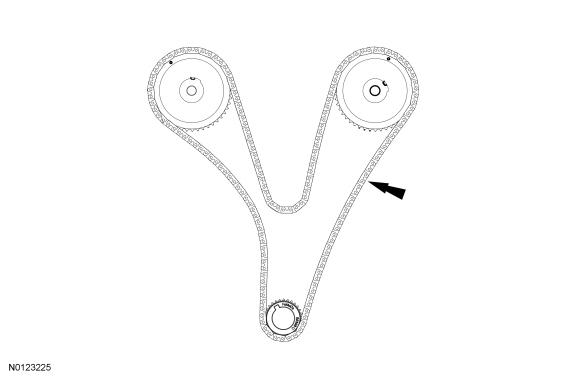

Remove the primary timing chain.

Courtesy of FORD MOTOR COMPANY
Remove the crankshaft timing chain sprocket.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the upper LH primary timing chain guide.

Courtesy of FORD MOTOR COMPANY
Compress the LH secondary timing chain tensioner and install a suitable lockpin to retain the tensioner in the collapsed position.

Courtesy of FORD MOTOR COMPANY
NOTE: The VCT bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.

Remove and discard the LH VCT assembly bolt and the LH exhaust camshaft sprocket bolt.
- Remove the LH VCT assembly, secondary timing chain and the LH exhaust camshaft sprocket as an assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: Only the LH intake camshaft has a shim.

Remove the LH intake camshaft shim.

Courtesy of FORD MOTOR COMPANY
NOTE: When the Camshaft Holding Tool is removed, valve spring pressure will rotate the LH camshafts approximately 3 degrees to a neutral position.

Remove the Camshaft Holding Tool from the LH camshafts.

Courtesy of FORD MOTOR COMPANY
NOTE: The camshafts must remain in the neutral position during removal or engine damage may occur.

Verify the LH camshafts are in the neutral position.

Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts and the LH secondary timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

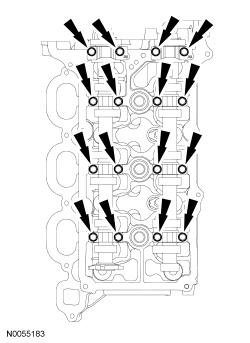

Remove the bolts and the LH camshaft bearing caps.
- Remove the LH camshafts.
Courtesy of FORD MOTOR COMPANY
Compress the RH secondary timing chain tensioner and install a suitable lockpin to retain the tensioner in the collapsed position.

Courtesy of FORD MOTOR COMPANY
NOTE: The VCT bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.

Remove and discard the RH VCT assembly bolt and the RH exhaust camshaft sprocket bolt.
- Remove the RH VCT assembly, secondary timing chain and the RH exhaust camshaft sprocket as an assembly.
Courtesy of FORD MOTOR COMPANY
Remove the Camshaft Holding Tool from the RH camshafts.

Courtesy of FORD MOTOR COMPANY
NOTE: The camshafts must remain in the neutral position during removal or engine damage may occur.

Rotate the RH camshafts counterclockwise to the neutral position.

Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts and the RH secondary timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY
NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

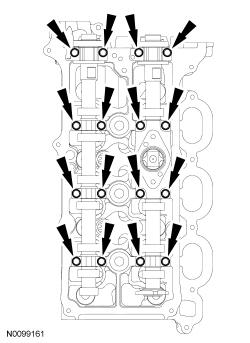

Remove the bolts and the RH camshaft bearing caps.
- Remove the RH camshafts.
Courtesy of FORD MOTOR COMPANY
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

NOTE: LH shown, RH similar.

Remove the valve tappets from the cylinder heads.

Courtesy of FORD MOTOR COMPANY
NOTE: LH shown, RH similar.

Remove and discard the M6 bolt from each cylinder head.

Courtesy of FORD MOTOR COMPANY
NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

NOTE: Aluminum surfaces are soft and may be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.

NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a torque-to-yield design and cannot be reused.

NOTE: LH shown, RH similar.

Remove and discard the 8 bolts from each cylinder head.
- Remove the cylinder heads.
- Discard the cylinder head gaskets.
Courtesy of FORD MOTOR COMPANY
Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to Engine System - General Information .
Remove the coolant inlet tube.
- Remove and discard the O-ring seal.
Courtesy of FORD MOTOR COMPANY
Remove the 2 bolts and the KS.

Courtesy of FORD MOTOR COMPANY
Remove the 8 bolts and the coolant pump.

Courtesy of FORD MOTOR COMPANY

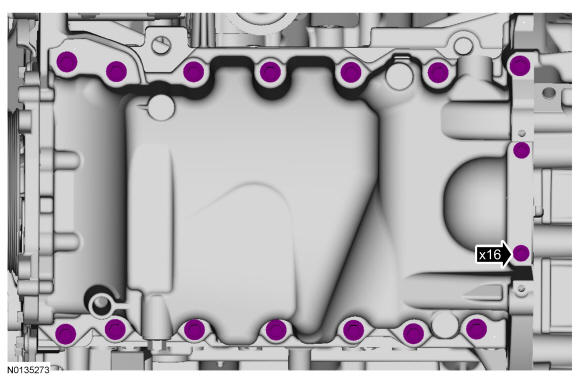

Remove the 16 oil pan bolts.

Courtesy of FORD MOTOR COMPANY

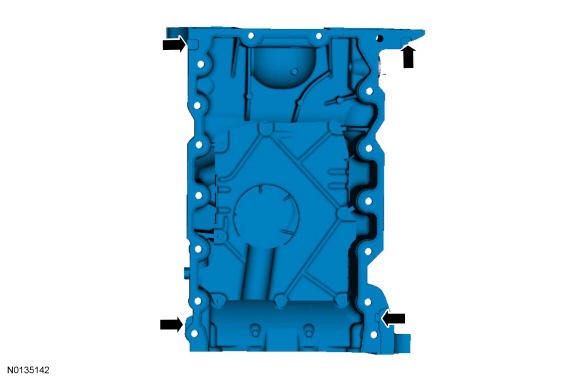

Using a suitable pry tool, locate the pry pads and pry the oil pan loose and remove.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. For additional information, refer to Engine System - General Information .
Remove the 2 bolts and the oil pump screen and pickup tube.
- Discard the O-ring seal.
Courtesy of FORD MOTOR COMPANY
Remove the 3 bolts and the oil pump.

Courtesy of FORD MOTOR COMPANY
Remove the 8 bolts and the crankshaft rear seal retainer plate.
- Discard the plate and seal assembly.
Courtesy of FORD MOTOR COMPANY
Before removing the pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad or equivalent, following manufacturer's instructions.
NOTE: Early build engines have a 13 mm bolt head with coarse threads for the main bearing caps. Late build engine have a 15 mm bolt head with fine threads for the main bearing caps.

NOTE: The main bearing cap support brace bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

Remove the bolts in the sequence shown.
- Remove the main bearing cap support brace.
- Discard the bolts.
Fig 1: Main Bearing Cap Support Brace Loosening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: The connecting rod cap bolts are a torque-to-yield design. The original connecting rod cap bolts will be used when measuring the connecting rod large end bore during assembly. The connecting rod cap bolts will be discarded after measurement.

NOTE: Clearly mark the position and orientation of the connecting rods, connecting rod caps and connecting rod bearings for reassembly.

Remove the connecting rod cap bolts and cap.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

Remove the piston/rod assembly from the engine block.

Courtesy of FORD MOTOR COMPANY
Repeat the previous 2 steps until all the piston/rod assemblies are removed from the engine block.
NOTE: Early build engines have a 13 mm bolt head with coarse threads for the main bearing caps. Late build engine have a 15 mm bolt head with fine threads for the main bearing caps. The main bearing cap side bolts remain the same.

NOTE: The 8 main bearing cap side bolts and the 8 main bearing cap bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

NOTE: Clearly mark the position and orientation of the main bearing caps for reassembly.

Remove the 8 main bearing cap side bolts and the 8 main bearing cap bolts in the sequence shown.
- Discard the bolts.
Fig 2: Main Bearing Loosening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

NOTE: Note the position of the thrust washer on the outside of the No. 4 rear main bearing cap.

Remove the 4 main bearing caps.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the 2 thrust washers on the inside and outside of the rear main bearing bulkhead.

Remove the crankshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Inside shown, outside similar.

Remove the 2 crankshaft thrust bearings from the rear main bearing bulkhead.

Courtesy of FORD MOTOR COMPANY
NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

Remove the 4 crankshaft main bearings from the cylinder block.

Courtesy of FORD MOTOR COMPANY
NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

Remove the 4 crankshaft main bearings from the main bearing caps.

Courtesy of FORD MOTOR COMPANY
Inspect the cylinder block, bearing cap support brace, pistons and connecting rods. For additional information, refer to Engine System - General Information .
