OEM Ground Distribution: Grounds

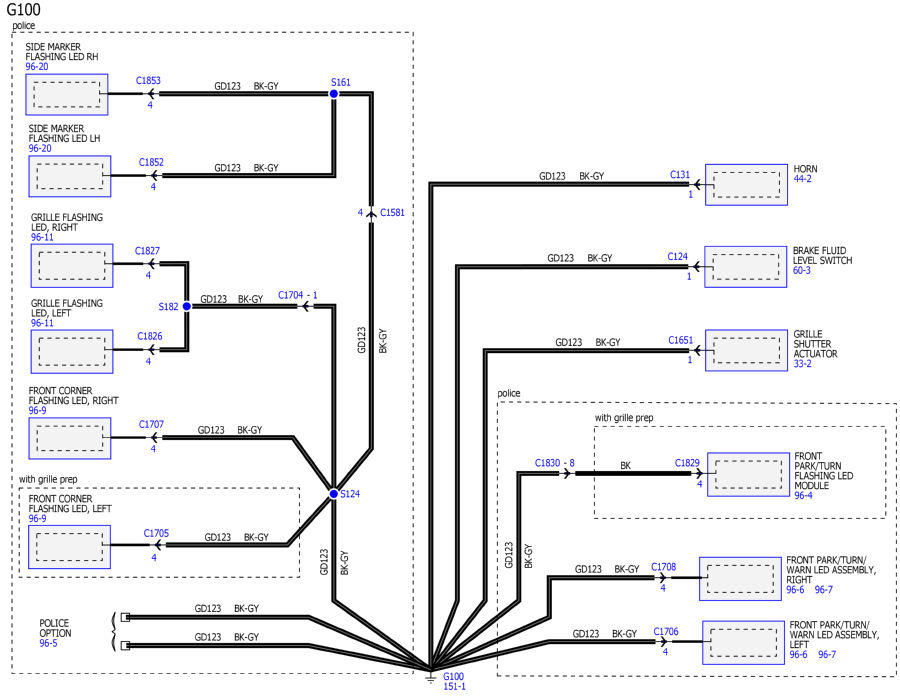

Fig 1: Grounds Distribution (1 Of 20)

GFDWR30947

Courtesy of FORD MOTOR COMPANY

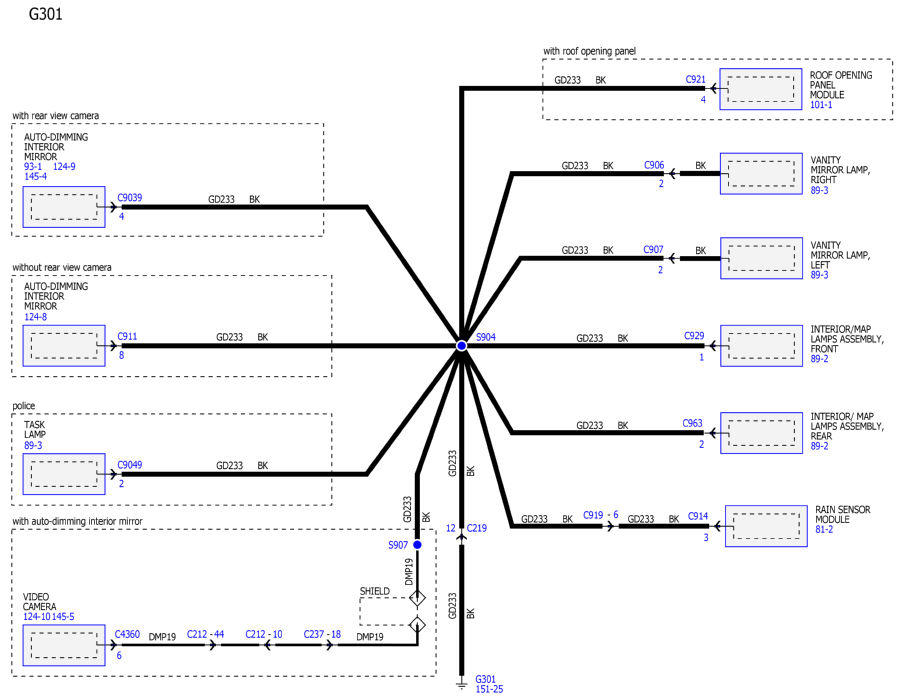

Fig 2: Grounds Distribution (2 Of 20)

GFDWR30948

Courtesy of FORD MOTOR COMPANY

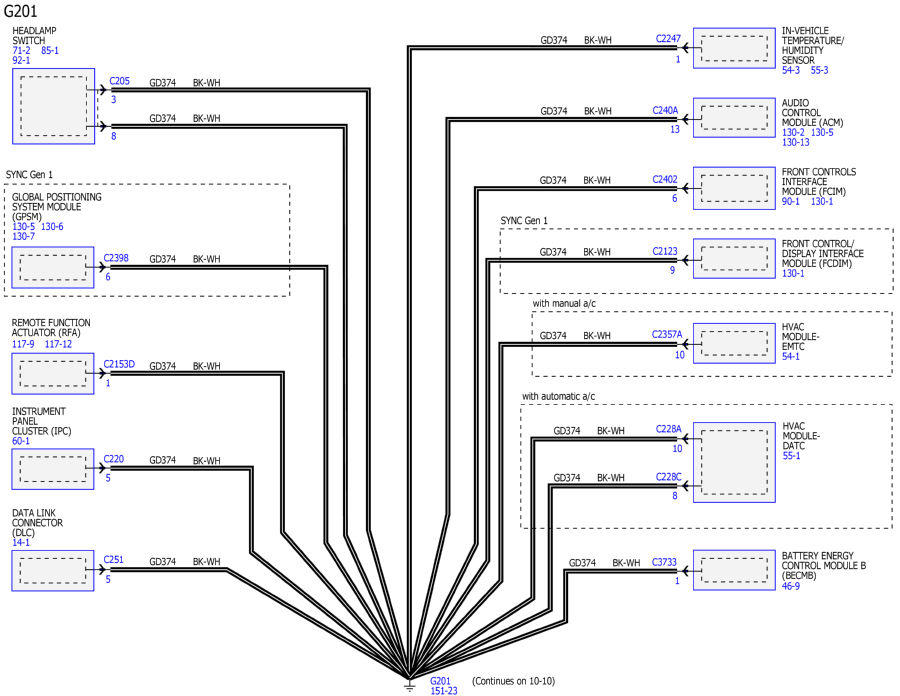

Fig 3: Grounds Distribution (3 Of 20)

GFDWR30949

Courtesy of FORD MOTOR COMPANY

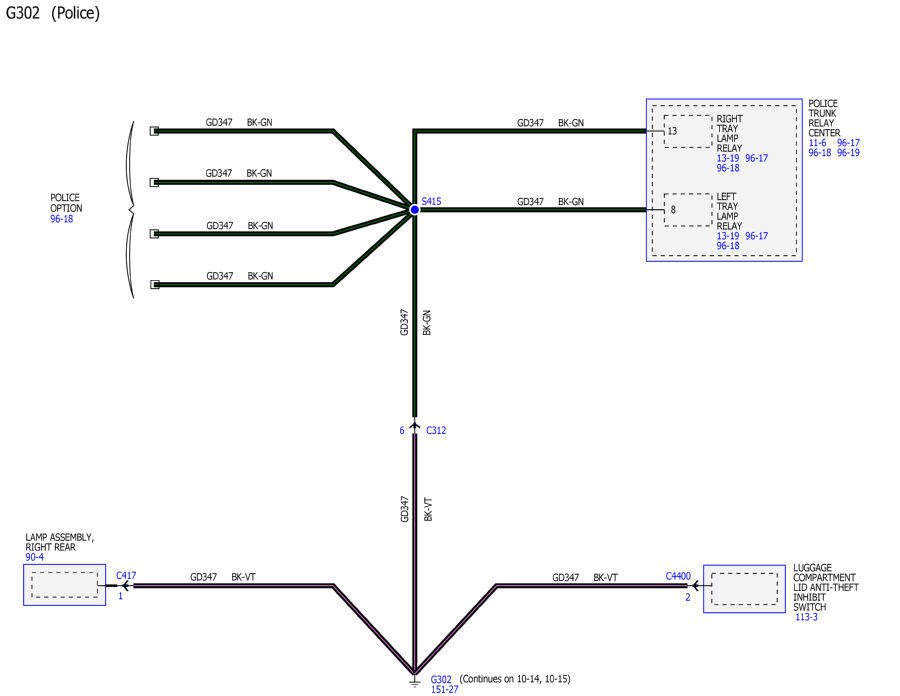

Fig 4: Grounds Distribution (4 Of 20)

GFDWR30950

Courtesy of FORD MOTOR COMPANY

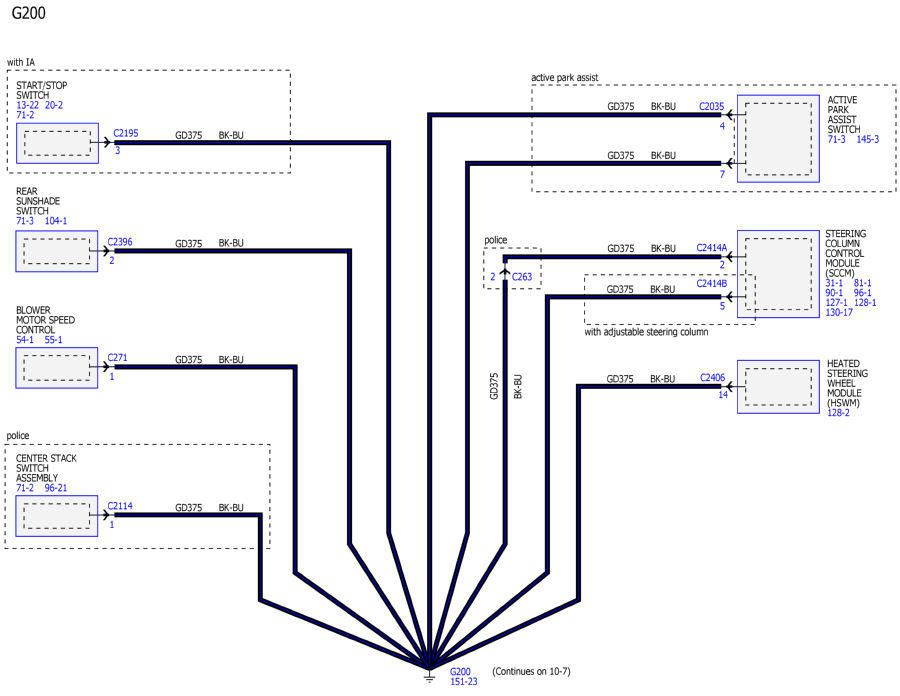

Fig 5: Grounds Distribution (5 Of 20)

GFDWR30951

Courtesy of FORD MOTOR COMPANY

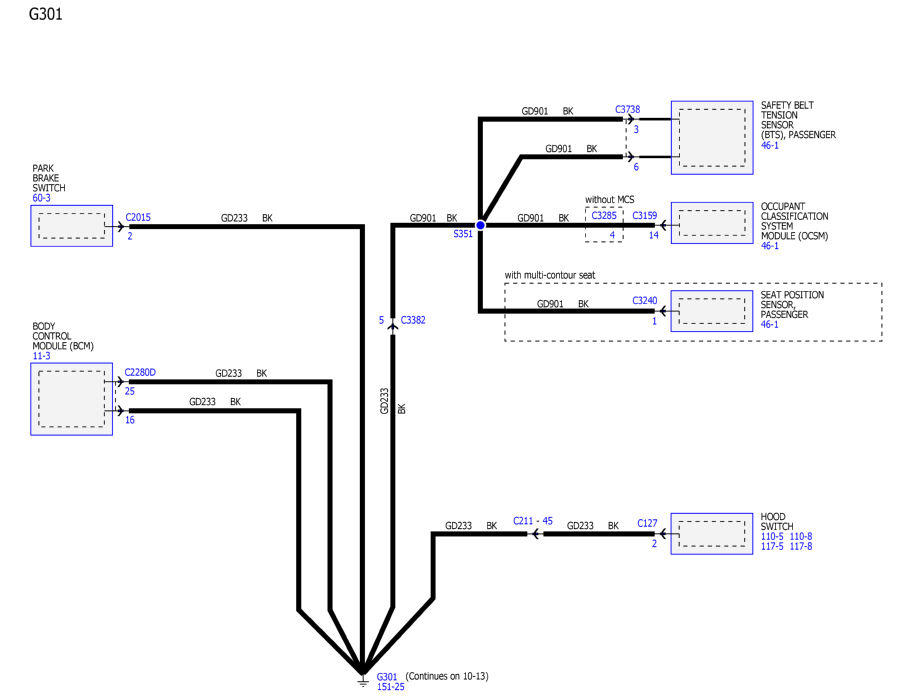

Fig 6: Grounds Distribution (6 Of 20)

GFDWR30952

Courtesy of FORD MOTOR COMPANY

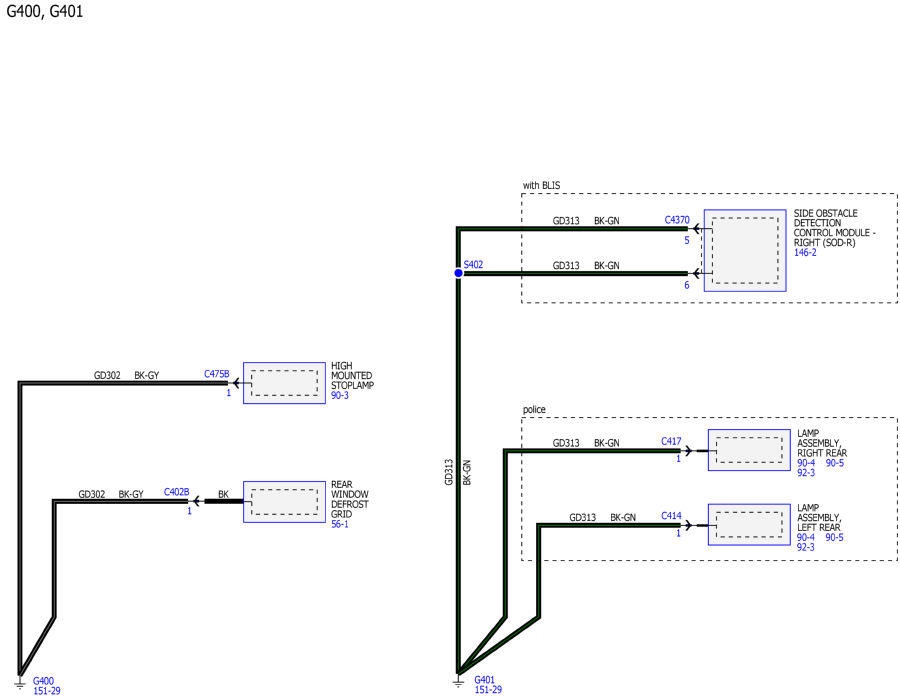

Fig 7: Grounds Distribution (7 Of 20)

GFDWR30953

Courtesy of FORD MOTOR COMPANY

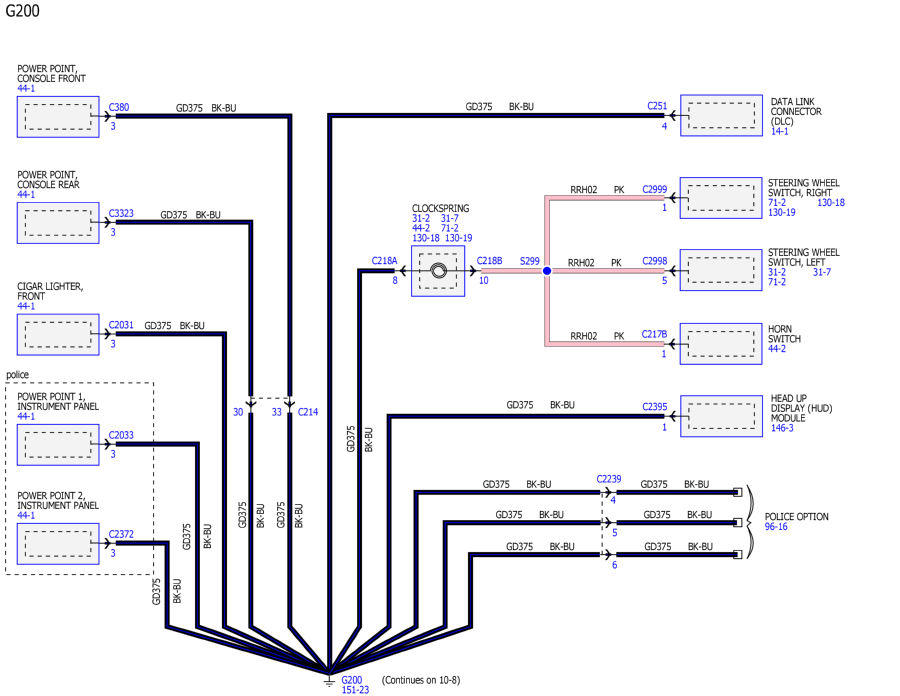

Fig 8: Grounds Distribution (8 Of 20)

GFDWR30954

Courtesy of FORD MOTOR COMPANY

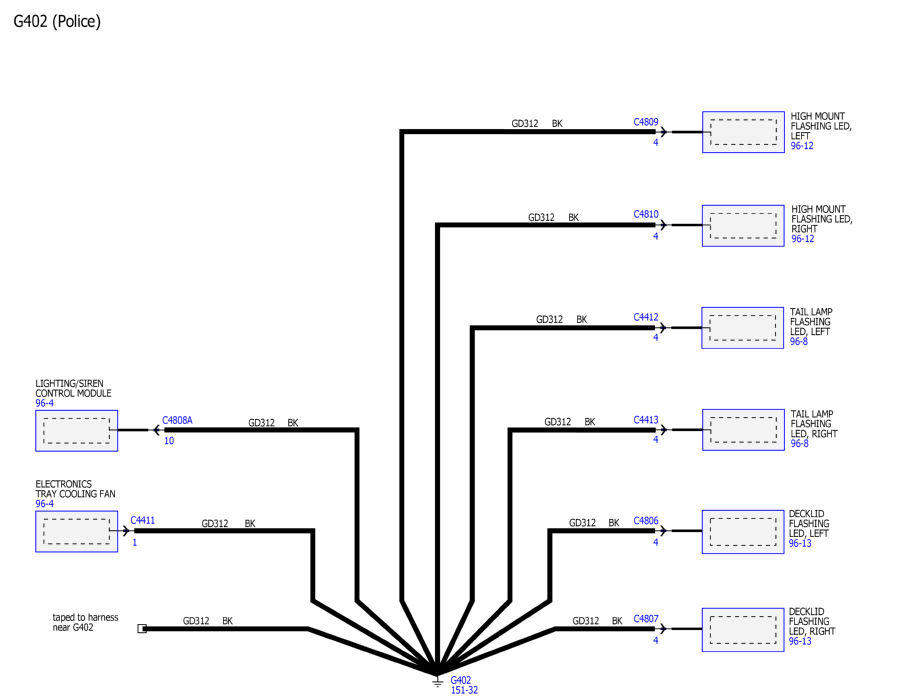

Fig 9: Grounds Distribution (9 Of 20)

GFDWR30955

Courtesy of FORD MOTOR COMPANY

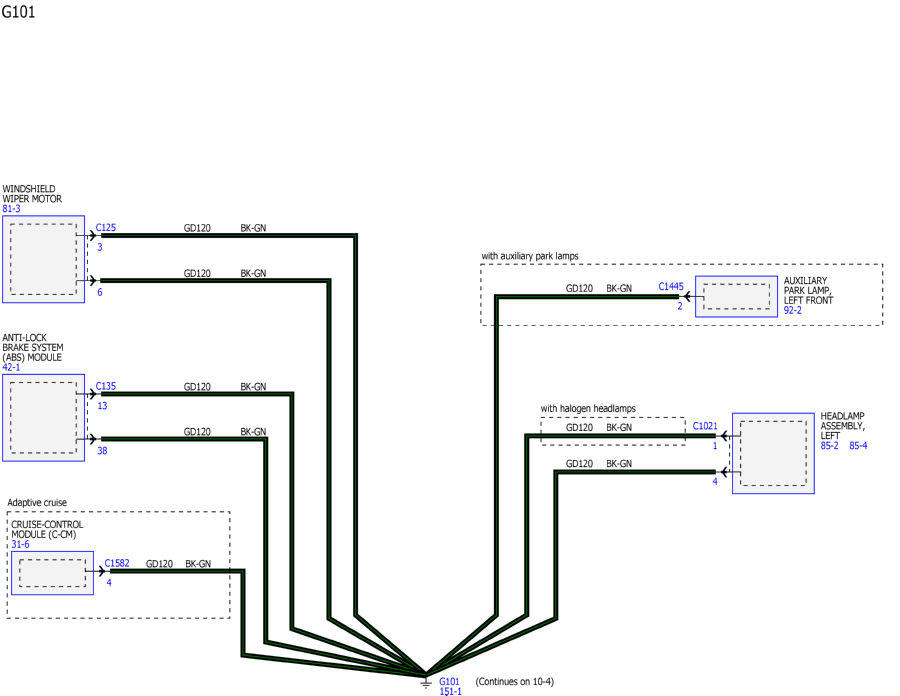

Fig 10: Grounds Distribution (10 Of 20)

GFDWR30956

Courtesy of FORD MOTOR COMPANY

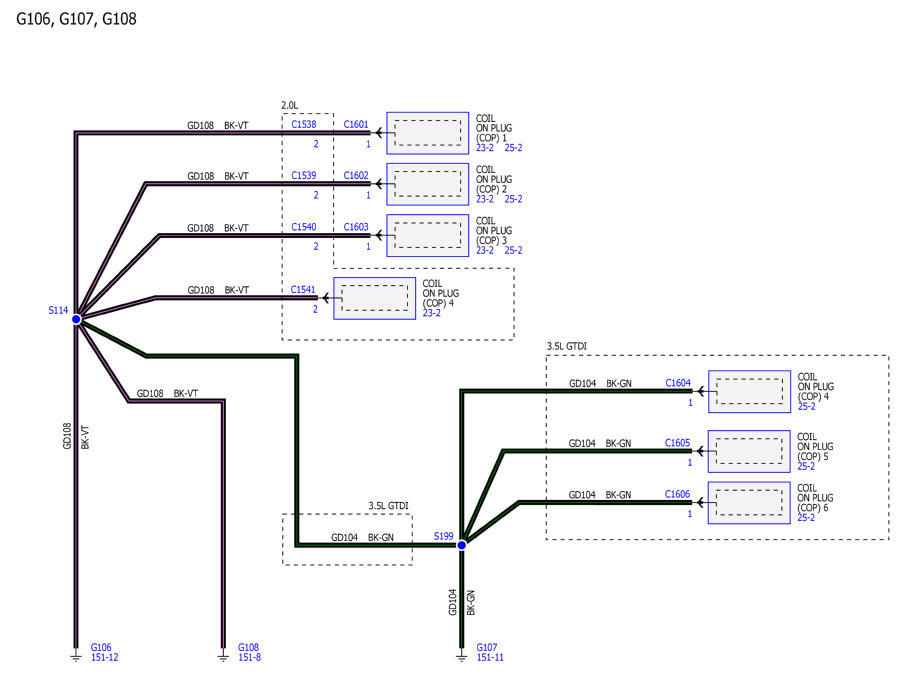

Fig 11: Grounds Distribution (11 Of 20)

GFDWR30957

Courtesy of FORD MOTOR COMPANY

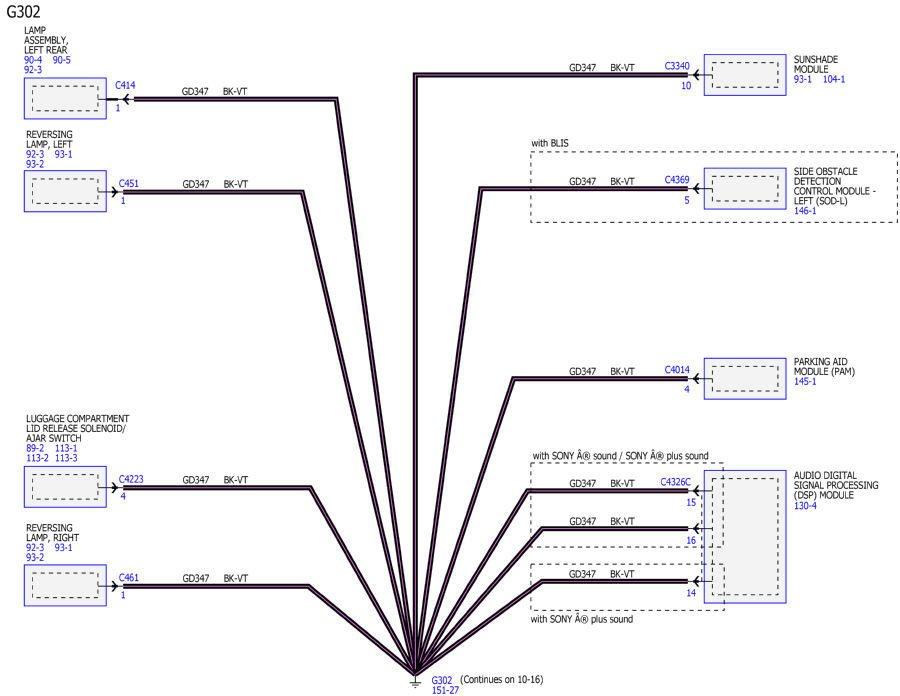

Fig 12: Grounds Distribution (12 Of 20)

GFDWR30958

Courtesy of FORD MOTOR COMPANY

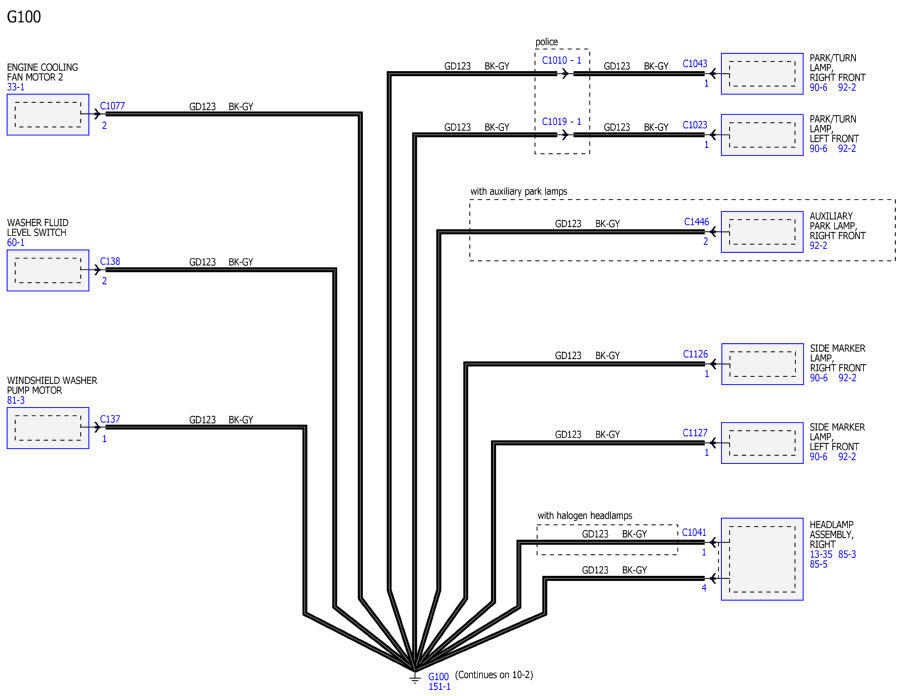

Fig 13: Grounds Distribution (13 Of 20)

GFDWR30959

Courtesy of FORD MOTOR COMPANY

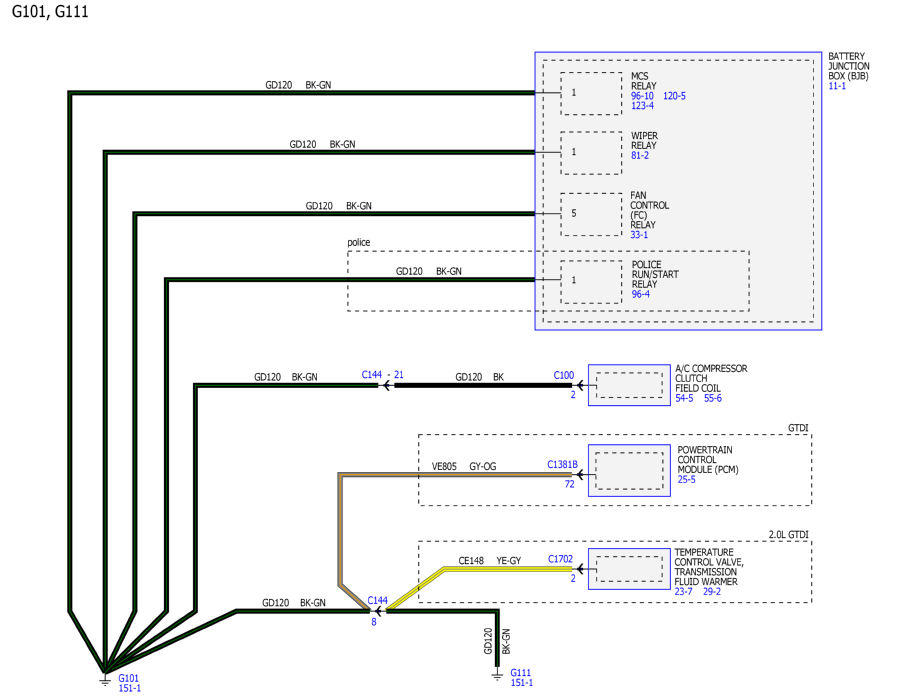

Fig 14: Grounds Distribution (14 Of 20)

GFDWR30960

Courtesy of FORD MOTOR COMPANY

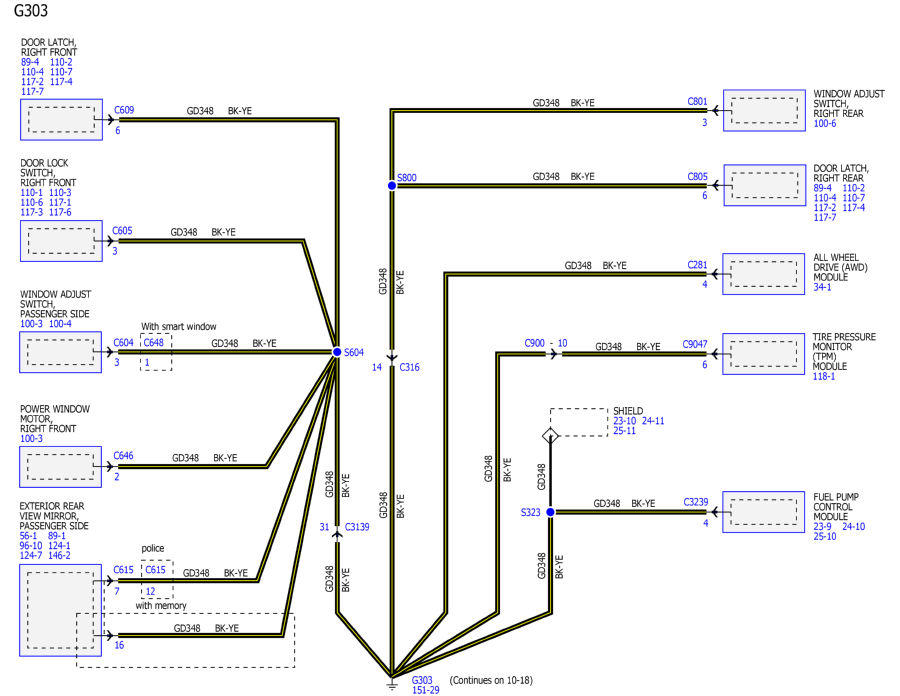

Fig 15: Grounds Distribution (15 Of 20)

GFDWR30961

Courtesy of FORD MOTOR COMPANY

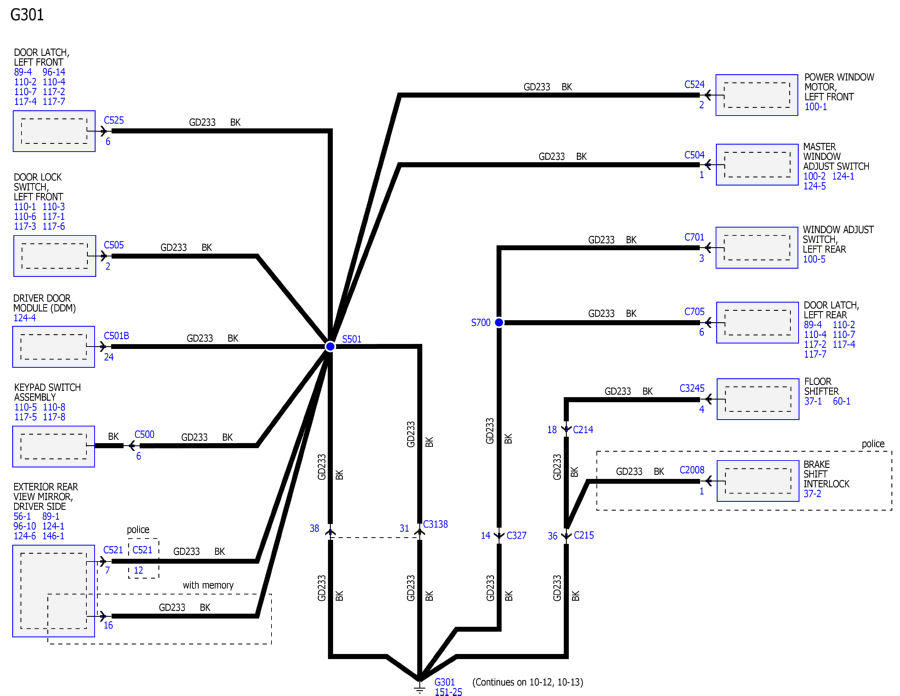

Fig 16: Grounds Distribution (16 Of 20)

GFDWR30962

Courtesy of FORD MOTOR COMPANY

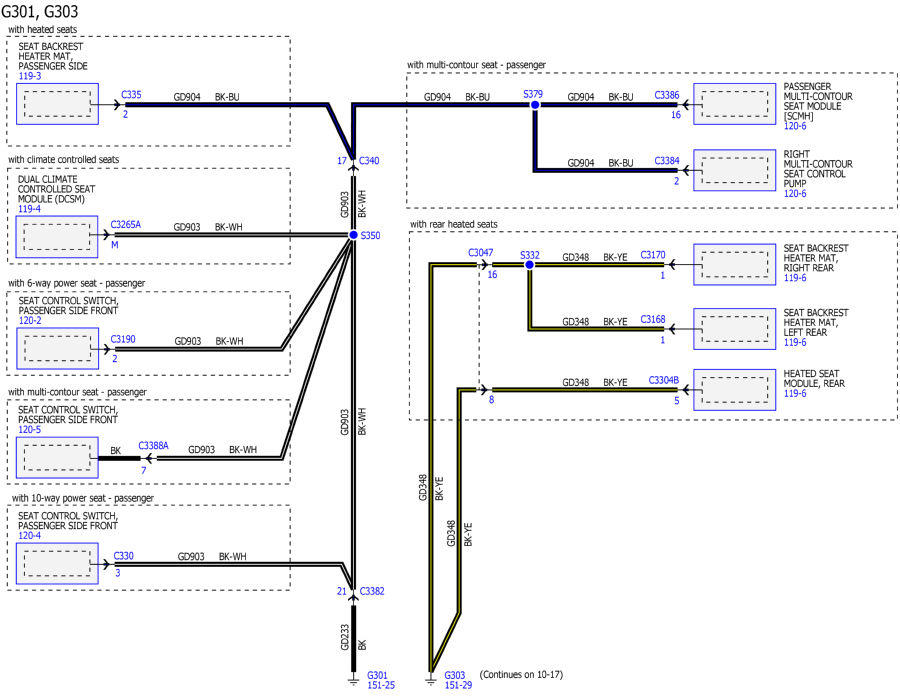

Fig 17: Grounds Distribution (17 Of 20)

GFDWR30963

Courtesy of FORD MOTOR COMPANY

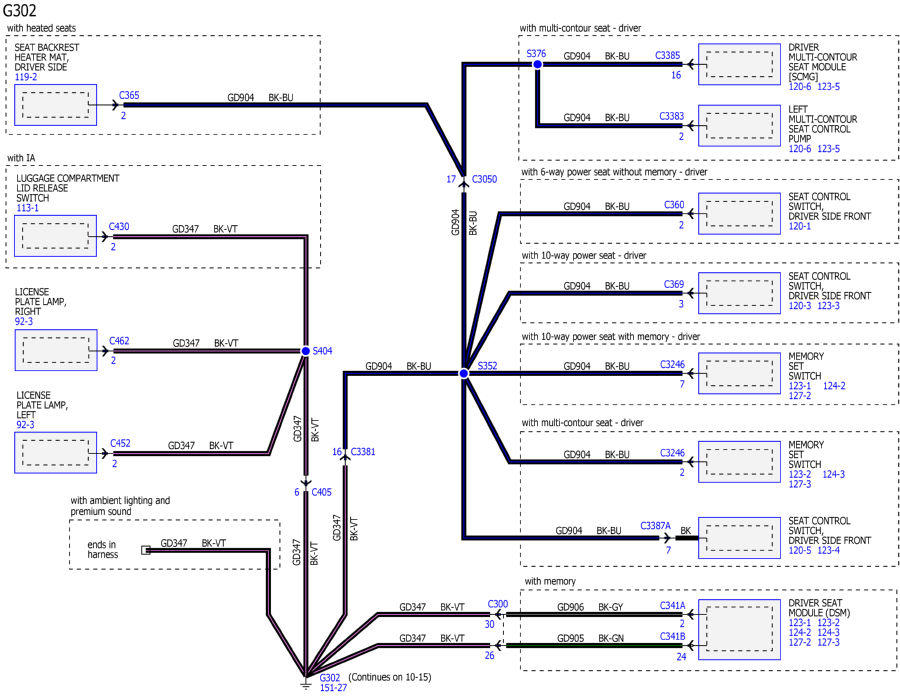

Fig 18: Grounds Distribution (18 Of 20)

GFDWR30964

Courtesy of FORD MOTOR COMPANY

Fig 19: Grounds Distribution (19 Of 20)

GFDWR30965

Courtesy of FORD MOTOR COMPANY

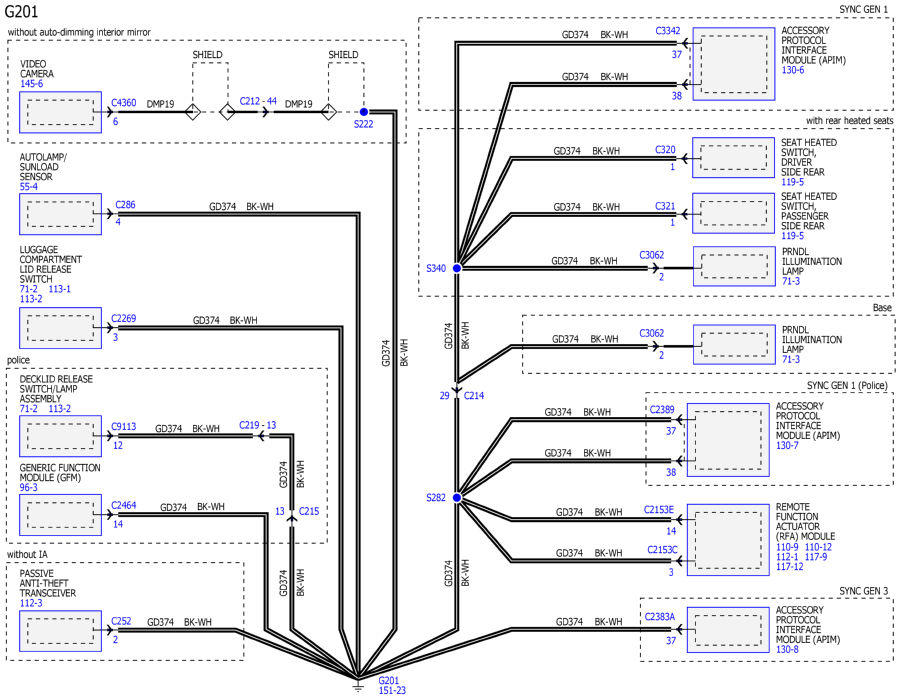

Fig 20: Grounds Distribution (20 Of 20)

GFDWR30966

Courtesy of FORD MOTOR COMPANY
