Removal And Installation: Transaxle: Installation

NOTE: Prior to installing a new, re-manufactured or overhauled transmission, clean the transmission fluid cooler tubes. Failure to clean the transmission fluid cooler tubes can result in transmission failure.
NOTE: If the transmission was overhauled, or if installing a new transmission and the transmission fluid cooler has not been flushed, flush the transmission fluid cooler at this time. Refer to the Transmission Fluid Cooler Backflushing and Cleaning in Transaxle Transmission Cooling - 6F35 . Clean the transmission-mounted transmission fluid cooler tubes by hand.
  1. Lubricate the torque converter pilot hub with Multi-Purpose Grease.
    GFD341239Courtesy of FORD MOTOR COMPANY
  2. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    GFD341240Courtesy of FORD MOTOR COMPANY
  3. Support the transmission with a transmission jack. Secure the transmission to the transmission jack with a safety strap.
  4. Position the transmission behind the engine and remove 307-566.
    GFD341235Courtesy of FORD MOTOR COMPANY

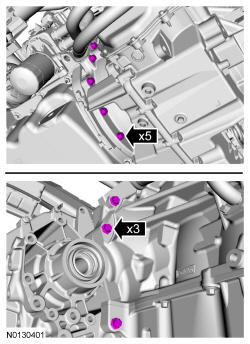

  5. Align the torque converter stud marked during removal with the flexplate, position the transmission on the dowel pins and install the lower transmission-to-engine bolts.

    • Tighten to 48 Nm (35 lb-ft).

    GFD341234Courtesy of FORD MOTOR COMPANY
  6. Apply threadlock to the threads and install the nuts and the bolt.

    • Tighten the nuts to 63 Nm (46 lb-ft).

    • Tighten the bolt to 80 Nm (59 lb-ft).

    GFD341241Courtesy of FORD MOTOR COMPANY
  7. Apply threadlock to the bolt threads and install the transmission support insulator through bolt.

    • Tighten to 175 Nm (129 lb-ft).

    GFD341242Courtesy of FORD MOTOR COMPANY
  8. Connect the transmission electrical connectors and the wiring harness retainers.
    GFD341230Courtesy of FORD MOTOR COMPANY
  9. Install the catalytic converter support bracket, the studs and the nuts.

    1. Tighten to 18 Nm (13 lb-ft).
    2. Tighten to 40 Nm (30 lb-ft).
    3. Tighten to 25 Nm (18 lb-ft).

    GFD341243Courtesy of FORD MOTOR COMPANY
  10. Install the transmission fluid cooler tube bolts.

    • Tighten to 9 Nm (80 lb-in).

    GFD341228Courtesy of FORD MOTOR COMPANY
  11. NOTE: Make sure to install the correct circlip for this application. Failure to use the correct diameter circlip may result in shaft removal concerns or shaft damage during vehicle operation.

    Install the correct new circlip on the inboard stub shaft.

    GFD341244Courtesy of FORD MOTOR COMPANY
  12. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    If necessary, install a new LH halfshaft seal. Refer to, Halfshaft Seal -- LH .

  13. Install a seal protector on the LH halfshaft seal.
    GFD341245Courtesy of FORD MOTOR COMPANY
  14. NOTE: The sharp edges on the halfshaft splines can slice or puncture the oil seal. Use care when inserting the halfshaft into the transmission or damage to the seal may occur.

    Push the LH halfshaft into the transmission so the splines go through the special tool and remove the special tool.

    GFD341246Courtesy of FORD MOTOR COMPANY
  15. Push the LH halfshaft into the transmission so the circlip locks into the differential side gear. Pull the halfshaft inner end to make sure the circlip is locked.
    GFD341247Courtesy of FORD MOTOR COMPANY
    1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.
    GFD341248Courtesy of FORD MOTOR COMPANY
  16. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    If necessary, install a new RH halfshaft seal. Refer to, Halfshaft Seal -- RH .

  17. Install a seal protector on the RH halfshaft seal.
    GFD341249Courtesy of FORD MOTOR COMPANY
  18. Push the RH halfshaft into the transmission so the splines go through the seal protector and remove the seal protector.
    GFD341250Courtesy of FORD MOTOR COMPANY
  19. Install the RH halfshaft assembly.
    GFD341251Courtesy of FORD MOTOR COMPANY

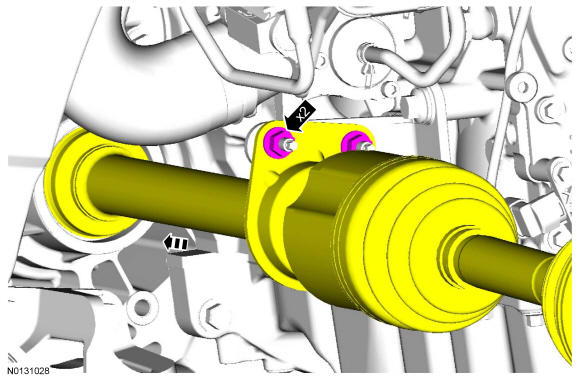

  20. Install the halfshaft bracket nuts.

    • Tighten to 25 Nm (18 lb-ft).

    GFD341252Courtesy of FORD MOTOR COMPANY
  21. Install the subframe. Refer to Uni-Body, Subframe and Mounting System .
  22. Install the roll restrictor bracket and the roll restrictor bracket bolts.

    • Tighten to 90 Nm (66 lb-ft).

    GFD341224Courtesy of FORD MOTOR COMPANY
  23. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.

    Install new torque converter nuts.

    • Tighten to 40 Nm (30 lb-ft).

    GFD341253Courtesy of FORD MOTOR COMPANY
  24. Install the starter insulator.
    GFD341222Courtesy of FORD MOTOR COMPANY
  25. Install the starter. Refer to Starting System .
  26. Install the upper transmission-to-engine bolts.

    • Tighten to 48 Nm (35 lb-ft).

    GFD341221Courtesy of FORD MOTOR COMPANY
  27. Connect the wiring retainers.
    GFD341220Courtesy of FORD MOTOR COMPANY
  28. Install the transmission fluid cooler warmer and the bolts.

    • Tighten to 30 Nm (22 lb-ft).

    GFD341219Courtesy of FORD MOTOR COMPANY
  29. If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary. Lubricate the transmission mounted transmission fluid cooler tube seals with automatic transmission fluid and install the backing rings and seals on the transmission mounted transmission fluid cooler tubes.

    1. Seal
    2. Backing ring

    GFD340663Courtesy of FORD MOTOR COMPANY
  30. Install the new transmission fluid cooler tube bolts.

    • Tighten to 9 Nm (80 lb-in).

    GFD341254Courtesy of FORD MOTOR COMPANY
  31. Install the temperature control valve, the nuts and the retainer.

    • Tighten to 9 Nm (80 lb-in).

    GFD341179Courtesy of FORD MOTOR COMPANY
  32. Install the selector lever cable bracket and the bolts.

    • Tighten to 25 Nm (18 lb-ft).

    GFD341255Courtesy of FORD MOTOR COMPANY
  33. Install the battery tray and battery. Refer to Charging System (Battery, Battery Mounting and Battery Cables) .
  34. Adjust the selector lever cable. Refer to Automatic Transaxle Transmission External Controls .
  35. Install the ACL and the outlet pipe. Refer to Intake Air Distribution and Filtering .
  36. Fill the transmission with transmission fluid. Refer to Transmission Fluid Drain and Refill .
  37. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
  38. If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to Solenoid Body Strategy Download .
