Cruise Control Module (CCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: FRONT BUMPER COVER .

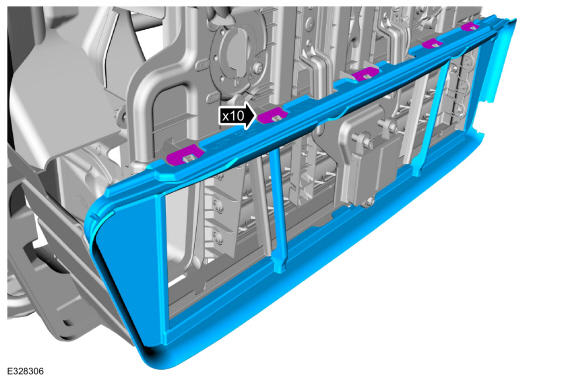

2. Release the radiator lower air deflector clips on top and bottom. Remove the radiator lower air deflector.

   Courtesy of FORD MOTOR COMPANY

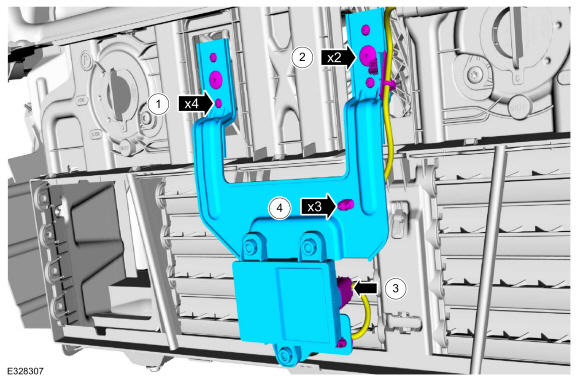

3. Remove the CCM and bracket.
   1. Remove the screws,
   2. Remove the push pin retainers.
   3. Disconnect the CCM electrical connector.
   4. Detach the wiring harness retainers and remove the CCM and bracket.

Courtesy of FORD MOTOR COMPANY
