Connector Repair Procedures

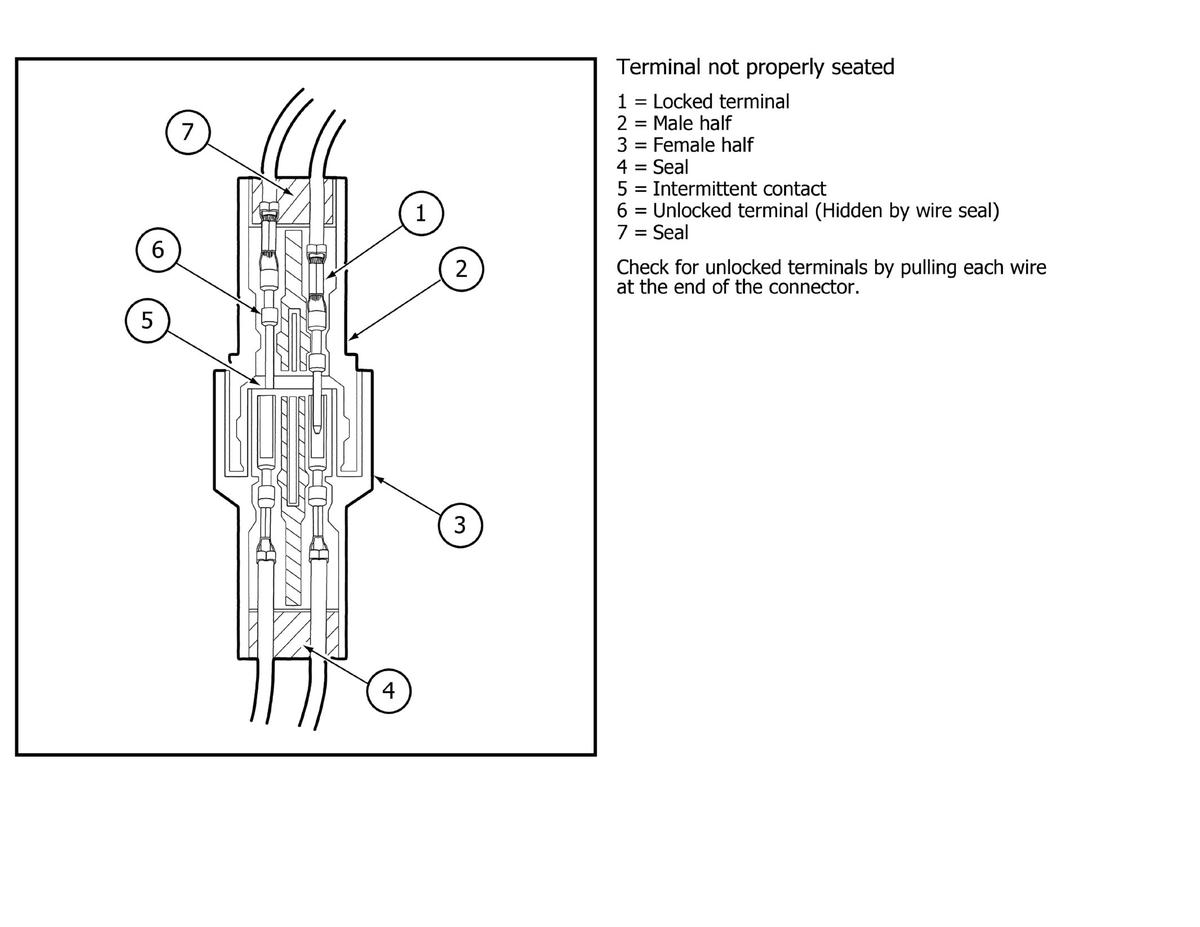

GFDWR36727Courtesy of FORD MOTOR COMPANY

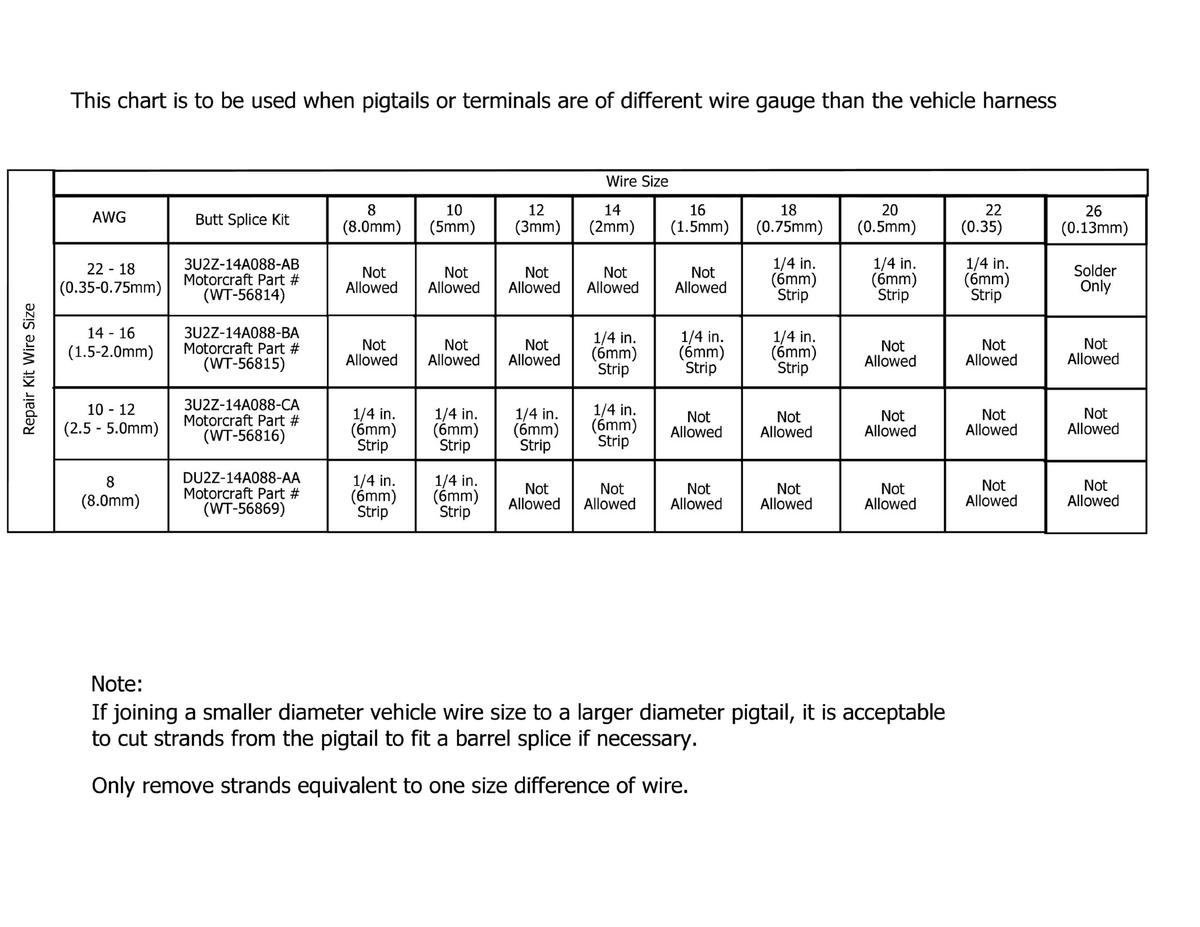

GFDWR36728Courtesy of FORD MOTOR COMPANY

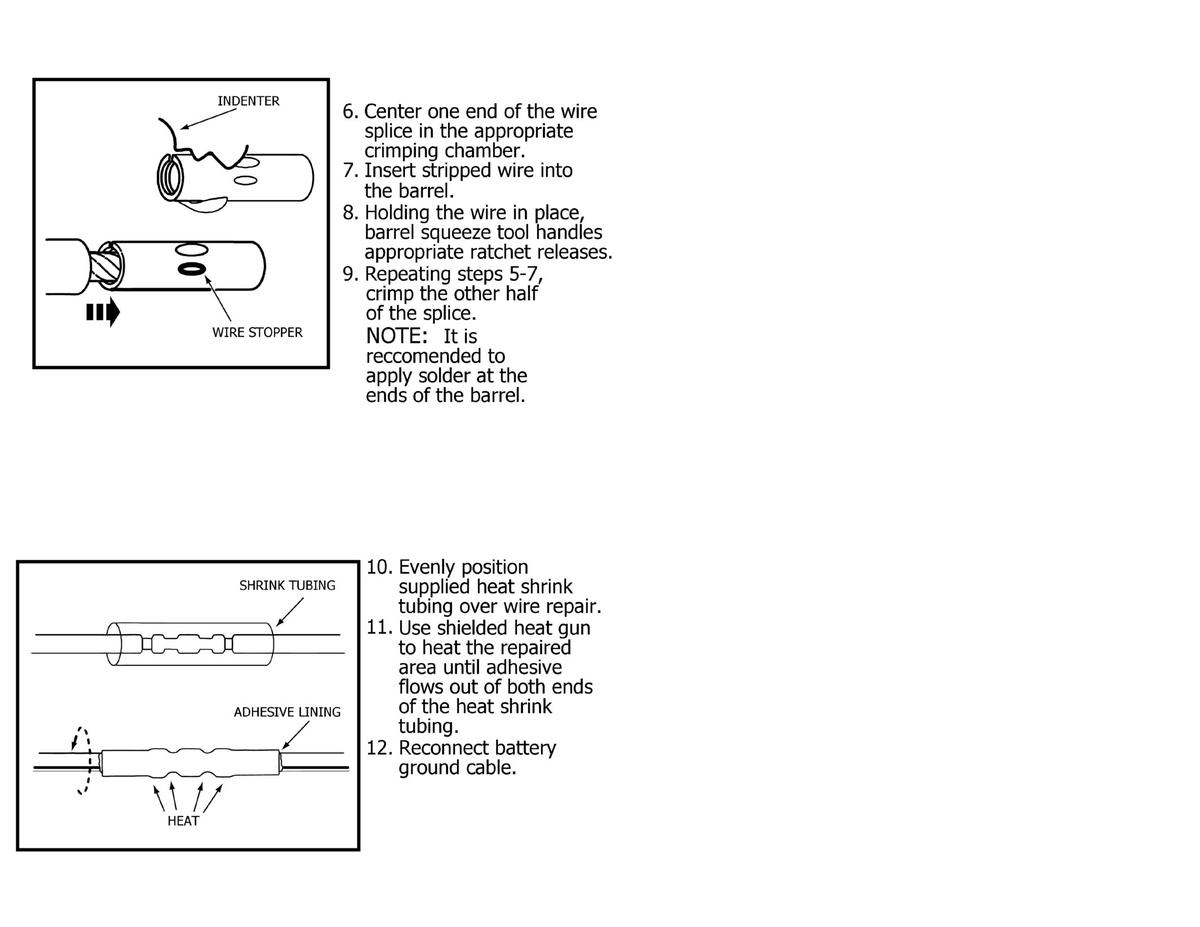

GFDWR36729Courtesy of FORD MOTOR COMPANY

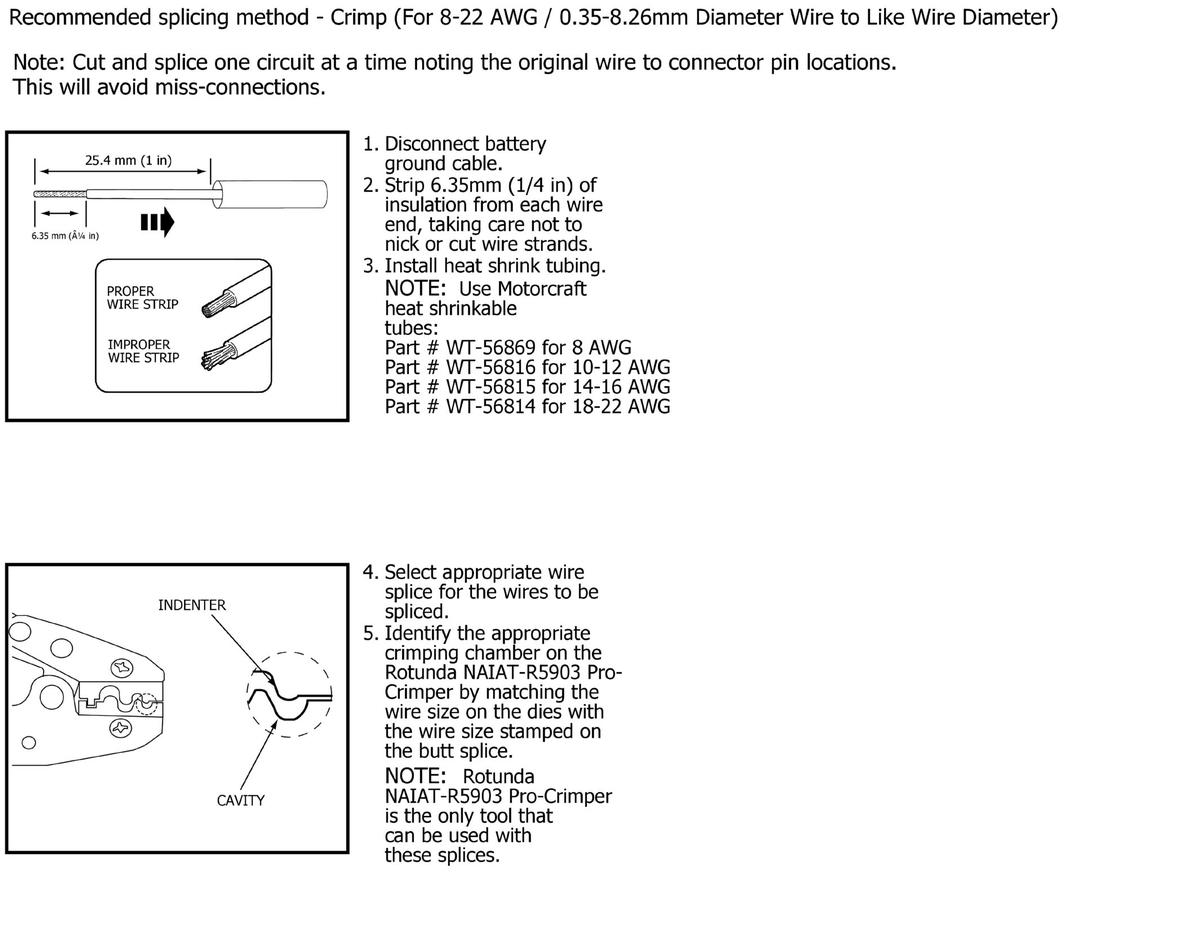

GFDWR36730Courtesy of FORD MOTOR COMPANY

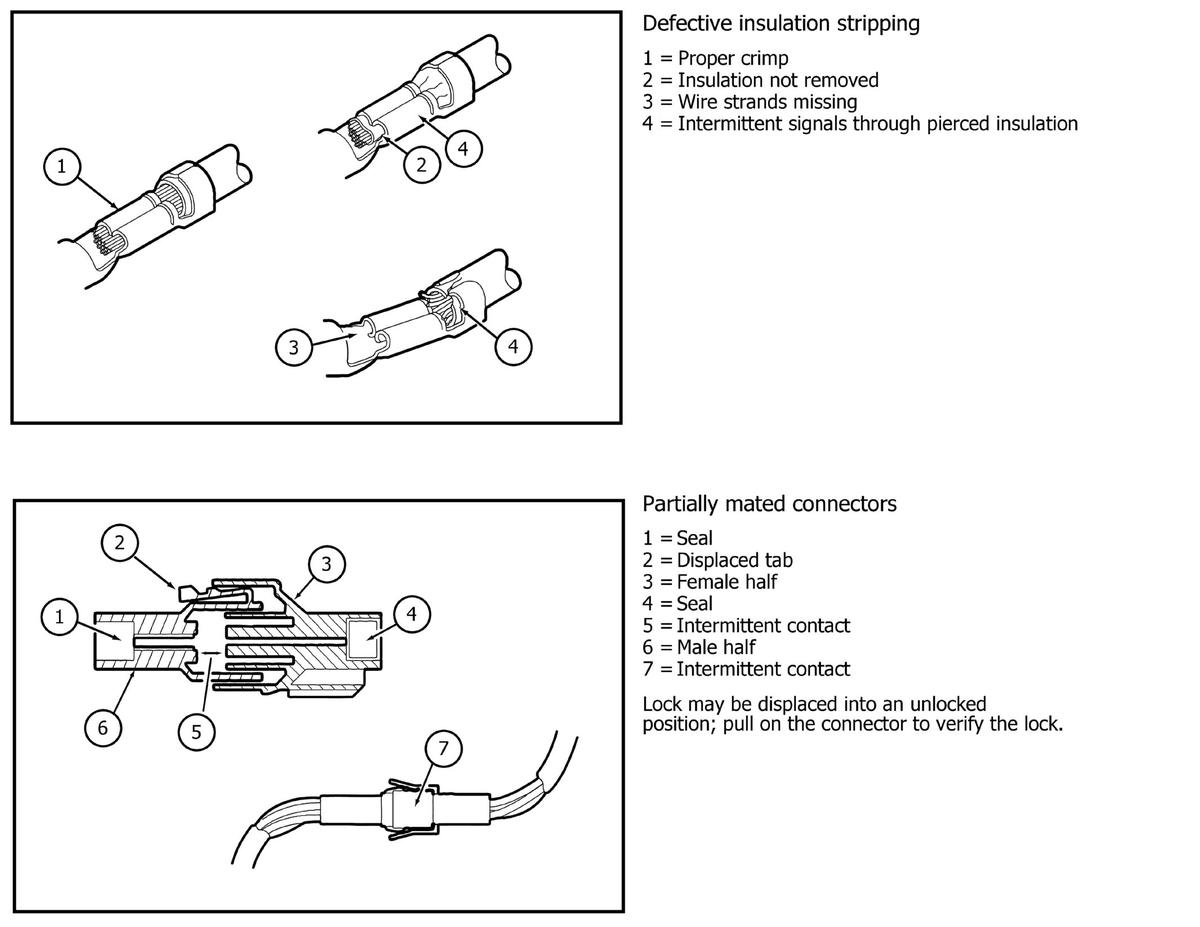

GFDWR36731Courtesy of FORD MOTOR COMPANY

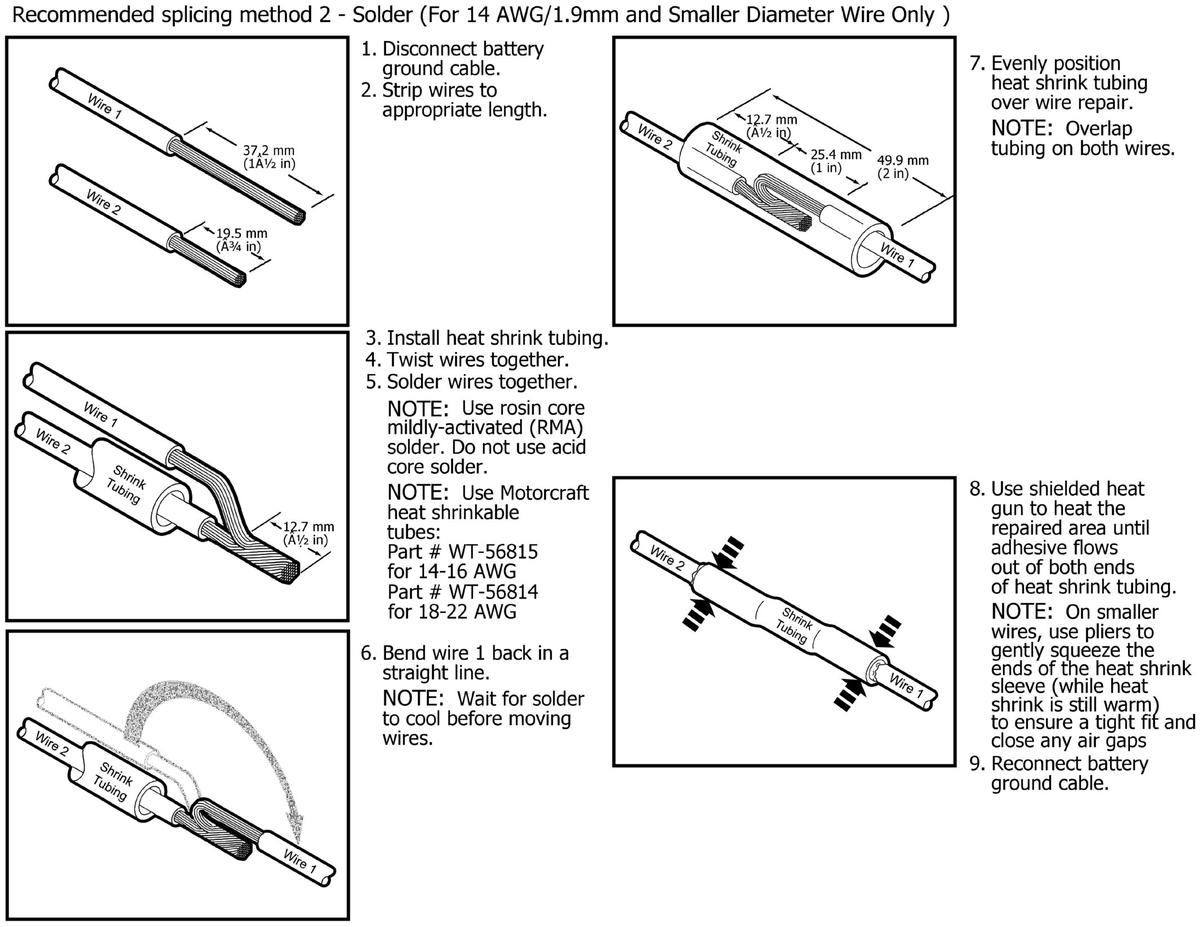

GFDWR36732Courtesy of FORD MOTOR COMPANY

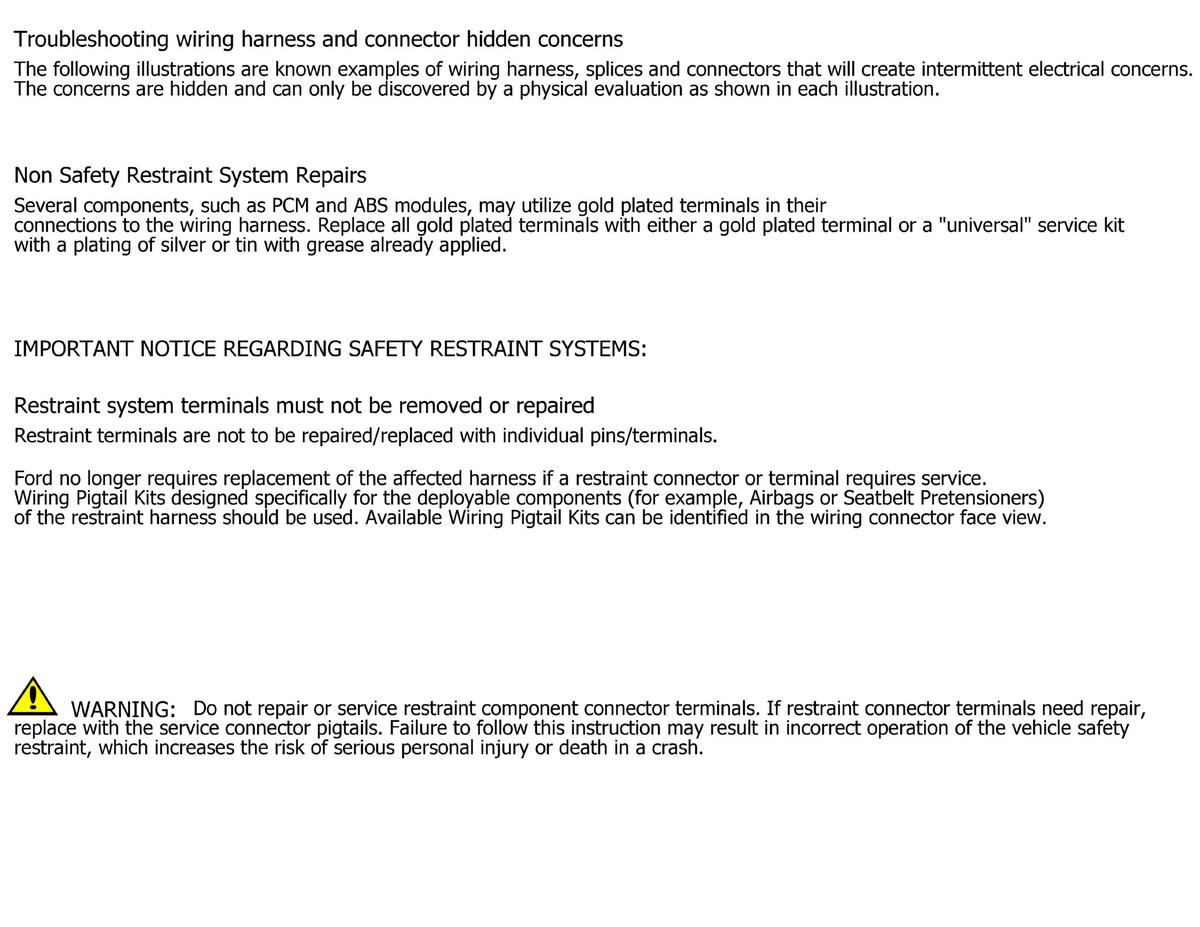

GFDWR36733Courtesy of FORD MOTOR COMPANY

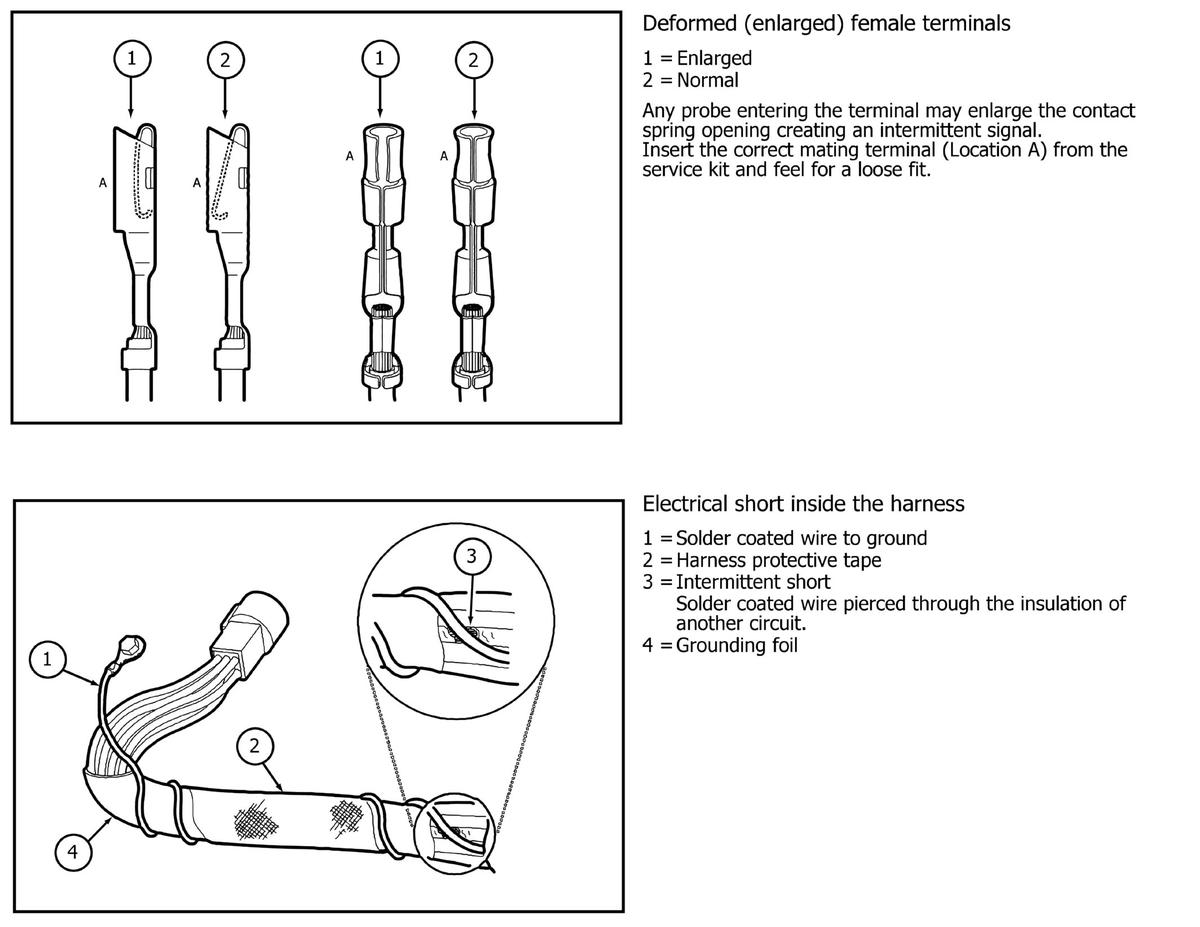

GFDWR36734Courtesy of FORD MOTOR COMPANY

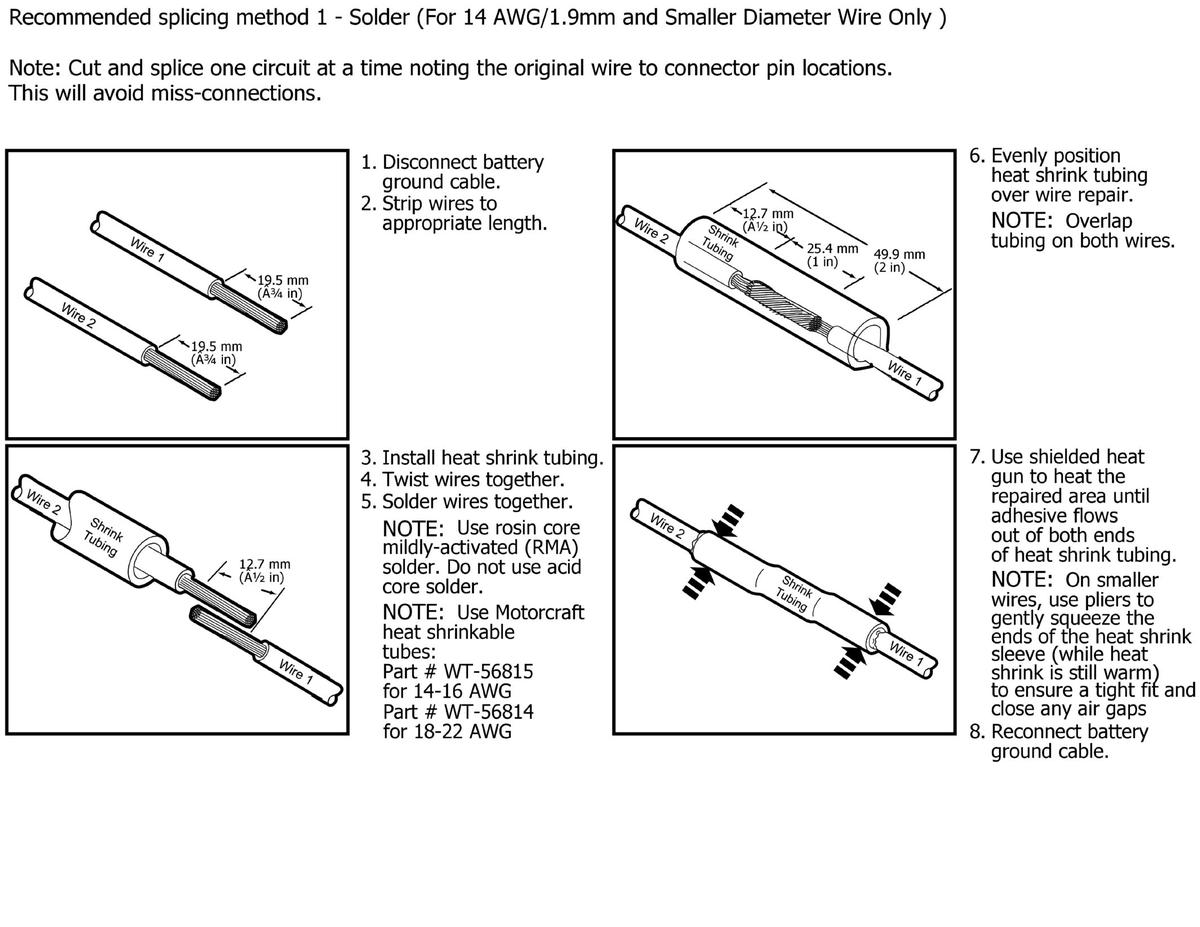

GFDWR36735Courtesy of FORD MOTOR COMPANY
