Ford
›
2019
›
Transit Connect Titanium, Gas
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Component Harness Location Views
›

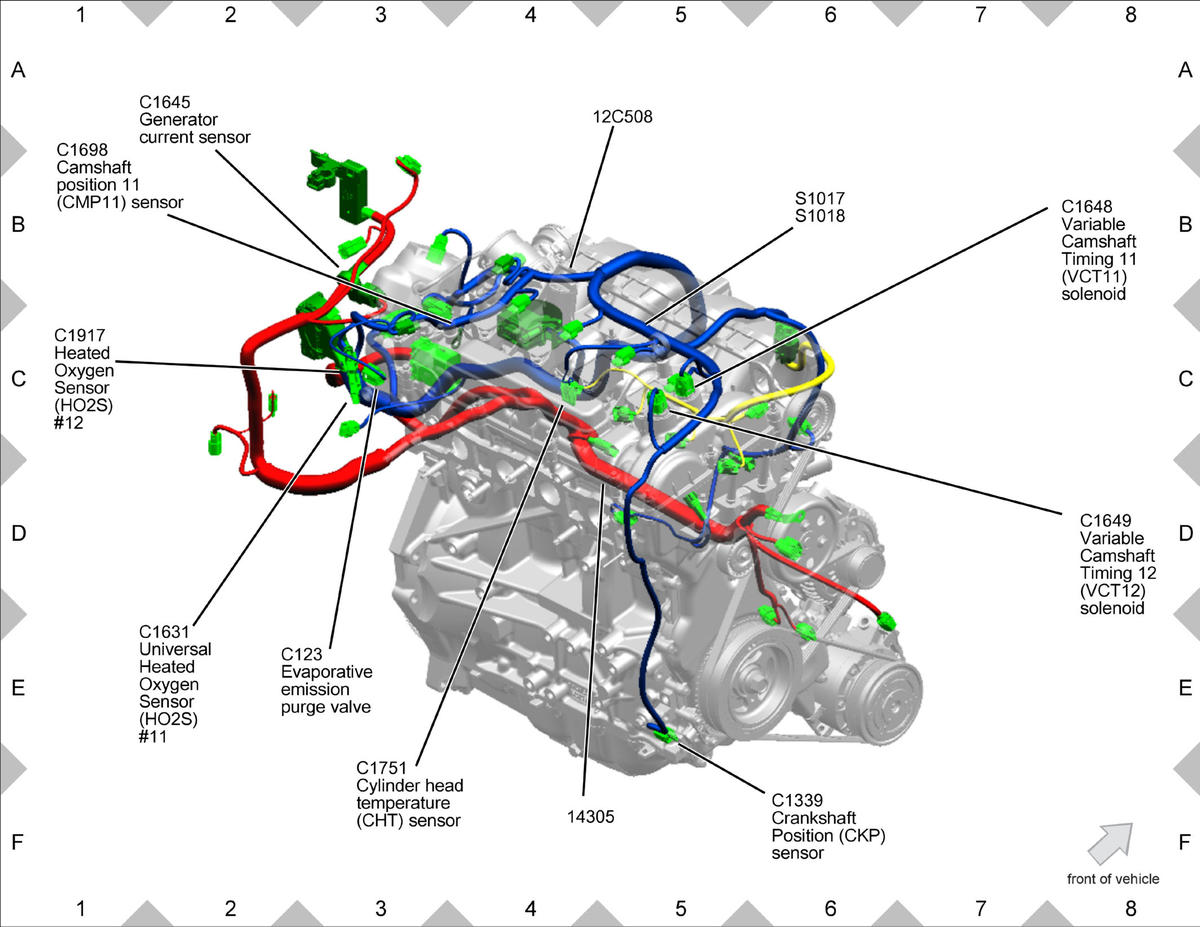

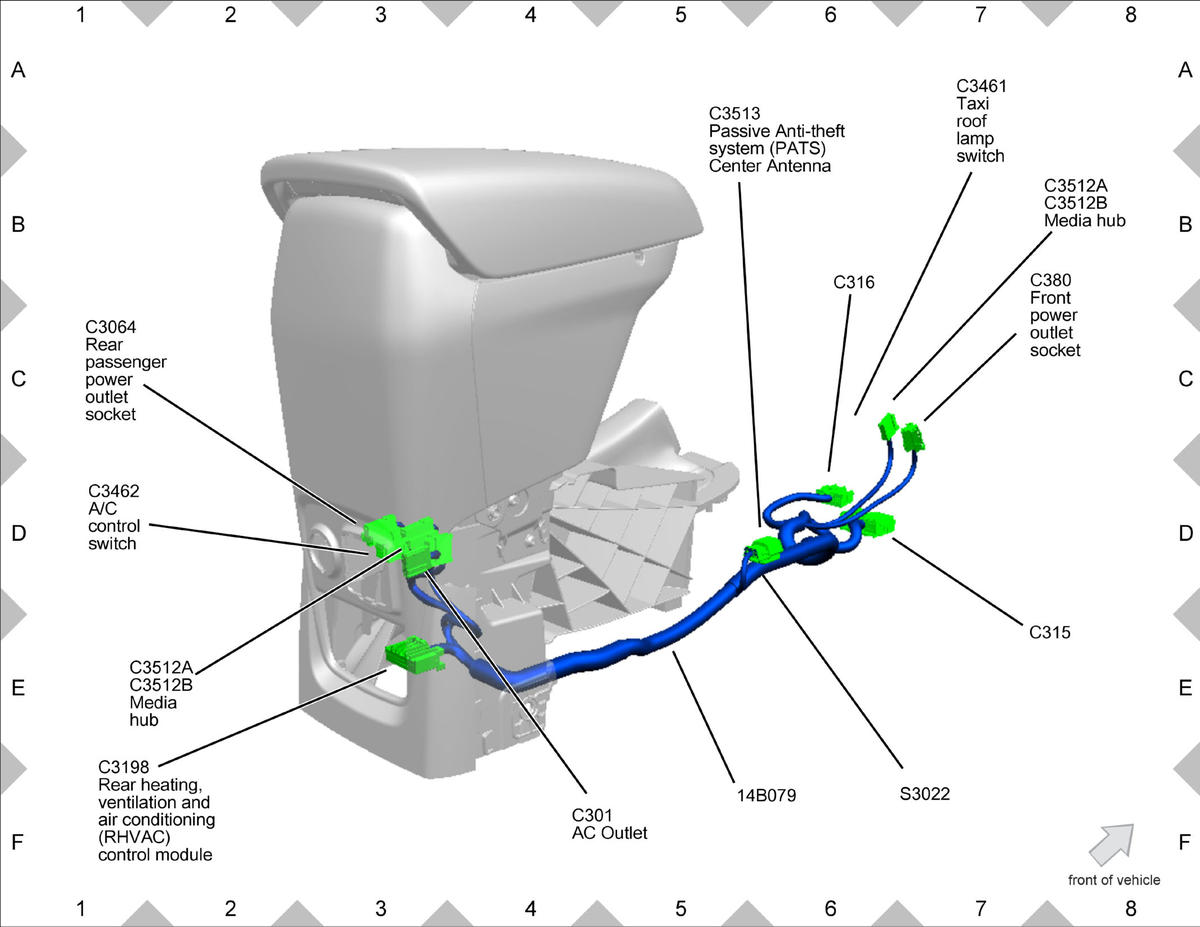

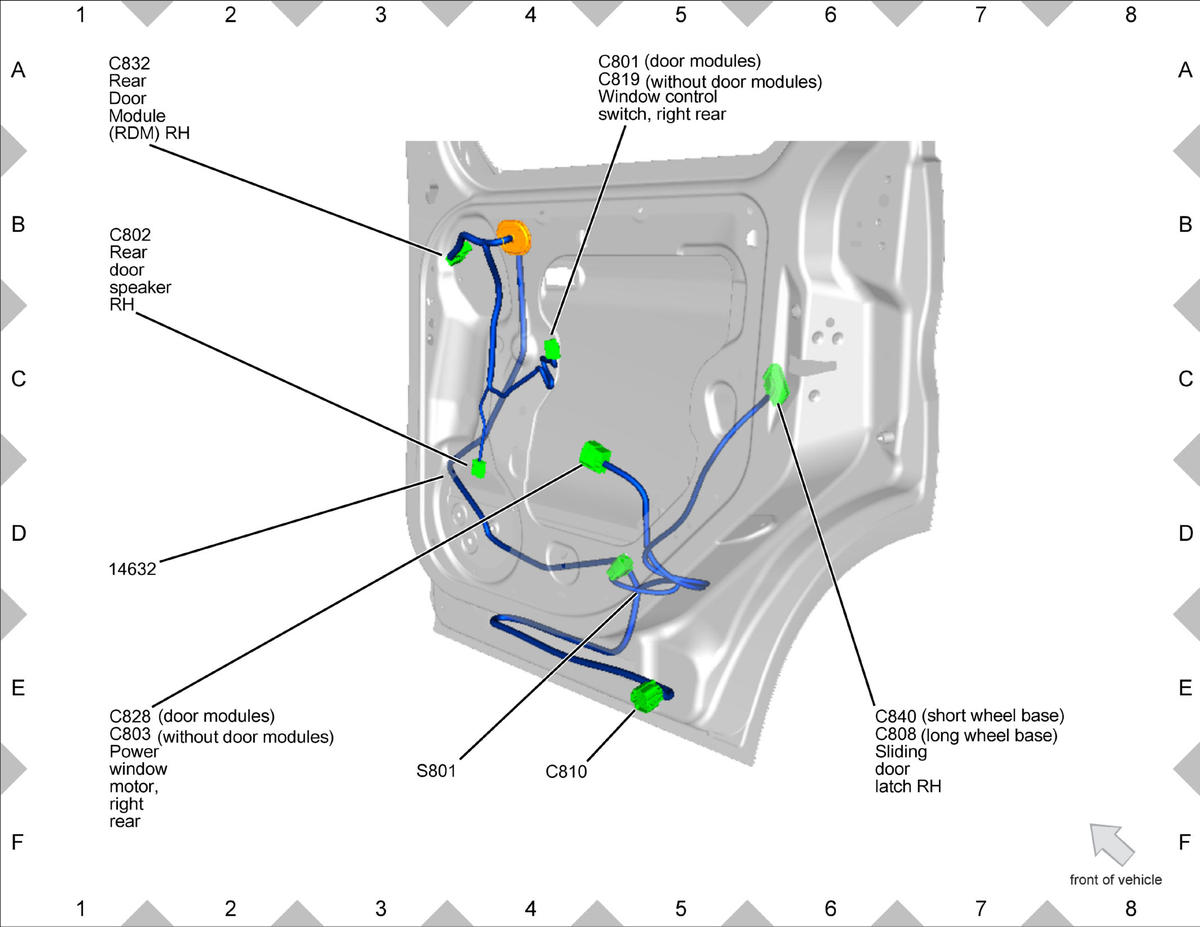

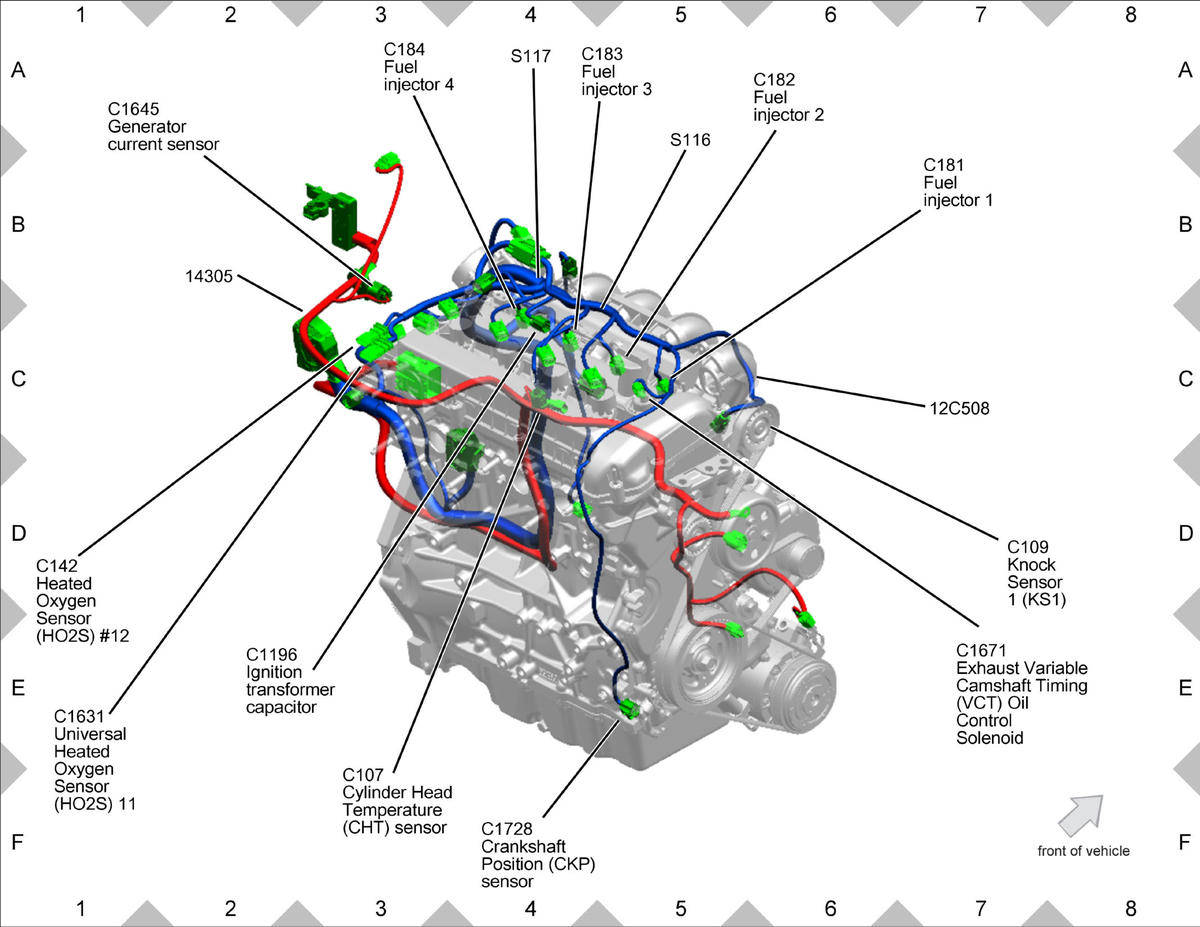

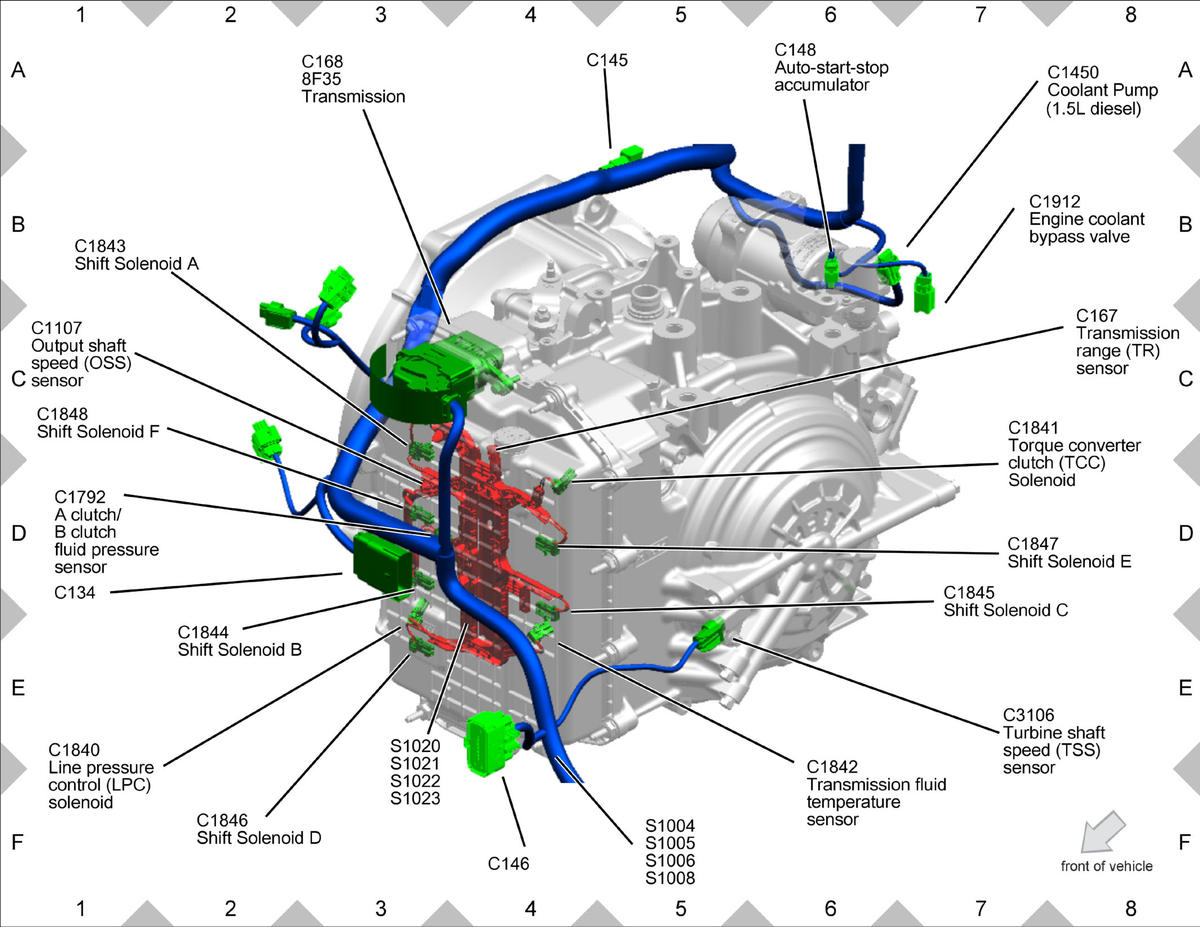

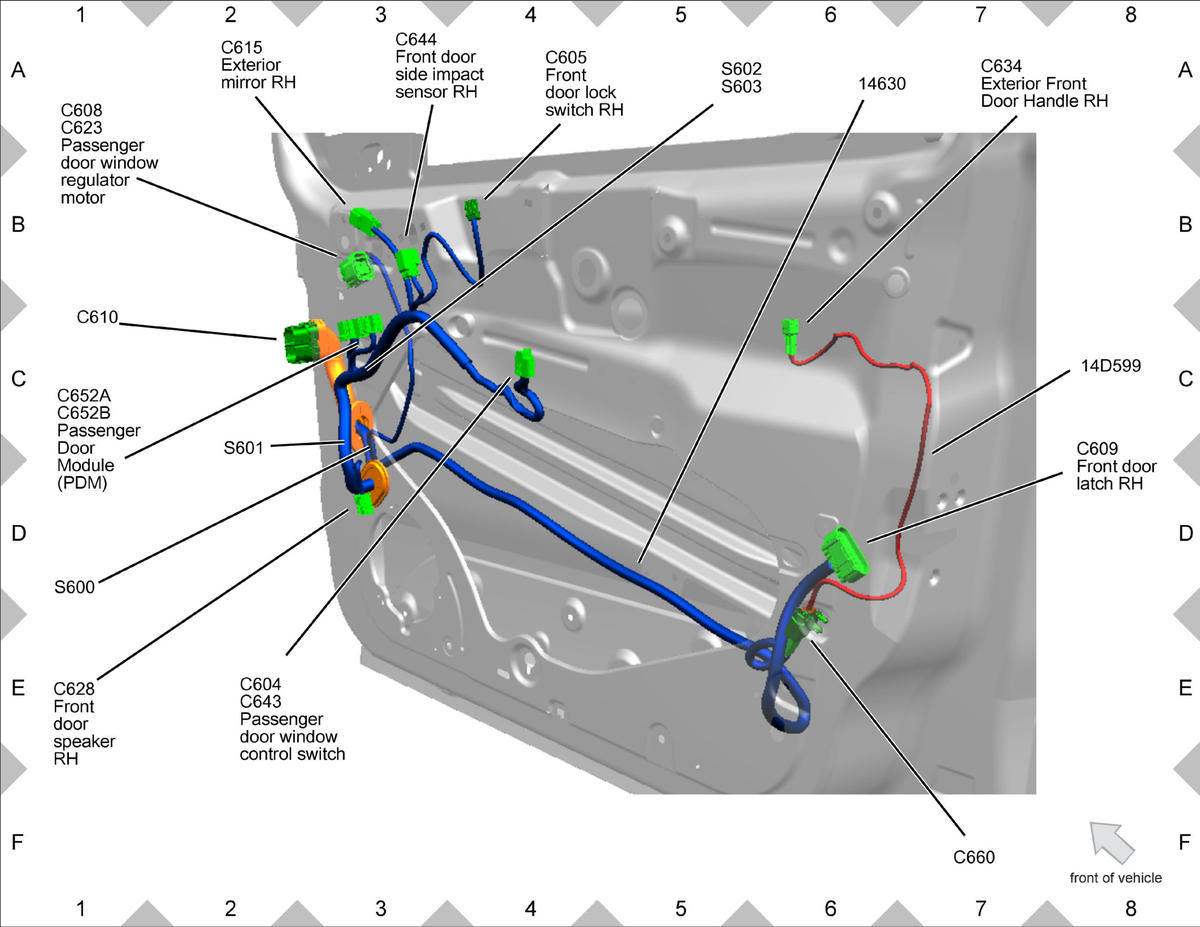

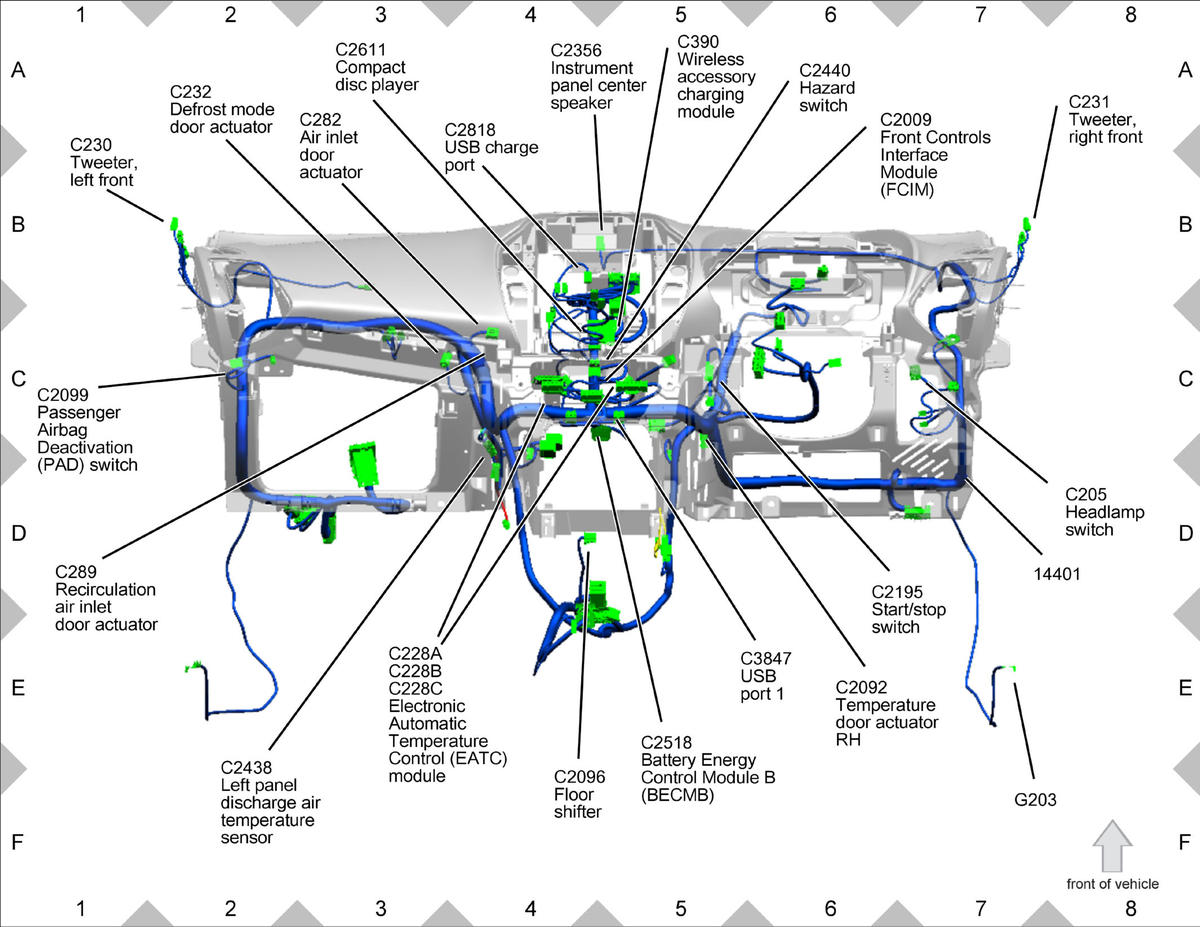

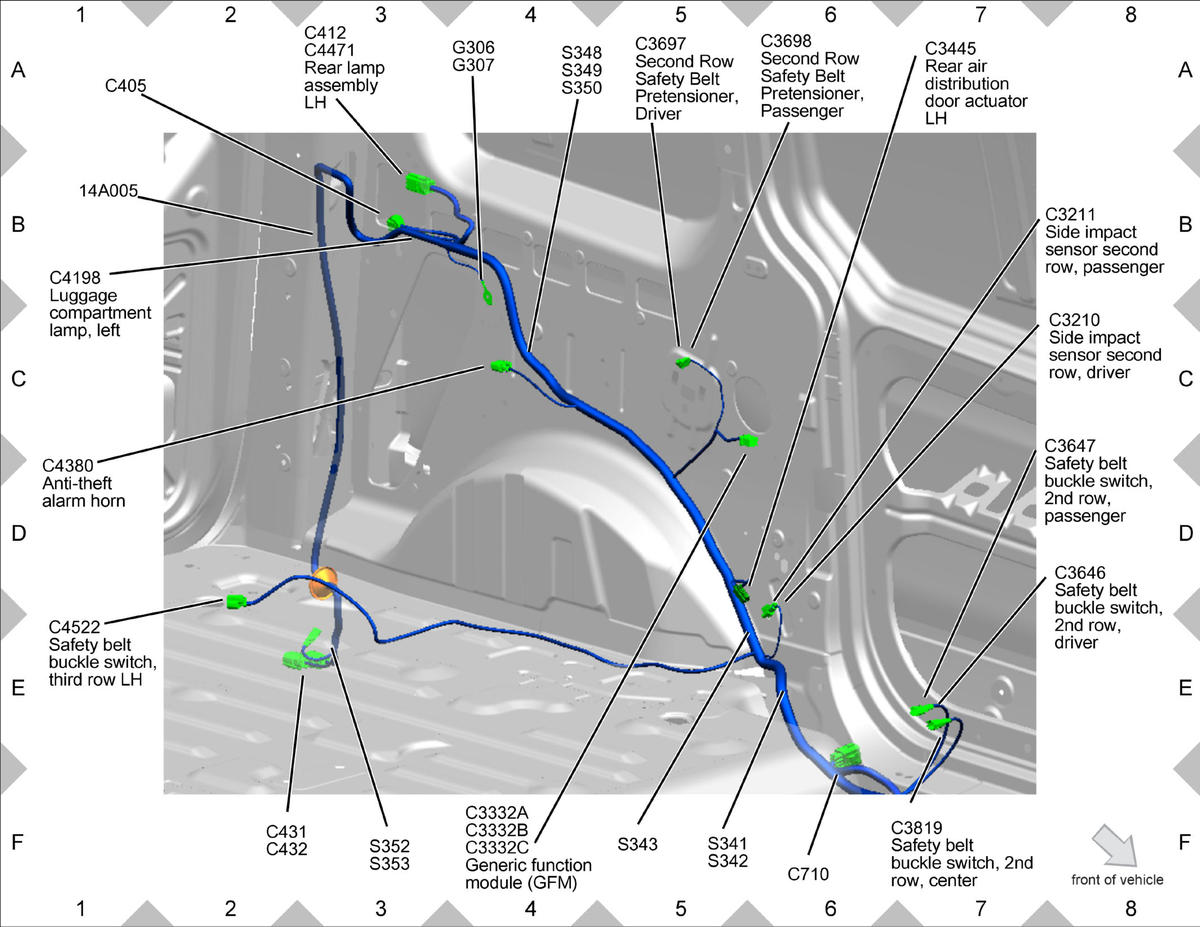

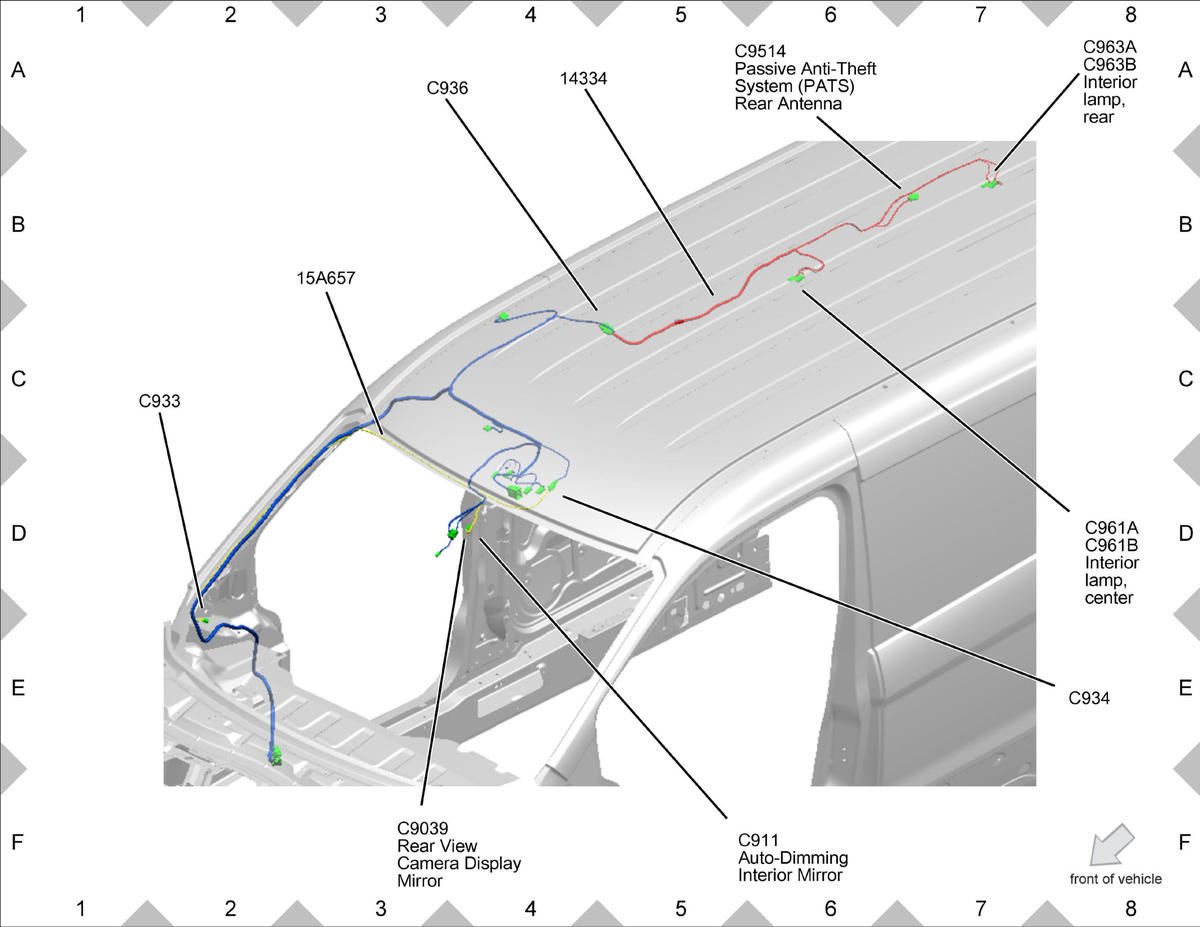

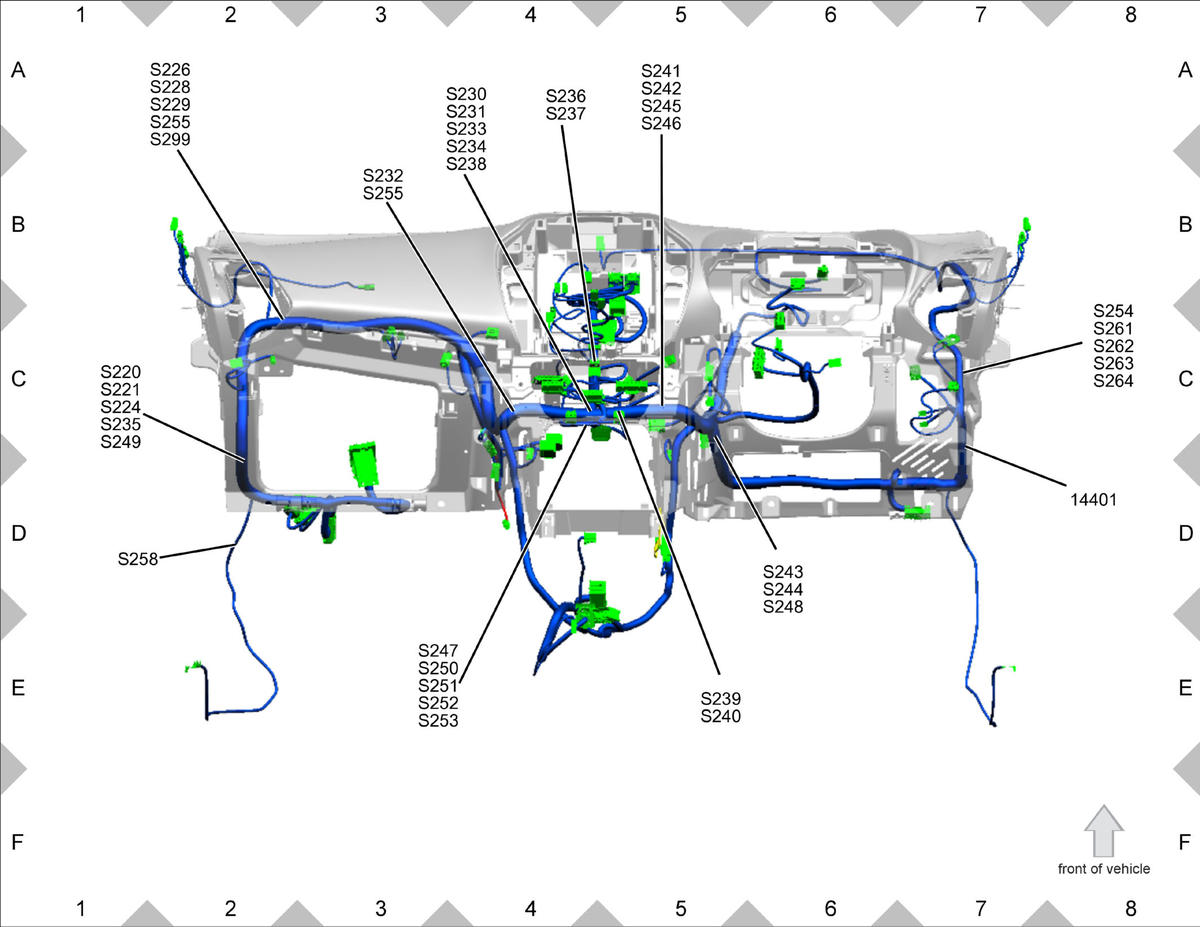

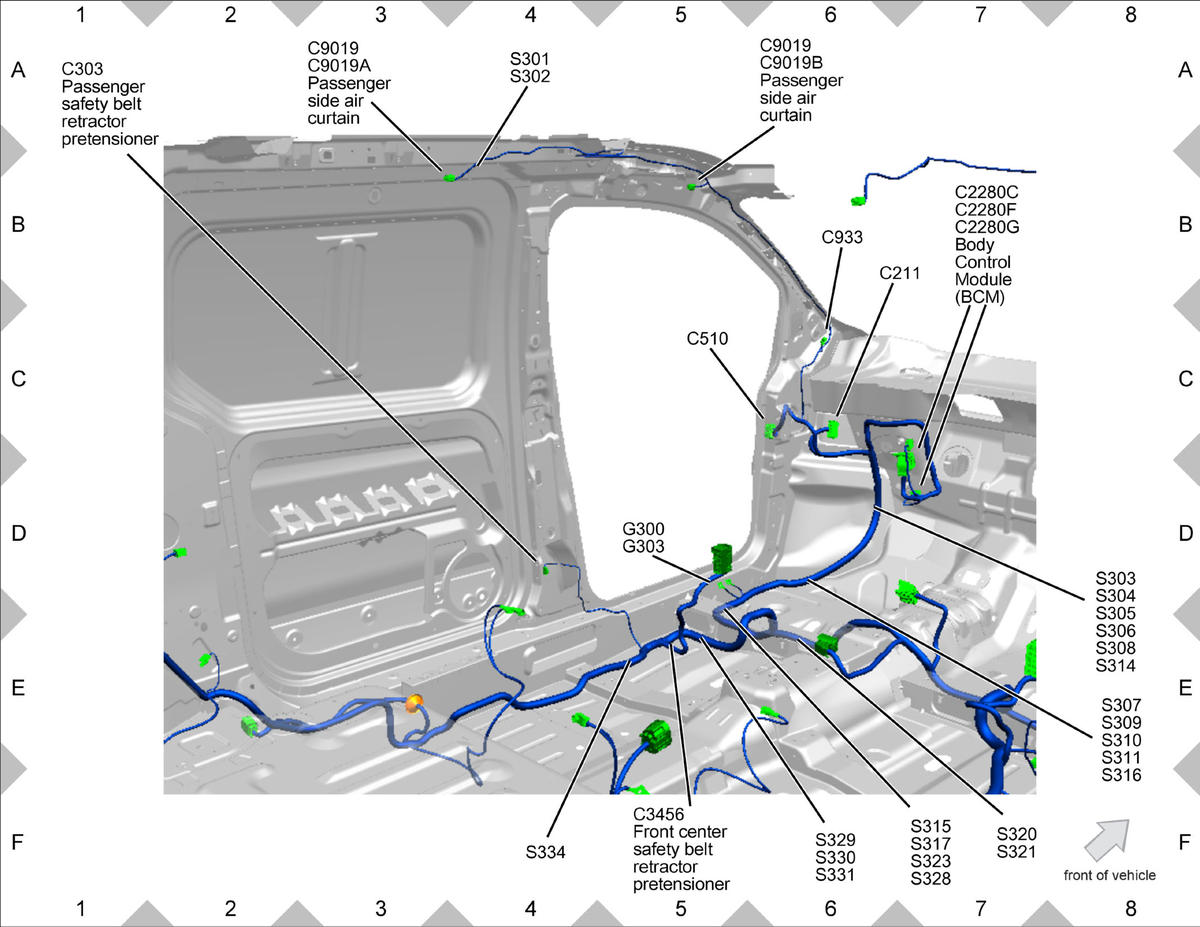

Component Location Views

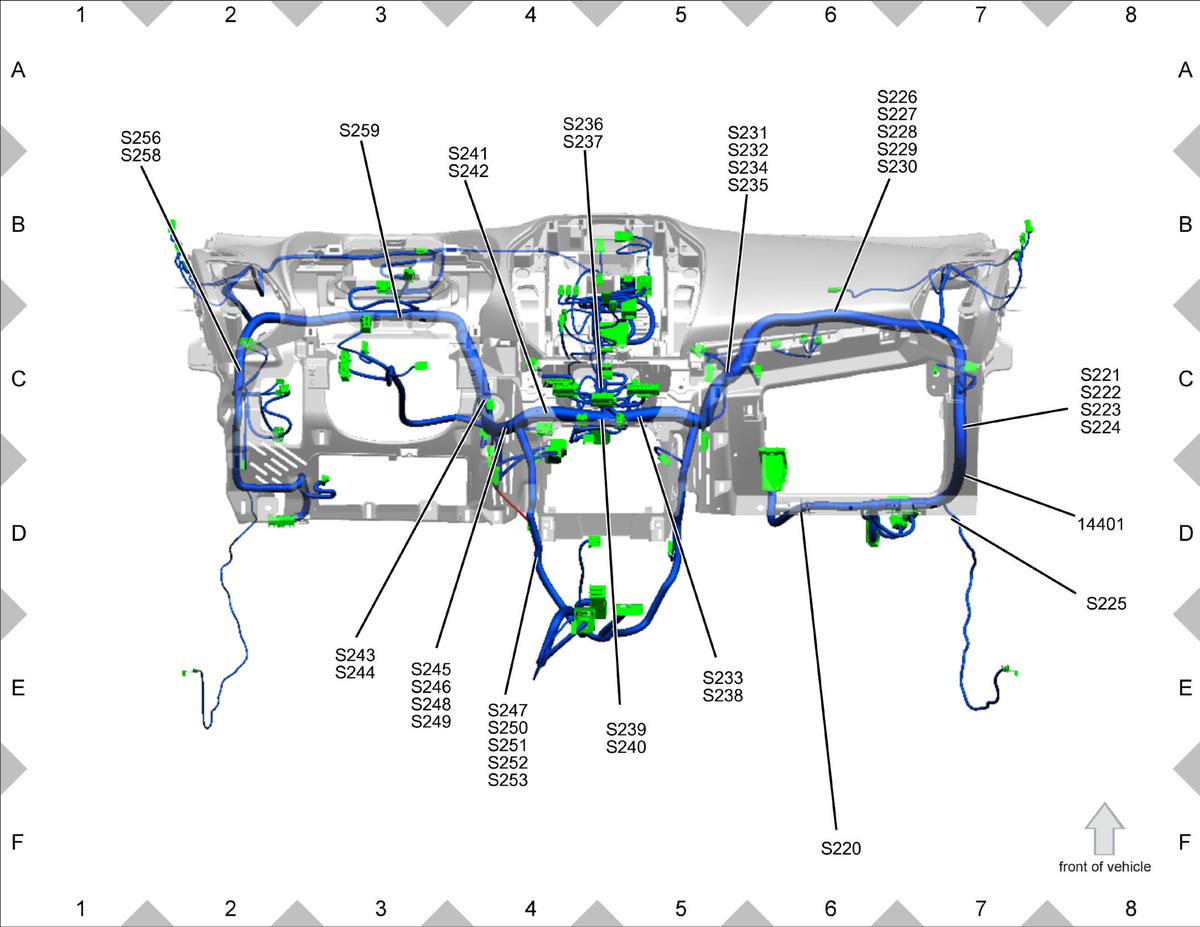

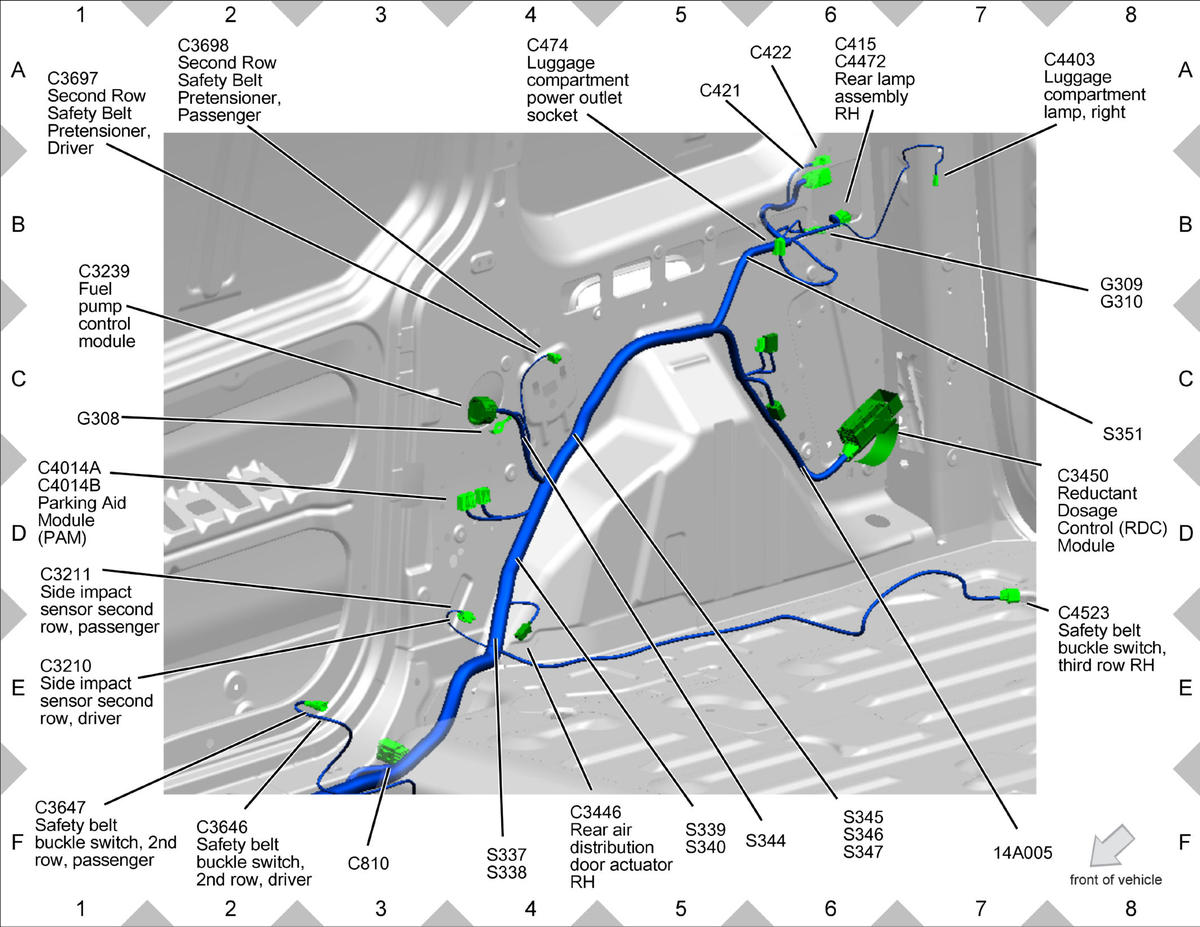

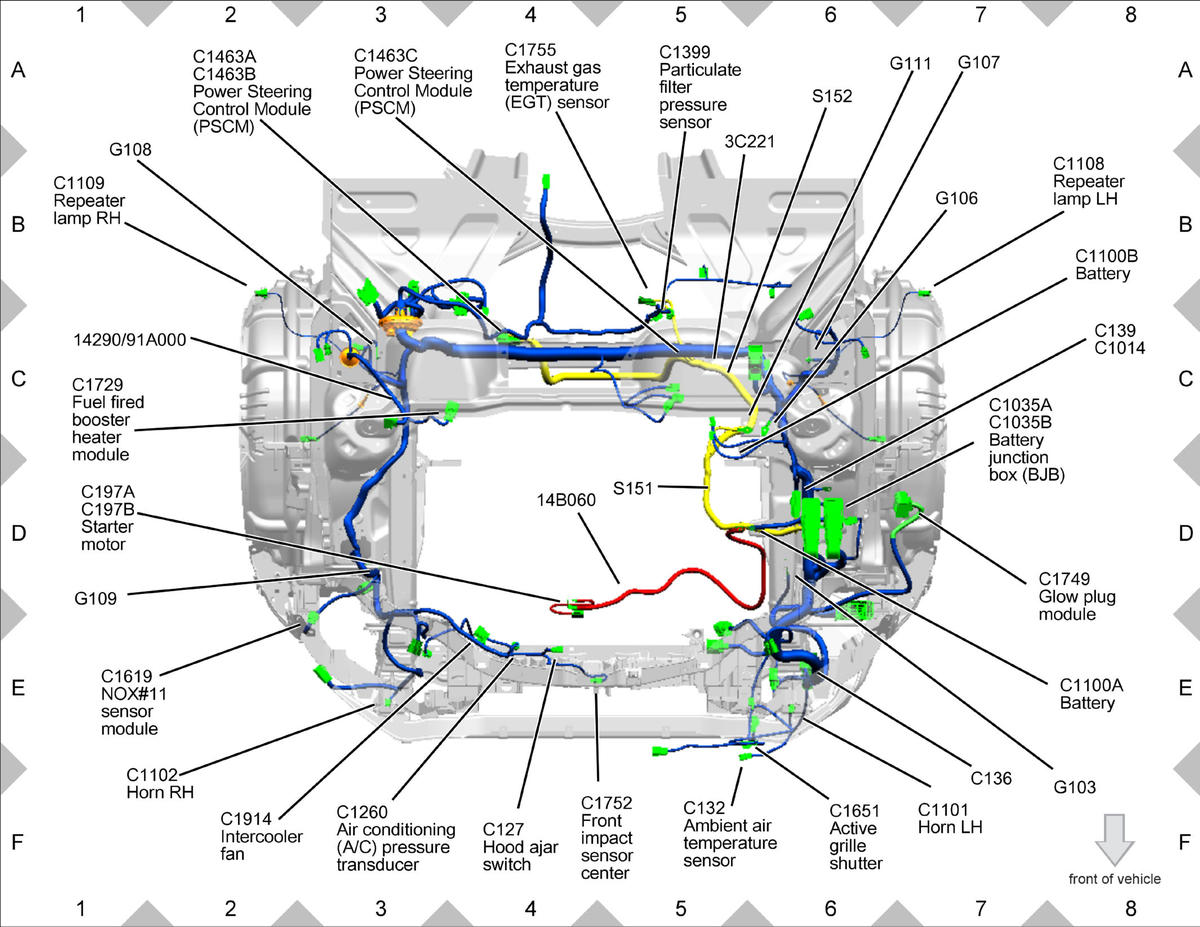

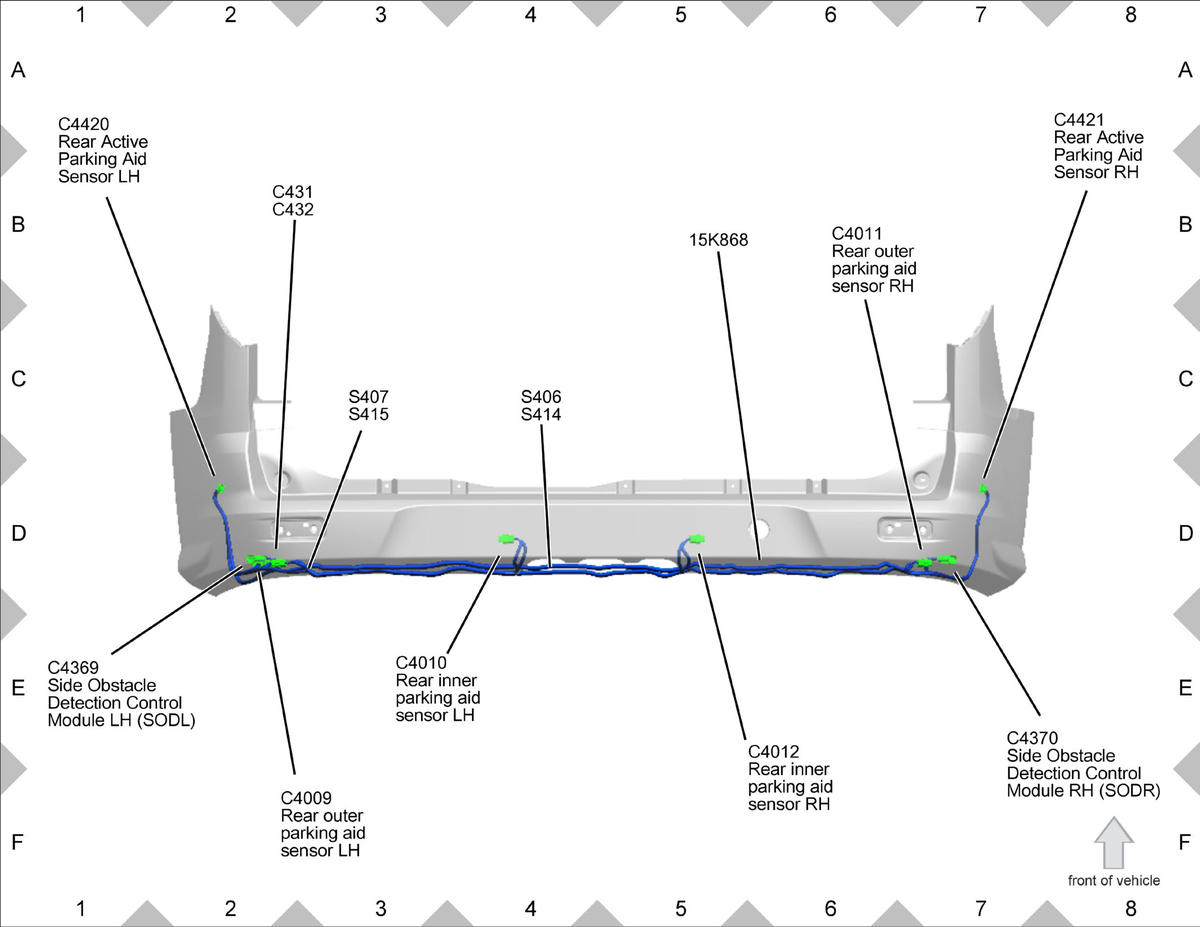

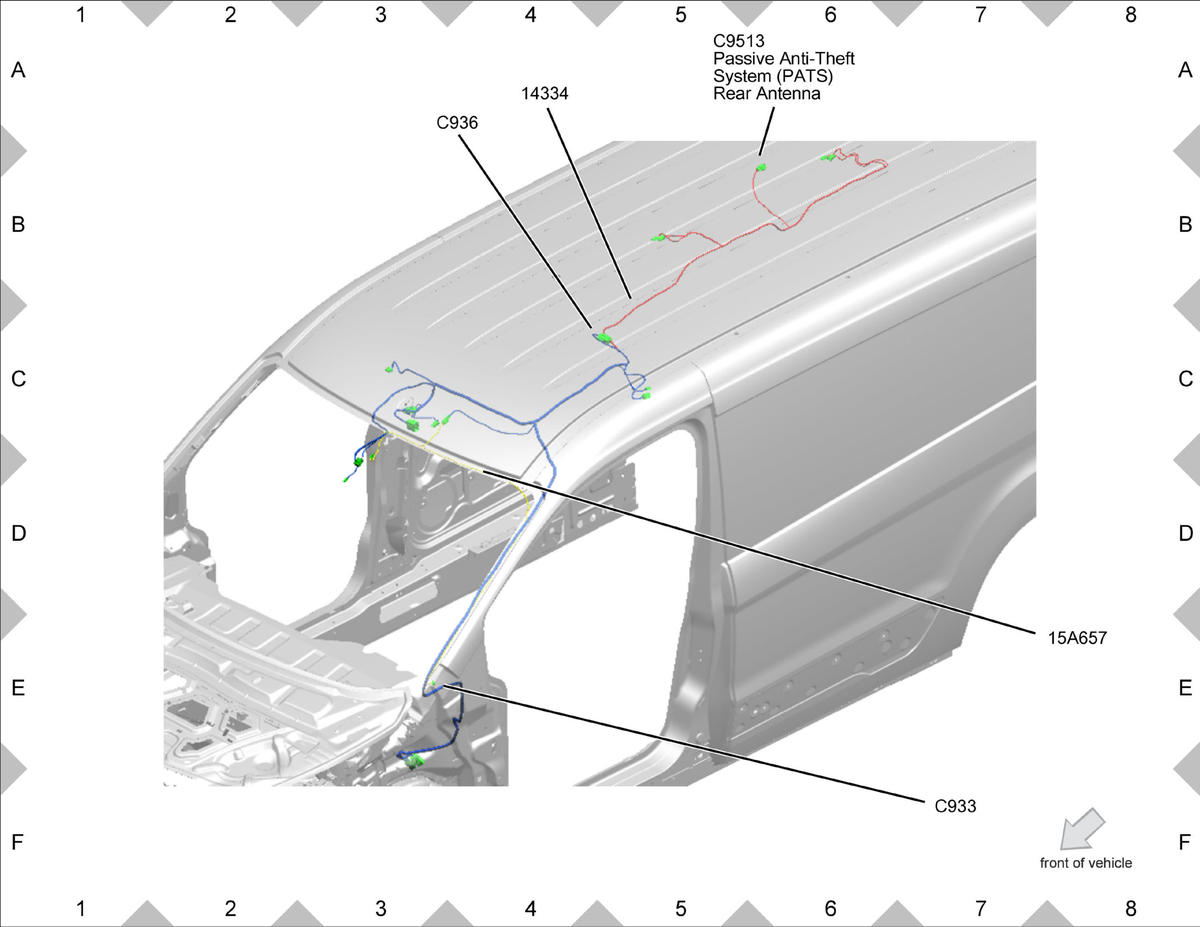

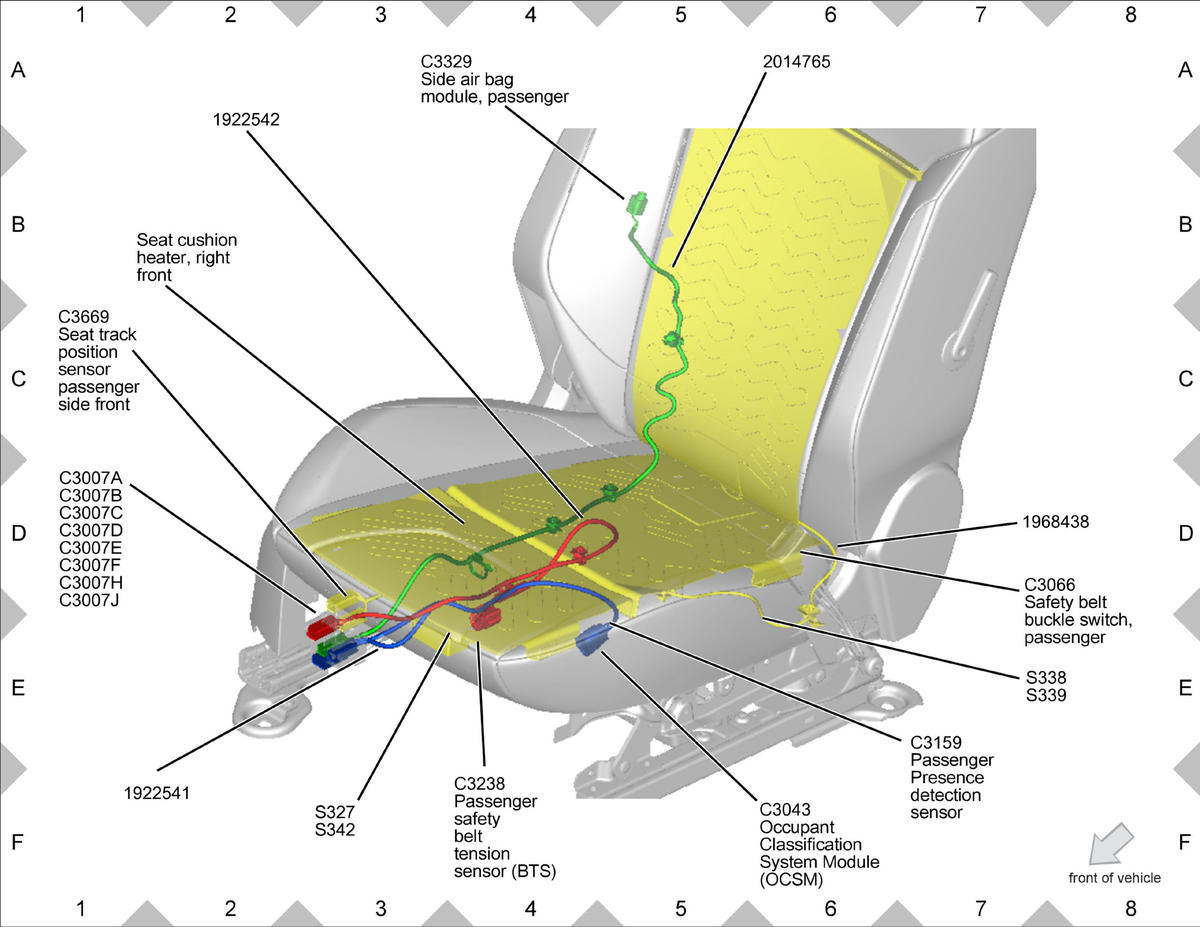

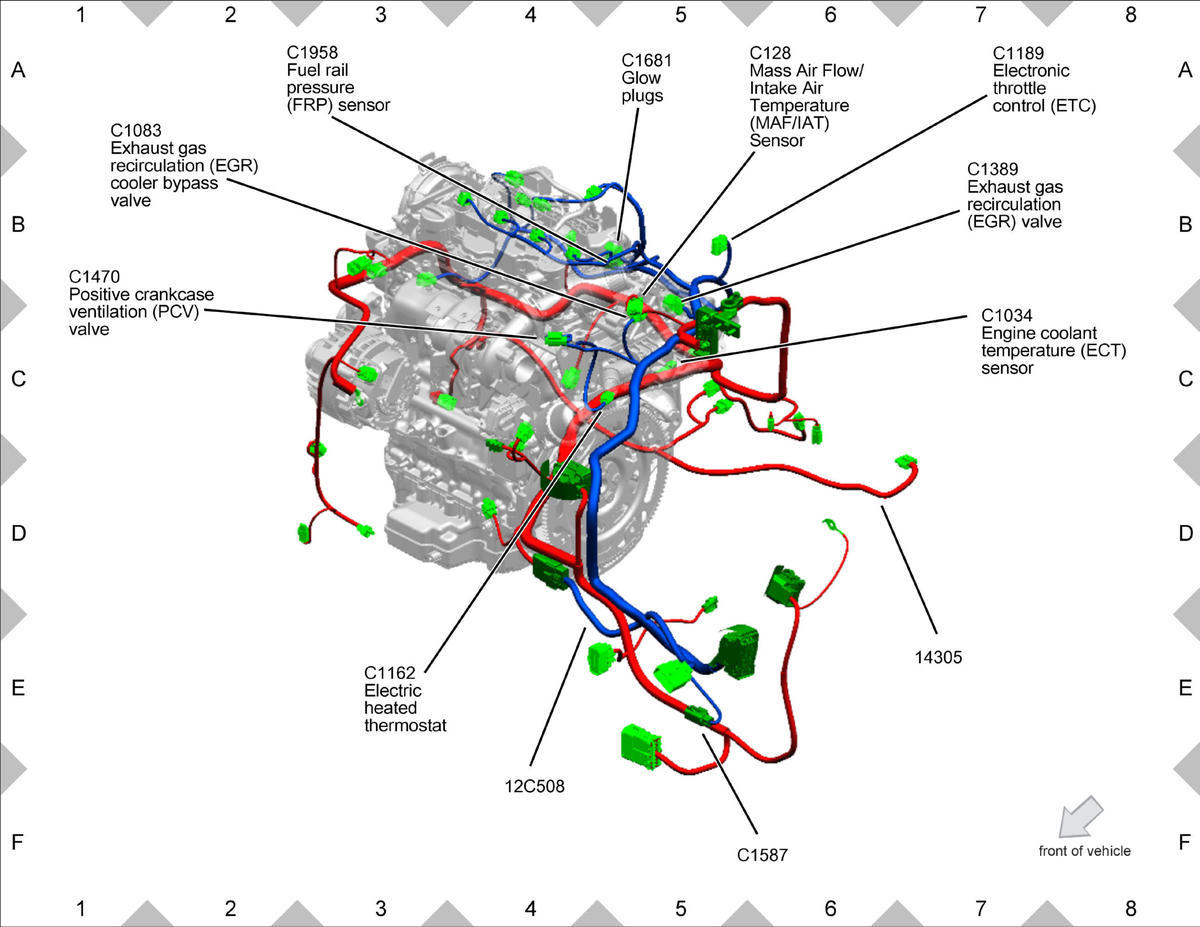

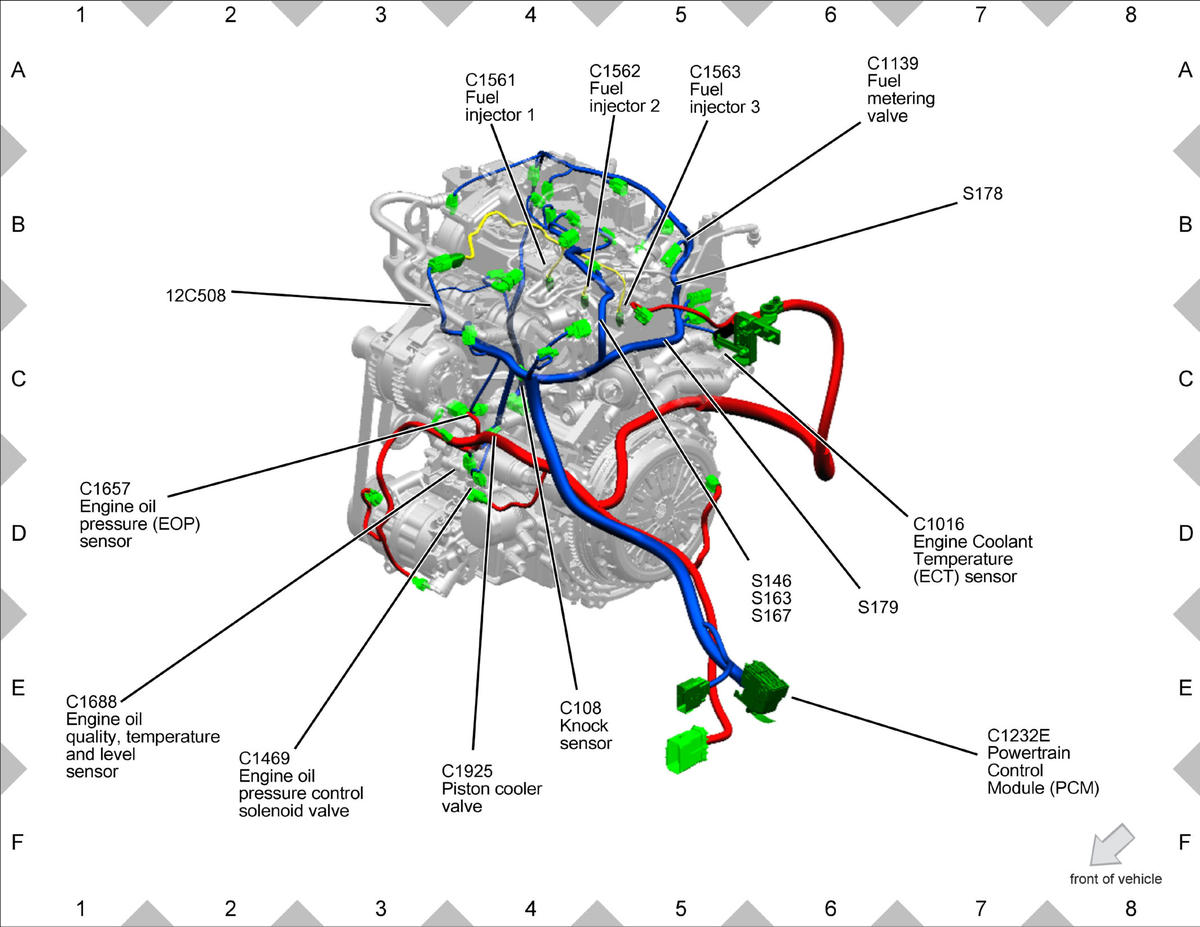

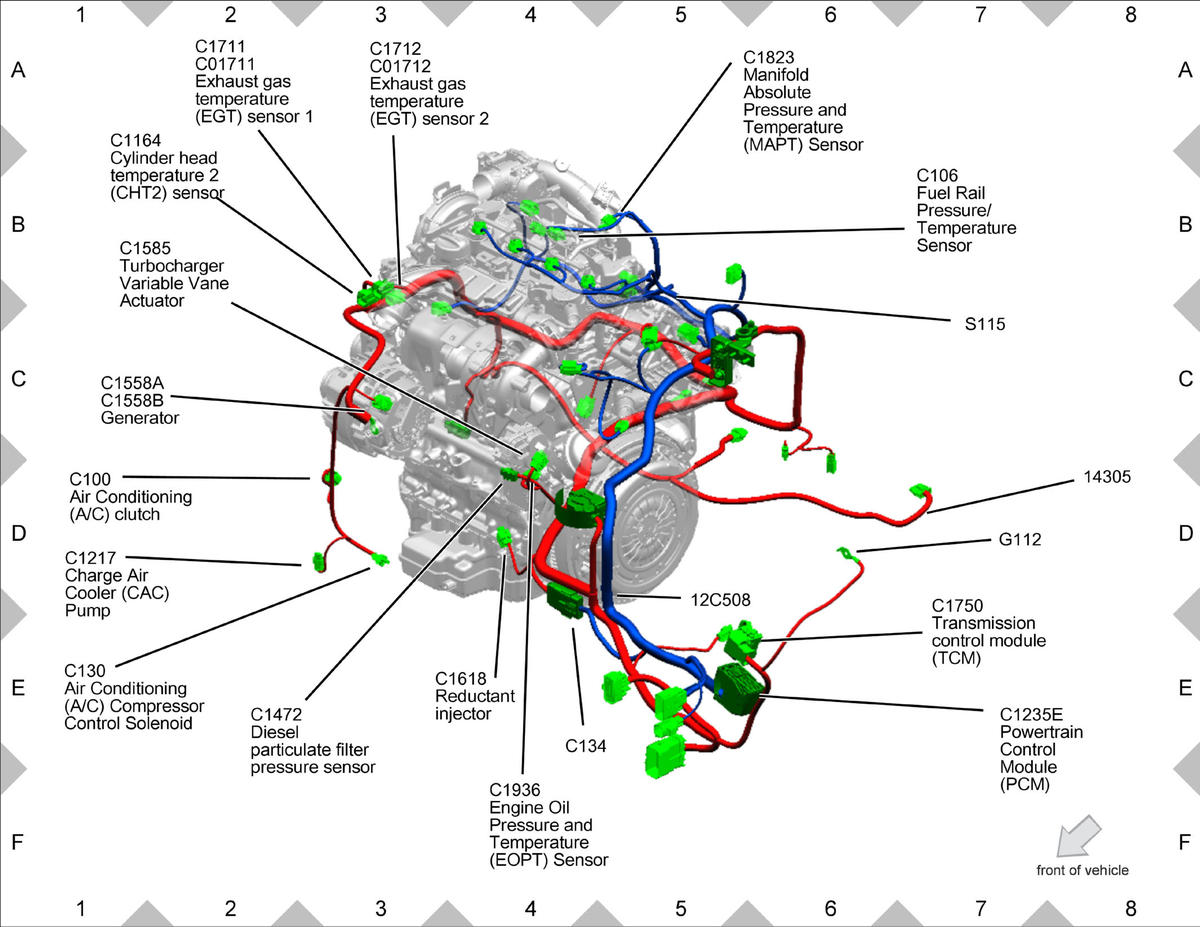

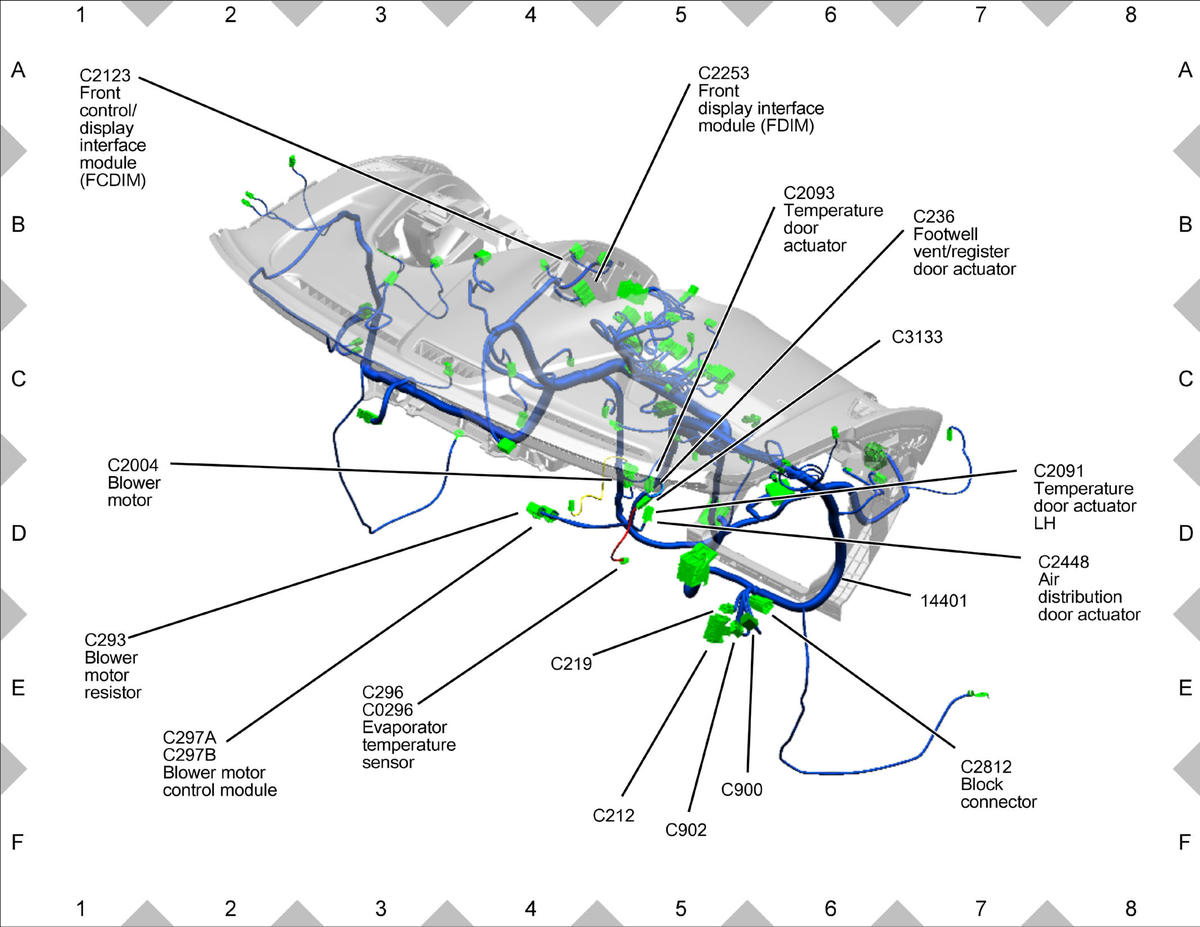

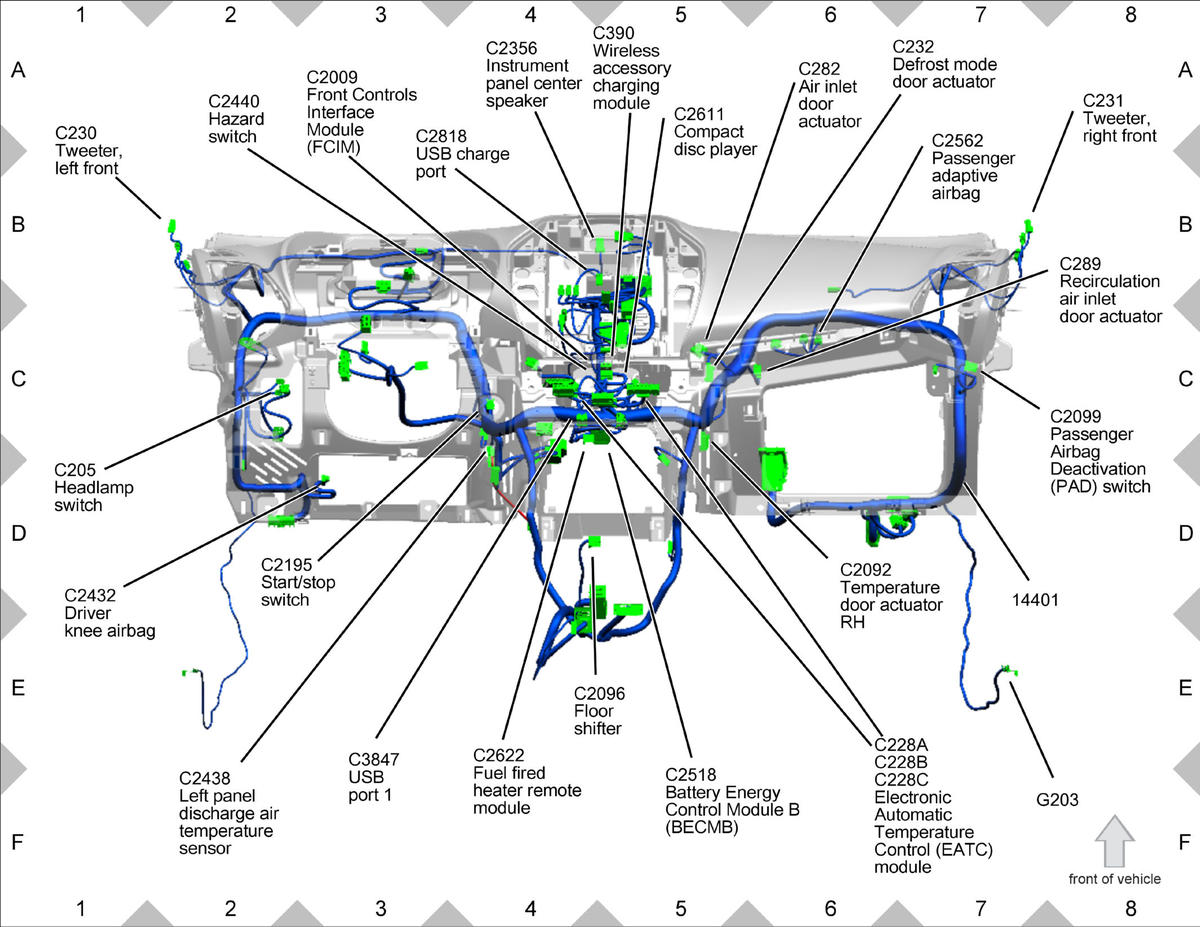

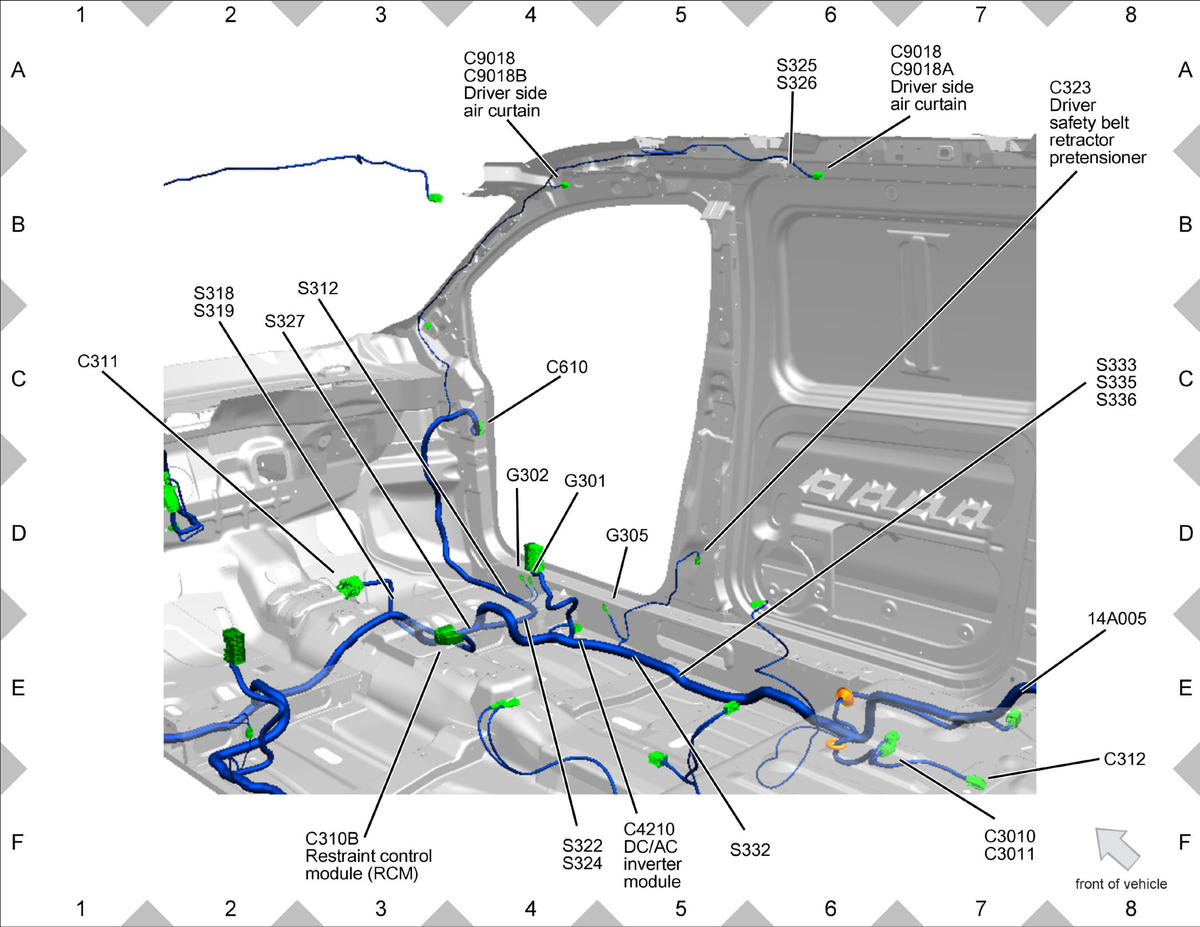

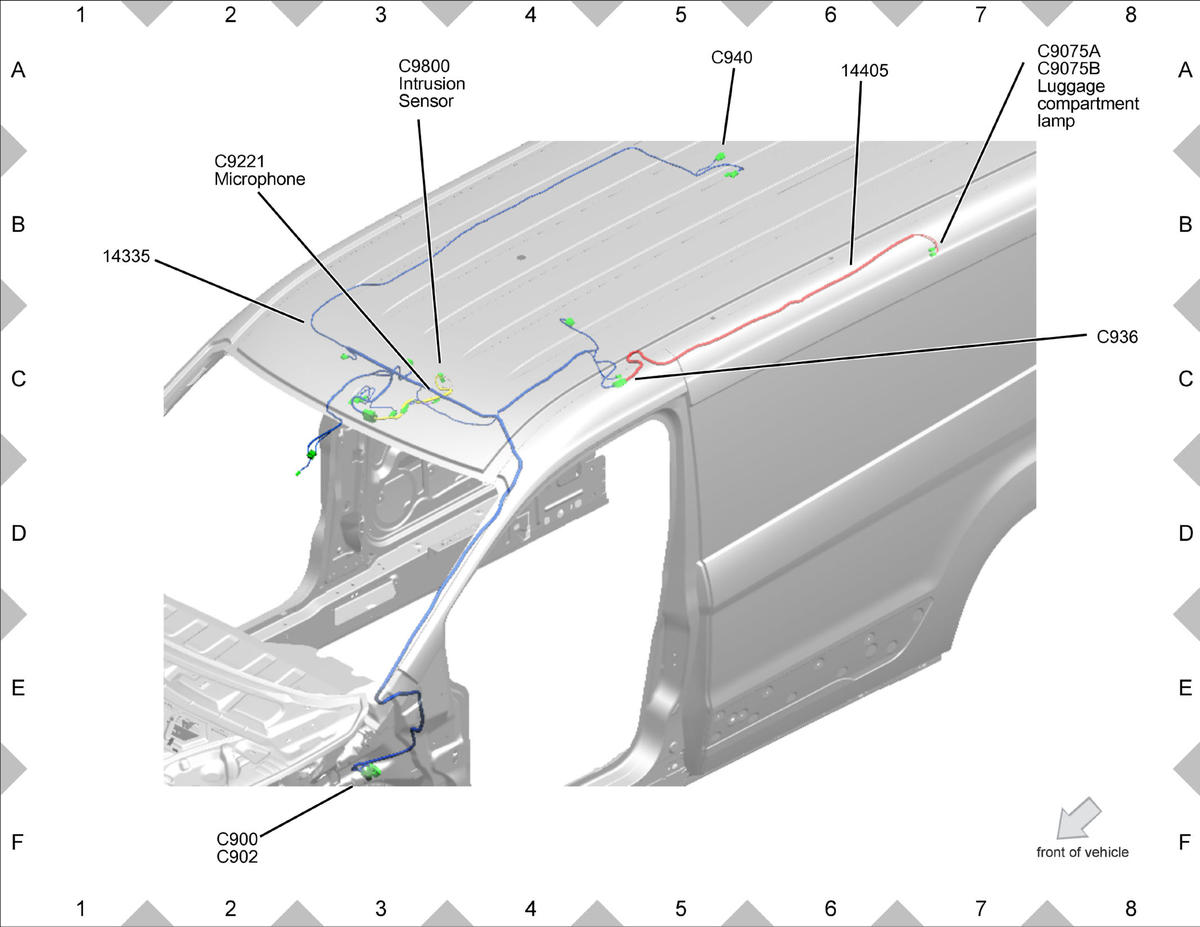

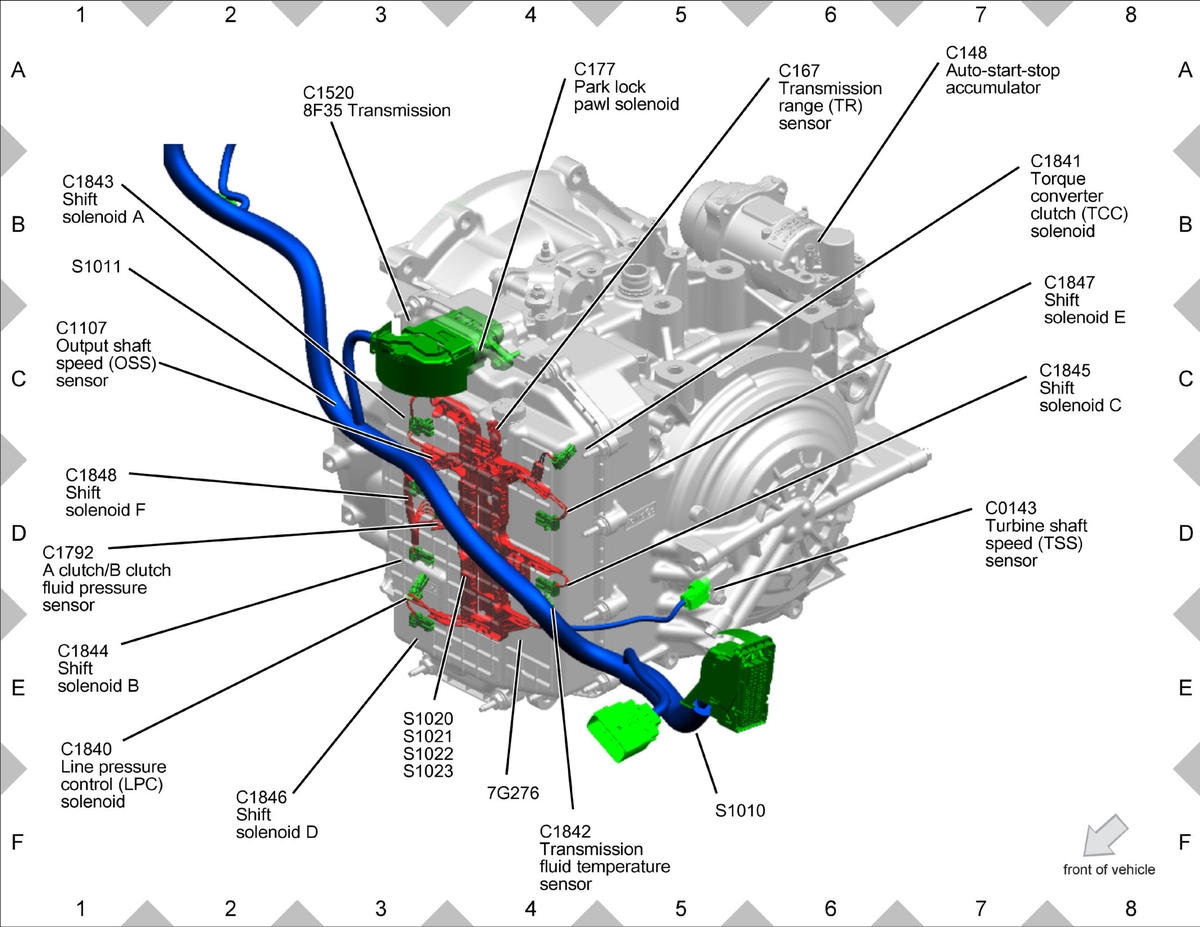

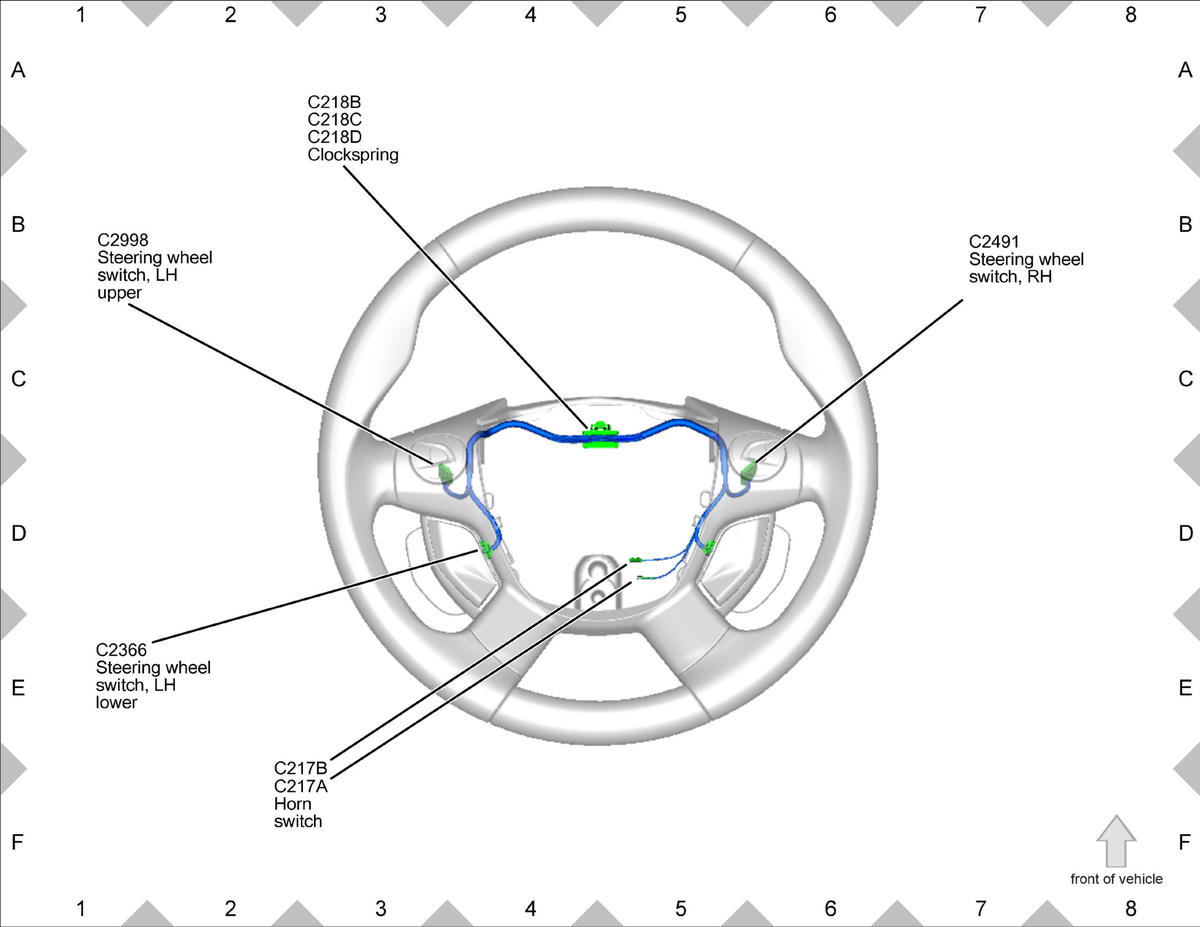

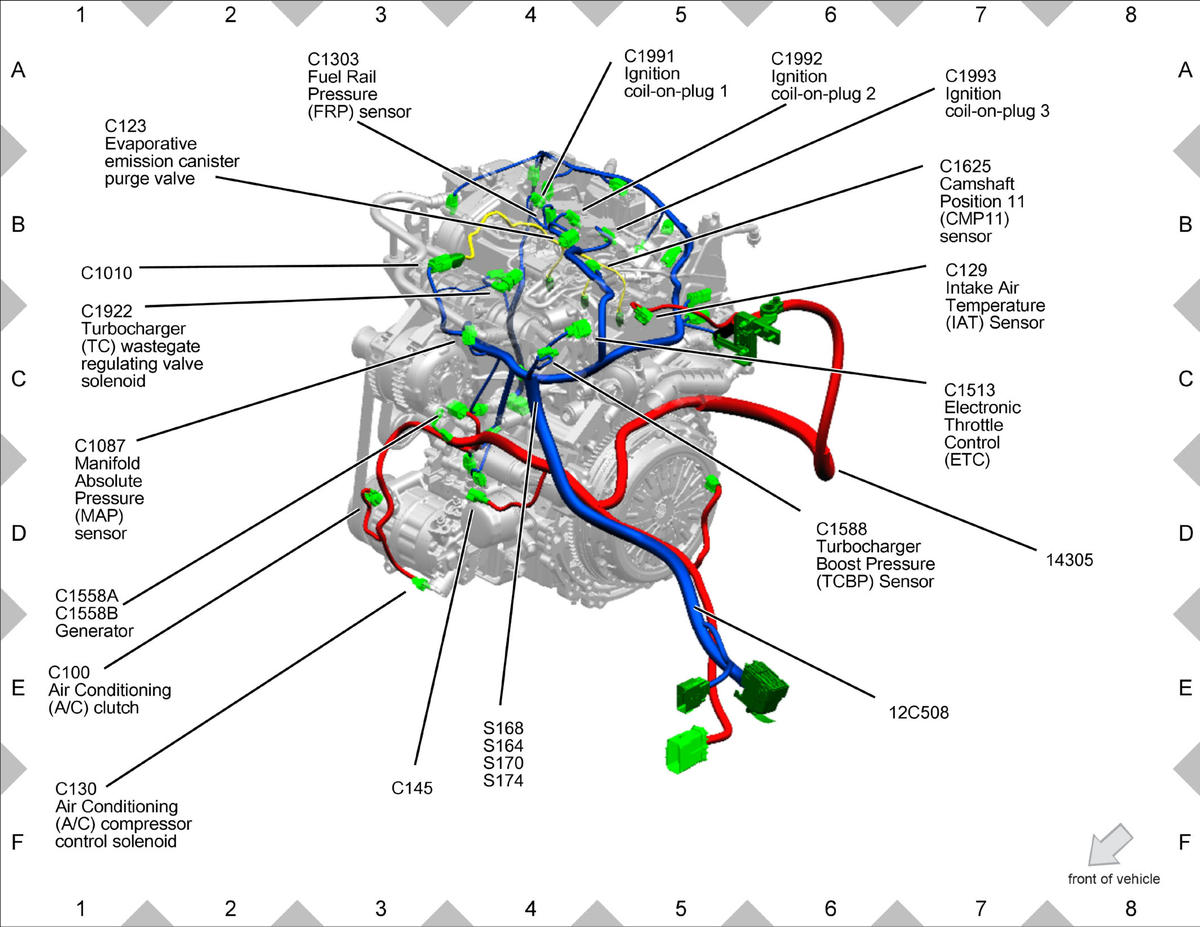

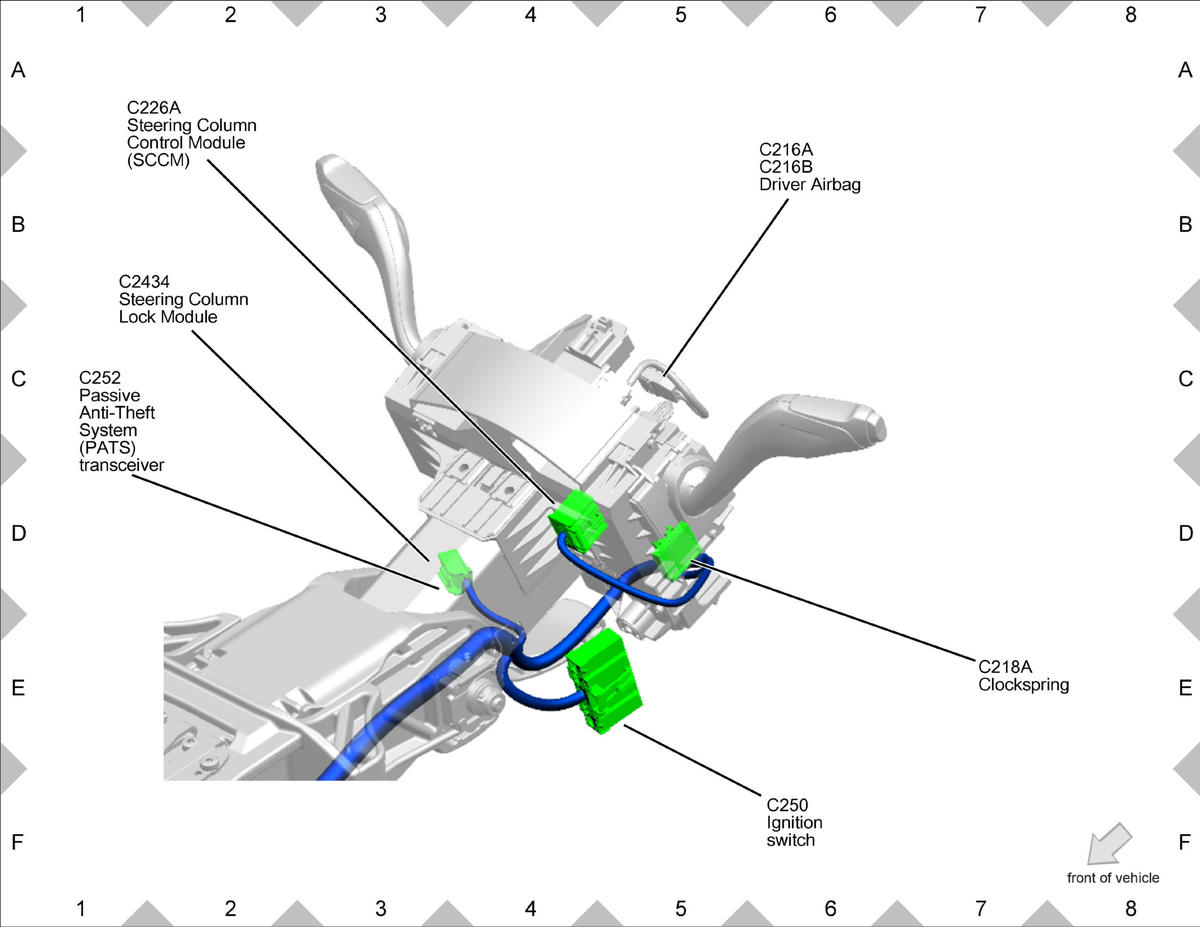

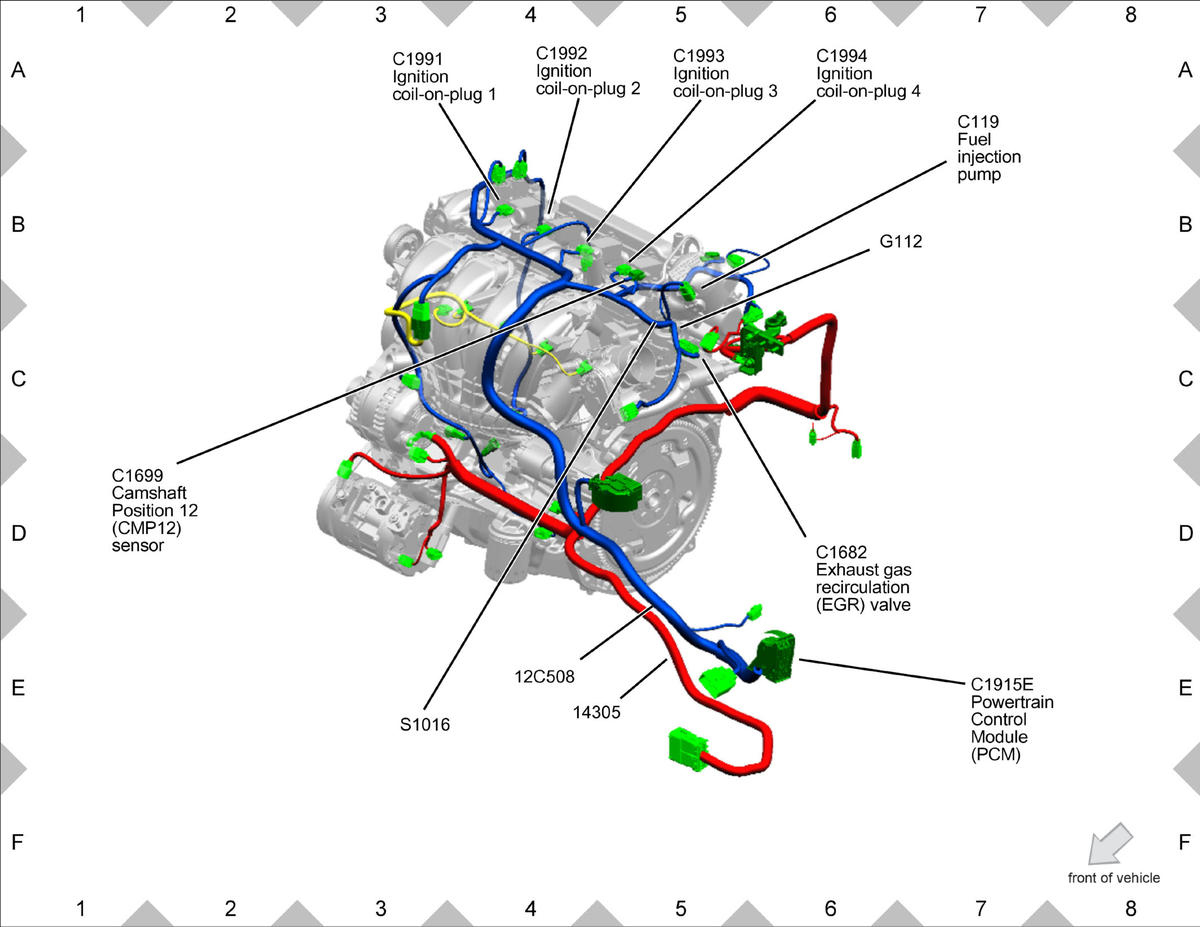

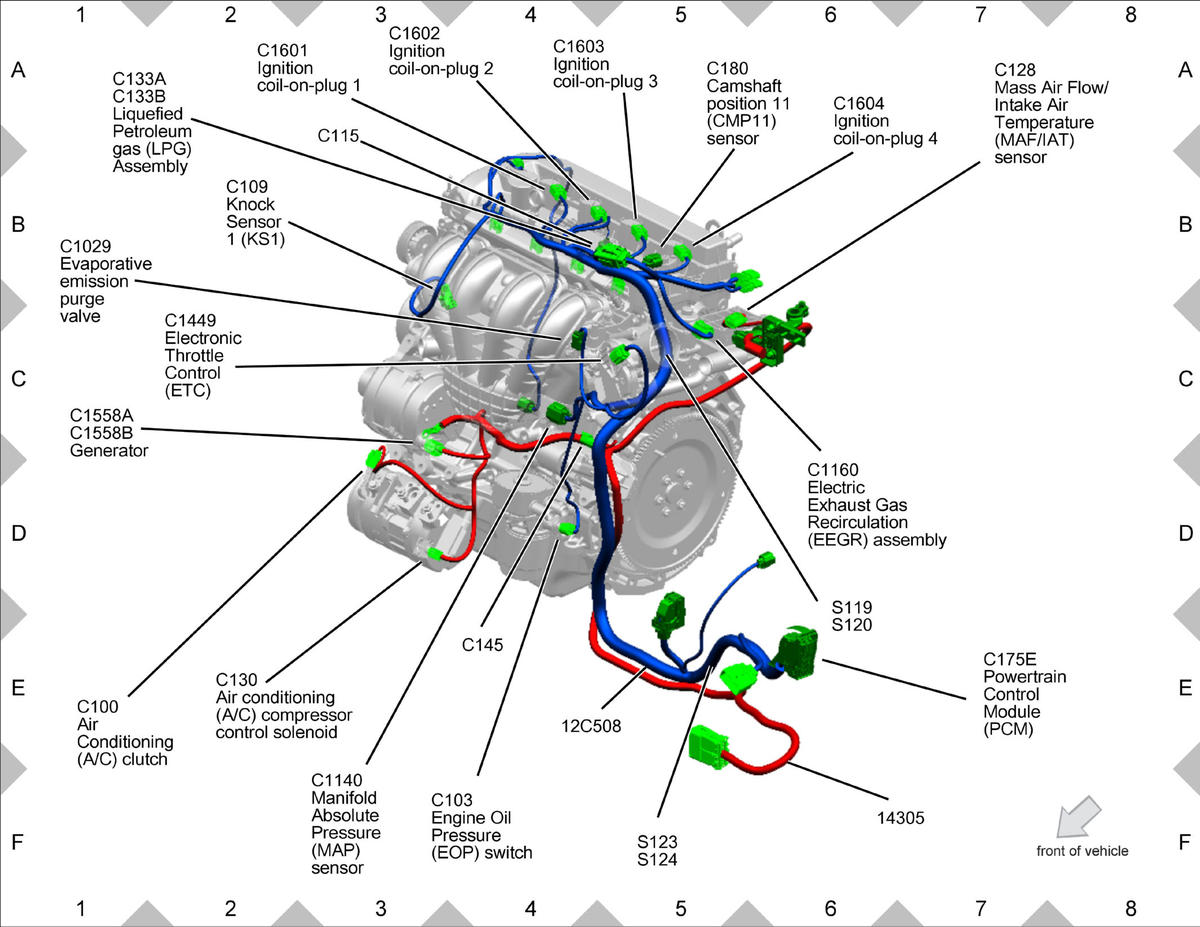

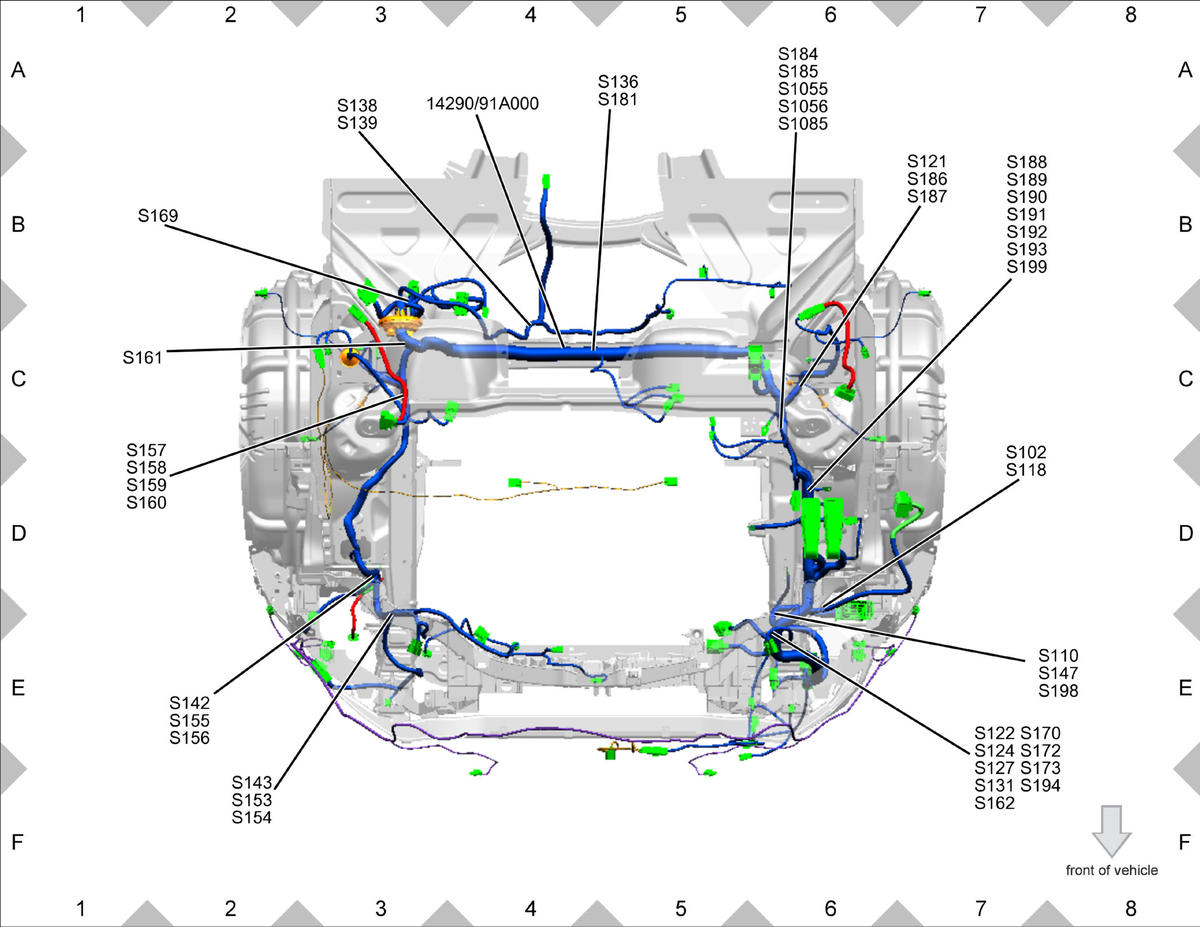

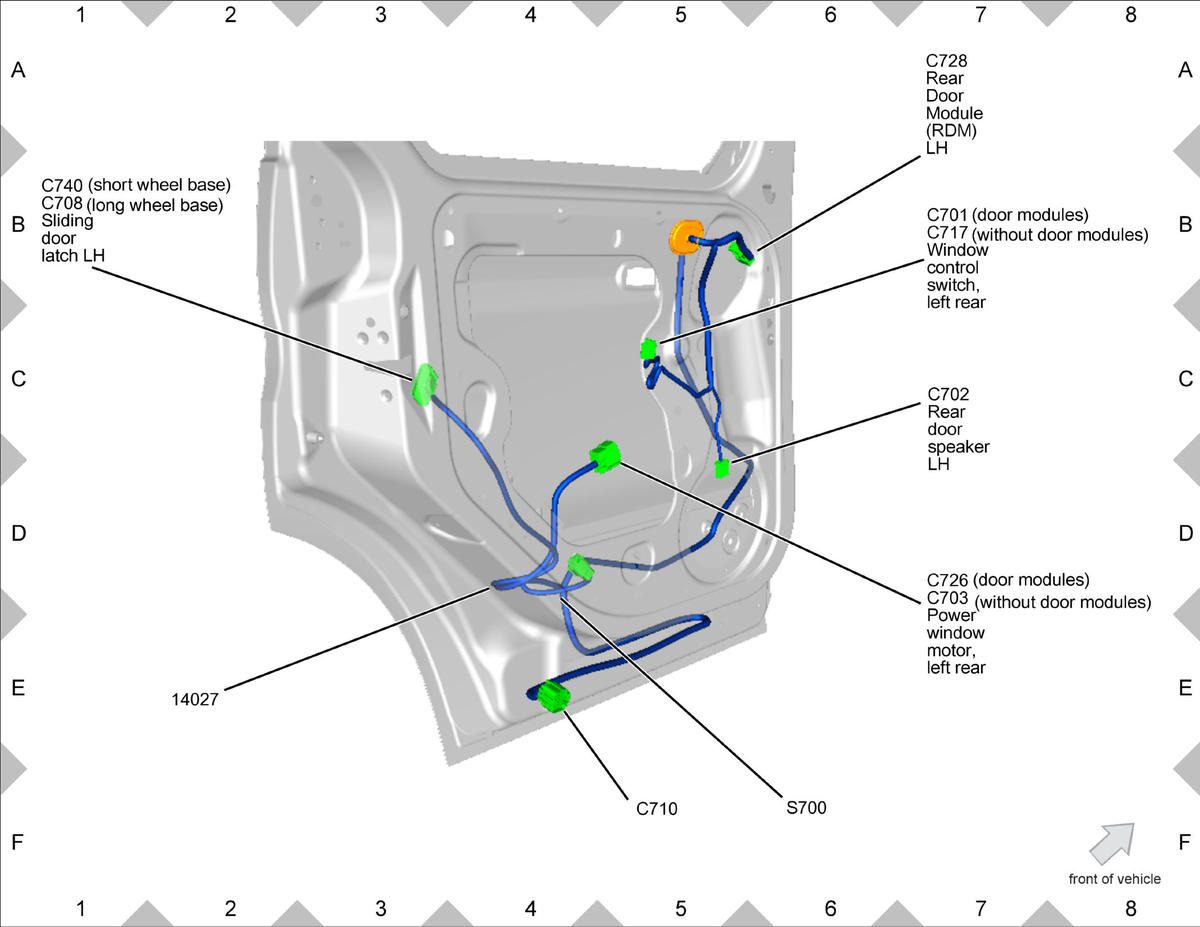

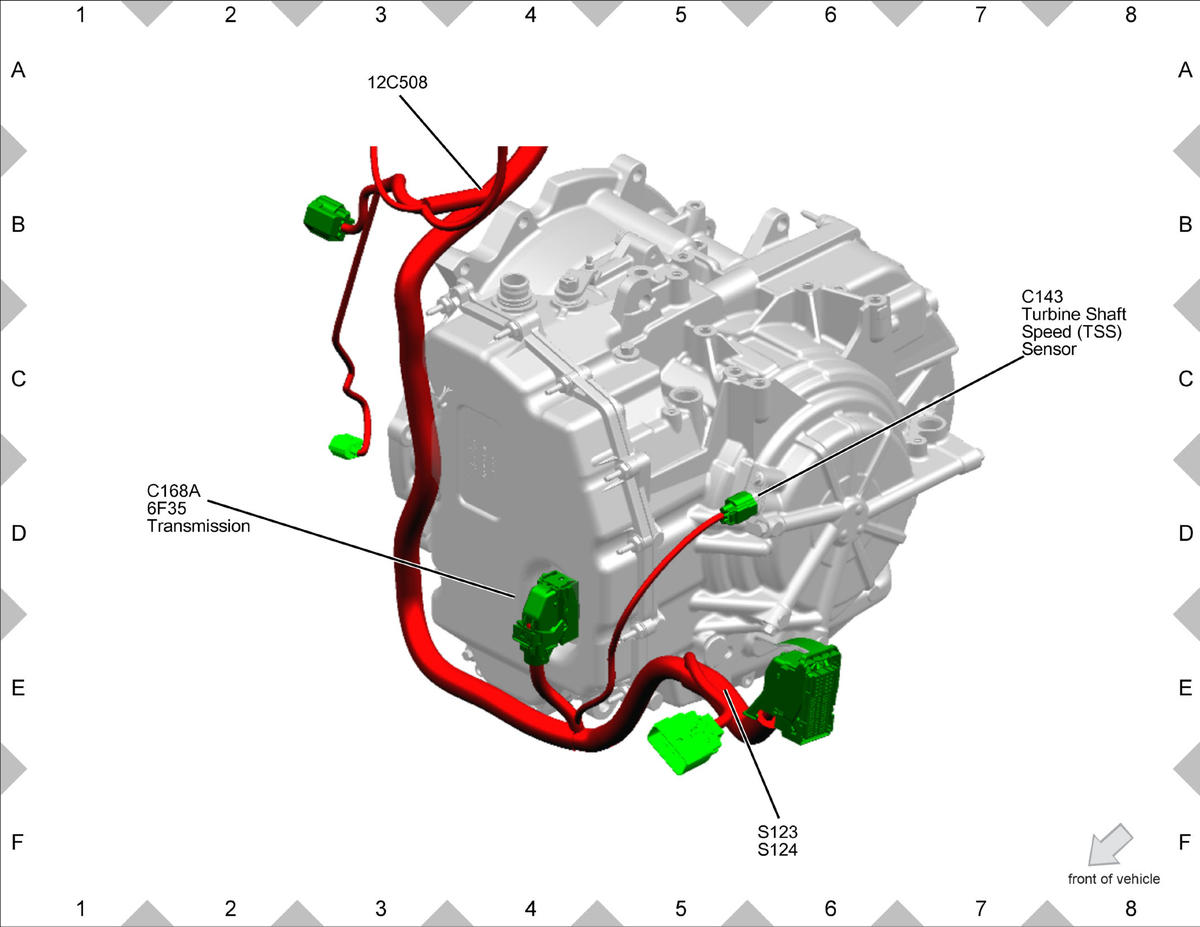

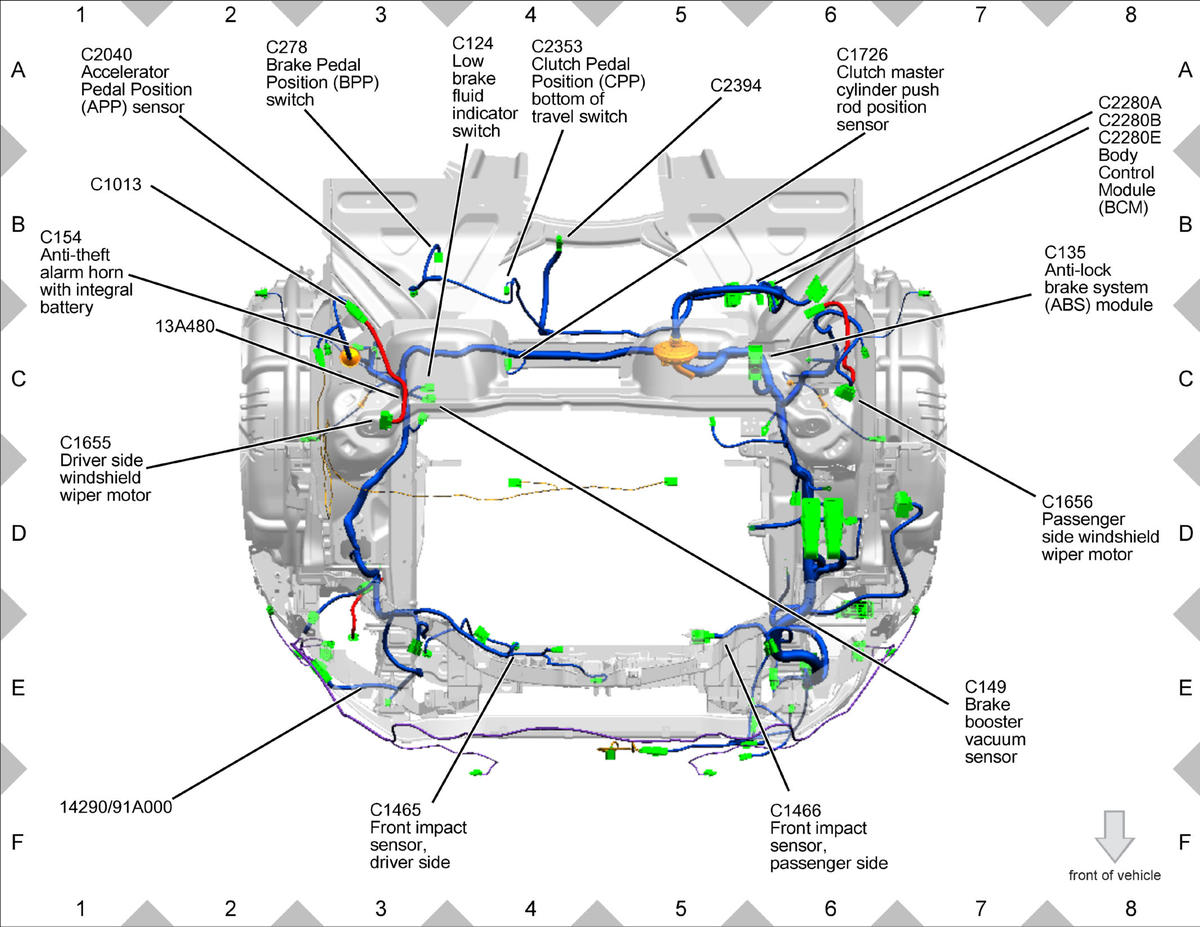

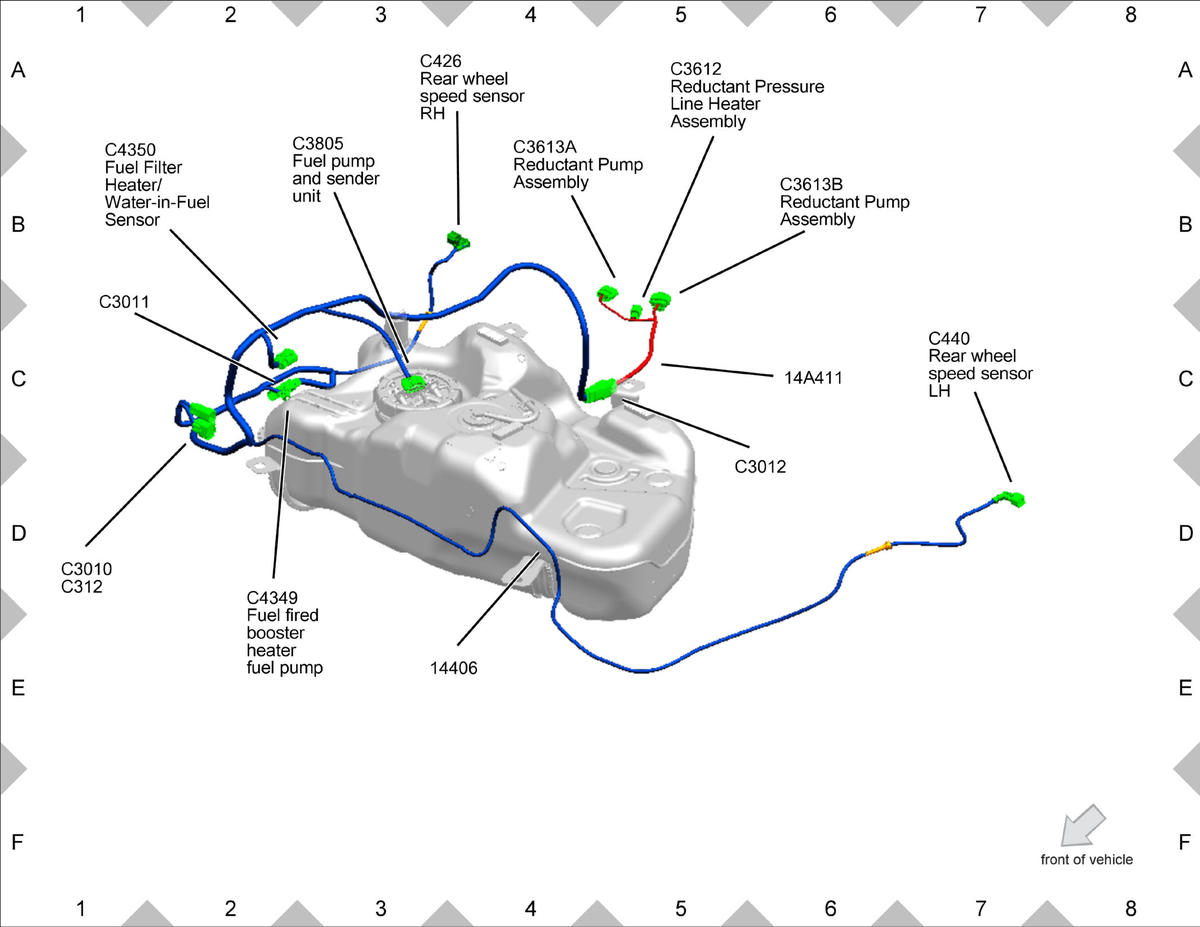

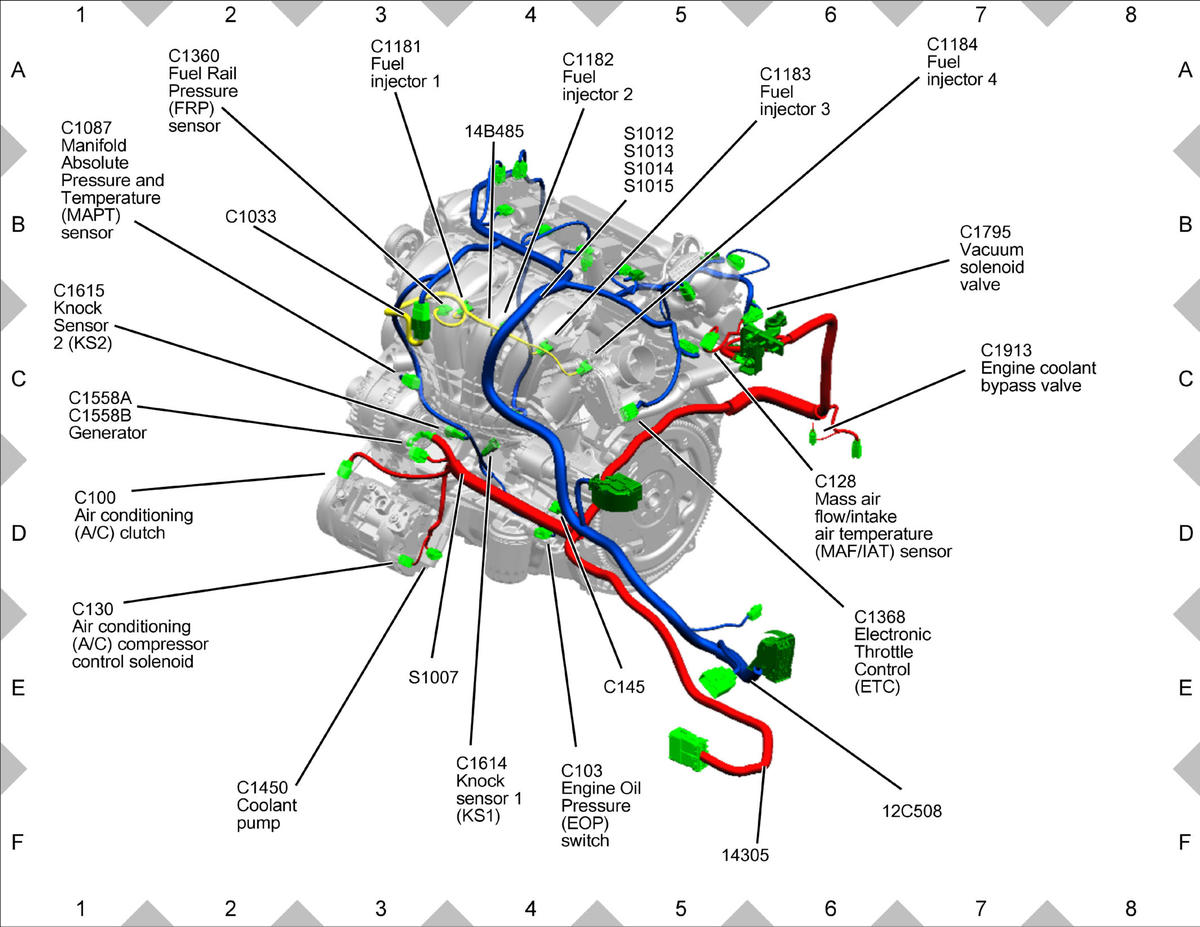

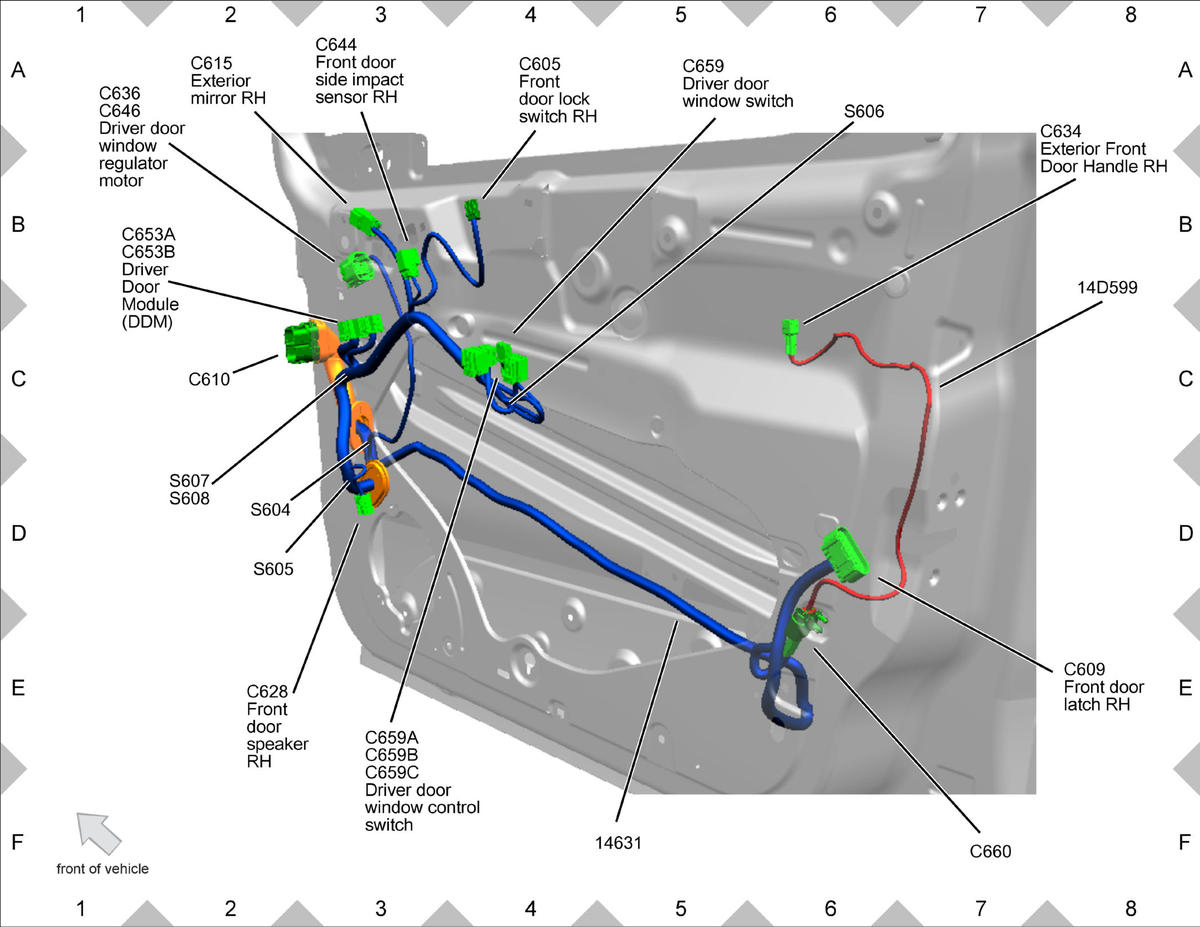

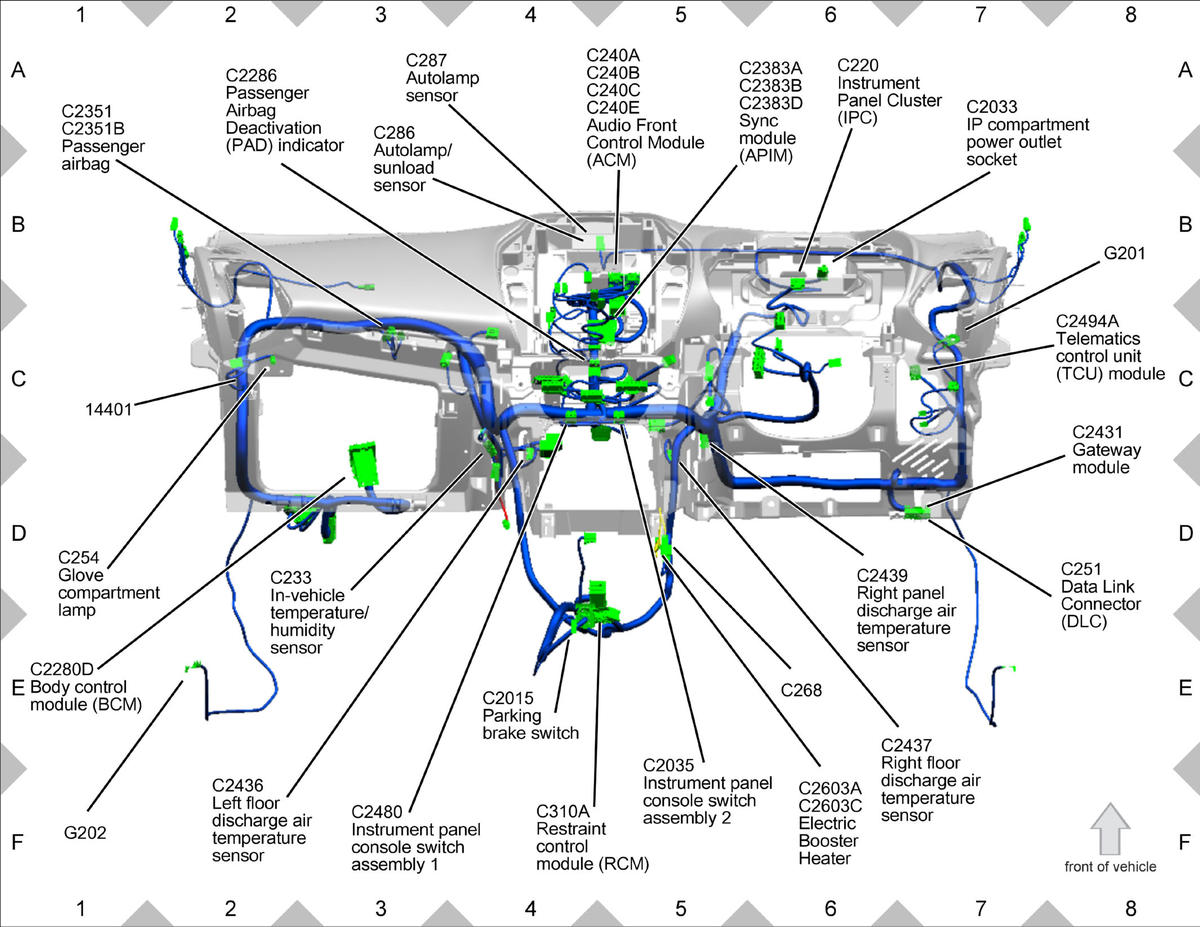

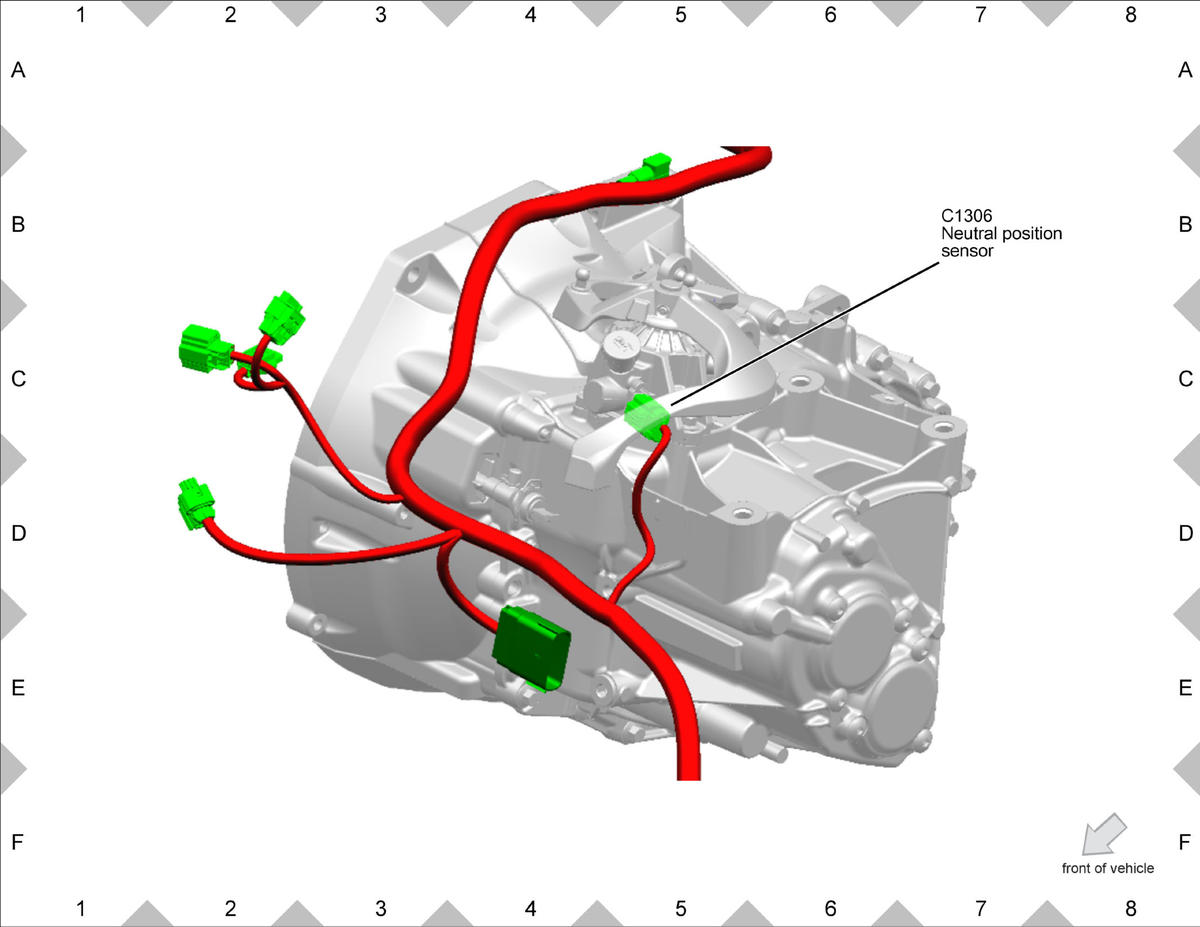

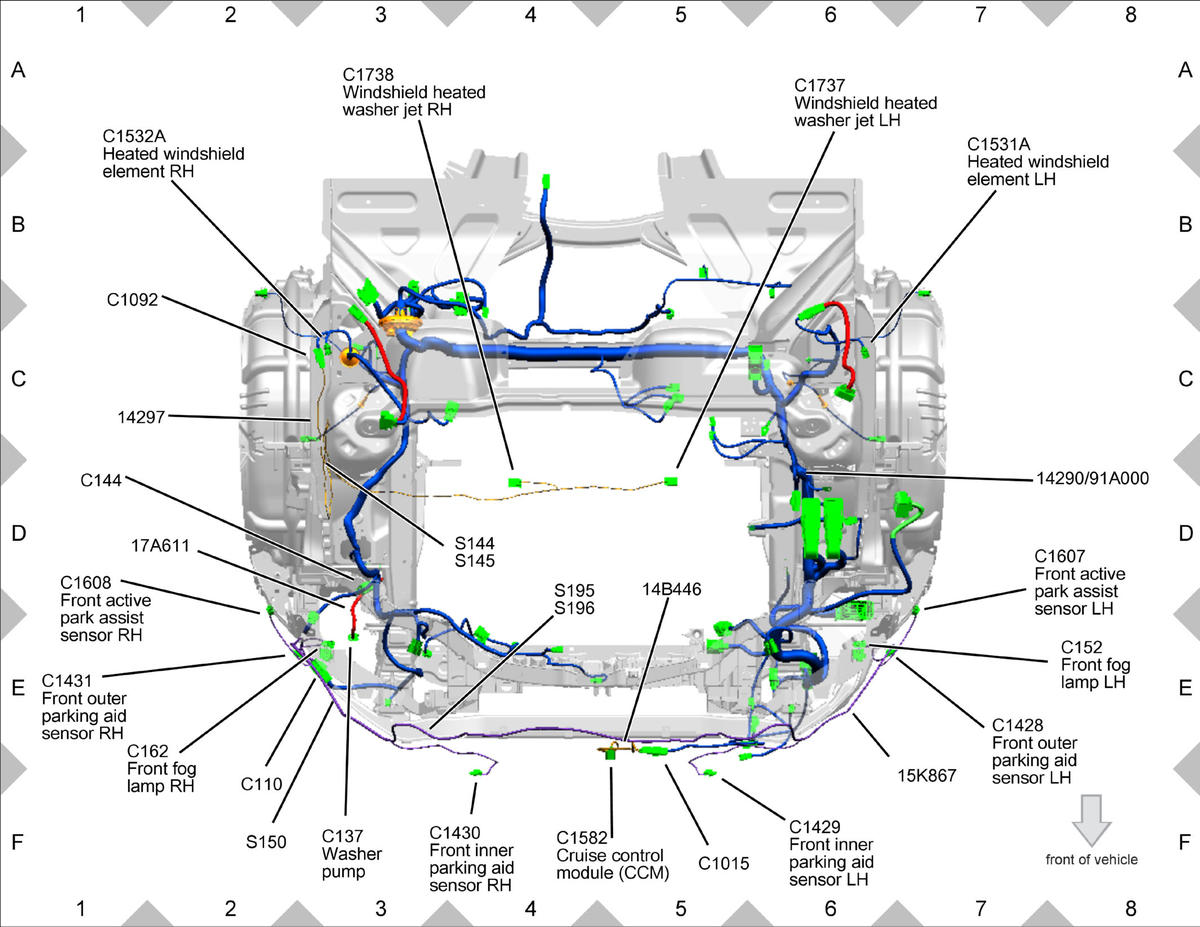

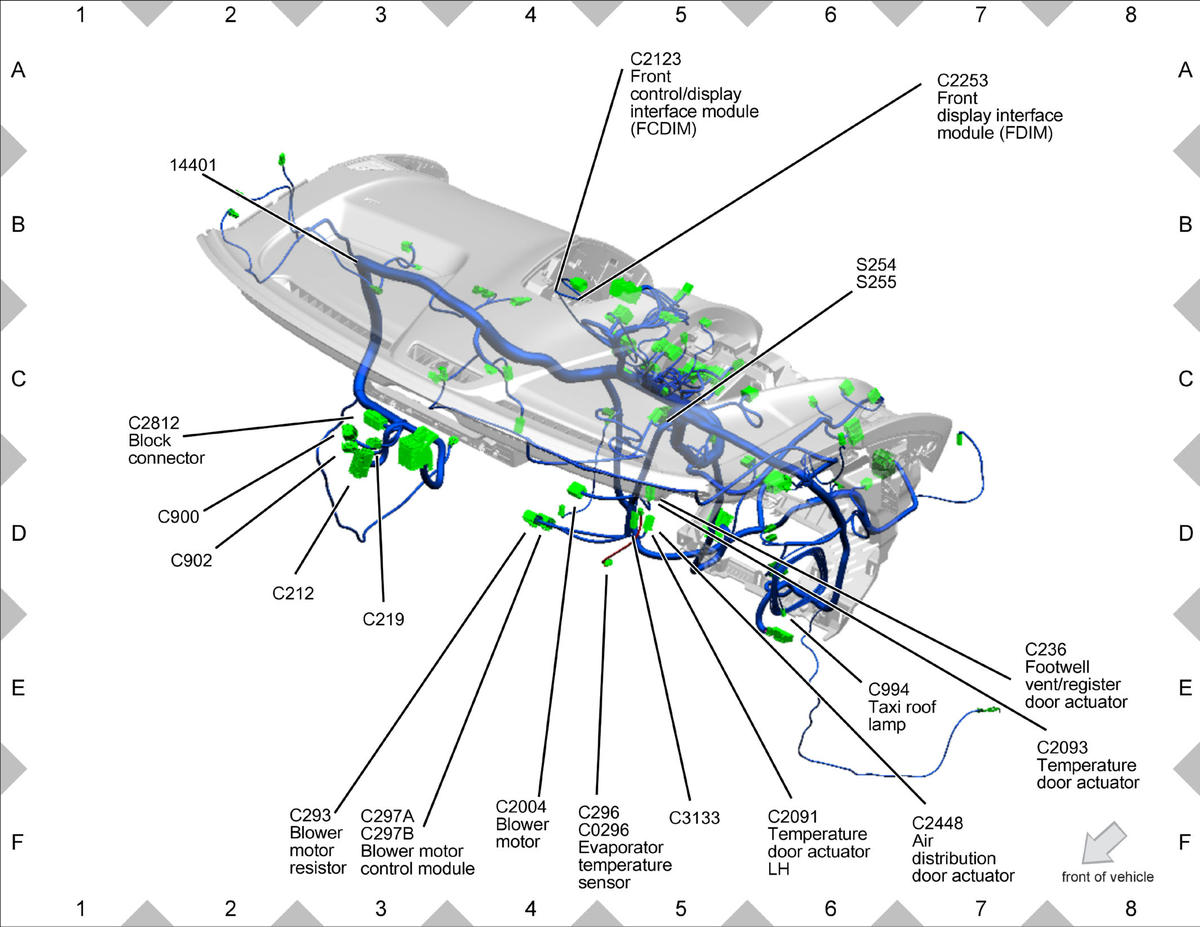

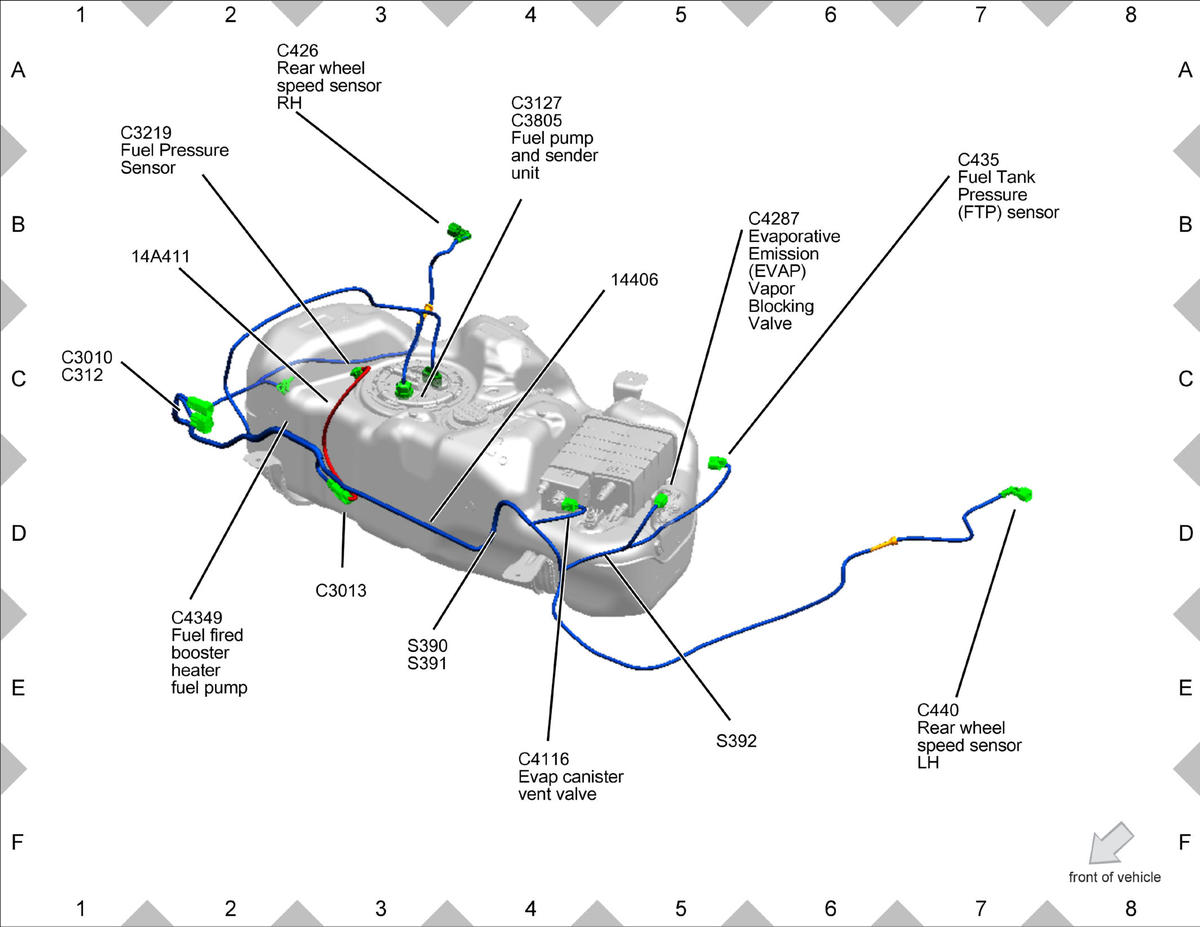

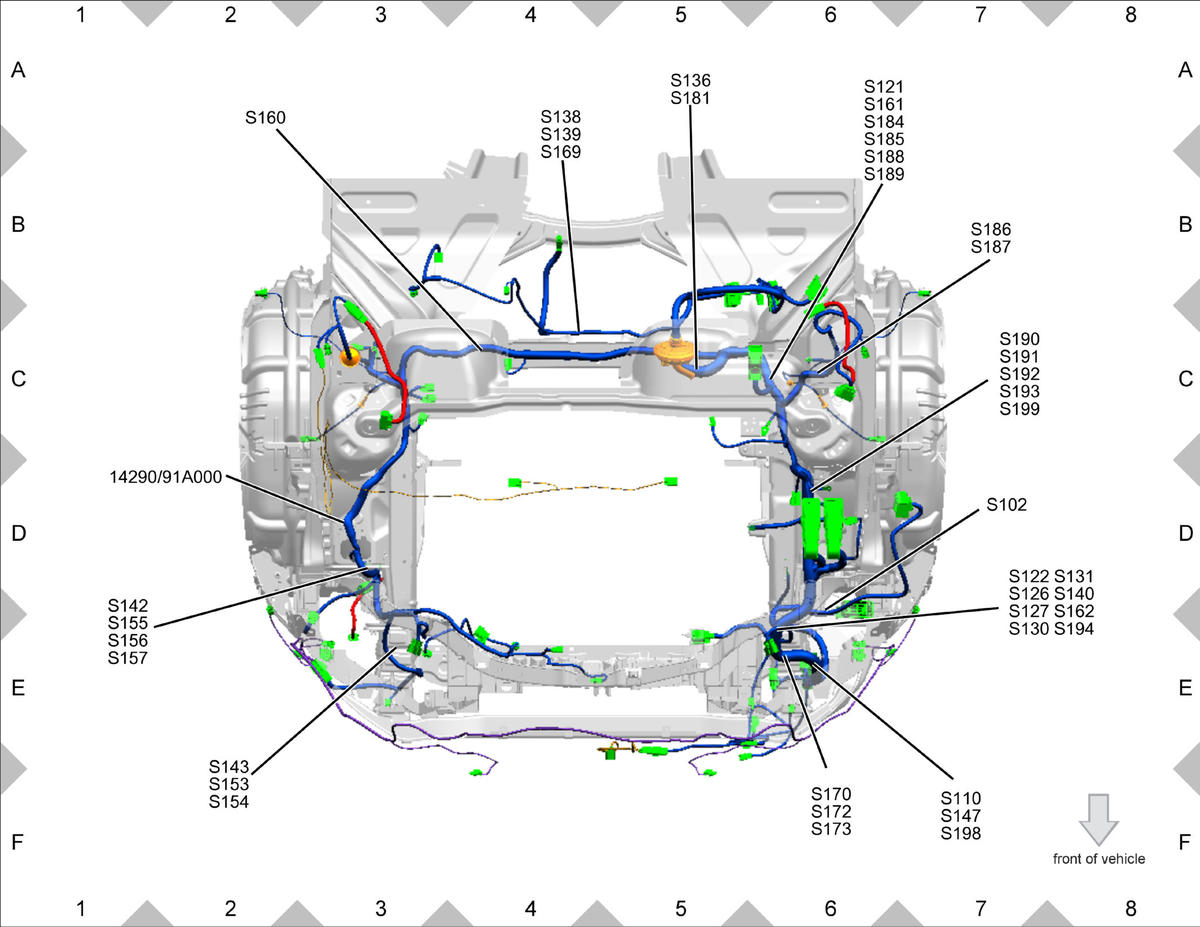

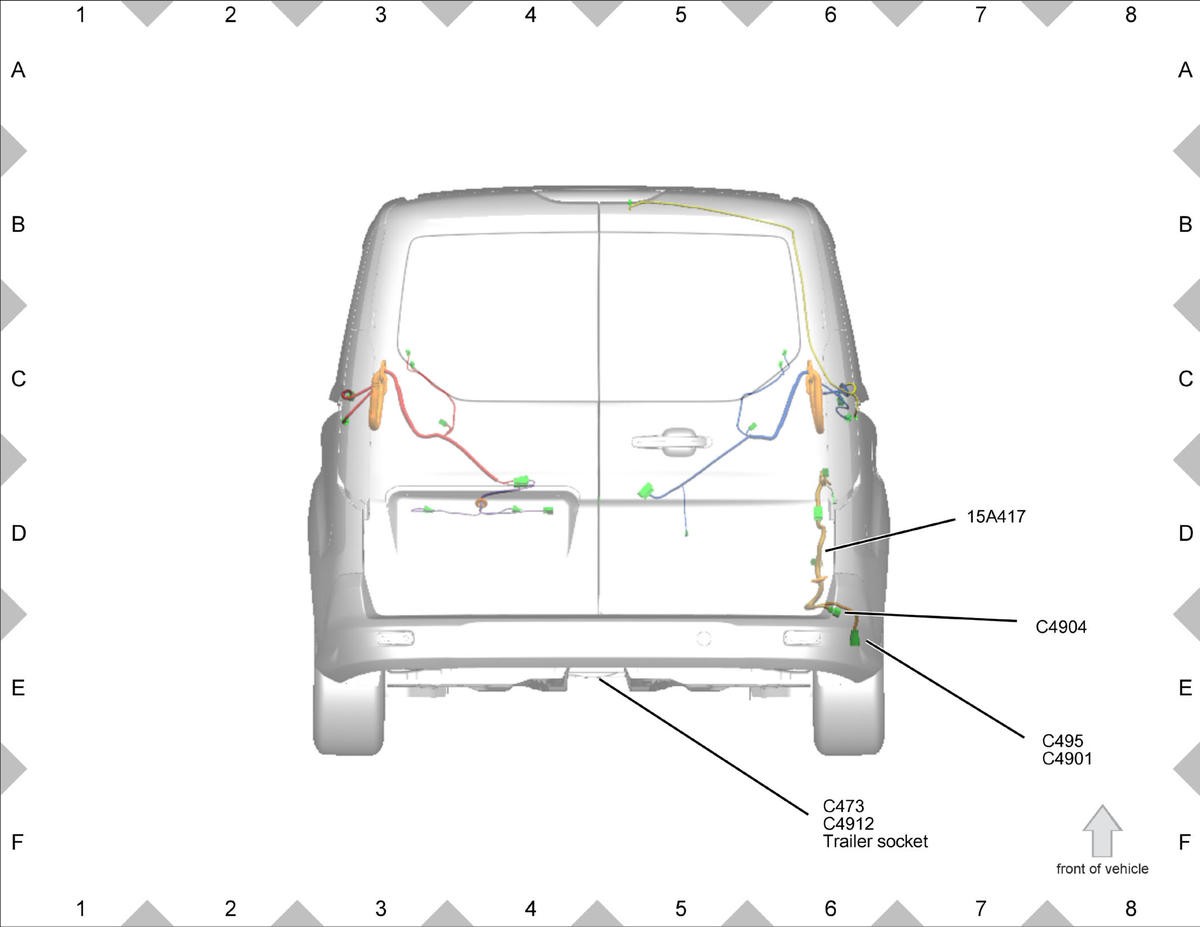

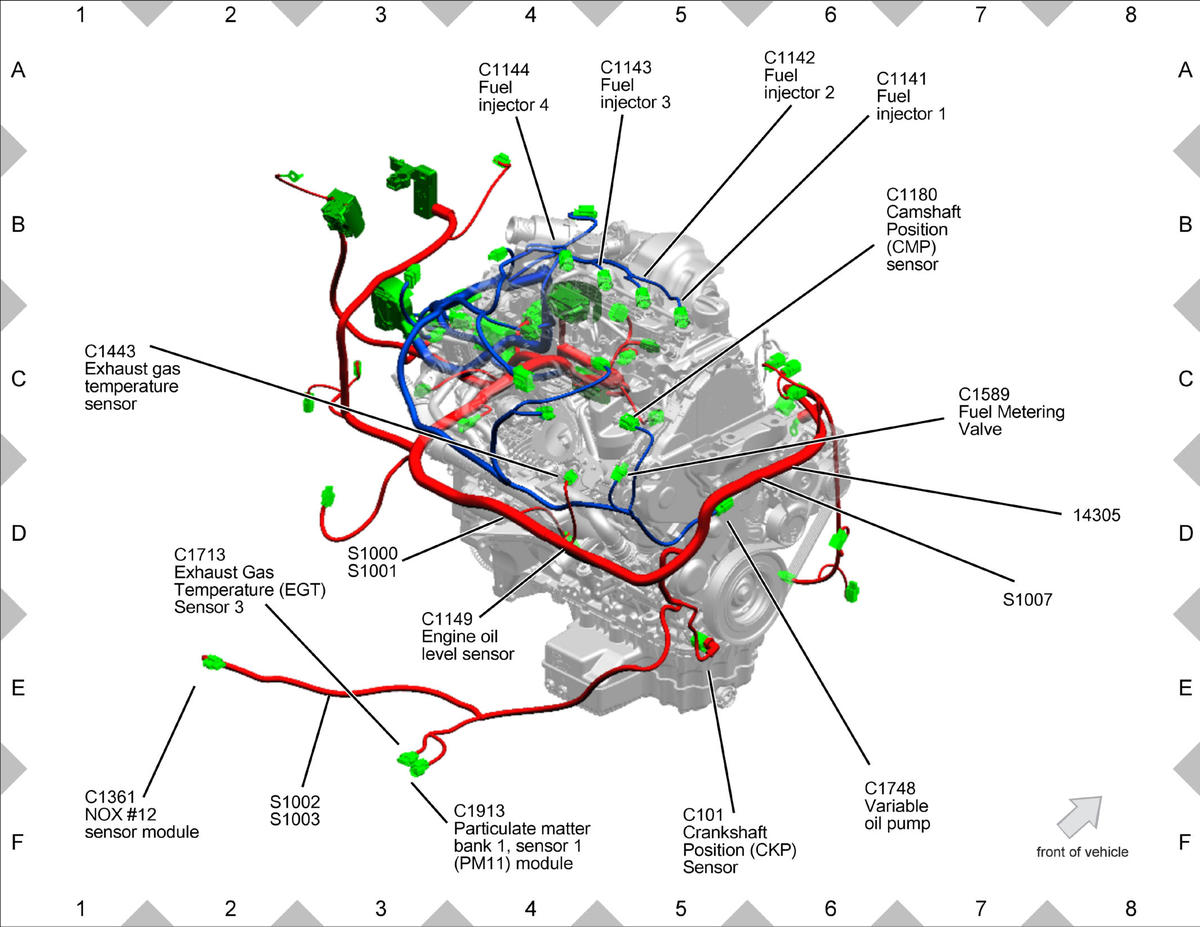

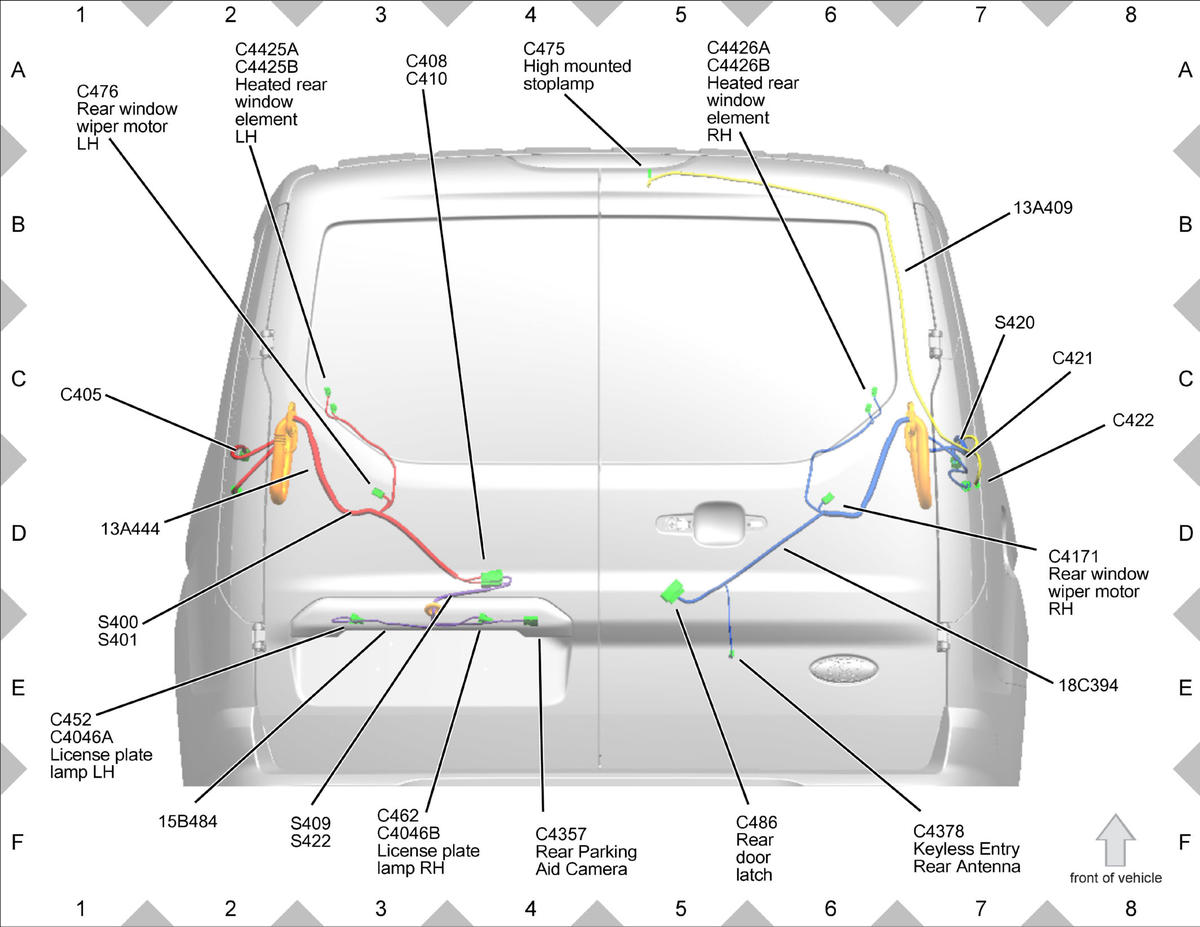

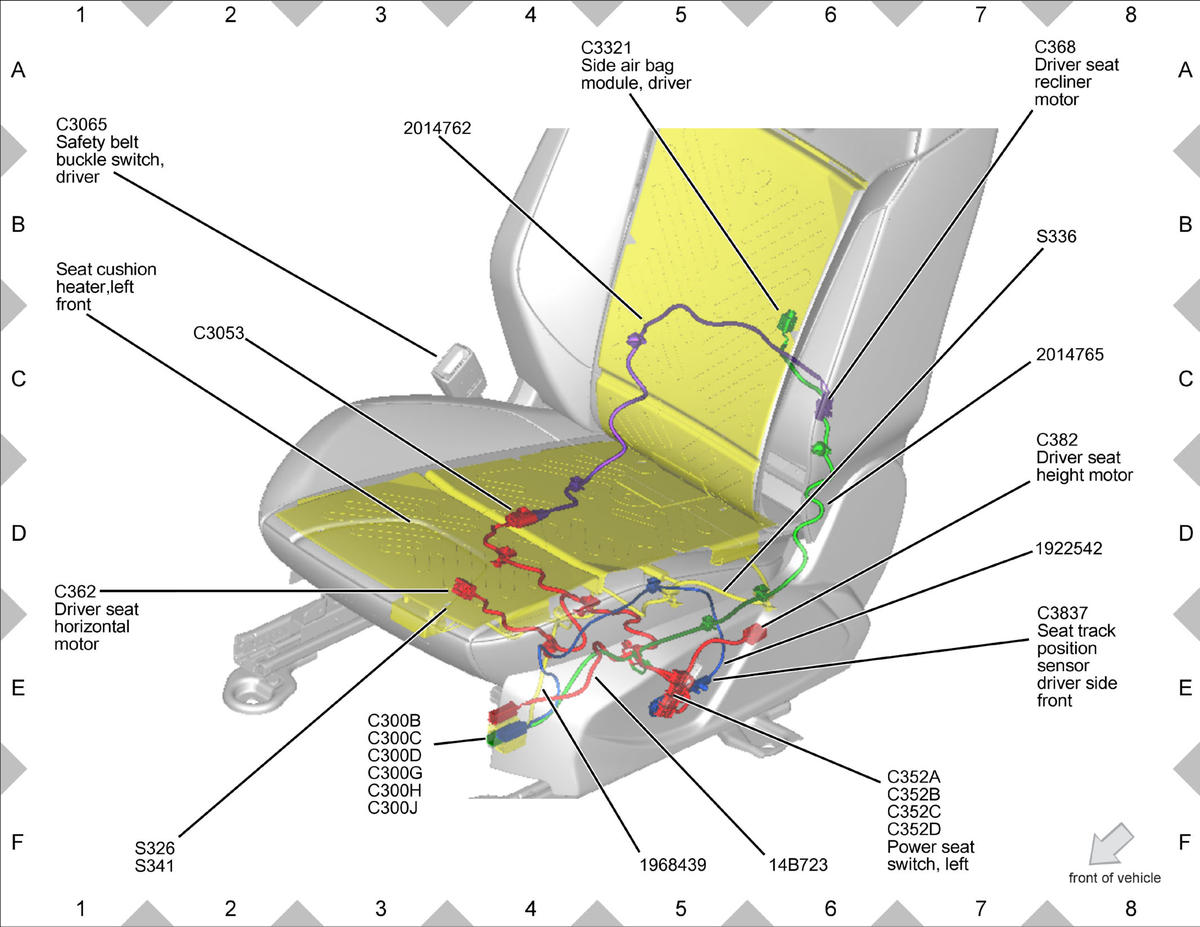

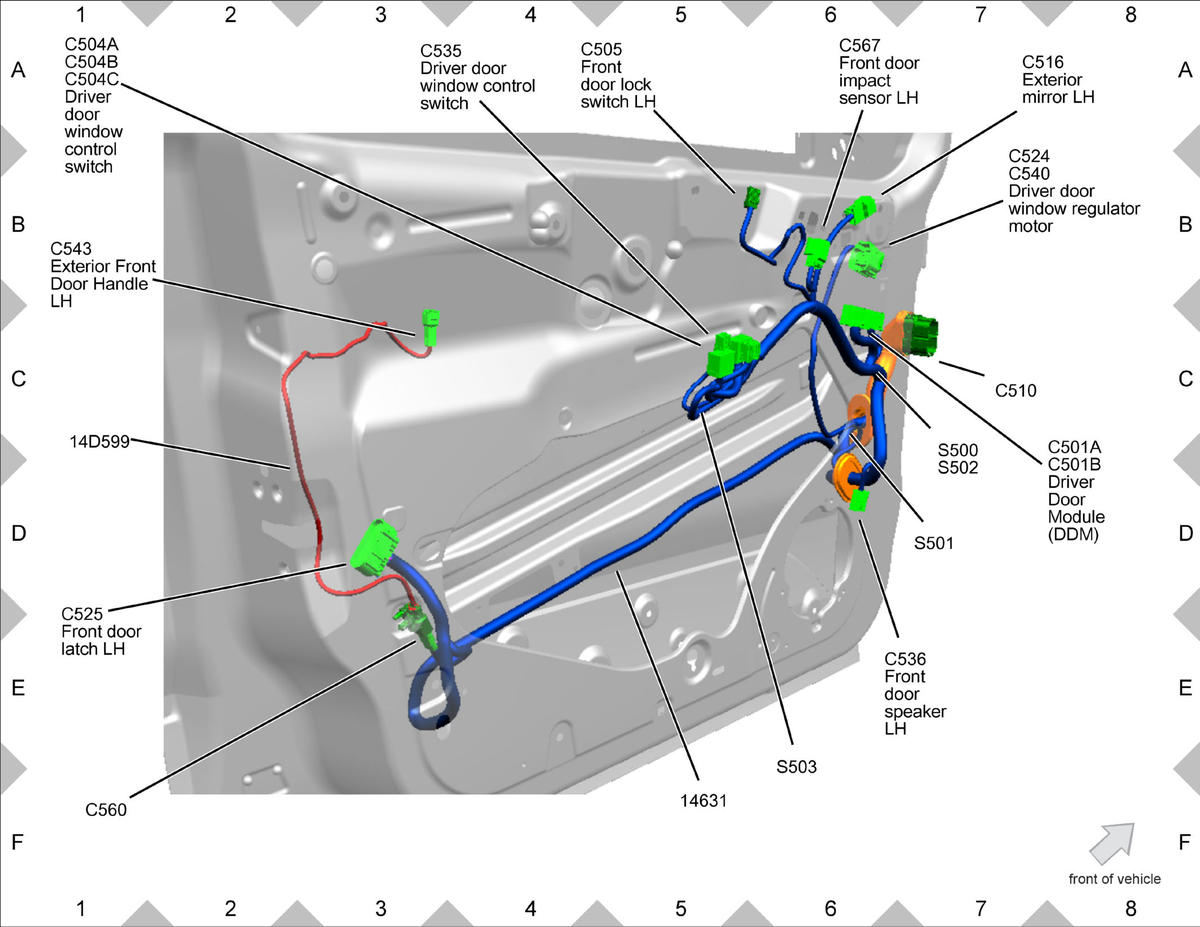

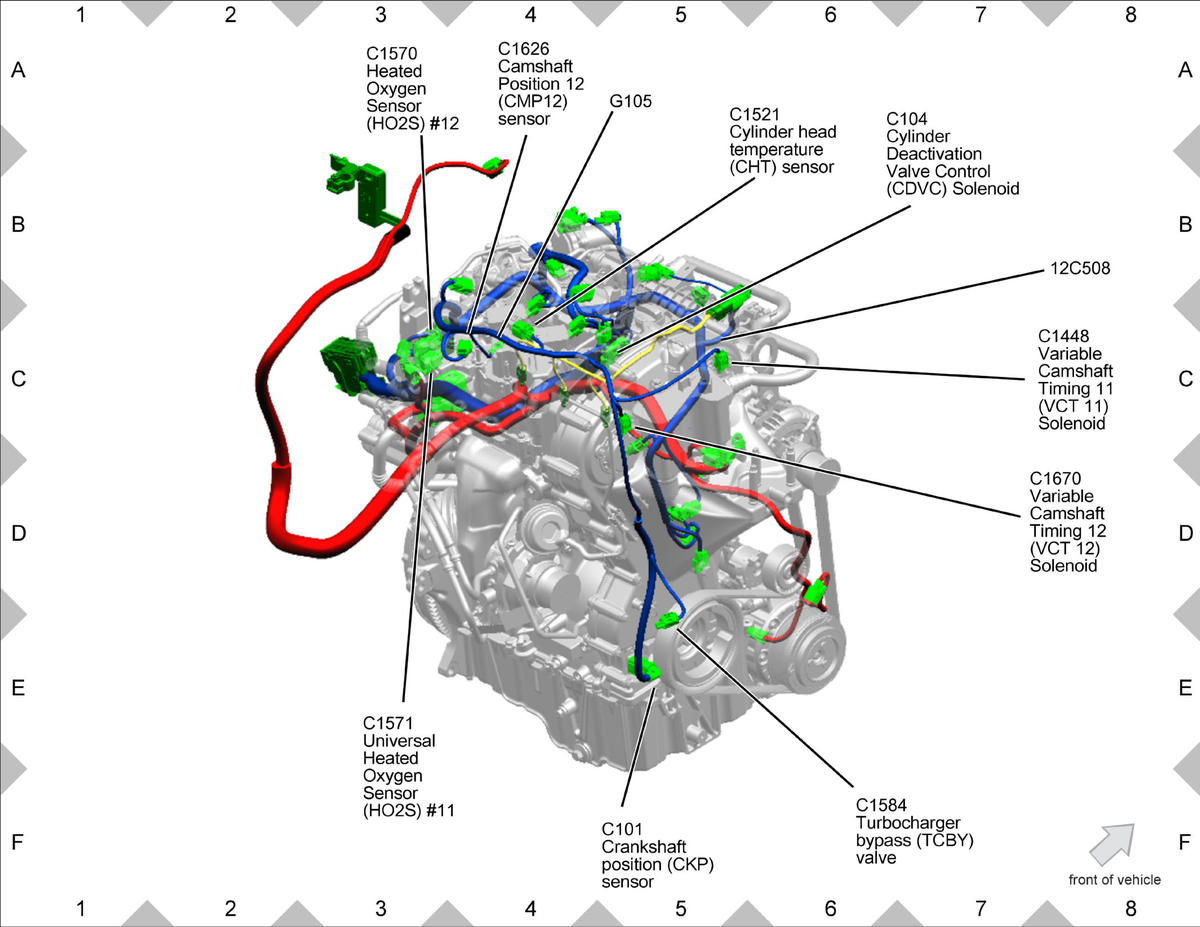

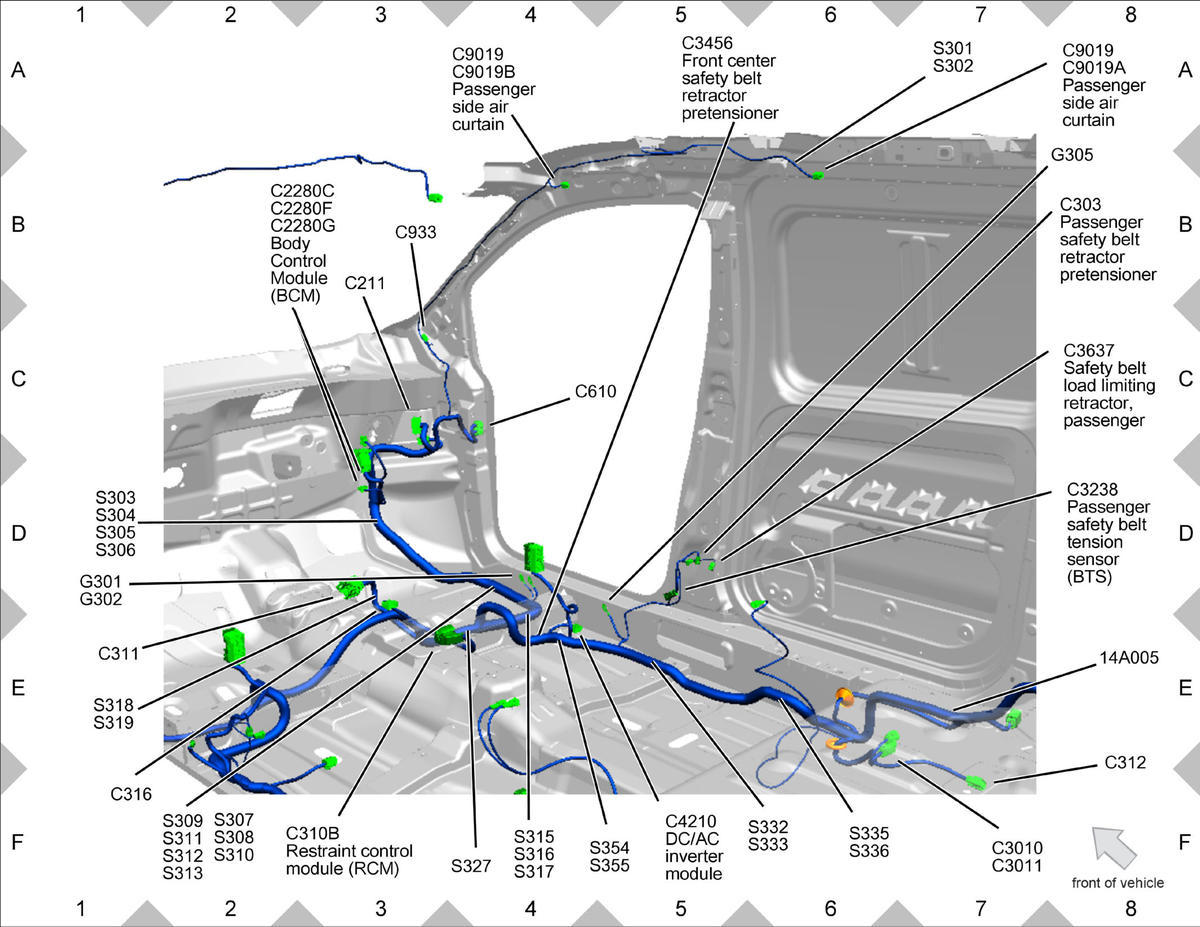

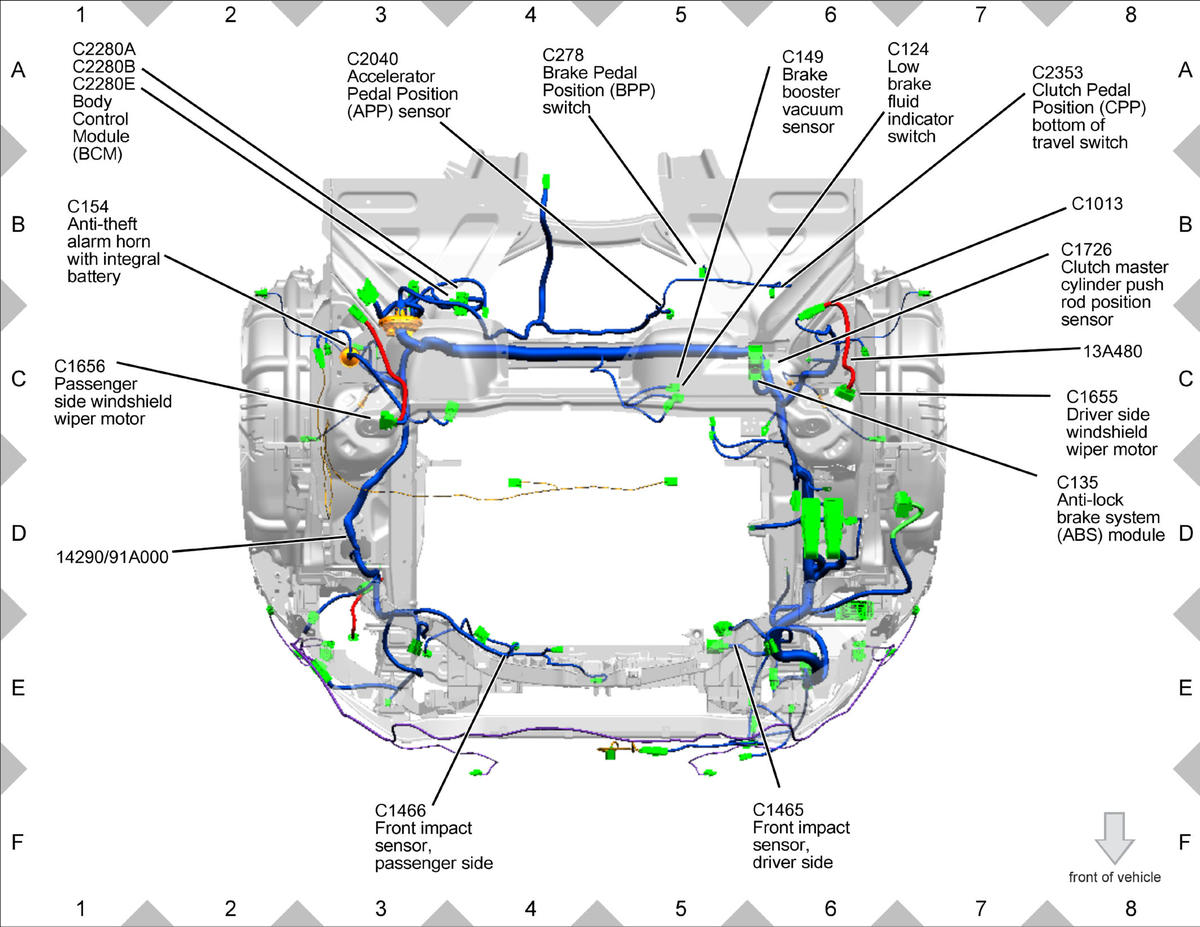

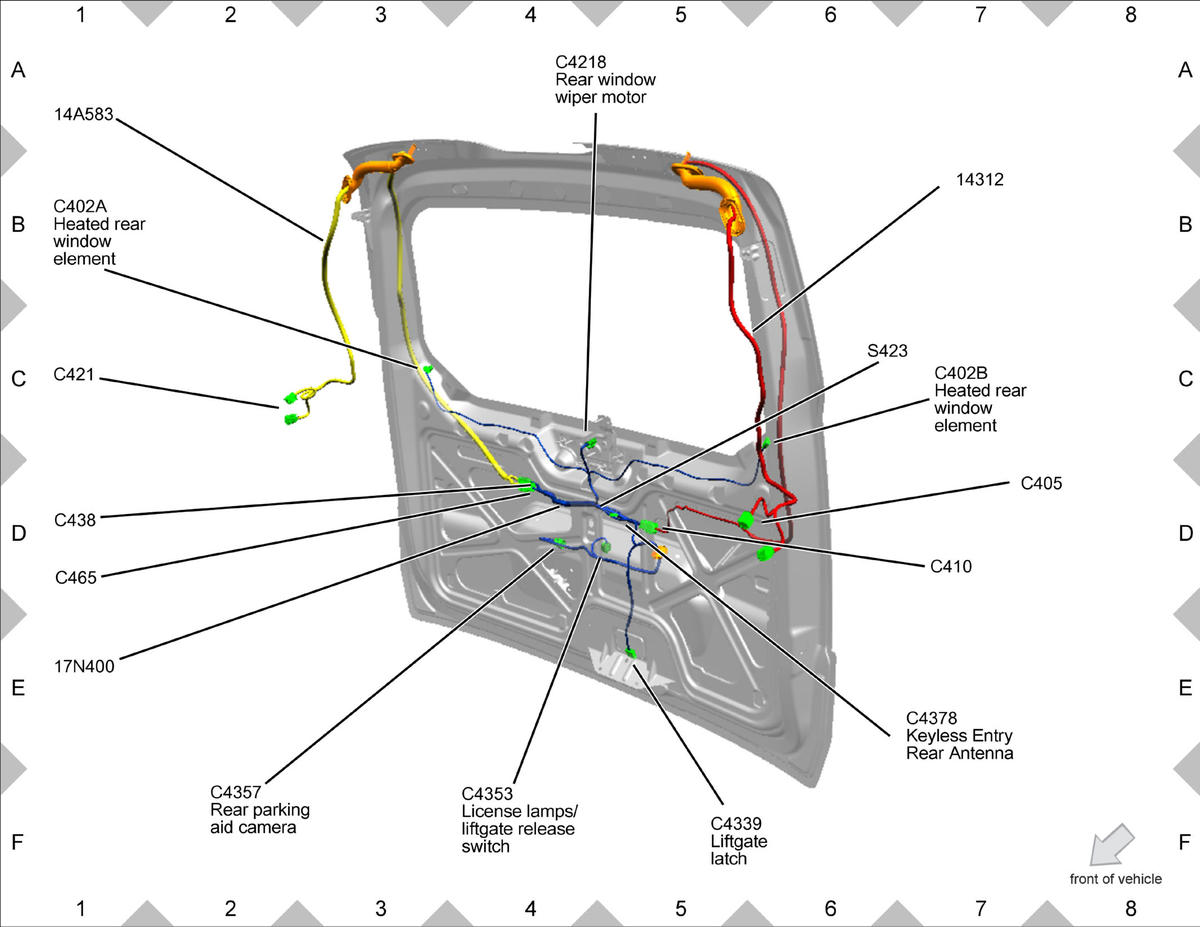

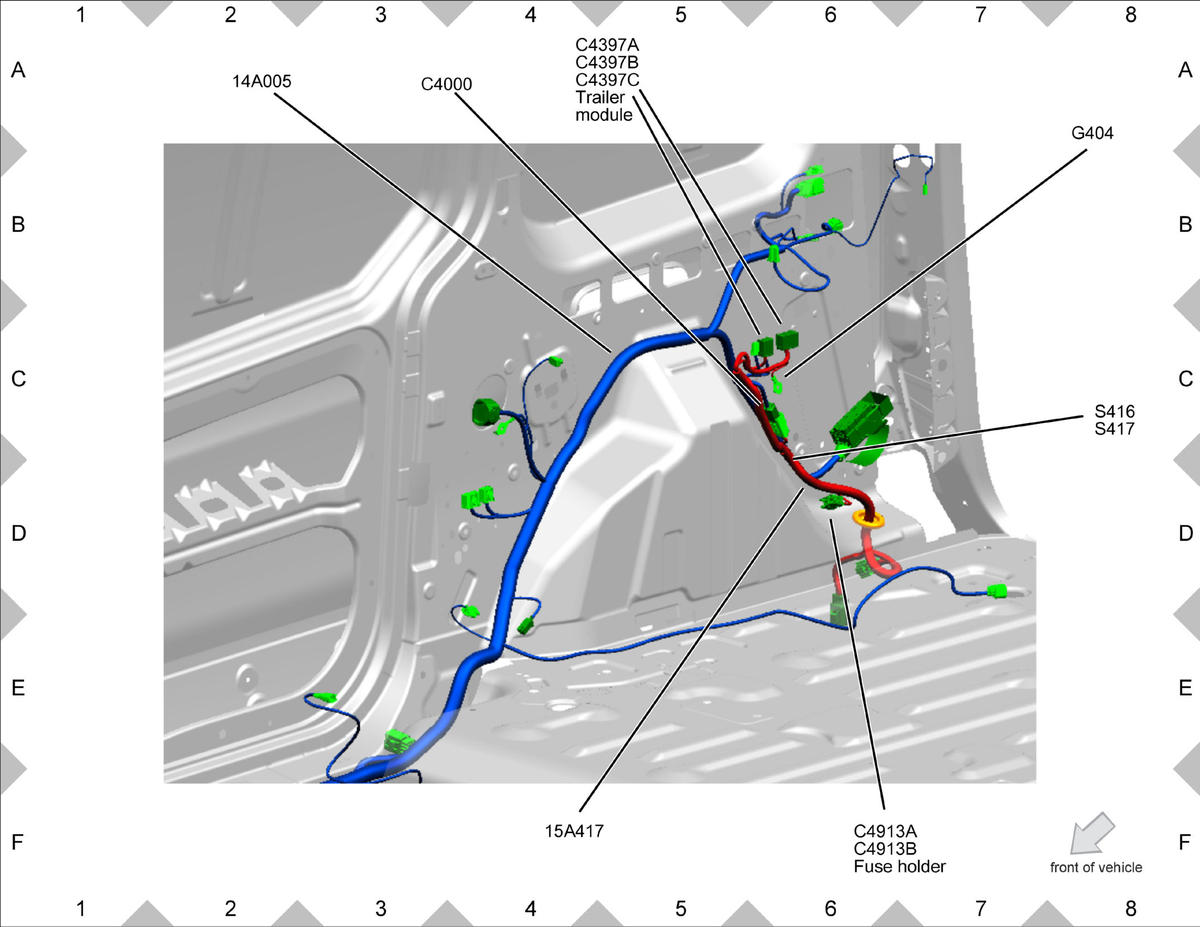

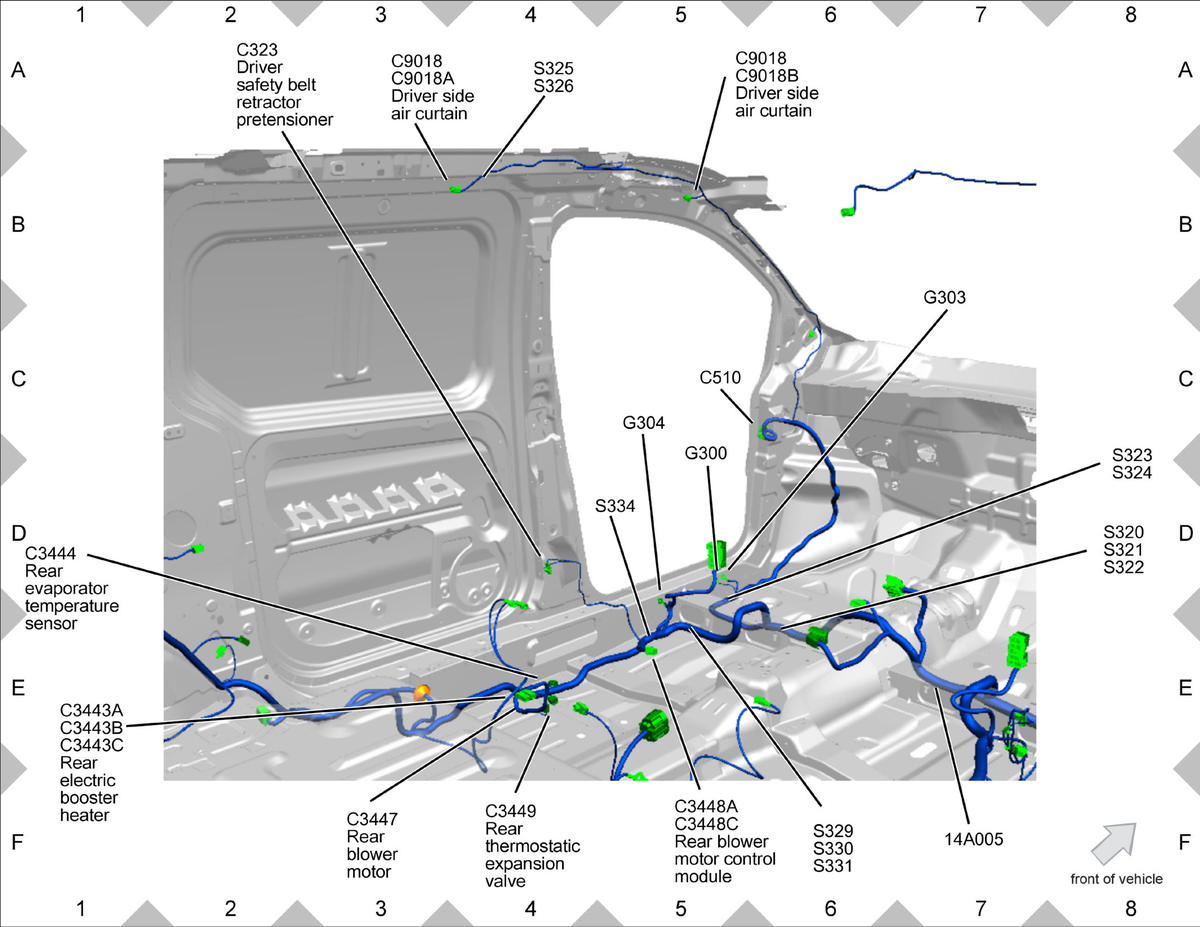

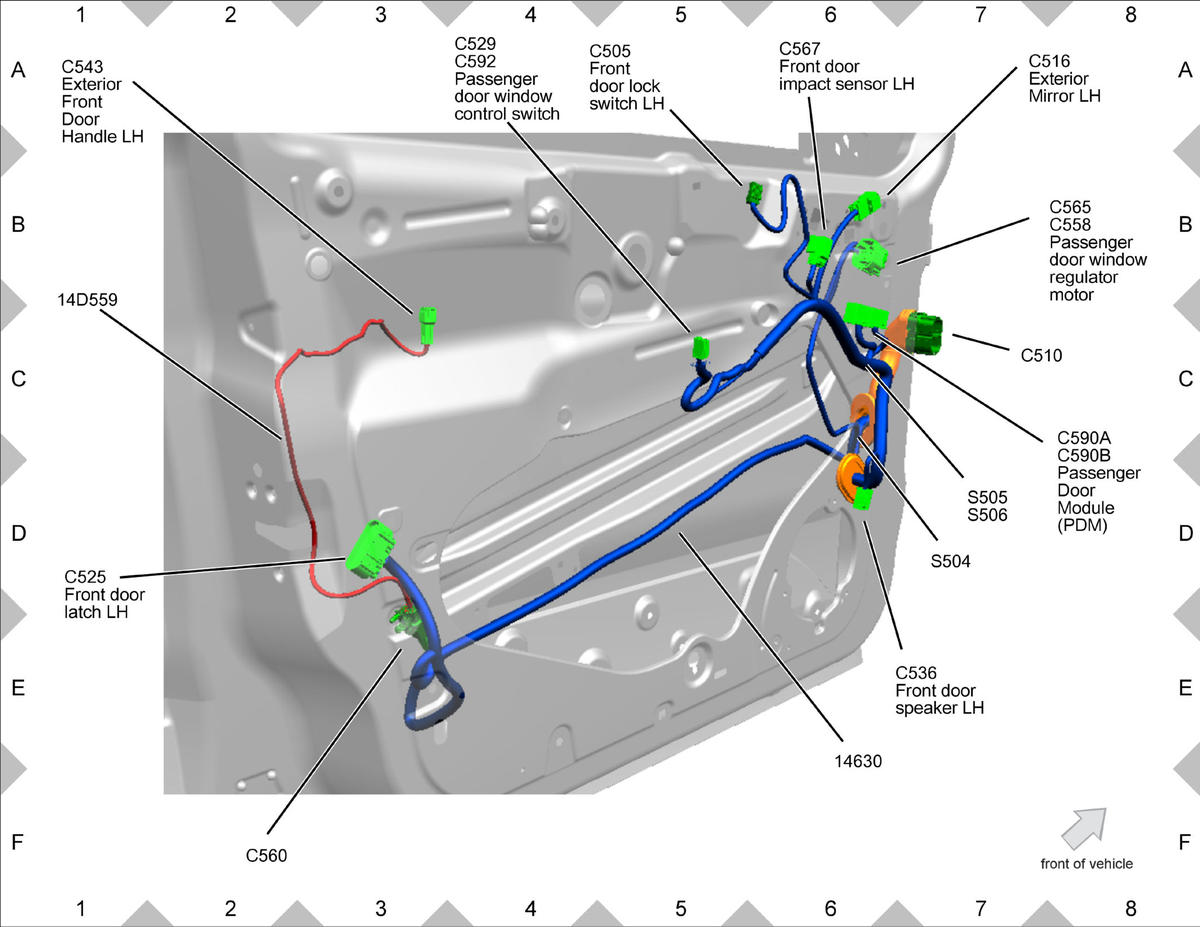

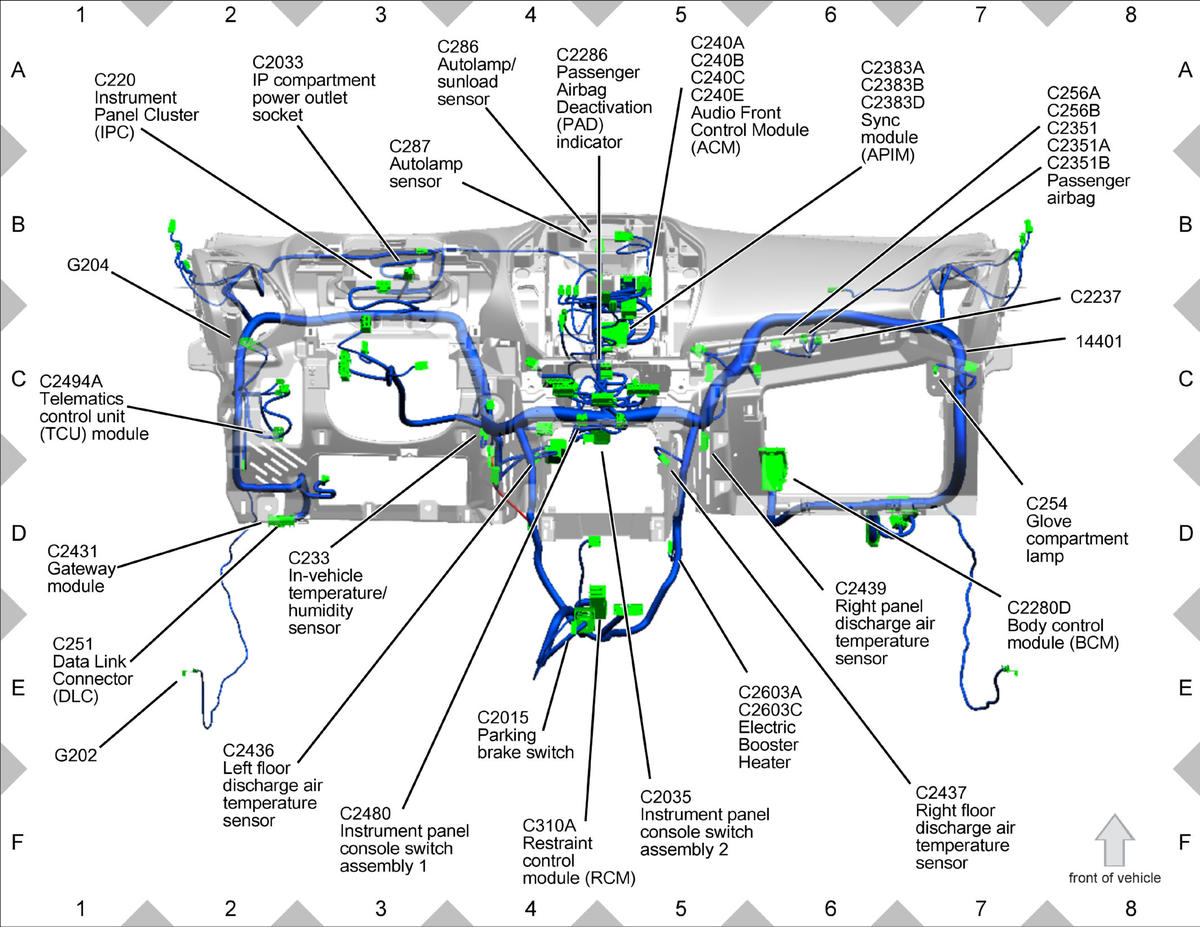

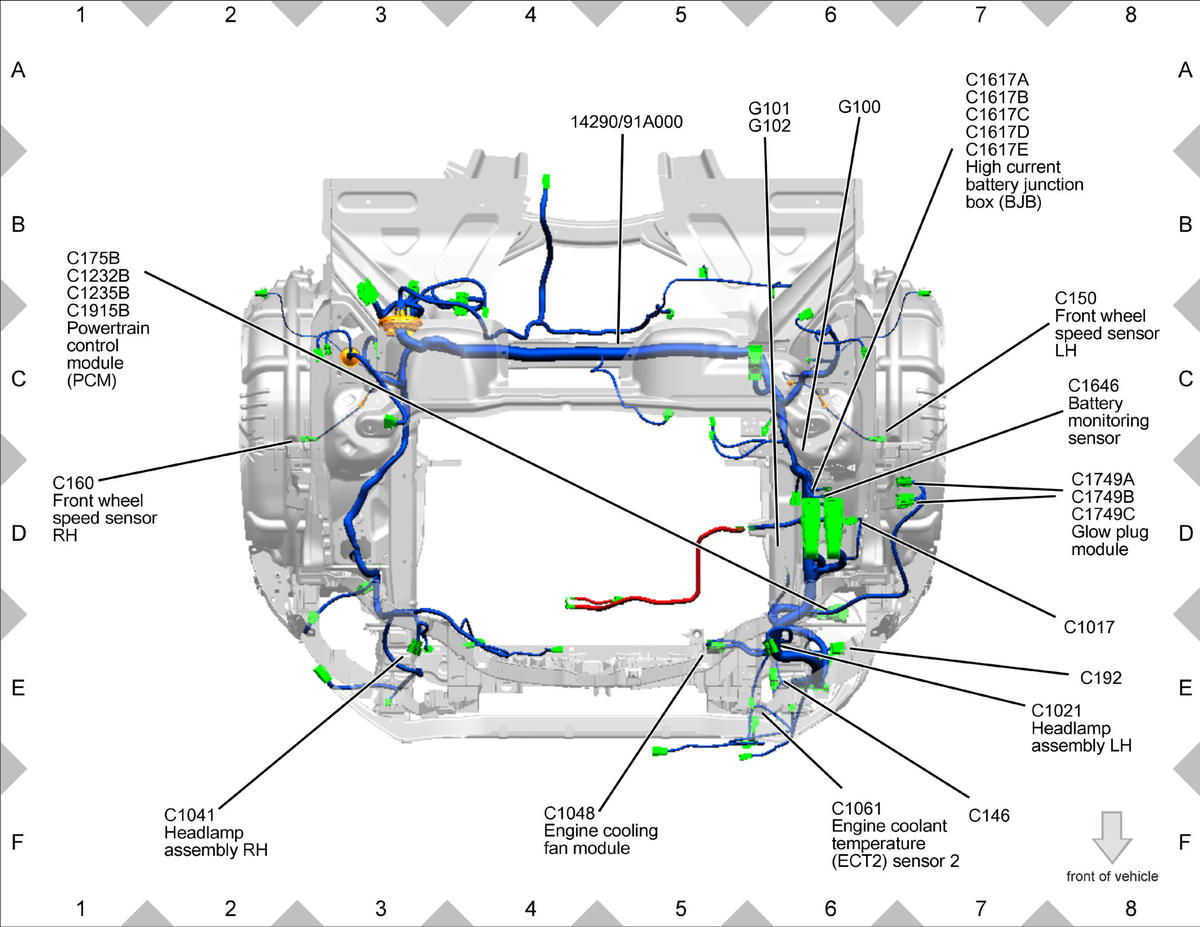

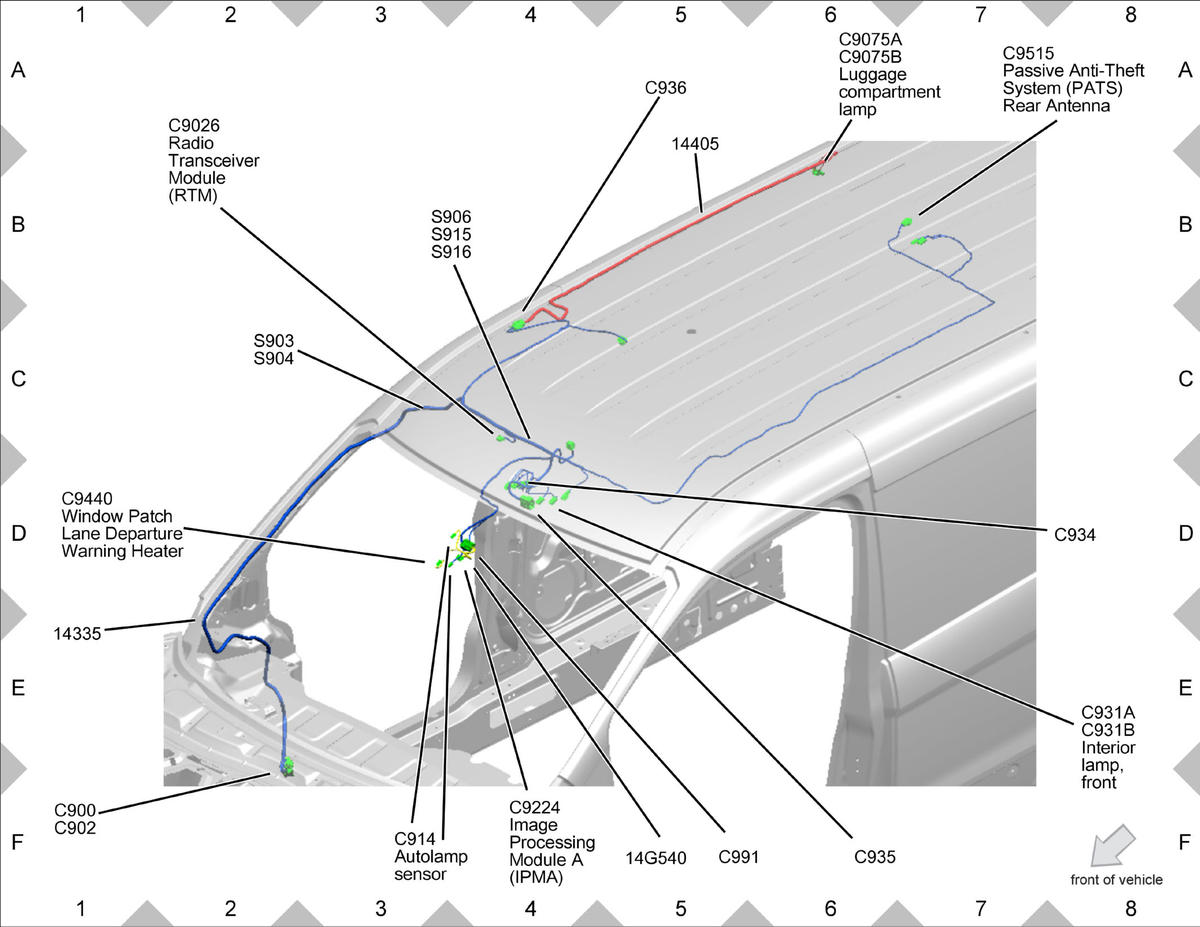

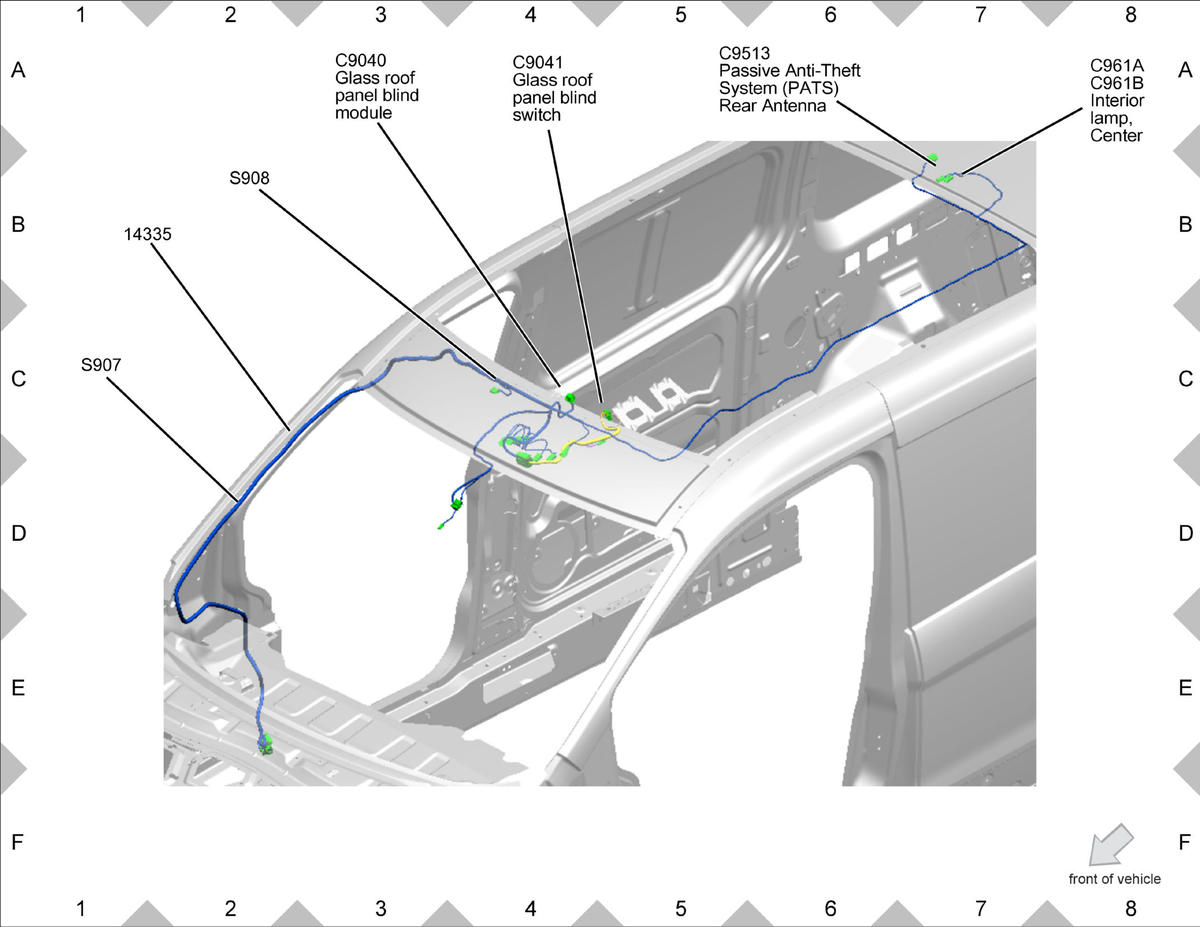

Component Location Views
Courtesy of FORD MOTOR COMPANY
