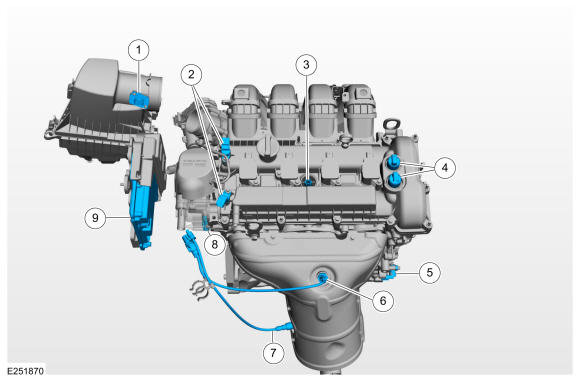

Electronic Engine Controls - Component Location: Notes

Courtesy of FORD MOTOR COMPANY

Item	Description
1	MAF sensor
2	CMP sensor
3	CHT sensor
4	VCT oil control solenoid
5	CKP sensor
6	HO2S sensor
7	Catalyst Monitor sensor
8	ECT sensor
9	PCM
