Liftgate Latch Manual Release

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Activation

All vehicles

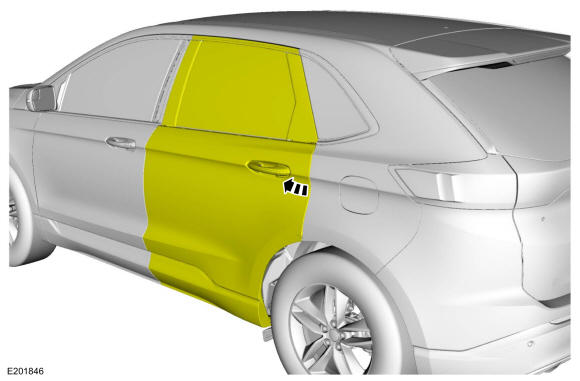

1. NOTE: LH side shown below, RH side similar.

   On both sides. Open the rear doors.

   Courtesy of FORD MOTOR COMPANY

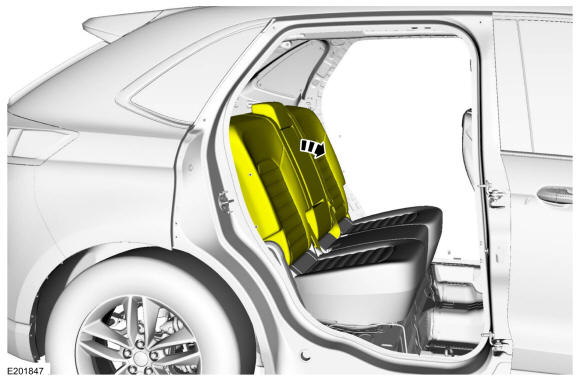

2. Release the second row seat cushion latch and position the seat backrests in the full flat position.

   Courtesy of FORD MOTOR COMPANY

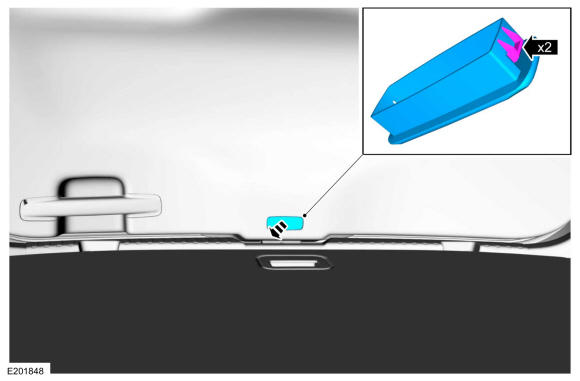

3. Remove the liftgate latch access cover from the center of the liftgate trim panel.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with power liftgate

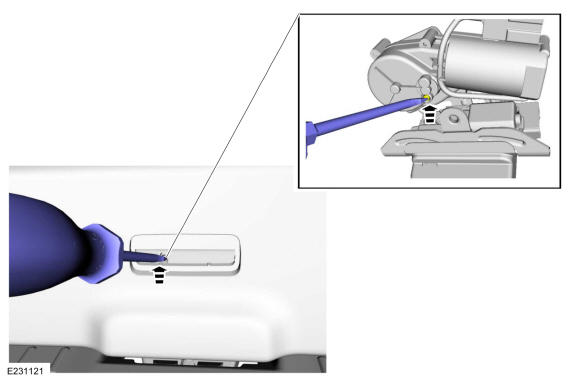

4. Insert a flat-bladed screwdriver through the access cover opening and depress the cinch release button. Use the General Equipment: Flat-Bladed Screwdriver

   Courtesy of FORD MOTOR COMPANY

   All vehicles

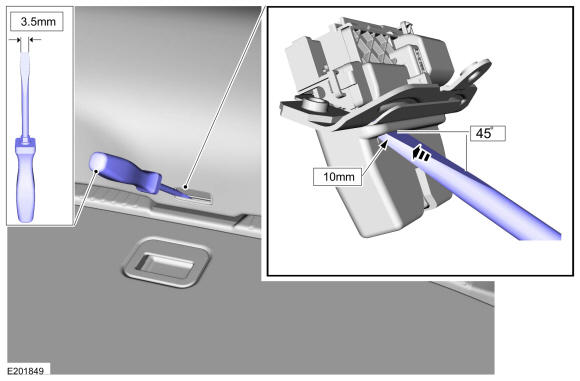

5. Insert a 3.5 mm wide flat-bladed screwdriver through the access cover opening at a 45 degree angle 10 mm deep into the RH side of the slot. Use the General Equipment: Flat-Bladed Screwdriver

   Courtesy of FORD MOTOR COMPANY

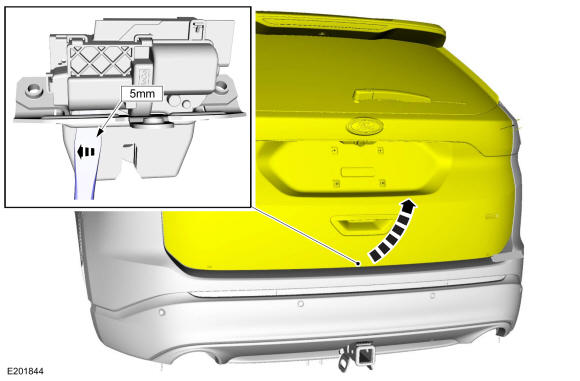

6. Slide the 3.5 mm wide flat-bladed screwdriver through the access cover opening 5 mm to the LH side of the slot. Releasing the liftgate latch and opening the liftgate. Use the General Equipment: Flat-Bladed Screwdriver

Courtesy of FORD MOTOR COMPANY
