Heated Rear Seat Module: Removal

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion  .
2. Release the seat cushion cover J-clips.

   Courtesy of FORD MOTOR COMPANY

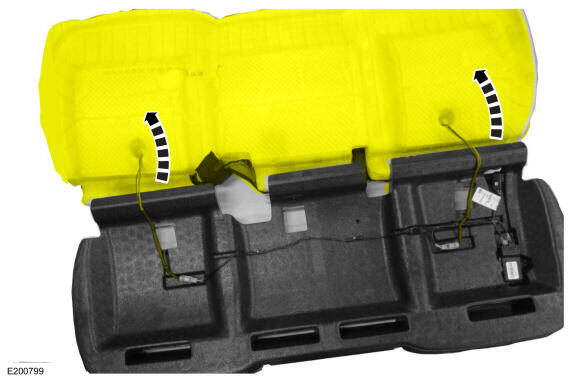

3. Raise the rear seat cushion cover and foam.

   Courtesy of FORD MOTOR COMPANY

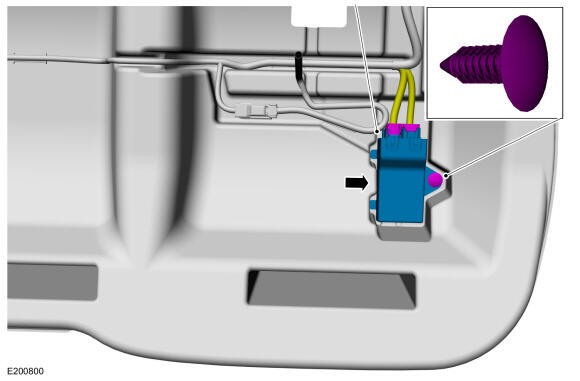

4. Disconnect the electrical connectors. Remove the pin-type retainer and the heated rear seat module.

Courtesy of FORD MOTOR COMPANY
