Fuel Pump Driver Module (FPDM): Installation

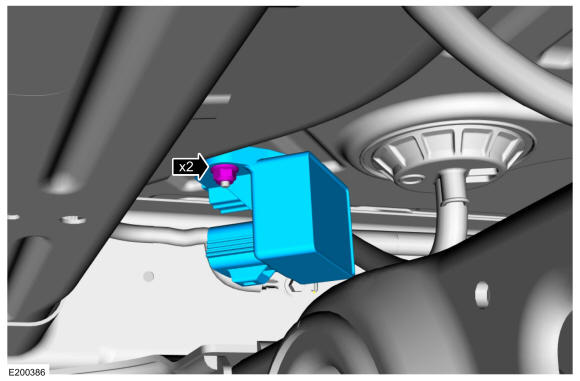

  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

    Torque: 36 lb.in (4.1 Nm)

    GFD526516Courtesy of FORD MOTOR COMPANY

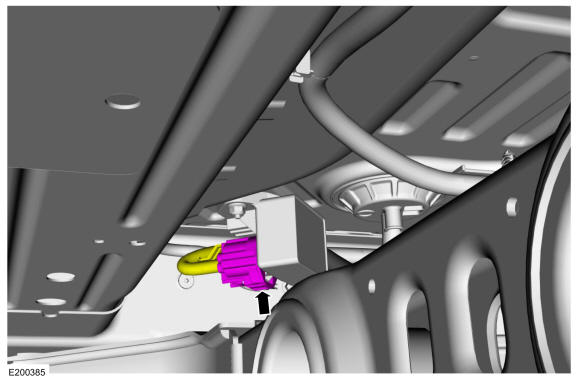

  2. Connect the fuel pump driver module electrical connector.
GFD526515Courtesy of FORD MOTOR COMPANY
