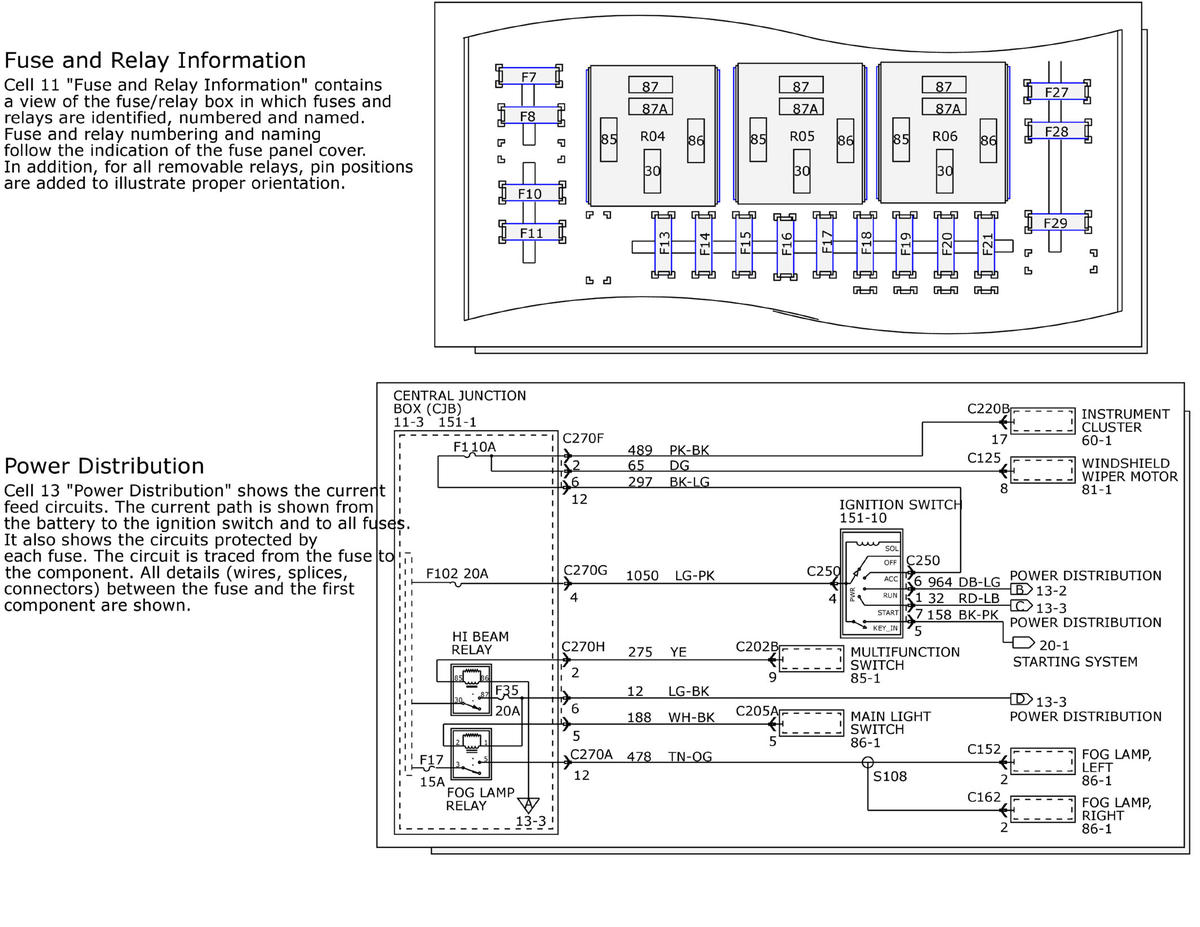

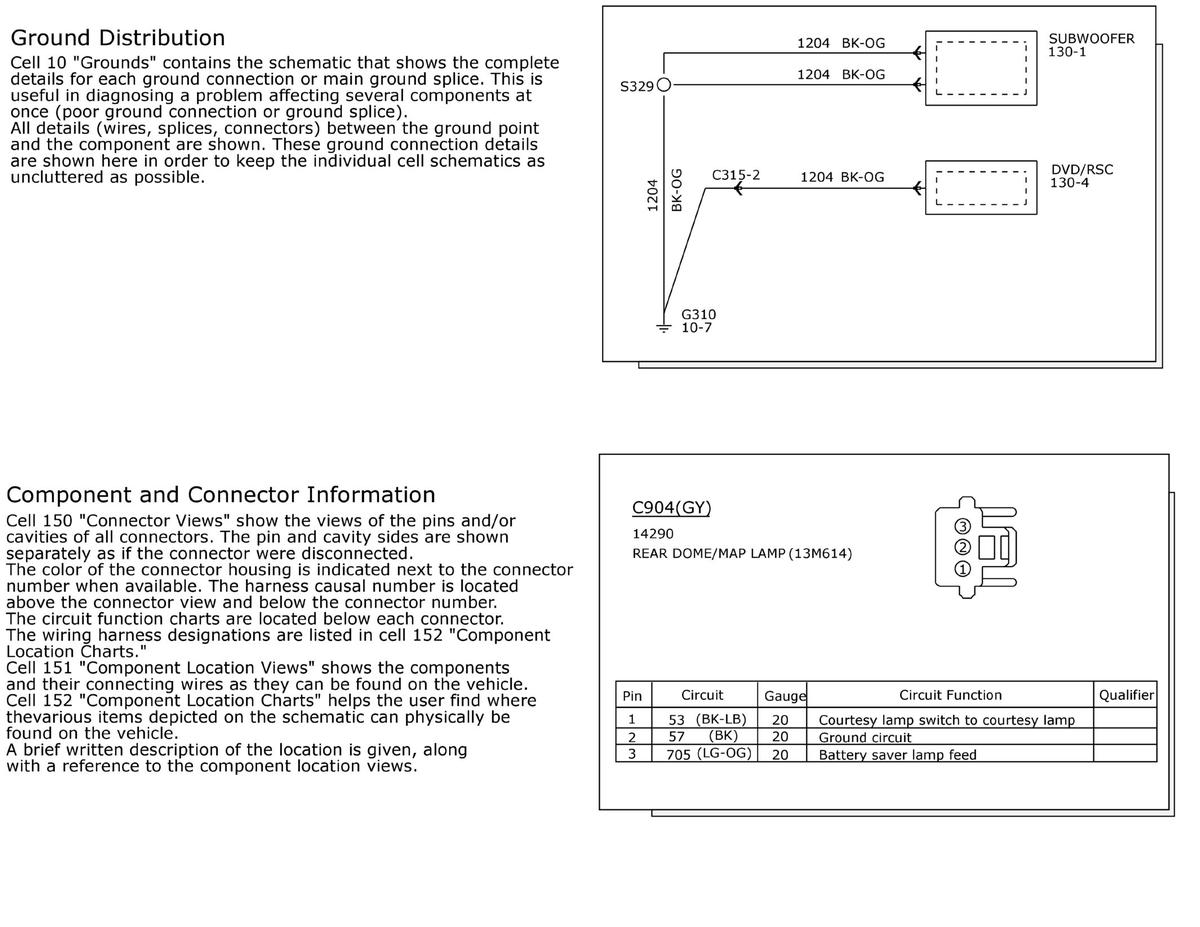

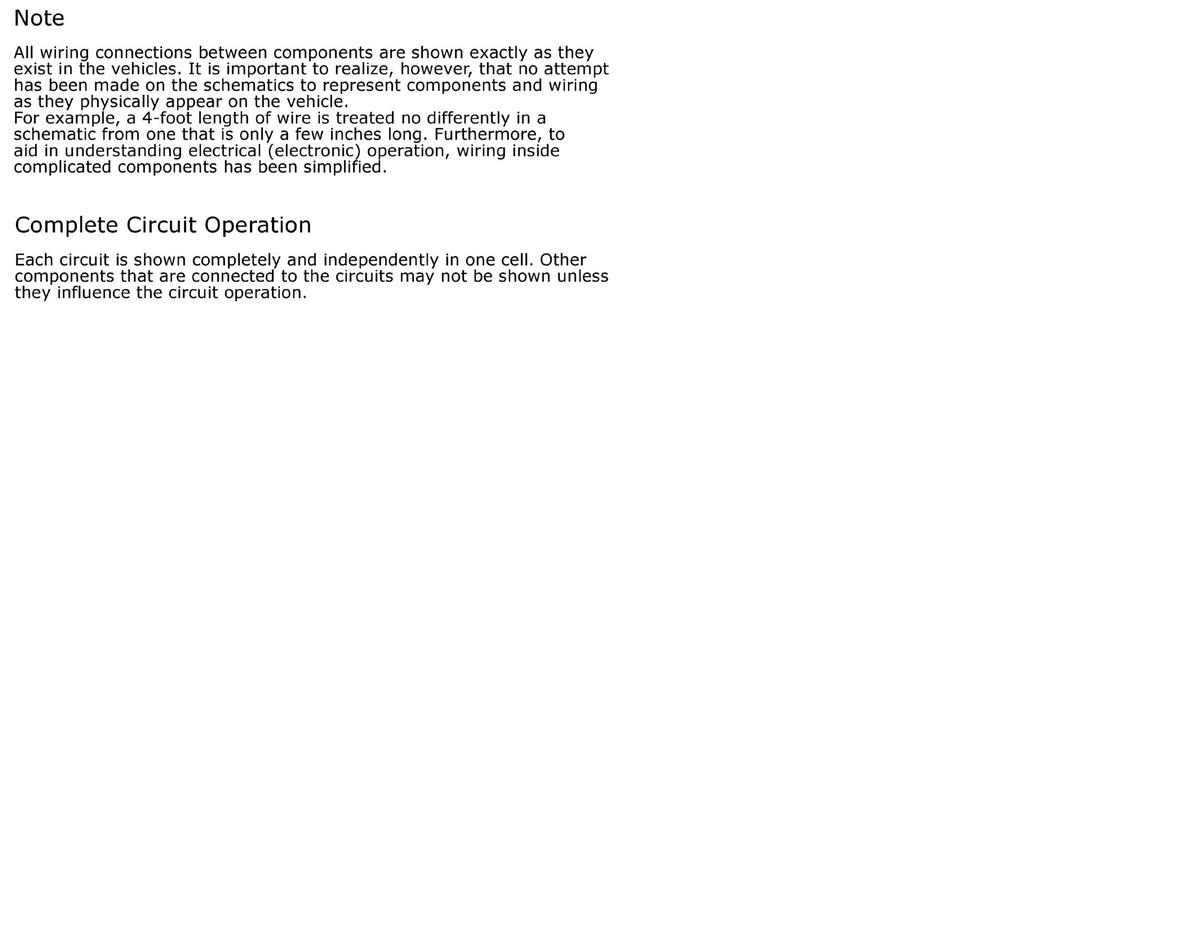

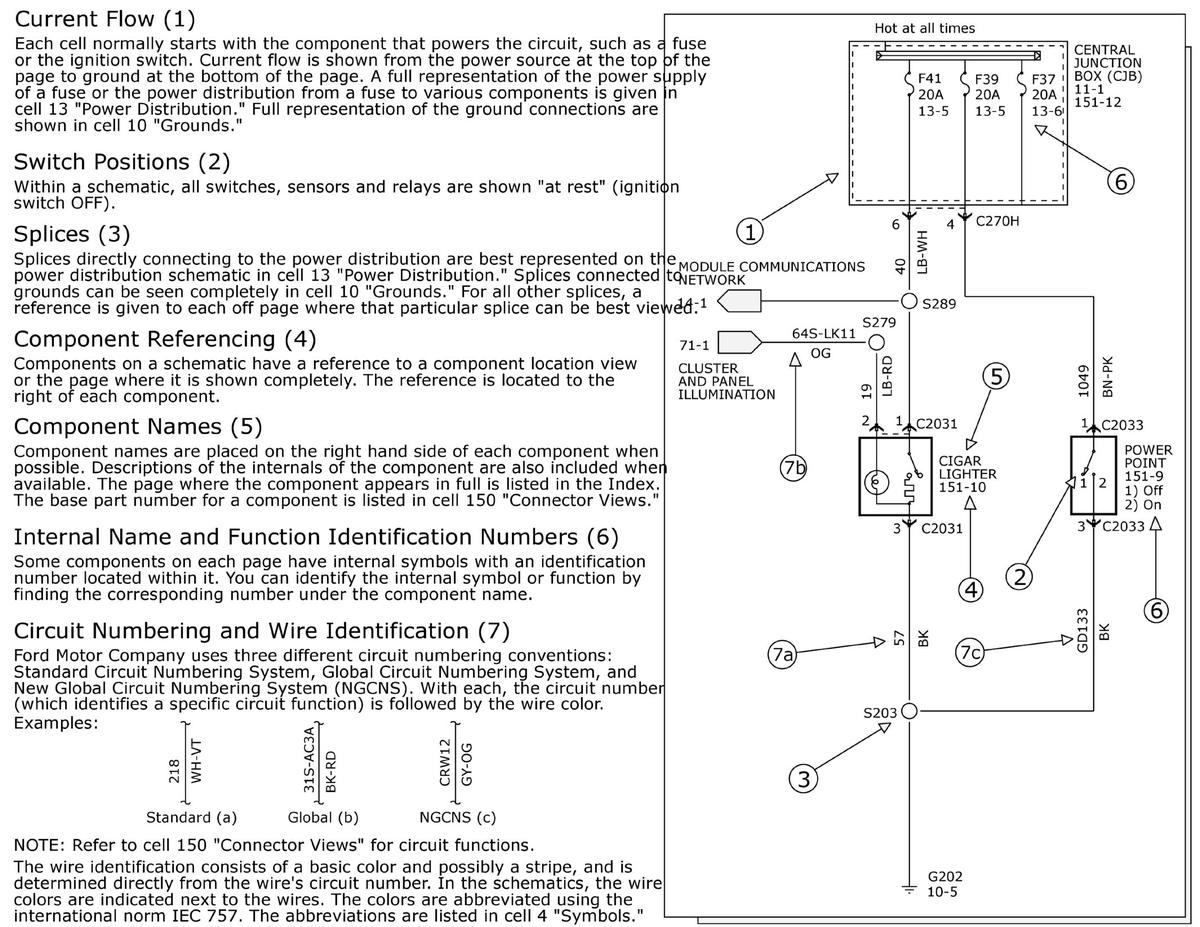

Section 11 (OEM Electrical Wiring Diagram Introduction): Introduction

WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, and 2020 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
