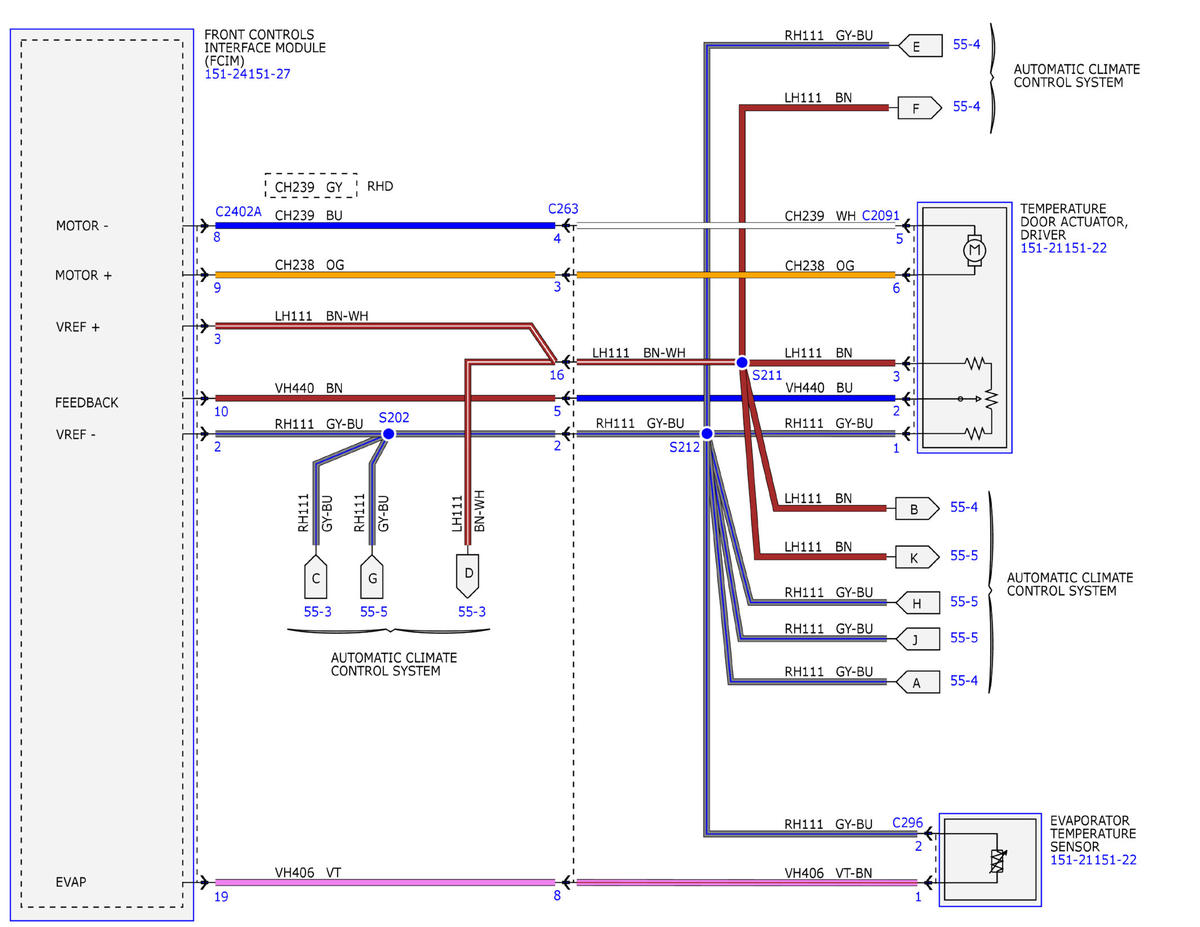

Fig 1: Automatic Climate Control System Wiring Diagrams (1 Of 8)
Courtesy of FORD MOTOR COMPANY

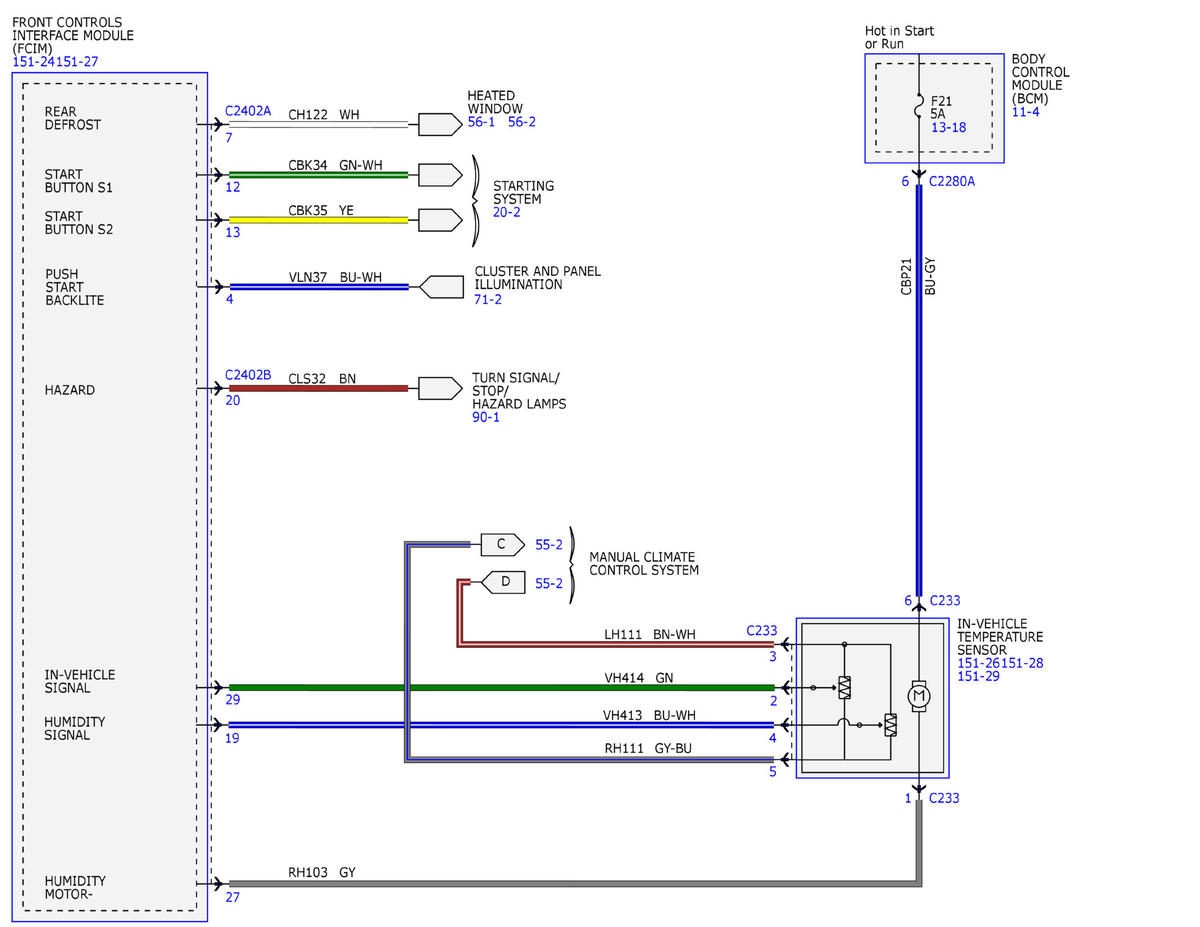

Fig 2: Automatic Climate Control System Wiring Diagrams (2 Of 8)
Courtesy of FORD MOTOR COMPANY

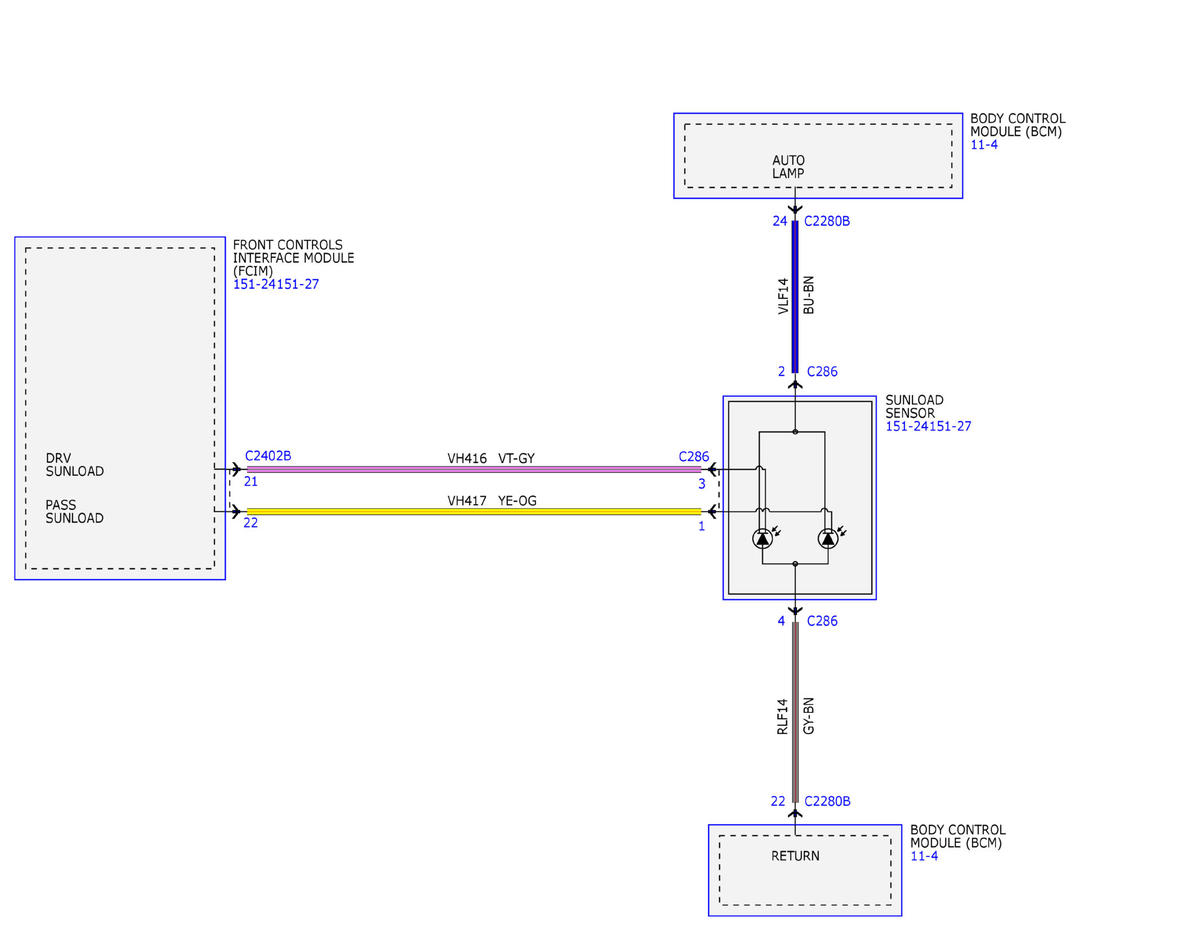

Fig 3: Automatic Climate Control System Wiring Diagrams (3 Of 8)
Courtesy of FORD MOTOR COMPANY

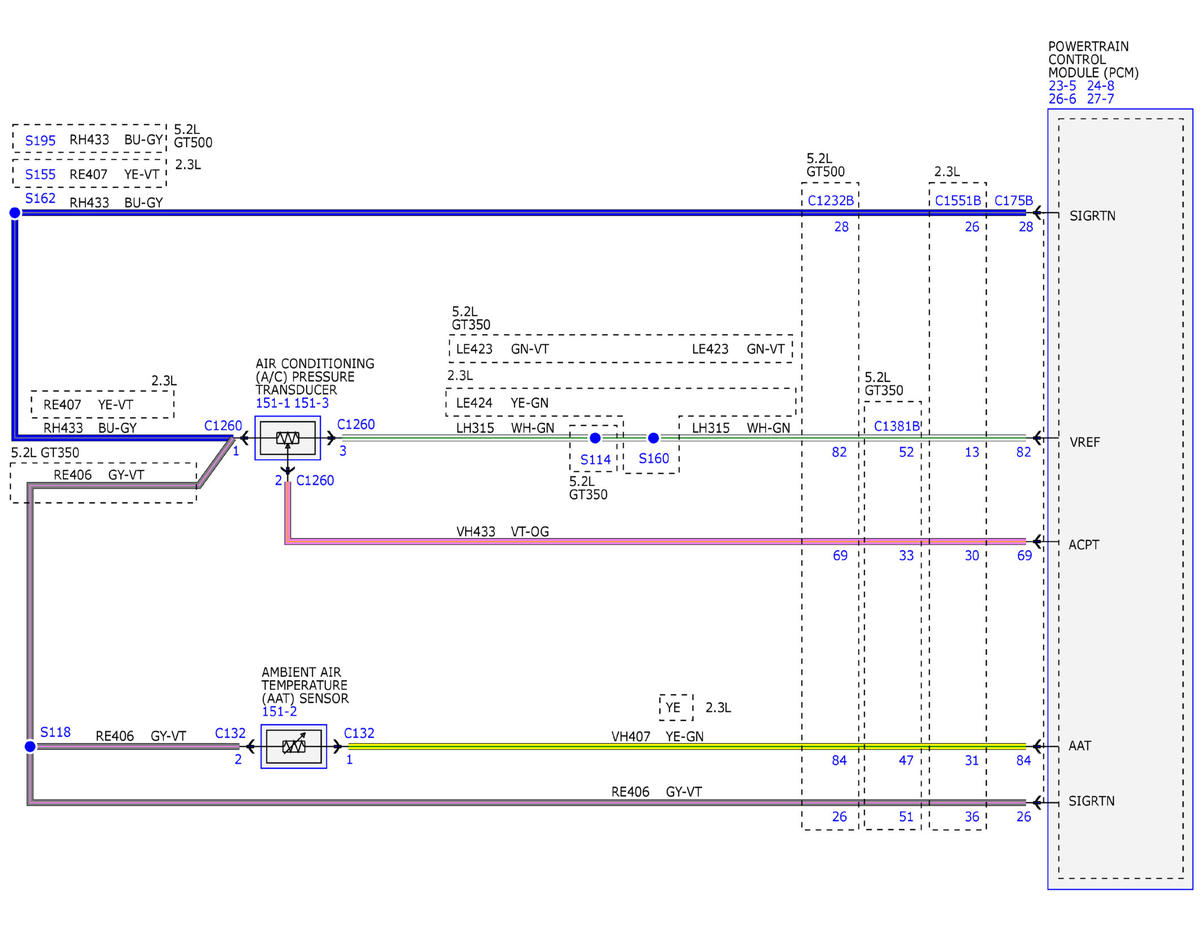

Fig 4: Automatic Climate Control System Wiring Diagrams (4 Of 8)
Courtesy of FORD MOTOR COMPANY

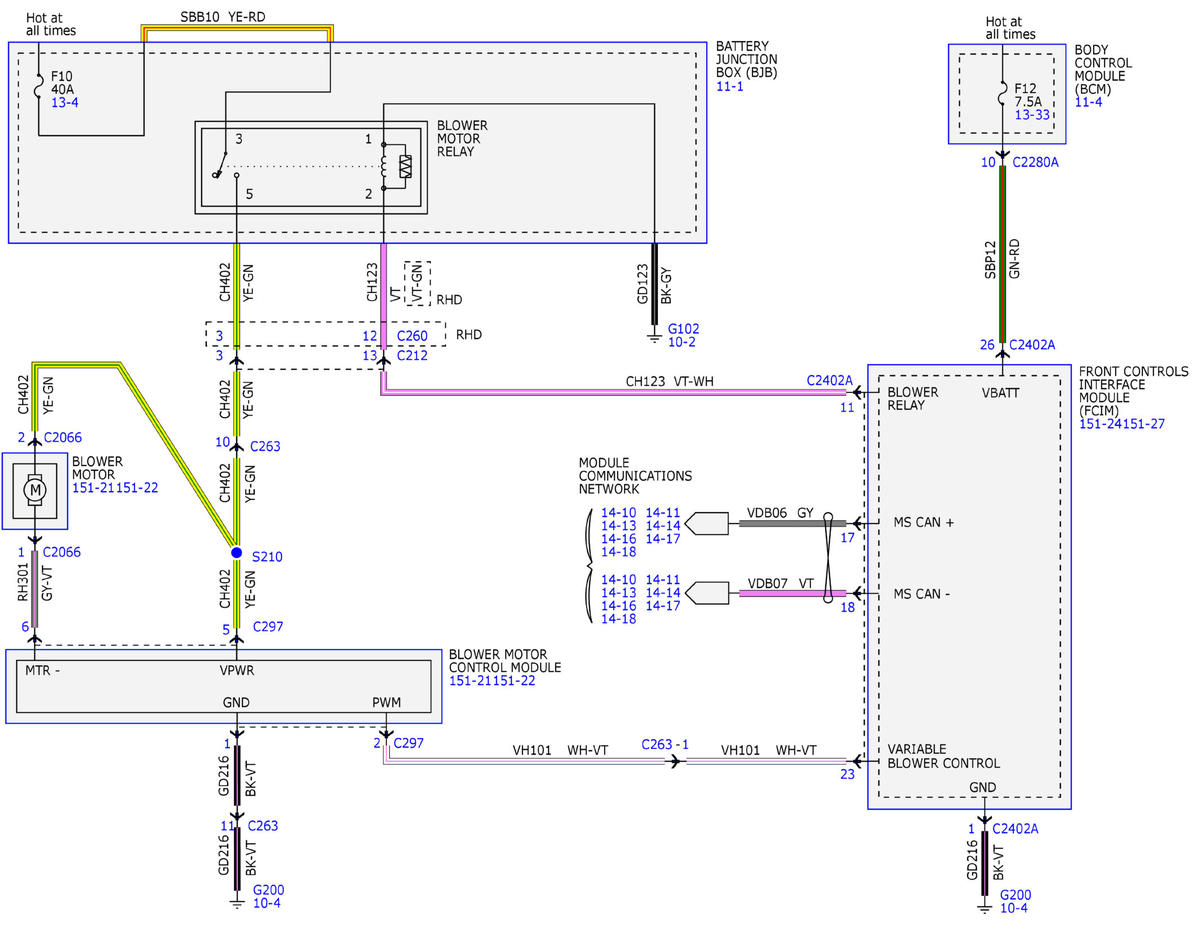

Fig 5: Automatic Climate Control System Wiring Diagrams (5 Of 8)
Courtesy of FORD MOTOR COMPANY

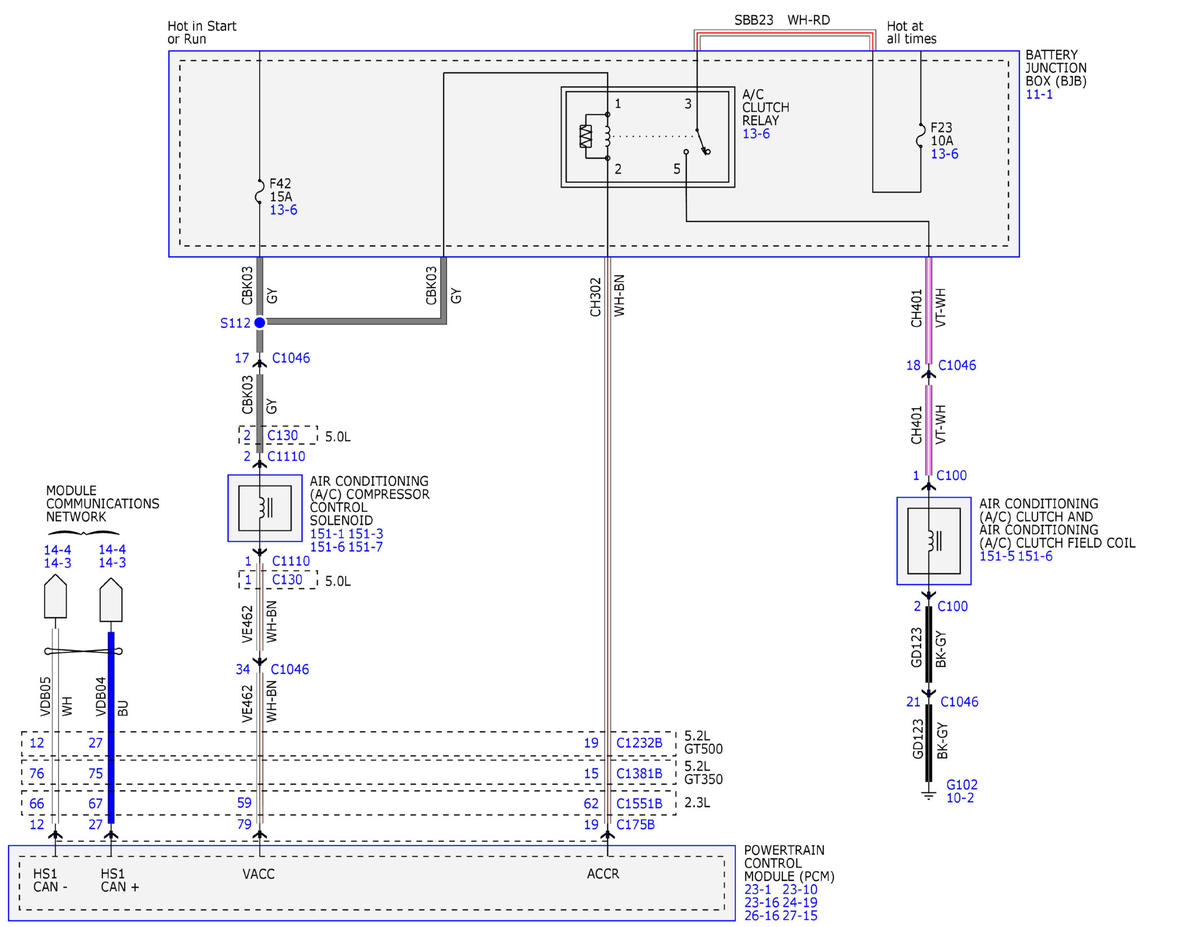

Fig 6: Automatic Climate Control System Wiring Diagrams (6 Of 8)
Courtesy of FORD MOTOR COMPANY

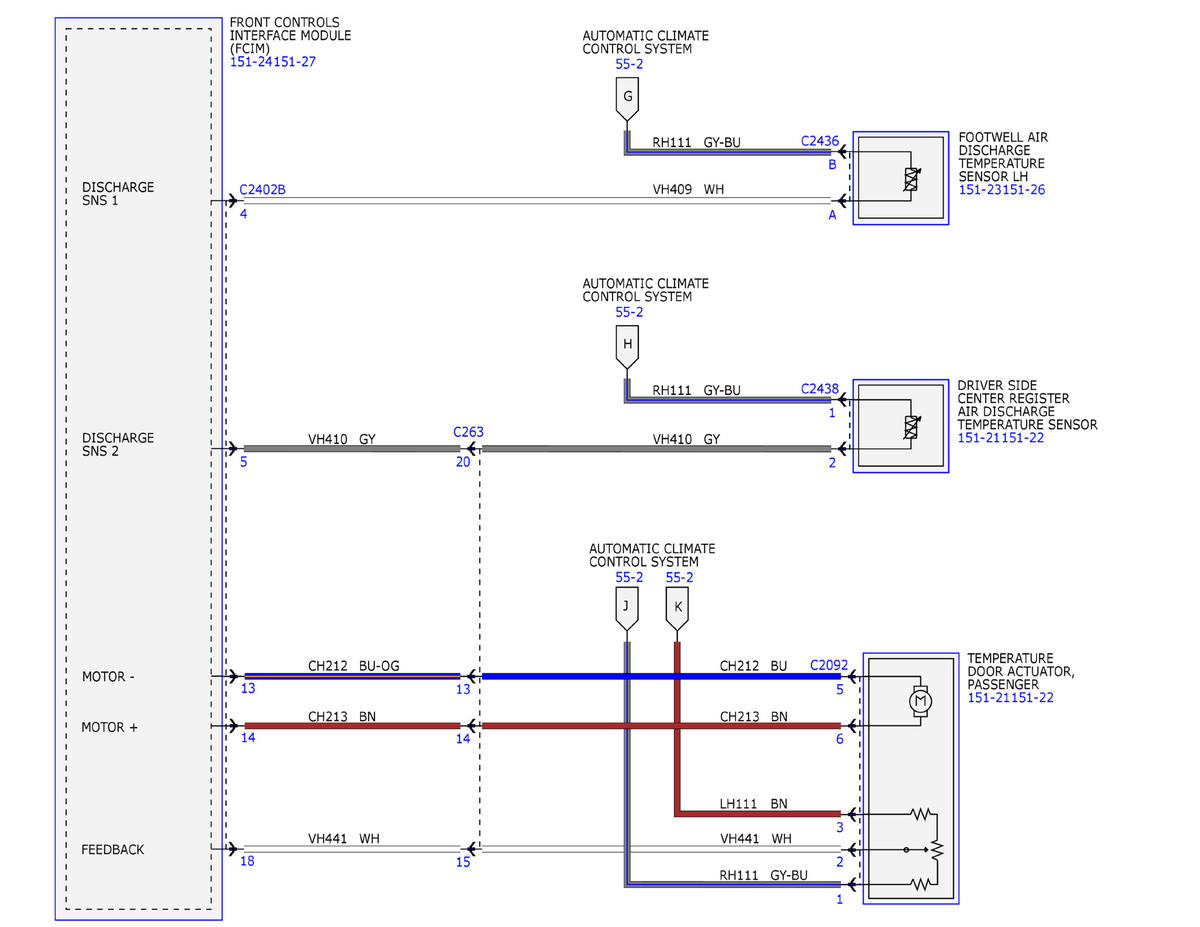

Fig 7: Automatic Climate Control System Wiring Diagrams (7 Of 8)
Courtesy of FORD MOTOR COMPANY

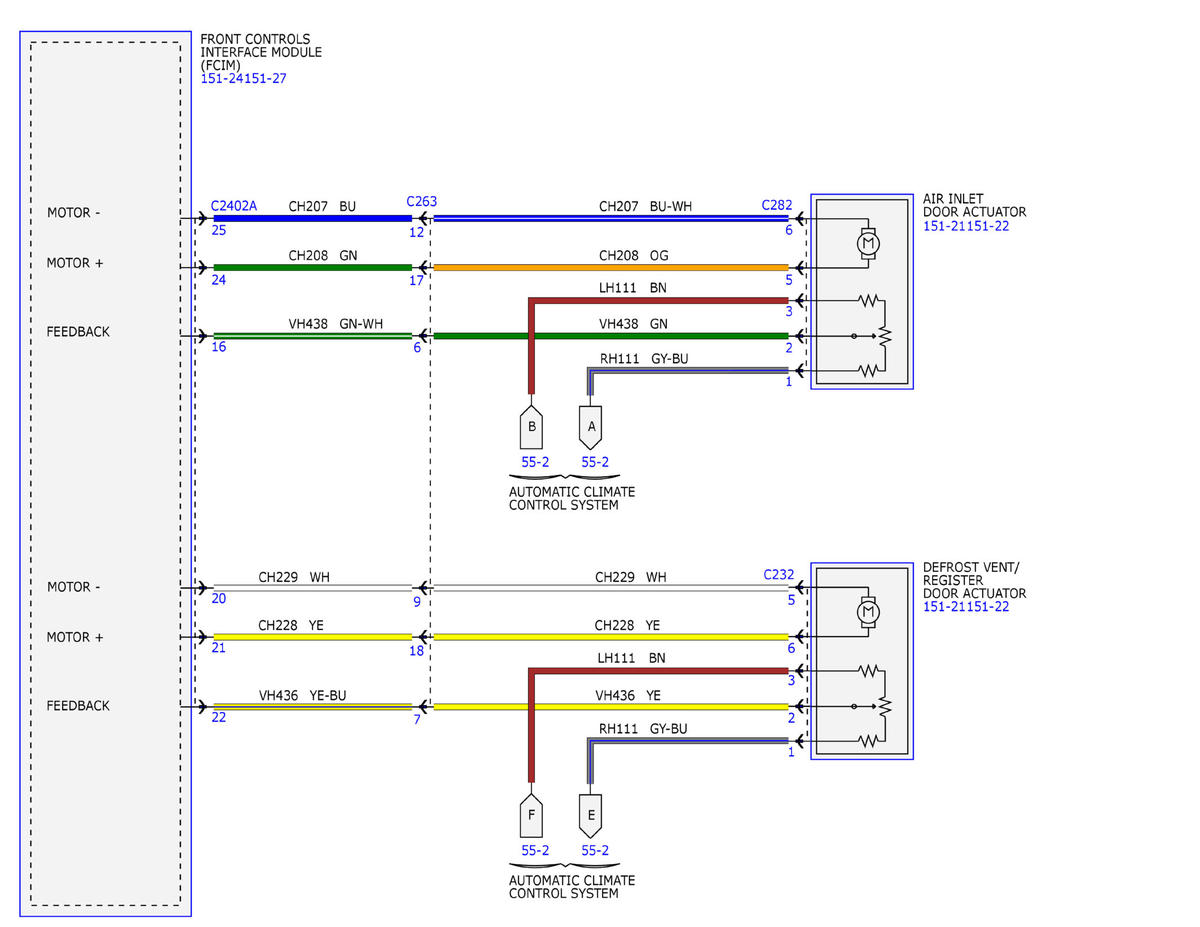

Fig 8: Automatic Climate Control System Wiring Diagrams (8 Of 8)
