WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

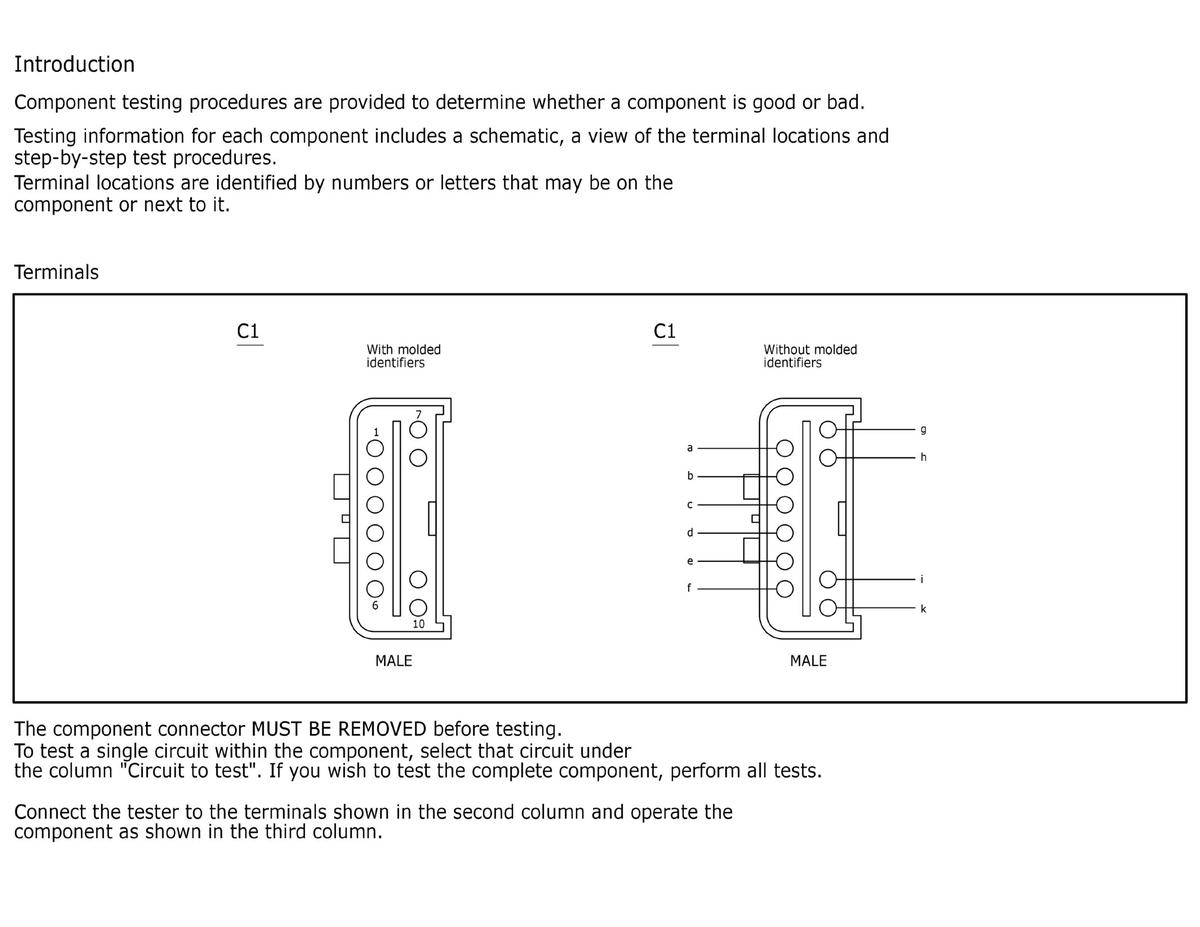

Fig 1: Component Testing Introduction
Courtesy of FORD MOTOR COMPANY

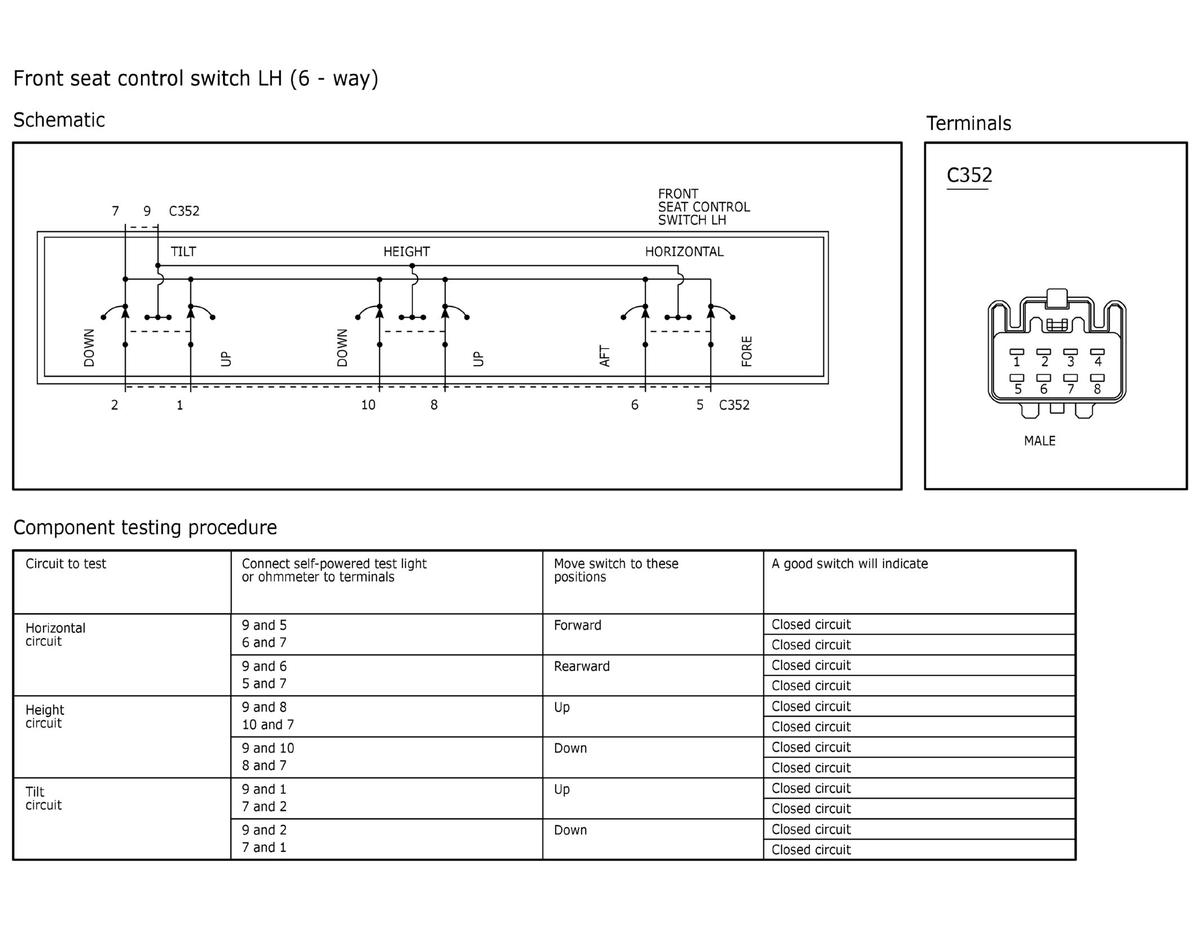

Fig 2: Front Seat Control Switch LH (6-Way) Component Testing)
Courtesy of FORD MOTOR COMPANY

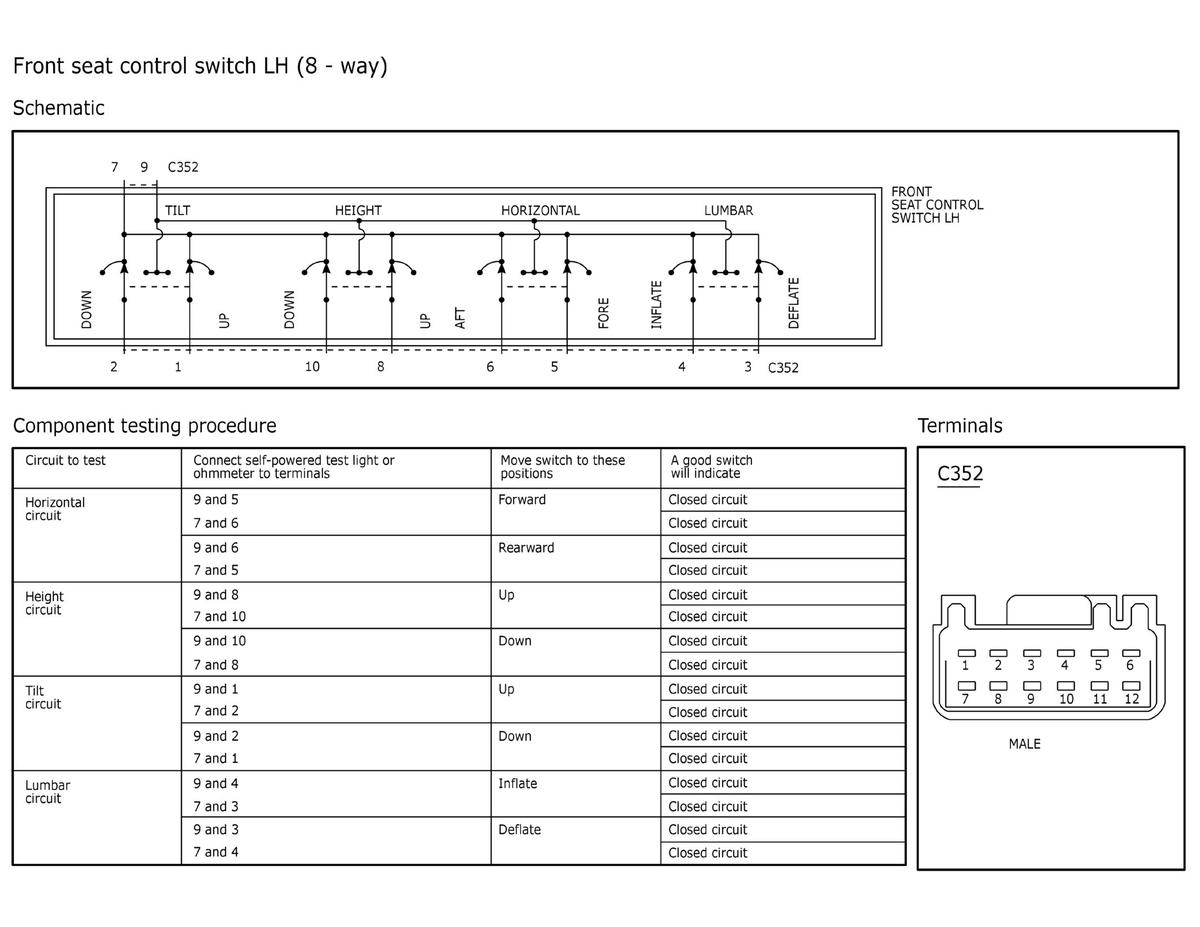

Fig 3: Front Seat Control Switch LH (8-Way) Component Testing
Courtesy of FORD MOTOR COMPANY

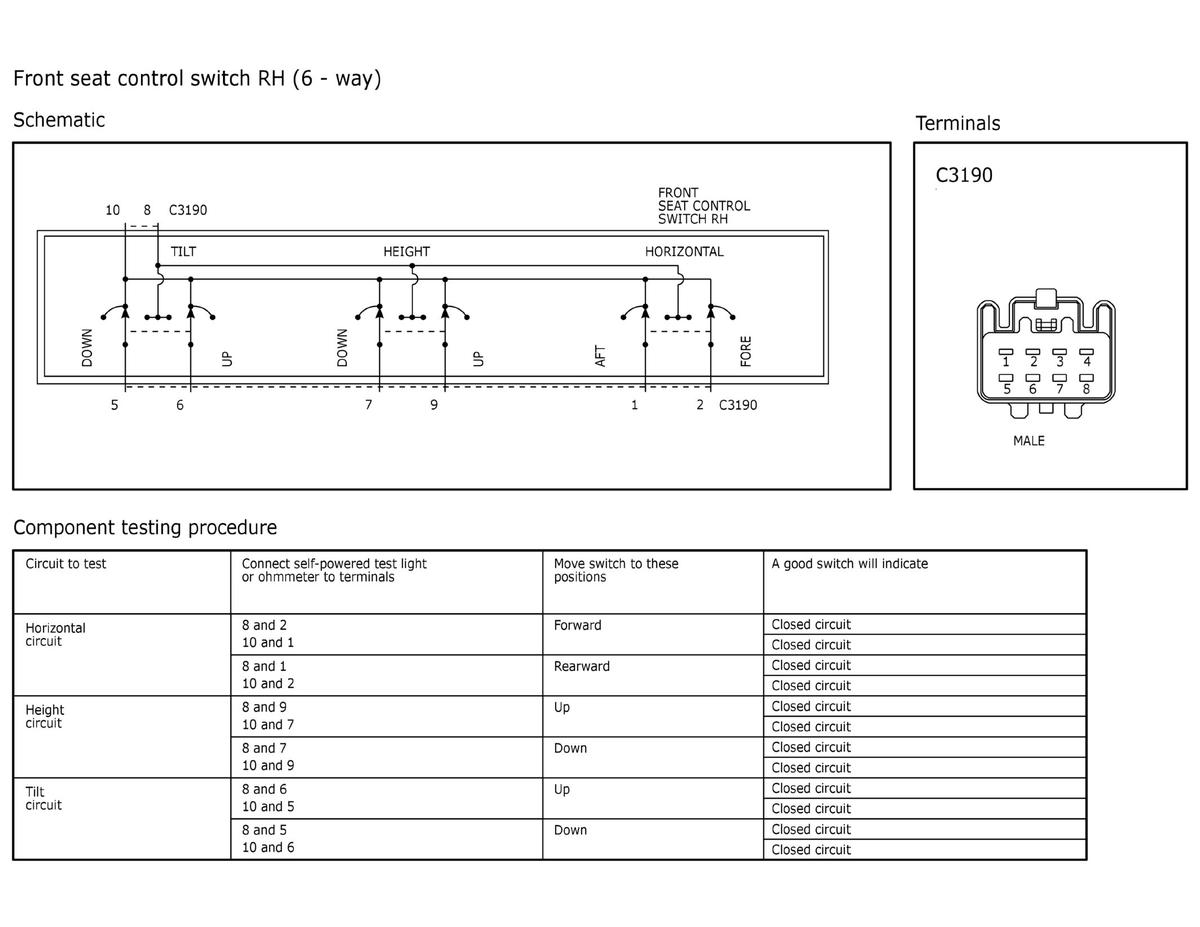

Fig 4: Front Seat Control Switch RH (6-Way) Component Testing
Courtesy of FORD MOTOR COMPANY

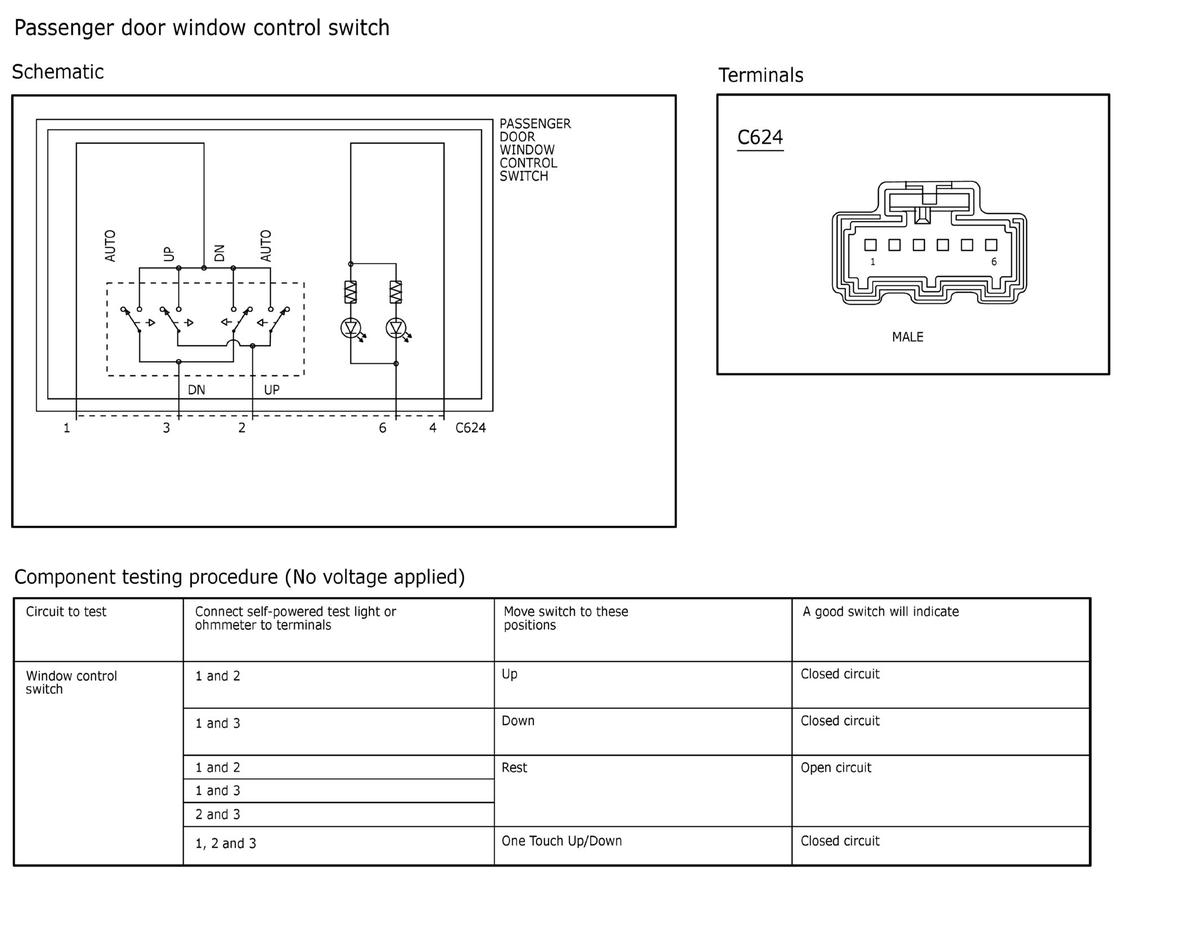

Fig 5: Passenger Door Window Control Switch Component Testing
Courtesy of FORD MOTOR COMPANY

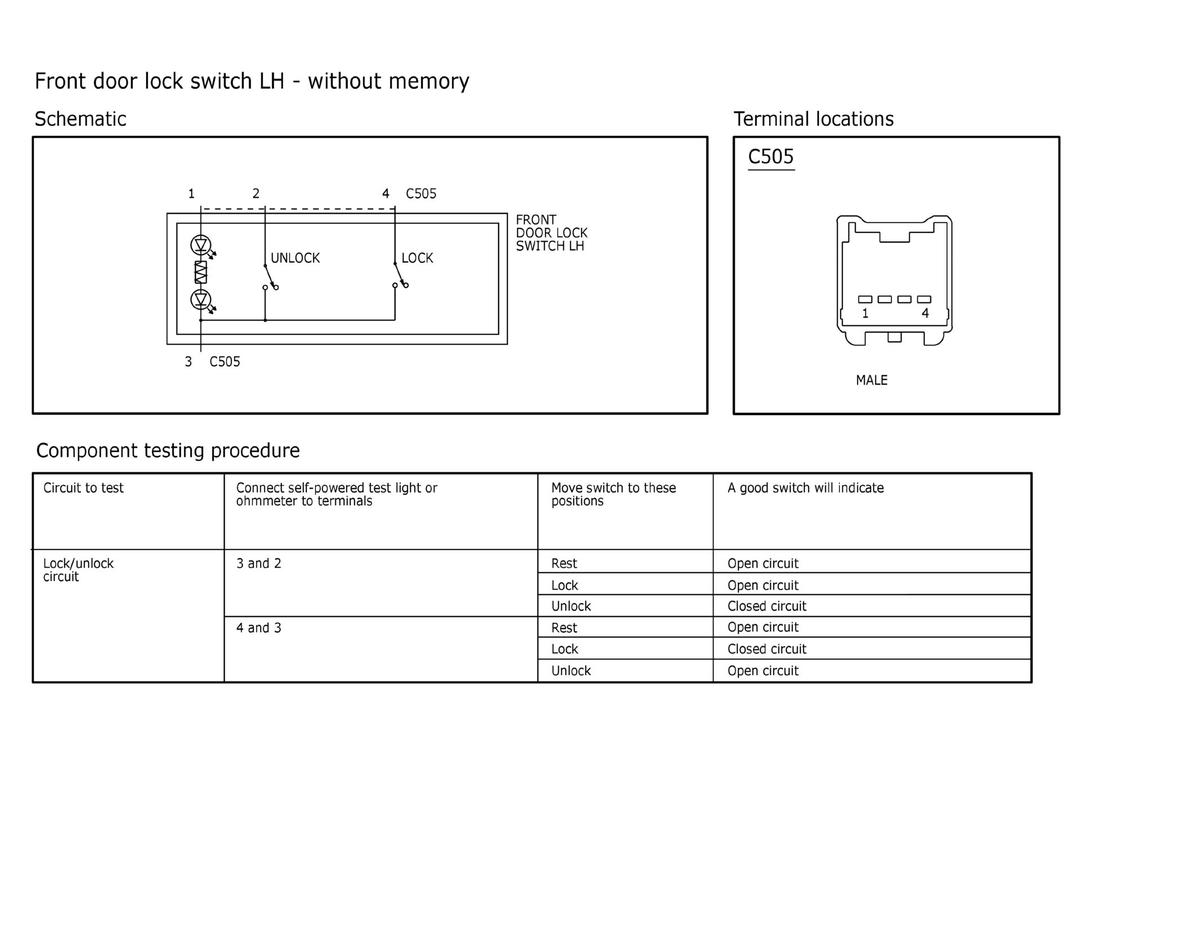

Fig 6: Front Door Lock Switch LH - Without Memory Component Testing
Courtesy of FORD MOTOR COMPANY

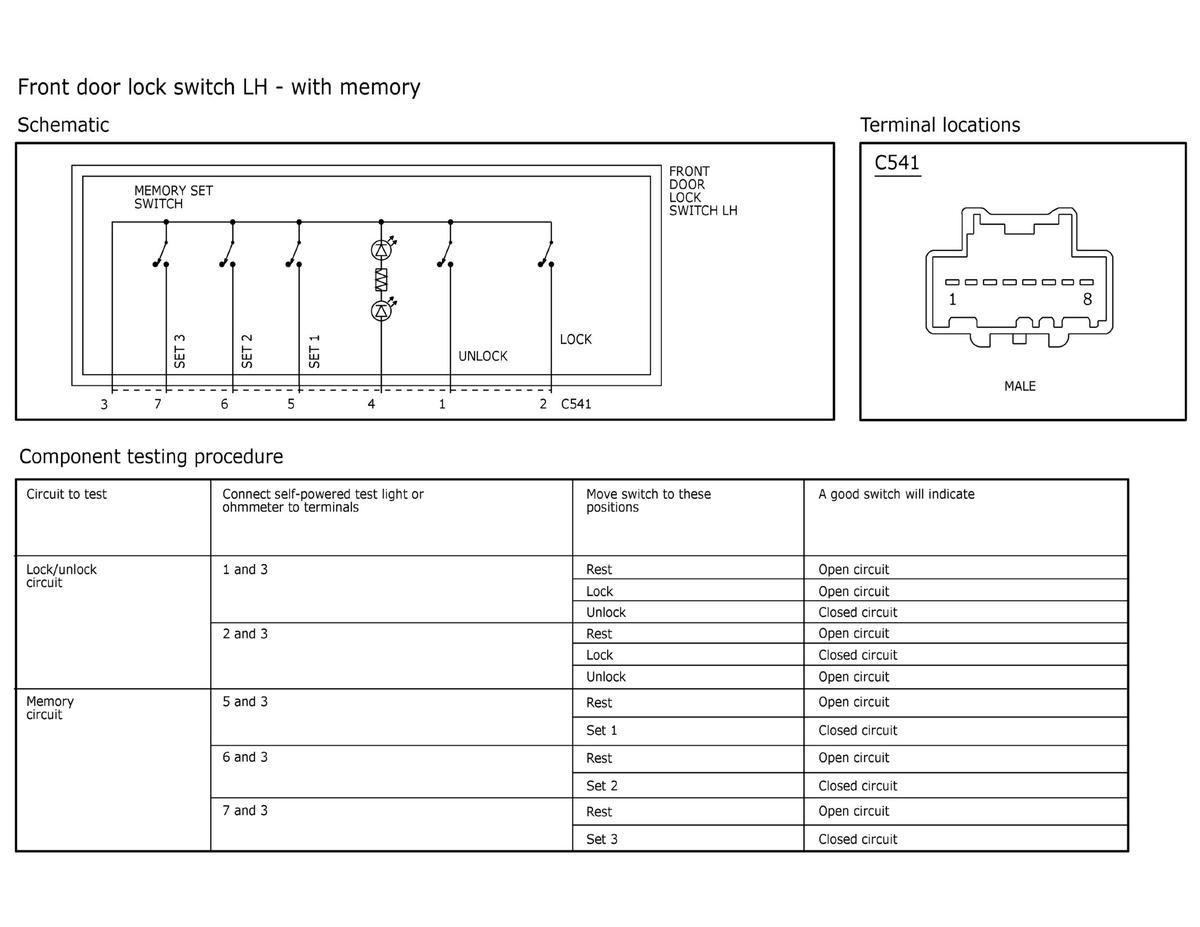

Fig 7: Front Door Lock Switch LH - With Memory Component Testing
Courtesy of FORD MOTOR COMPANY

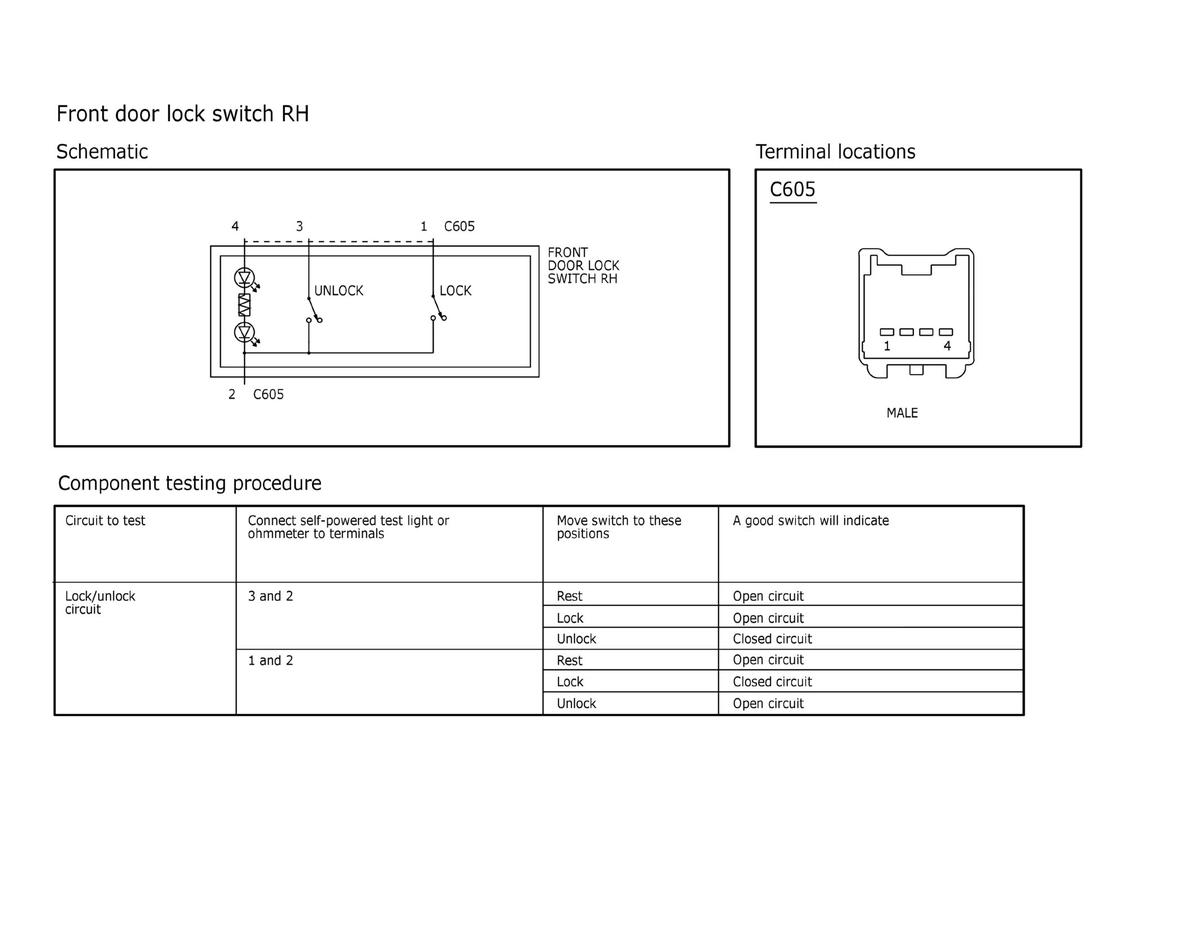

Fig 8: Front Door Lock Switch RH Component Testing
