Front Strut and Spring Assembly: Installation

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

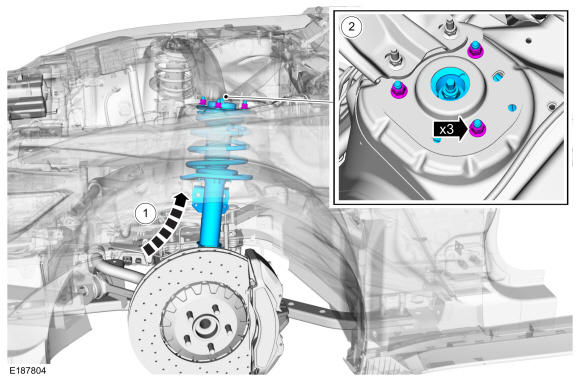

1. Install the front strut and spring assembly.
2. Install the 3 new upper strut mount nuts.
  Torque: 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY

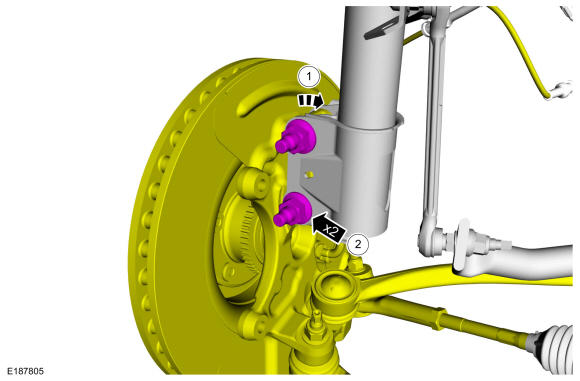

1. Attach the wheel spindle to the front strut and spring assembly.
2. Install the 2 new strut-to-wheel spindle bolts and nuts.
  Torque: 184 lb.ft (250 Nm)
Courtesy of FORD MOTOR COMPANY

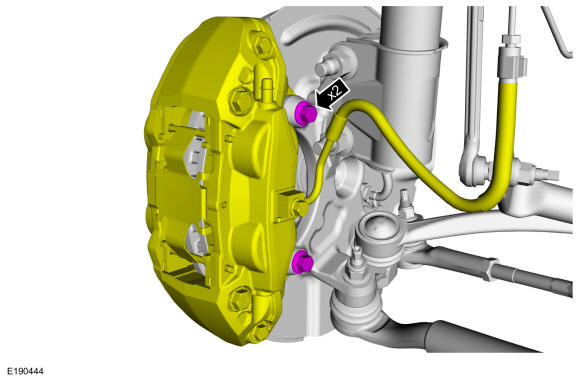

Position the brake caliper assembly and install the 2 new brake caliper anchor plate bolts.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

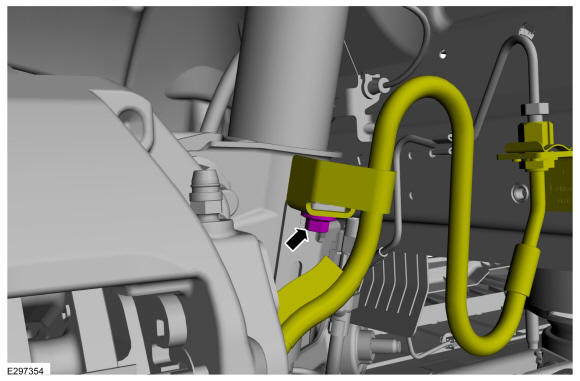

If equipped. Install the flexible hose bracket mounting bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

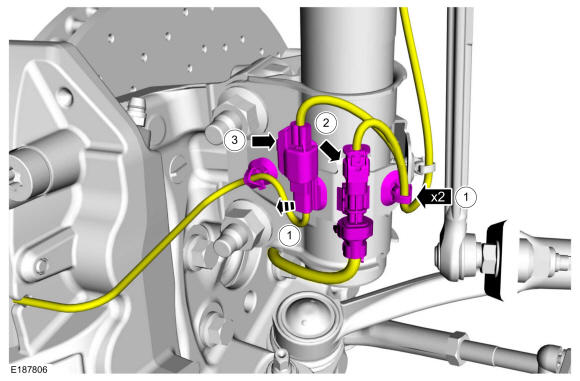

1. If equipped. Clip the brake sensor electrical connector and the 2 wire retainers to the strut.
2. If equipped with dynamic suspension. Connect the dynamic suspension strut wire harness connector.
3. If equipped. Connect the brake sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

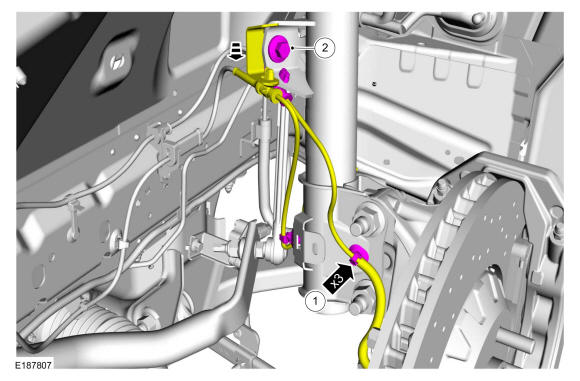

1. Connect the 2 wheel speed sensor retainers and the 1 dynamic suspension strut wire harness retainer.
2. If equipped with dynamic suspension. Position the dynamic suspension strut wire harness bracket install the bolt.
  Torque: 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY

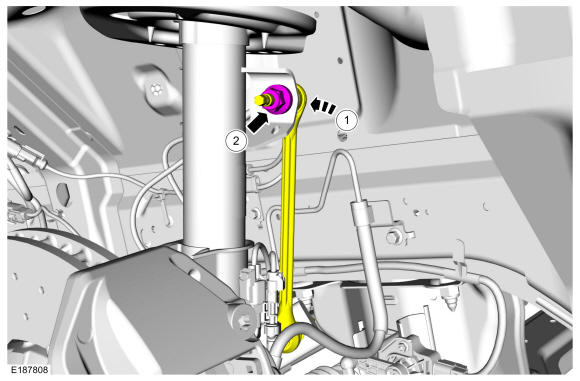

1. Position the front stabilizer bar link.
2. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

  NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

  Install the front stabilizer bar link upper nut.

  Torque: 85 lb.ft (115 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
