Vehicle Dynamics Control Module (VDM): Removal
WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
NOTE:
Removal steps in this procedure may contain installation details.
- If equipped. Remove the subwoofer and amplifier unit.

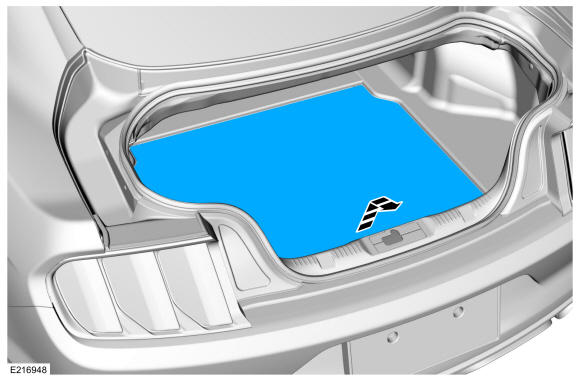

- Remove the load space floor panel.

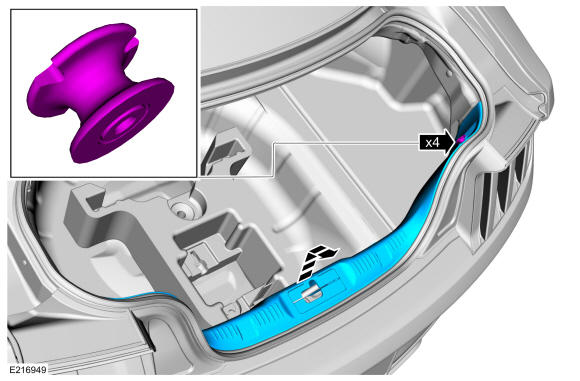

- Remove the load space rear trim panel.
-

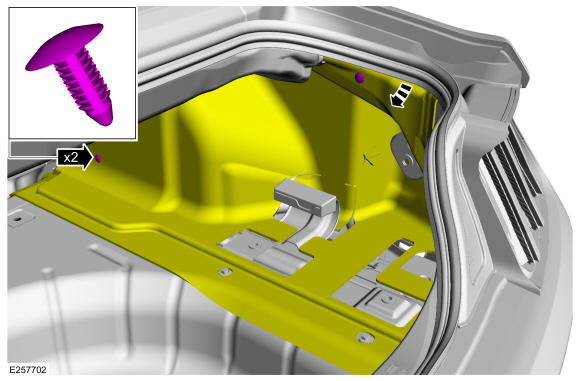

NOTE: Subwoofer equipped vehicle load space trim panel shown, others similar.
Position aside the RH load space trim panel.
-
NOTE: Note the position of the components before removal.

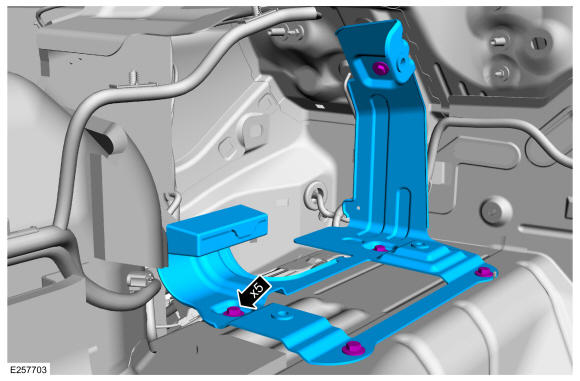

If equipped. Remove the retainers and remove the subwoofer and amplifier unit mounting bracket.
Torque: 71 lb.in (8 Nm)
-
NOTE: Note the position of the components before removal.

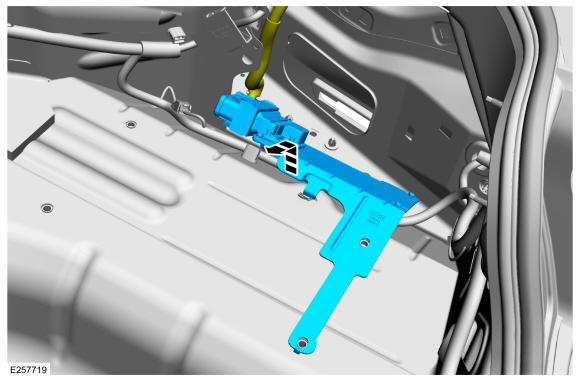

If equipped with subwoofer. Position the VDM and bracket assembly to gain access to the electrical connector.
-
-
NOTE: Note the position of the components before removal.

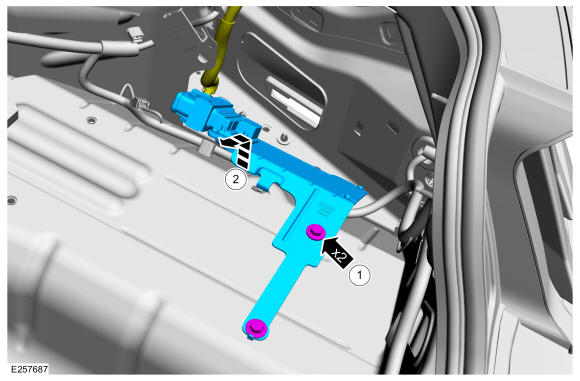

Non subwoofer equipped vehicles. Remove the VDM retainers.
Torque: 93 lb.in (10.5 Nm)
- Position the VDM and bracket assembly to gain access to the electrical connector.
-

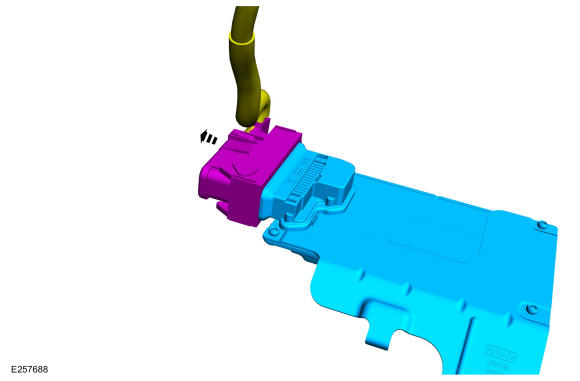

- Disconnect the VDM electrical connector and remove the VDM.
