Front Brake Disc: Removal

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the brake hose may occur.

NOTE: Removal steps in this procedure may contain installation details.

All brake calipers

Remove the wheel and Tire. Refer to: Wheel and Tire .

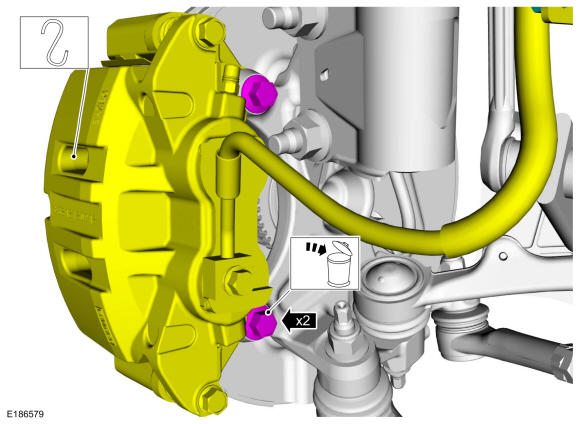

2-piston brake caliper
Remove the 2 bolts and position the brake caliper and brake pads aside.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

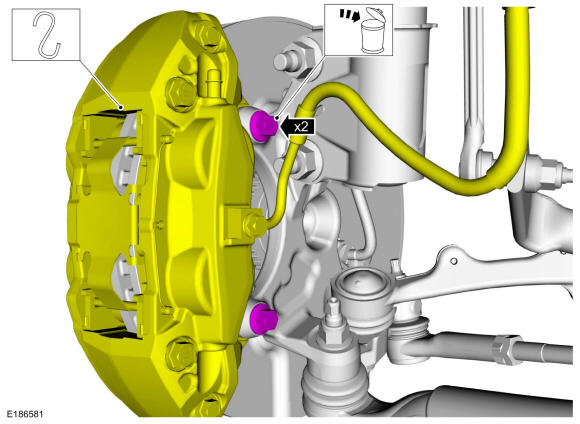

4-piston brake caliper
Remove the 2 bolts and position the brake caliper and brake pads aside. Discard the bolts.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

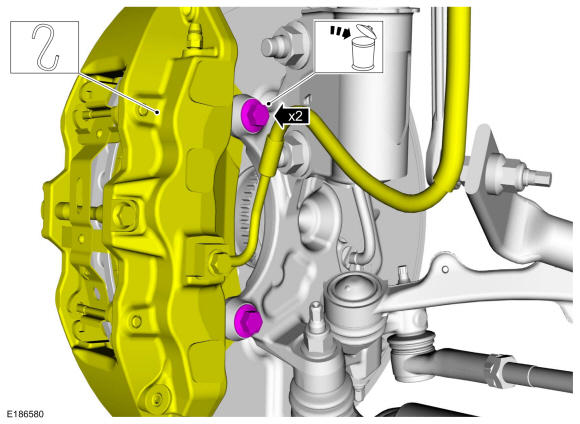

6-piston brake caliper
Remove the 2 bolts and position the brake caliper and brake pads aside. Discard the bolts.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

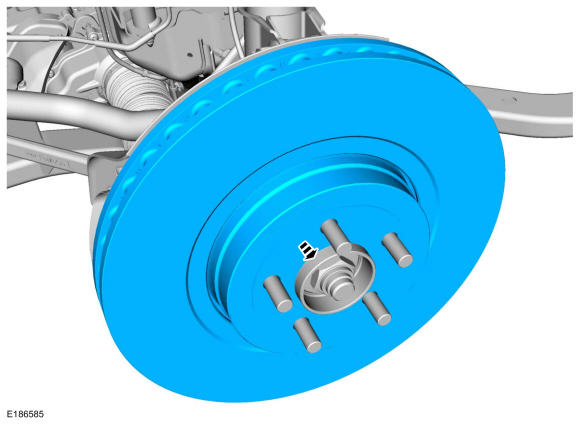

All brake calipers
Remove the brake disc.

Courtesy of FORD MOTOR COMPANY
