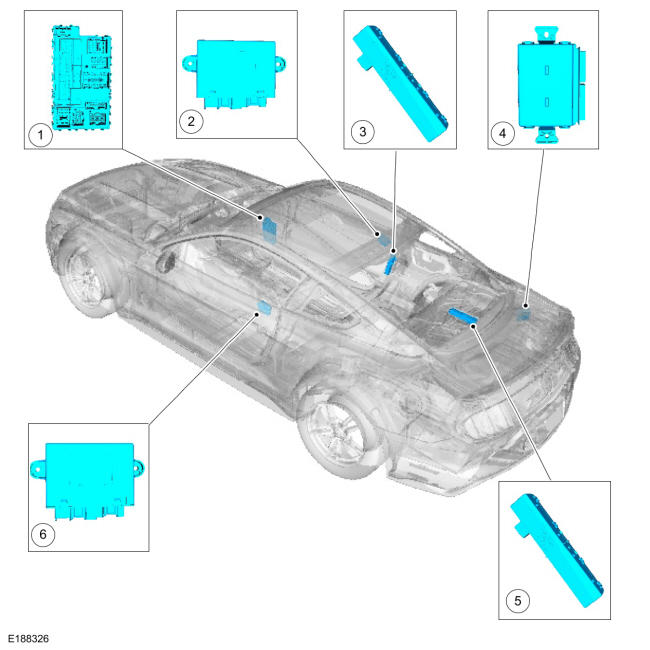

Module Controlled Functions - Component Location

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	BCM
2	PDM
3	RTM (Convertible)
4	Body Control Module B (BCM-B)
5	RTM (Coupe)
6	DDM
