Differential Fluid Level Check

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Name	Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL	WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

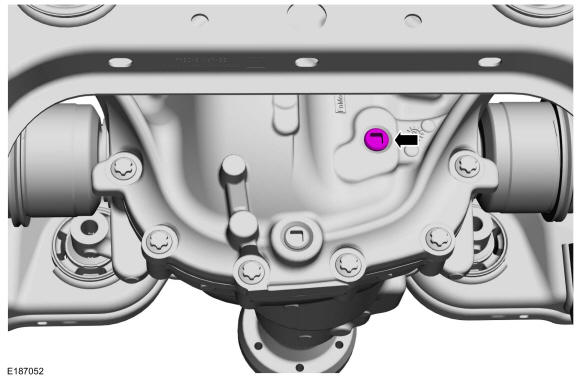

Remove the differential fluid fill plug.

Courtesy of FORD MOTOR COMPANY

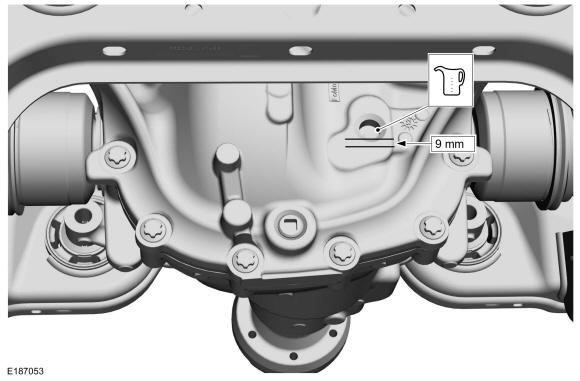

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 9mm (0.354 in.) from the fluid level fill plug opening. Refer to: Specifications .
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the differential fluid fill plug.
Torque: 25 lb.ft (34 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped with a differential cooler, operate the differential cooler pump with a scan tool for two minutes and repeat steps 1 thru 4.
