Cruise Control Radar Alignment: Activation

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Vertical Alignment

NOTE: In order to align the CCM (cruise control module), the CCM (cruise control module) cover must be removed to access the sensor and the vehicle must be in a wheel alignment bay station so that the vehicle is level.
NOTE: Damage to the CCM (cruise control module) bracket may affect correct alignment. When aligning the CCM (cruise control module), inspect the CCM (cruise control module) bracket for damage and repair as necessary before carrying out the alignment procedure.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover . Refer to: Front Bumper Cover - Vehicles With: SVT Performance Package . Refer to: Front Bumper Cover - GT500 .
  2. Place the vehicle on a wheel alignment bay station.

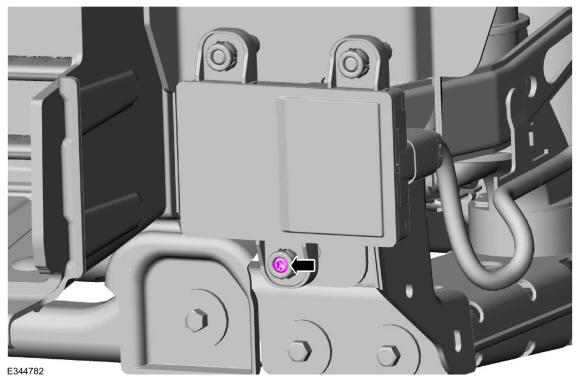

  3. Locate the CCM alignment screw.
    GFD523422Courtesy of FORD MOTOR COMPANY
  4. NOTE: Typical application shown.
    NOTE: Measurement must be taken from the non-raised side of the CCM (cruise control module).

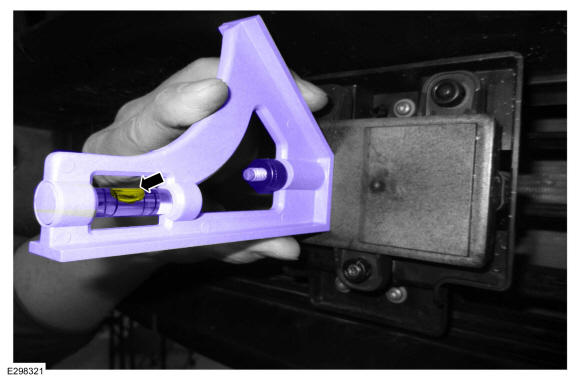

    Place a combination square level on the face of the CCM and check the alignment.

    GFD523423Courtesy of FORD MOTOR COMPANY
  5. NOTE: Typical application shown.
    NOTE: Measurement must be taken from the non-raised side of the CCM (cruise control module).

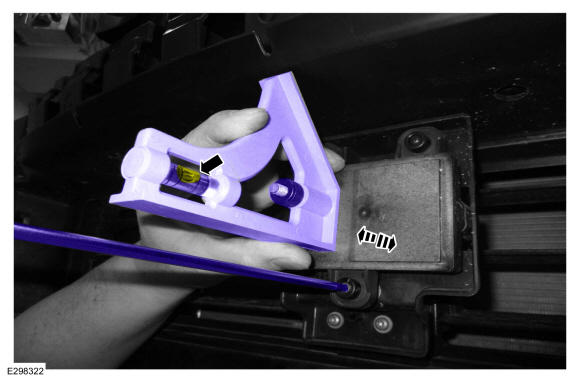

    Keeping the combination square level on the face of the CCM, adjust the screw until the CCM is vertical and level.

    GFD523424Courtesy of FORD MOTOR COMPANY
  6. NOTE: Prior to installing the front bumper cover, clean and remove any debris on the front or back of the cover.

    Install the front bumper cover. Refer to: Front Bumper Cover . Refer to: Front Bumper Cover - Vehicles With: SVT Performance Package . Refer to: Front Bumper Cover - GT500 .

    Horizontal Alignment

    NOTE: The horizontal alignment for the CCM is a software calibration check that is performed by the scan tool to insure the CCM radar is pointed straight. No manual adjustment is needed for this procedure. The scan tool calibrates the CCM through the CCM procedure in programmable parameters. The Alignment Offset specification is +/- 3.0 degrees of offset.
  7. NOTE: The vehicle's engine must be running during the horizontal alignment procedure. Failure to leave the engine running throughout the entire procedure results in the cancellation of the alignment procedure and the system remains non-functional.

    Start the engine.

  8. Follow the scan tool on-screen instructions to carry-out the CCM calibration procedure located in IDS under Toolbox > Electrical > Cruise Control > CCM Calibration.
