OEM Electrical Wiring Diagram Introduction: Introduction

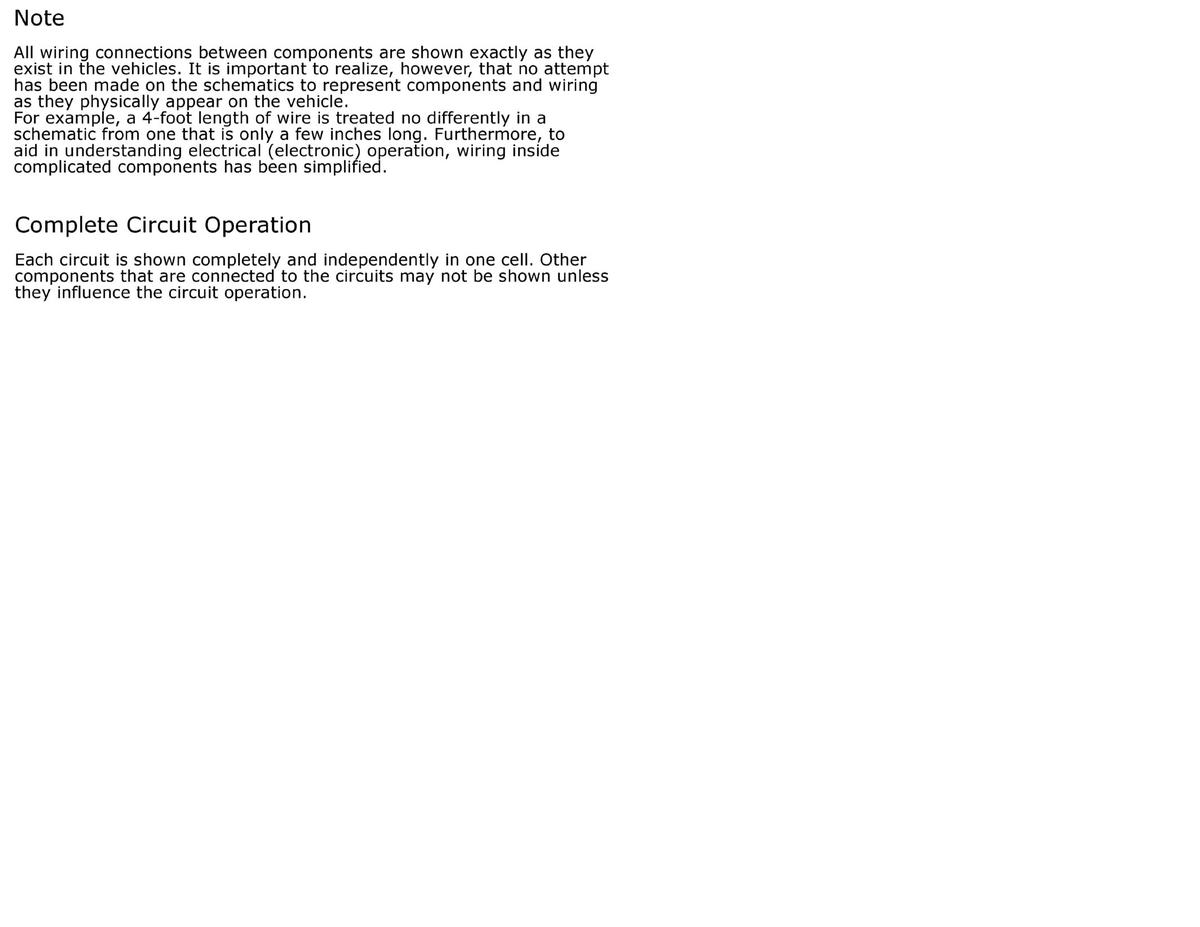

GFDWR108582Courtesy of FORD MOTOR COMPANY

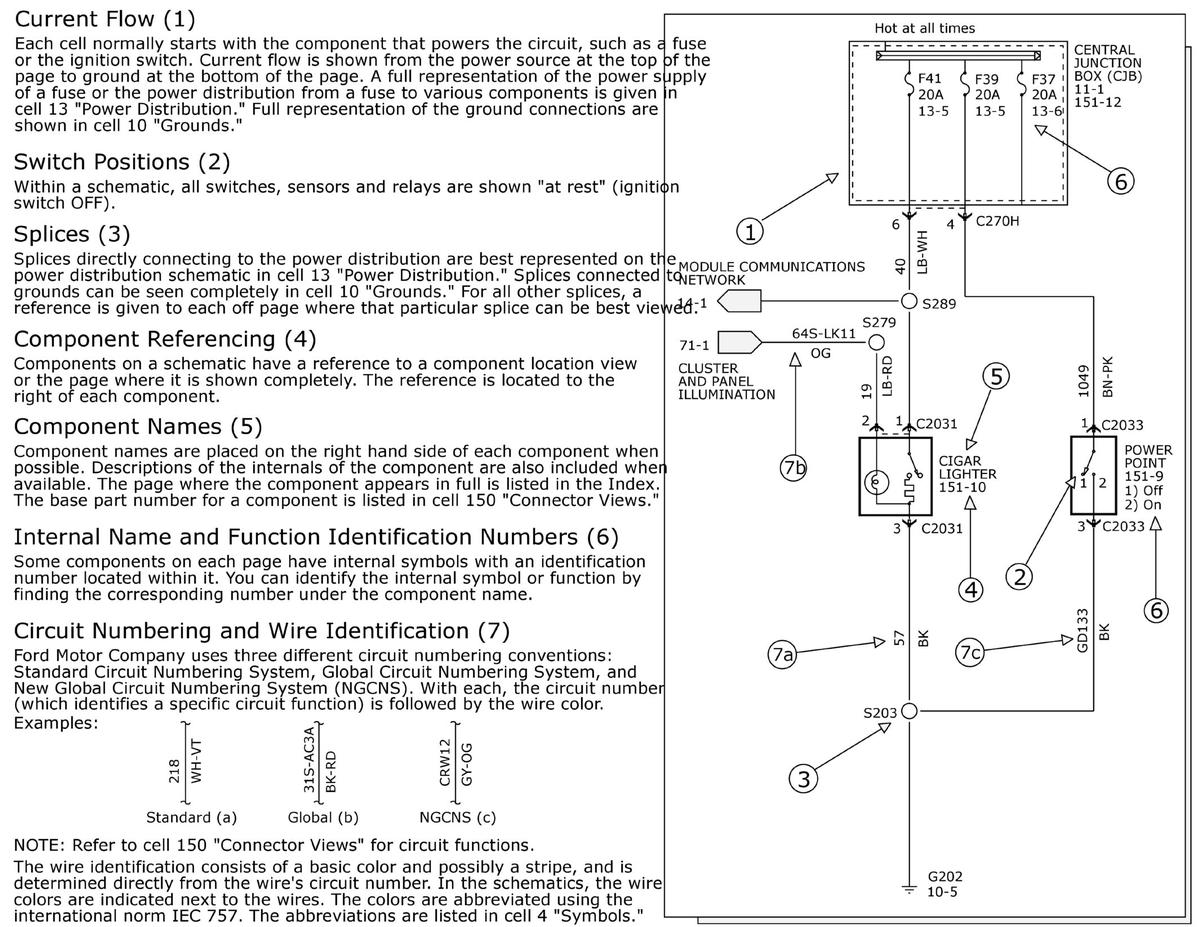

GFDWR108580Courtesy of FORD MOTOR COMPANY

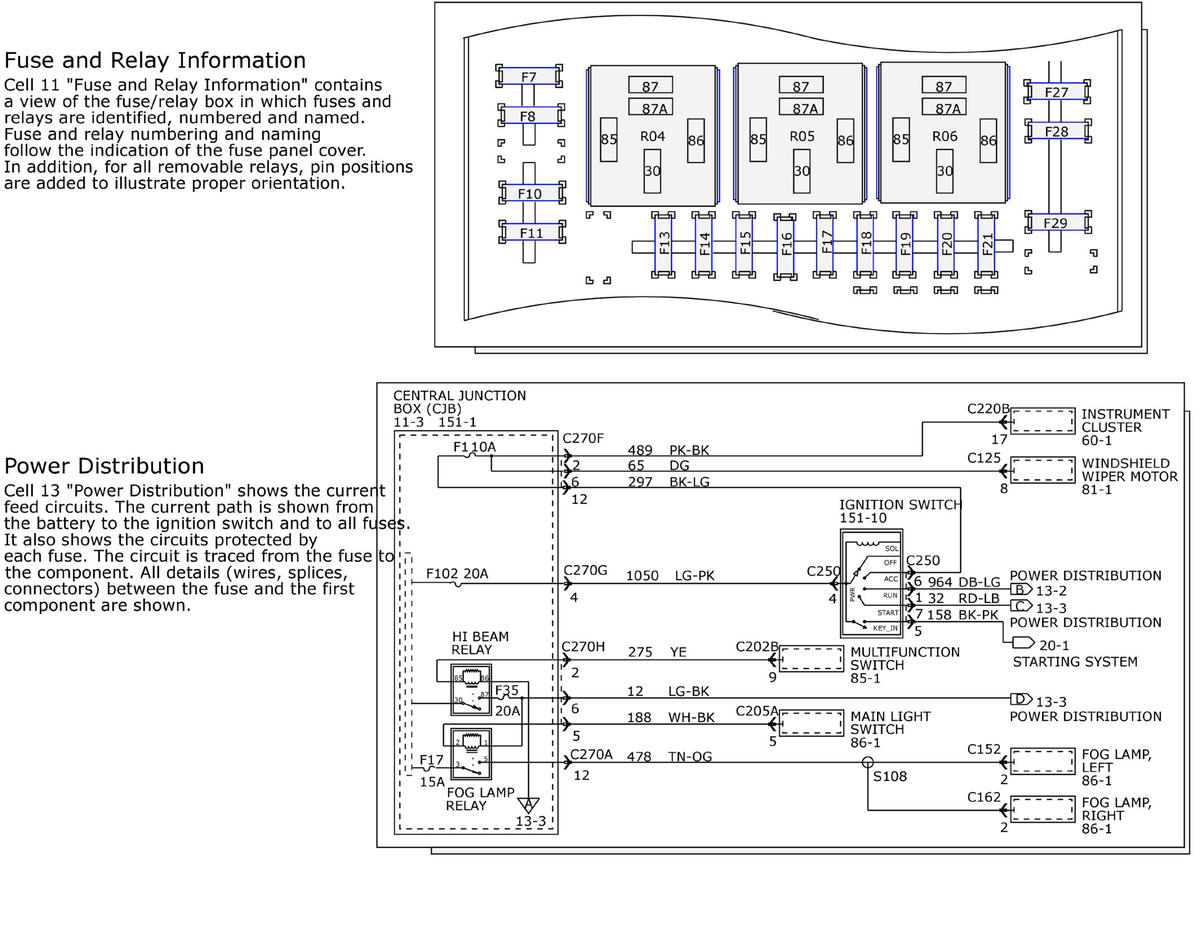

GFDWR108581Courtesy of FORD MOTOR COMPANY

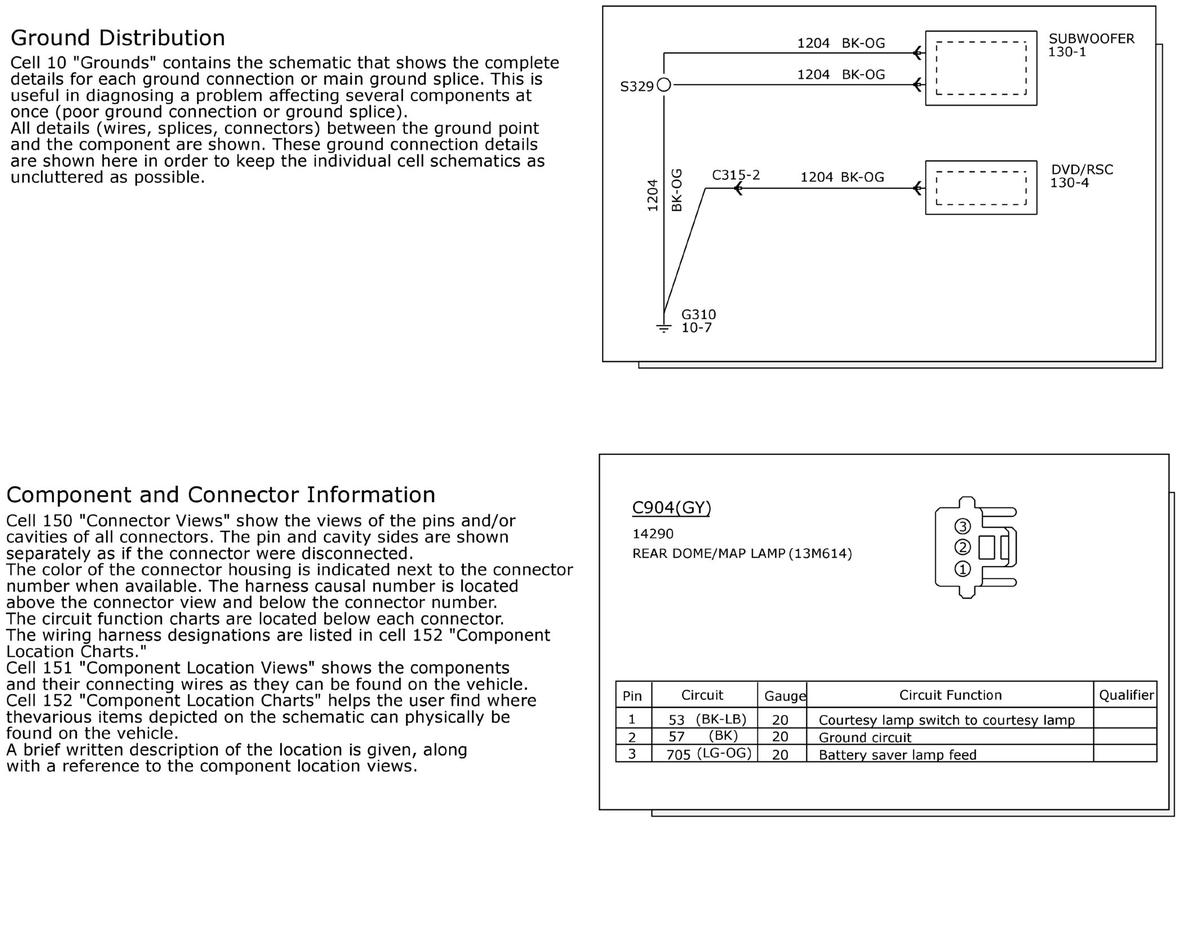

GFDWR108583Courtesy of FORD MOTOR COMPANY

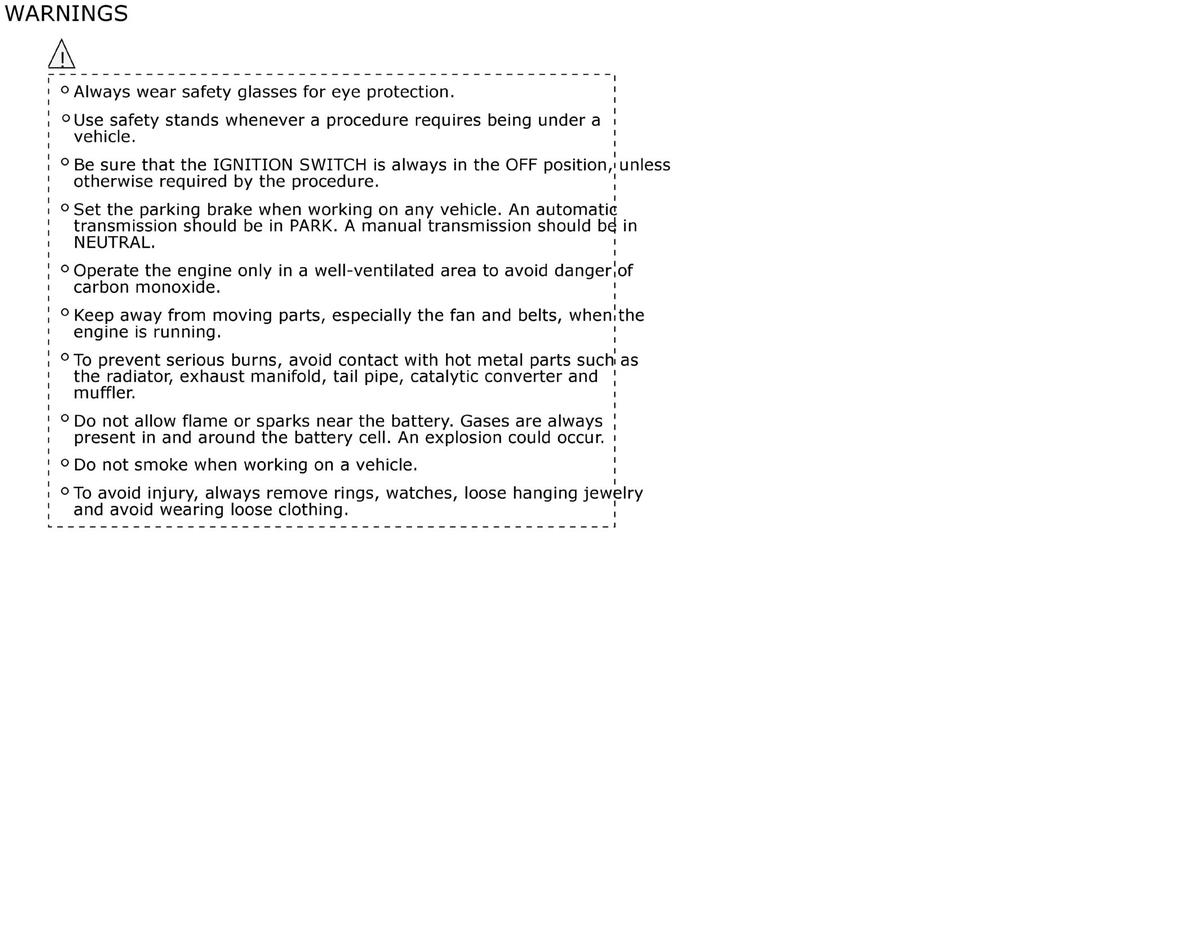

GFDWR108584Courtesy of FORD MOTOR COMPANY
