Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Vehicle without heated steering wheel shown others similar.

NOTE: Make sure the wheels and steering wheel is in the straight ahead position.

Remove the driver airbag. Refer to: Driver Airbag .

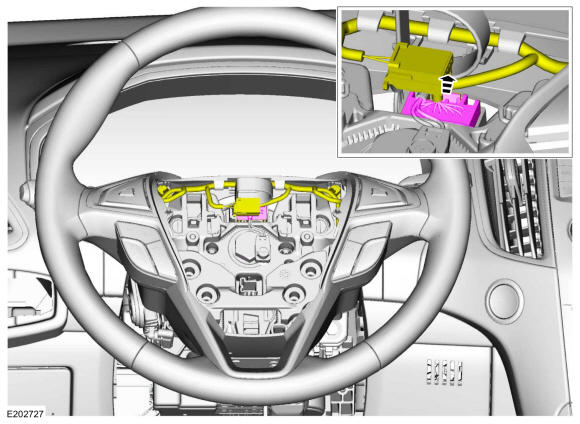

Disconnect the steering wheel electrical connector.

Courtesy of FORD MOTOR COMPANY

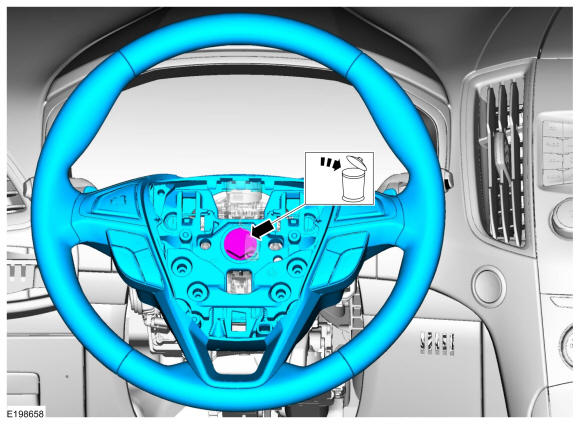

Remove the bolt and the steering wheel.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the clockspring rotor does not rotate.

NOTE: Make sure the clockspring pins are not bent or damaged.

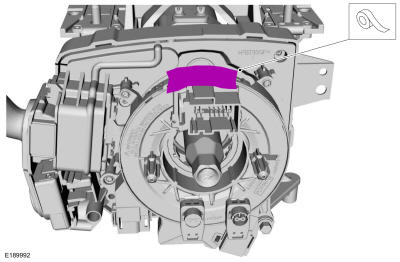

Tape the clockspring rotor to the outer housing to keep it from rotating.

Courtesy of FORD MOTOR COMPANY
