Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: Driver Airbag .
  2. Remove the upshift paddle switch.

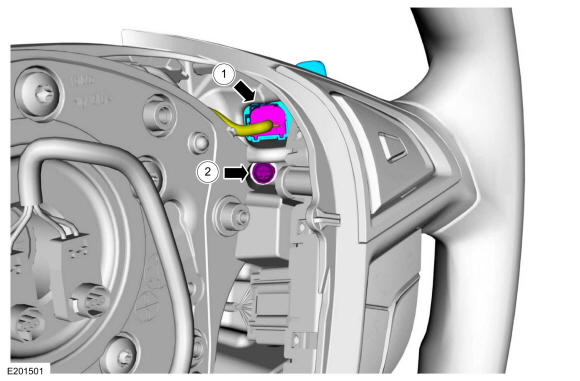

    1. Disconnect the electrical connector.
    2. Remove the retainer and the upshift paddle switch.

      Torque: 44 lb.in (5 Nm)

GFD528030Courtesy of FORD MOTOR COMPANY
